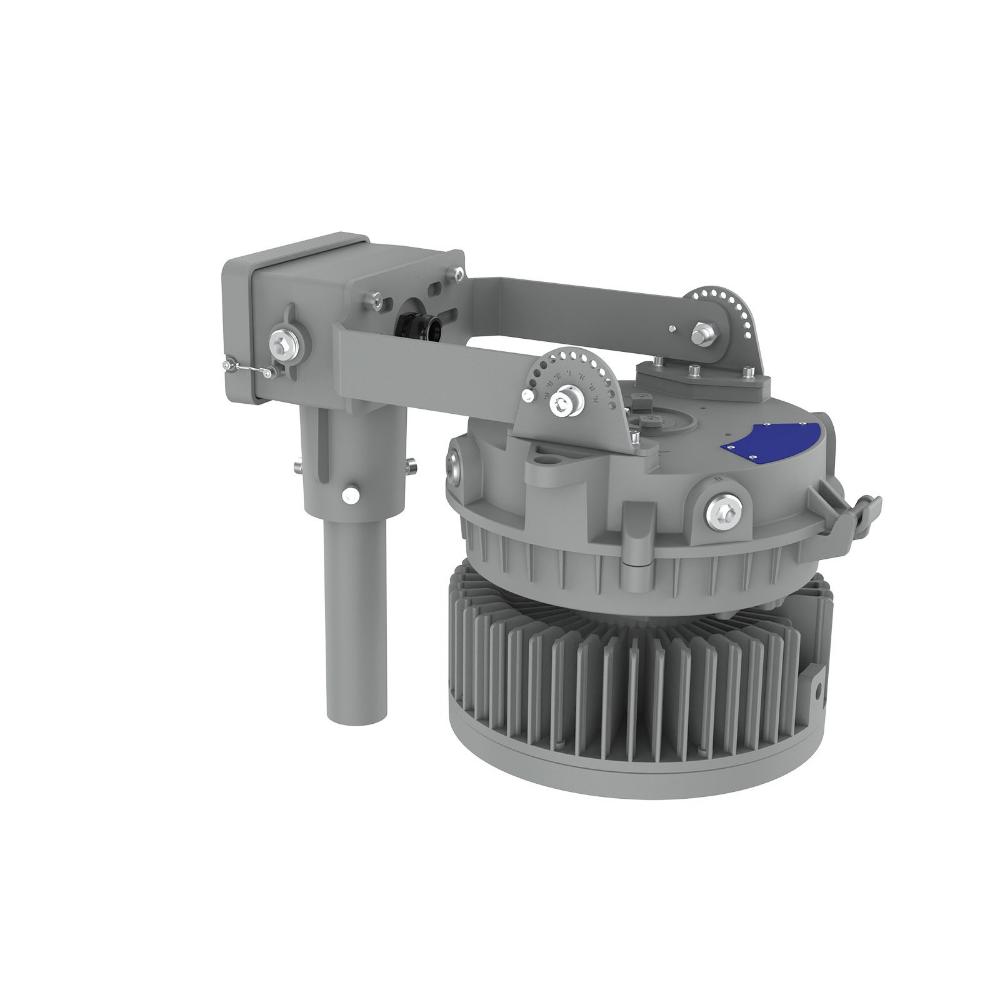

Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 1

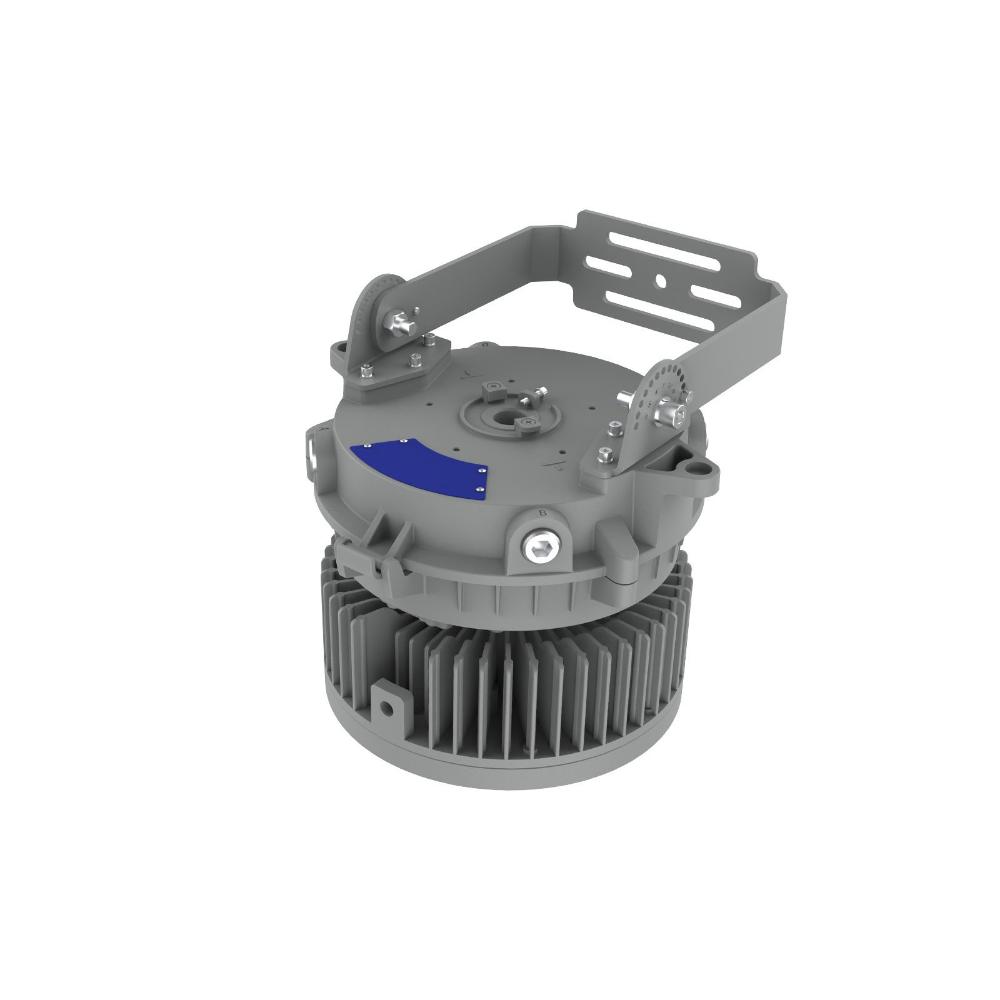

Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 2

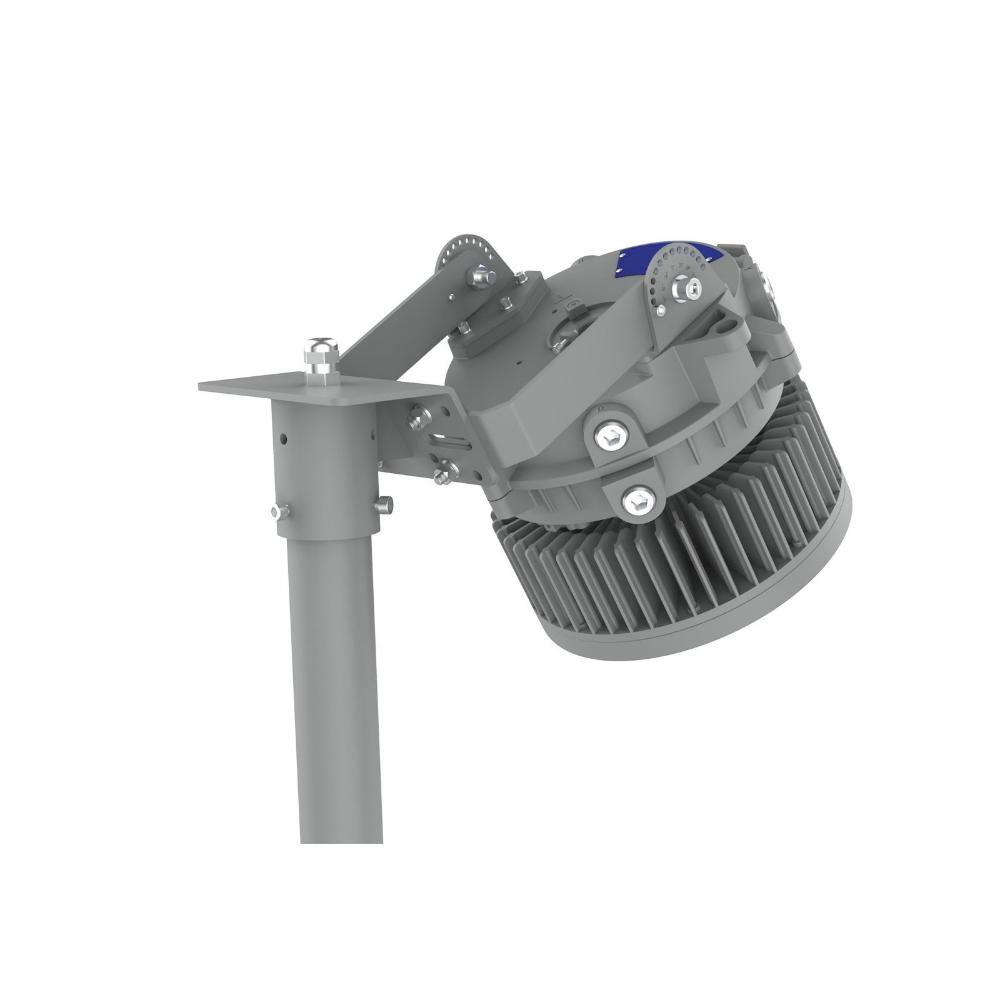

Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 3

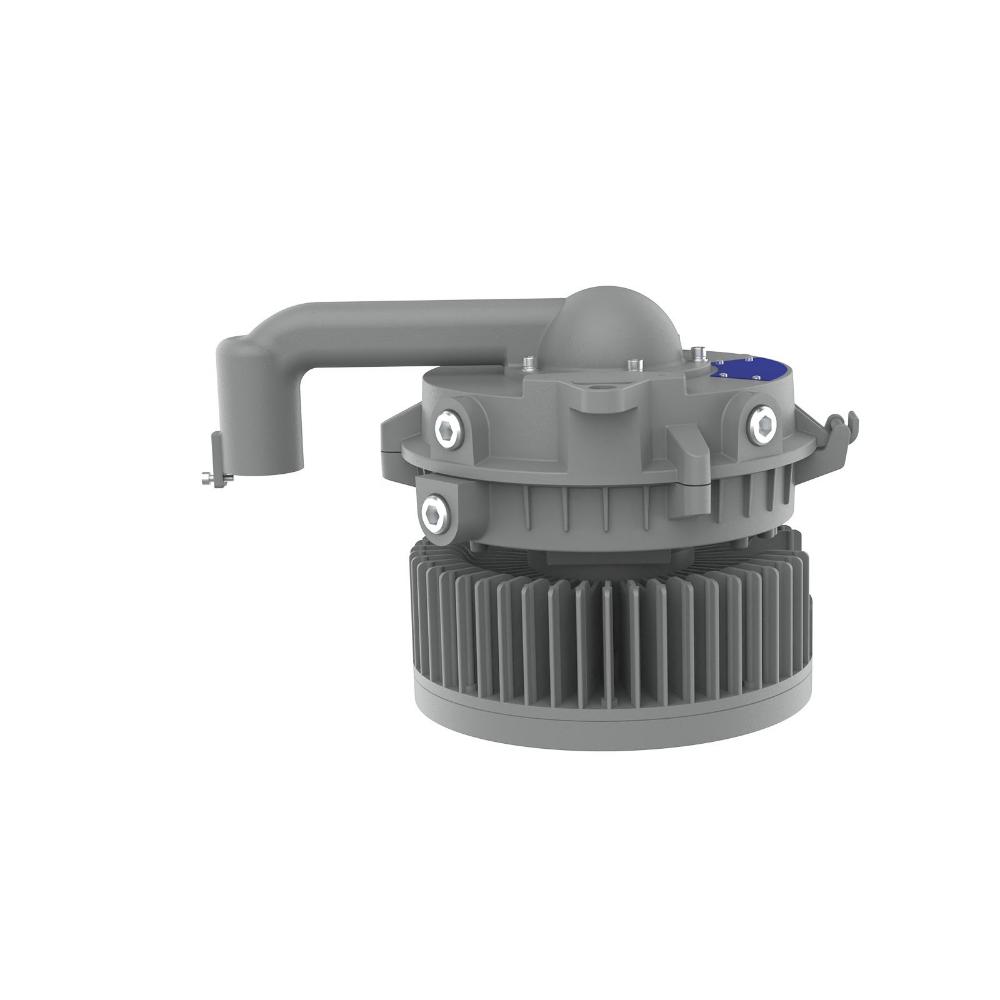

Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 4

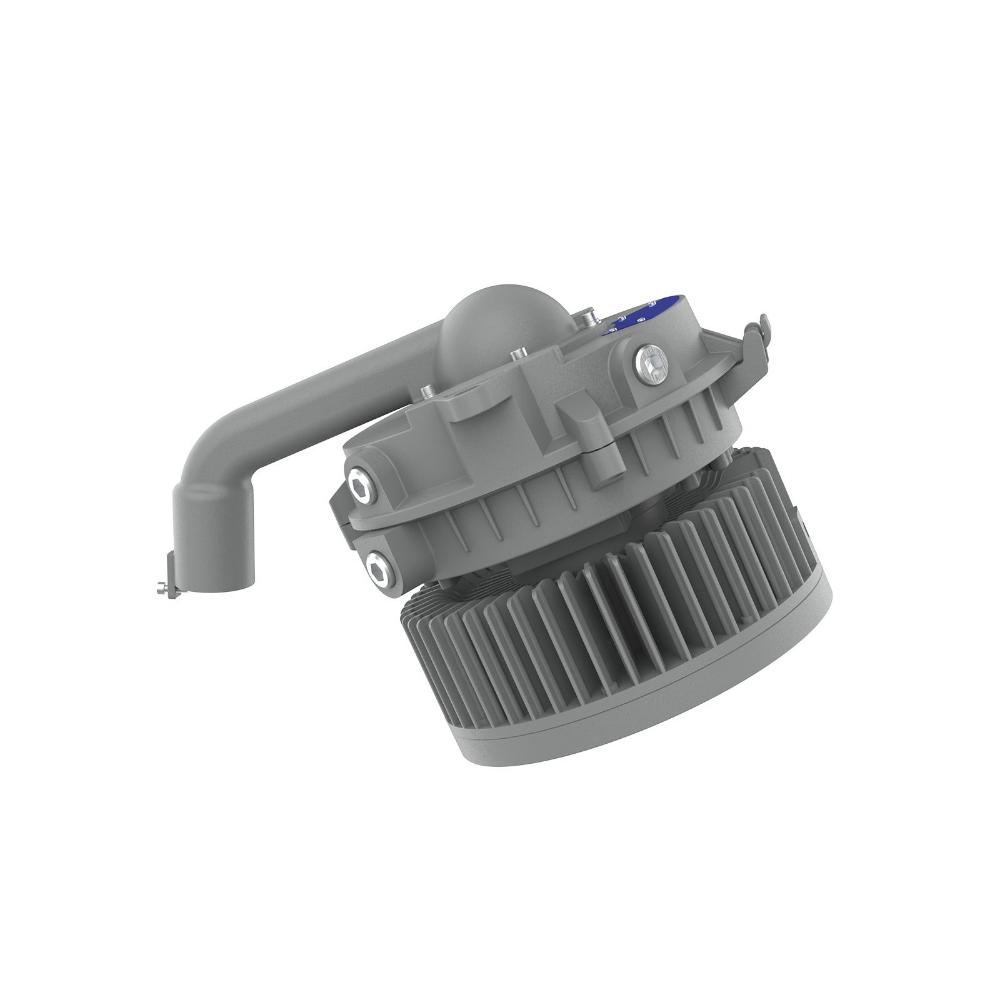

Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 5

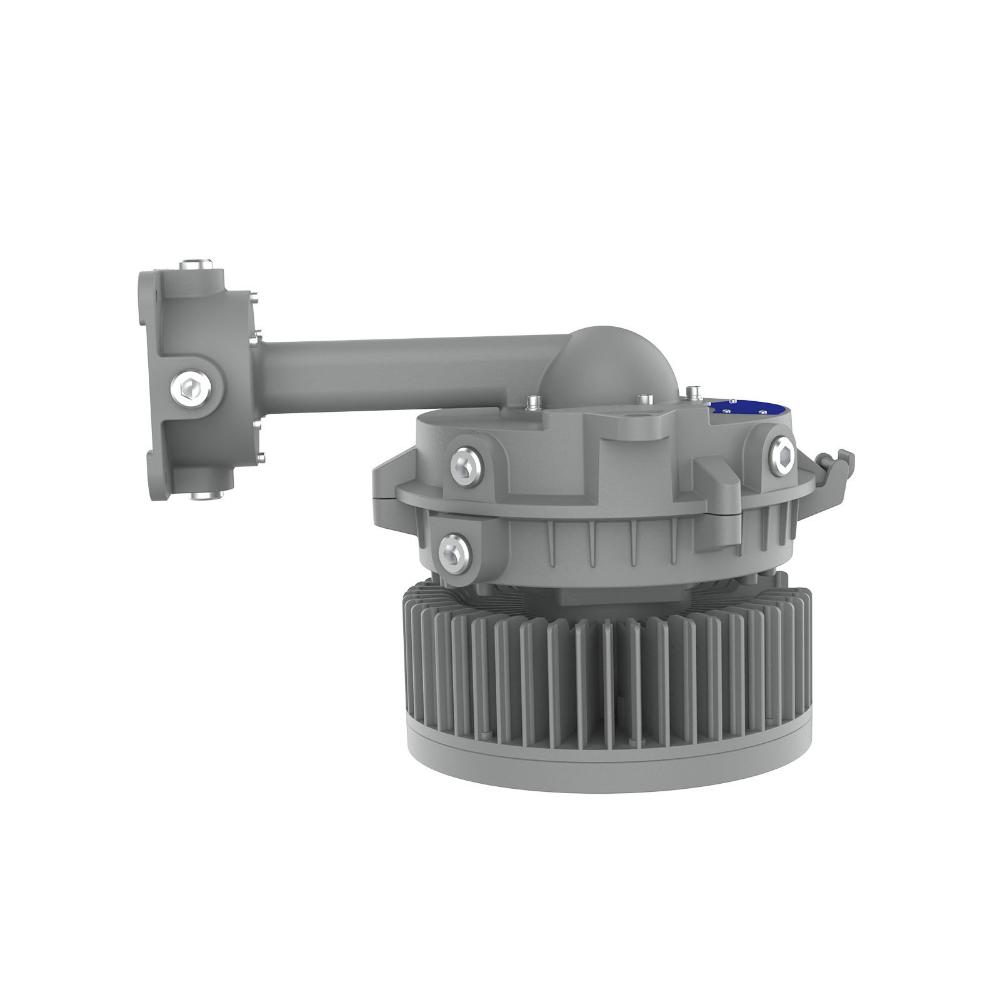

Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 6

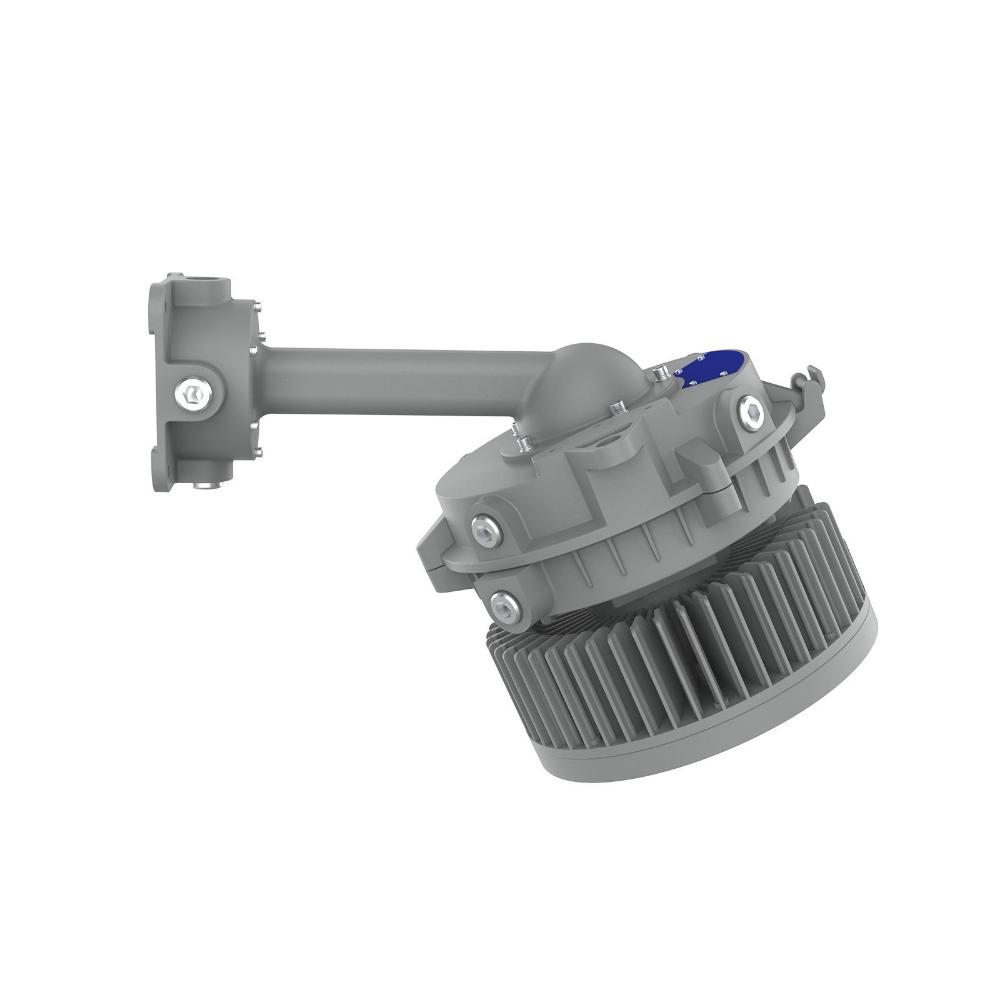

Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 7
Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 8

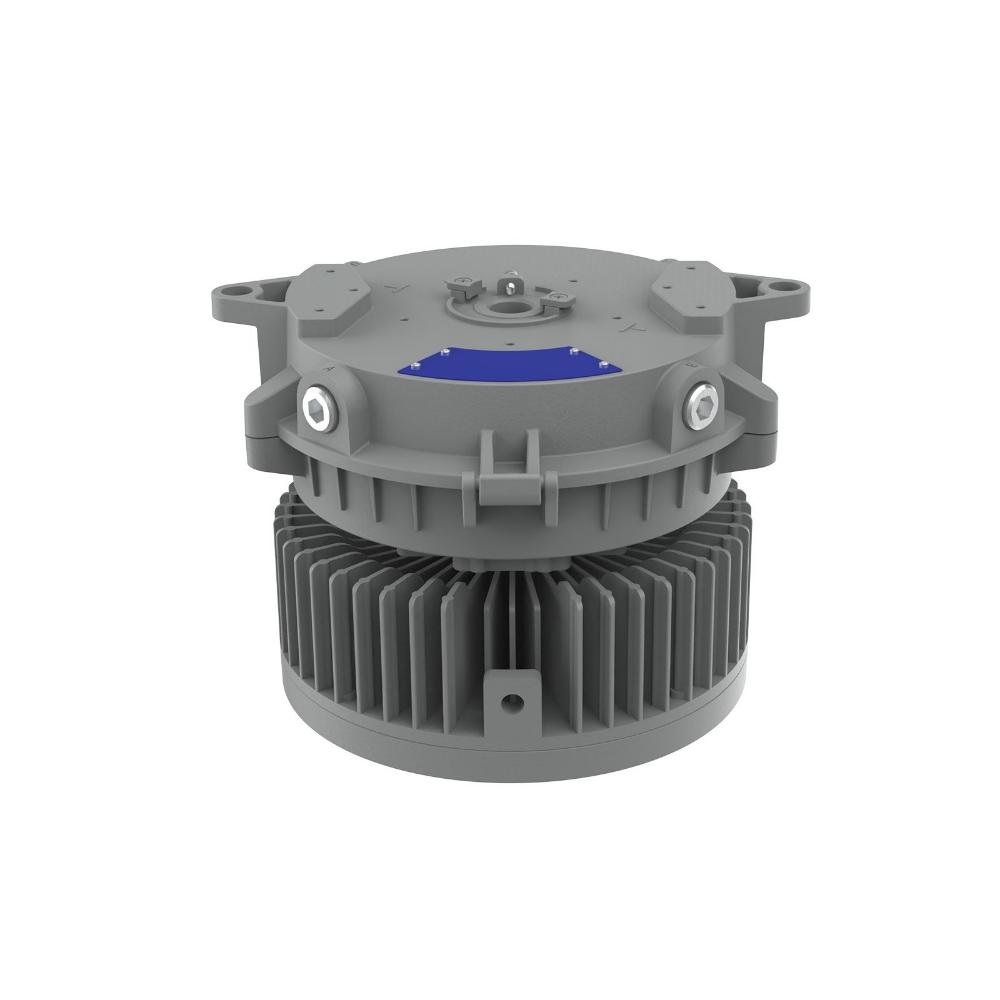

Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 9
Roll over image to zoom in Click on image to zoom
Red Sky Lighting Round Max Harsh Series Flood LightRed Sky Lighting Round Max Harsh Series Flood Light Additional Image 1Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 2Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 3Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 4Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 5Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 6Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 7Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 8Red Sky Lighting Round Max Harsh Series Flood Light Additional Image 9

Red Sky Lighting Round Max Harsh Series Flood Light

Red Sky LightingSKU: RDX HS
Price:
$0.00 USD

Description

Red Sky Lighting Round Max Harsh Series Flood Light

The Round Max Harsh Series from Red Sky Lighting delivers up to 30,000 lumens with five beam options, including Type I, III, V, 30°, and 60°. Designed for mid- to high-bay lighting in shipyards, power plants, and heavy industrial settings, it installs in under 60 seconds and withstands harsh conditions with its NEMA 4X/IP66-rated housing.

Specifications

Electrical Parameters

  • Power (W): 80W, 120W, 150W, 200W
  • Voltage(V): 100-277V AC, 347-480V AC, 120V AC, 208-277V AC
  • Frequency: 50/60Hz
  • Power Factor: ≥0.90
  • THD: <20%
  • L70: 80/120W: 112,000 hrs@149°F 150W: 112,000 hrs@140°F 200W: 110,000 hrs@131°F
  • Dimming: 0-10V, Range 10-100%
  • Surge Protection: 10KV
  • Warranty: LEDs: 10 years, Driver: 7 years

Optical Parameters

  • Lumen Output: 12,157Lm, 17,388Lm, 21,771Lm, 26,076Lm
  • Lumen Efficacy: 148Lm/W
  • Available Beam Angle: T1/T3/T5/30°/60°
  • Correlated Color Temperature (CCT): 3000K/4000K/5000K
  • Color Rendering Index (CRI): 80 CRI

Mechanical Parameters

  • Hardware: Stainless steel 316
  • Lens Material: Tempered Glass or Polycarbonate
  • Mounting Options: Pendant, Ceiling, Stanchion, Wall, Yoke, Junction Box, Stanchion slip fitter
  • Product Weight: 21.6lbs/9.8kg
  • Cable Entry: (6) 3/4" NPT
  • Product Dimensions (LxWxH): Φ10.6 x 9.1in(Φ270 x 230mm)

Environmental Parameters

  • Ambient Operating Temperature: 80W/120W: -40°F ~ +149°F (-40°C ~ 65°C) 150W: -40°F ~ +140°F (-40°C ~ 60°C) 200W: -40°F ~ 131°F (-40°C ~ 55°C)

Compliance

Ratings:

  • UL 1598 Wet Locations
  • UL 1598A Marine Outside Type (Salt Water)
  • IP66
  • IK08 (Glass) / IK10 (PC)
  • Salt Spray 720H (ASTM B117)
  • NEMA 4X

Certifications:

  • UL1598
  • UL1598A
  • CSA C22.2 No.250.0
  • DLC Standard*
  • FCC Part 15, Subpart B

Product Files

Click for Red Sky Lighting RDX HS Specification

Click for Red Sky Lighting RDX HS Installation Manual

Click for Red Sky Lighting RDX HS Certificate - UL1598 Non-Hazardous
