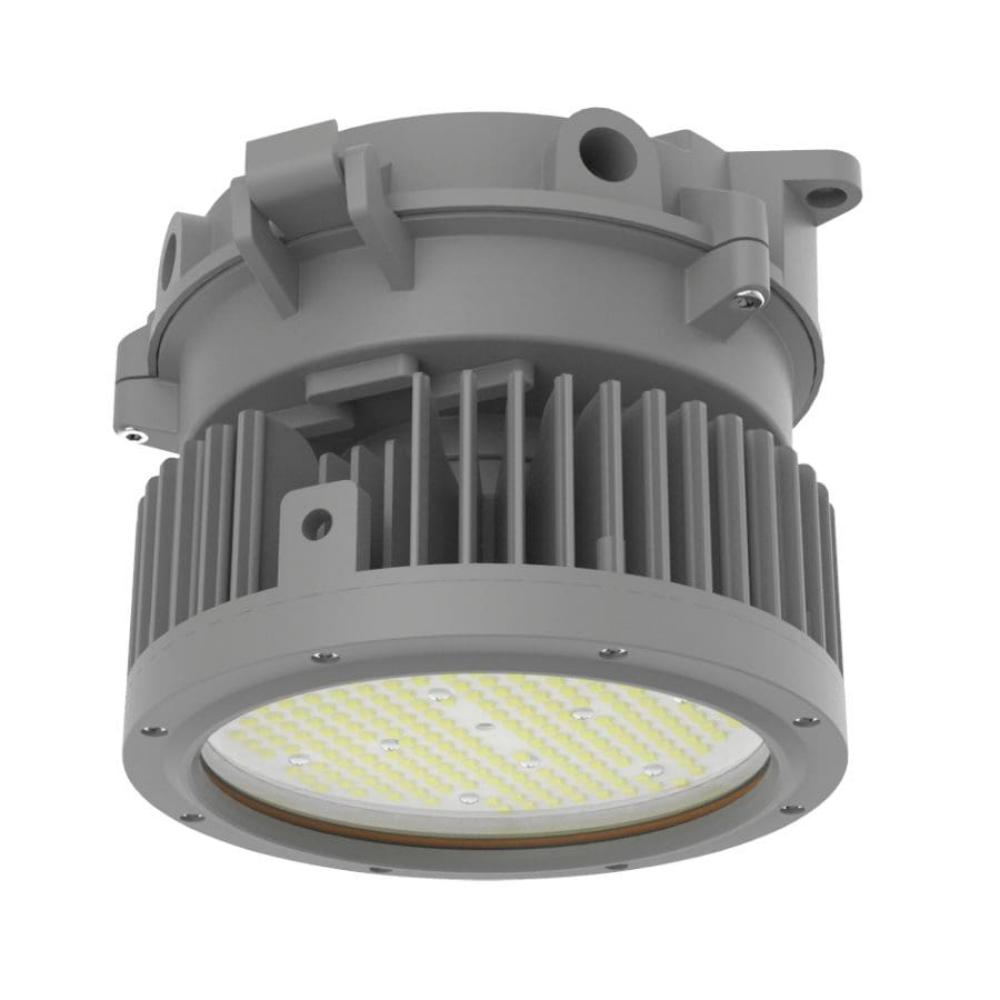

Red Sky Lighting Round Max Series Flood Light Additional Image 1

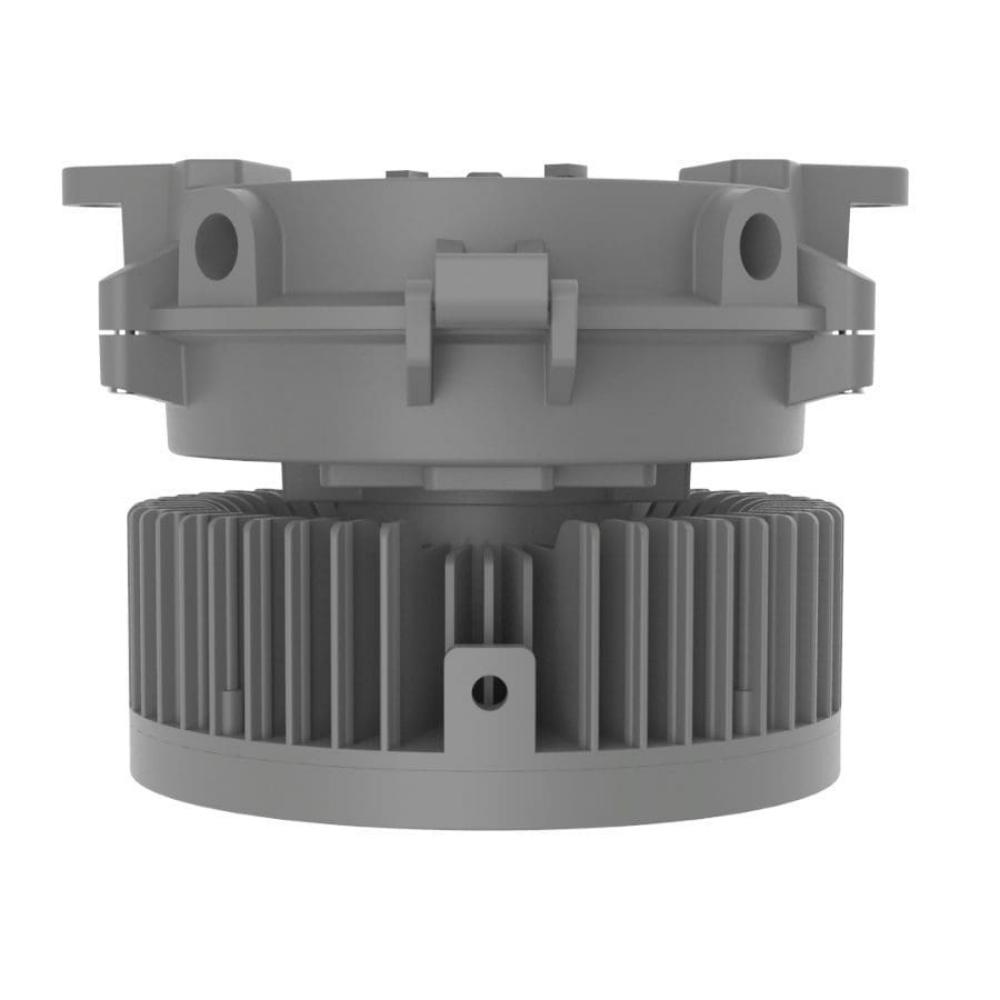

Red Sky Lighting Round Max Series Flood Light Additional Image 2

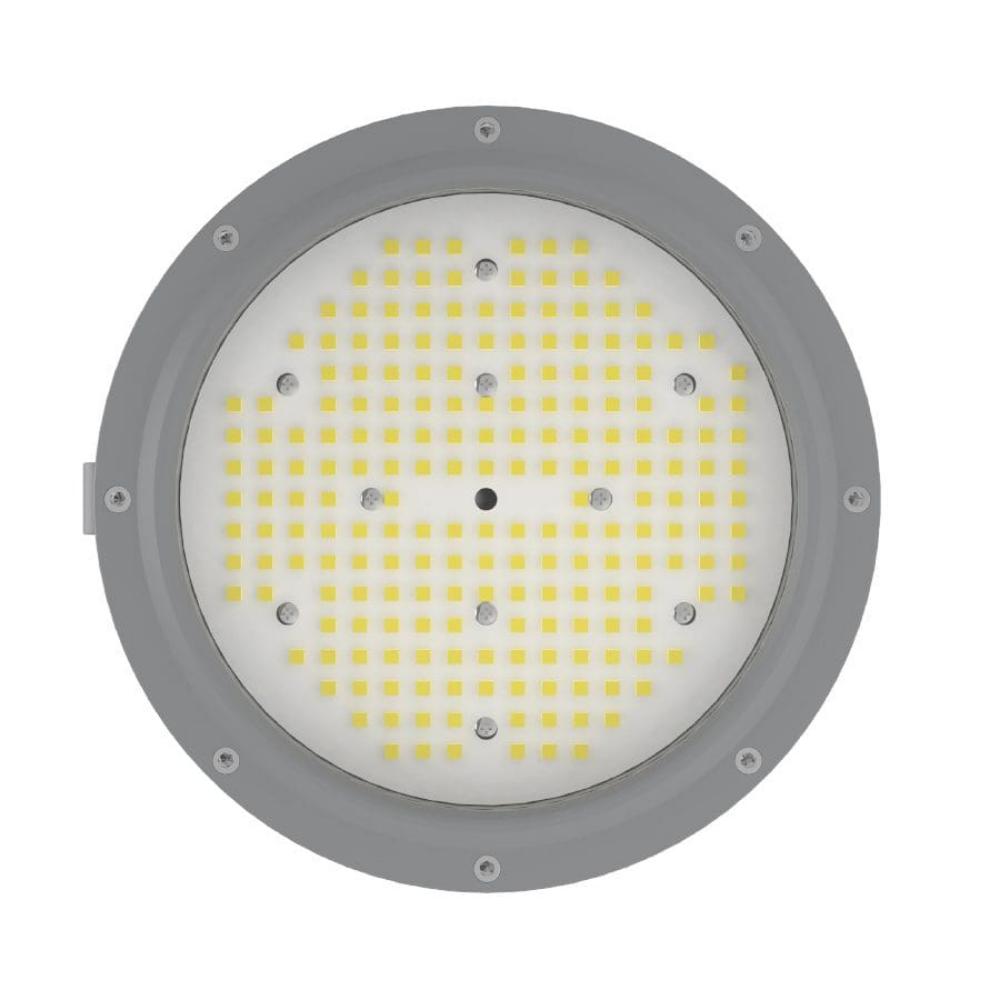

Red Sky Lighting Round Max Series Flood Light Additional Image 3
Red Sky Lighting Round Max Series Flood Light Additional Image 4
Red Sky Lighting Round Max Series Flood Light Additional Image 5

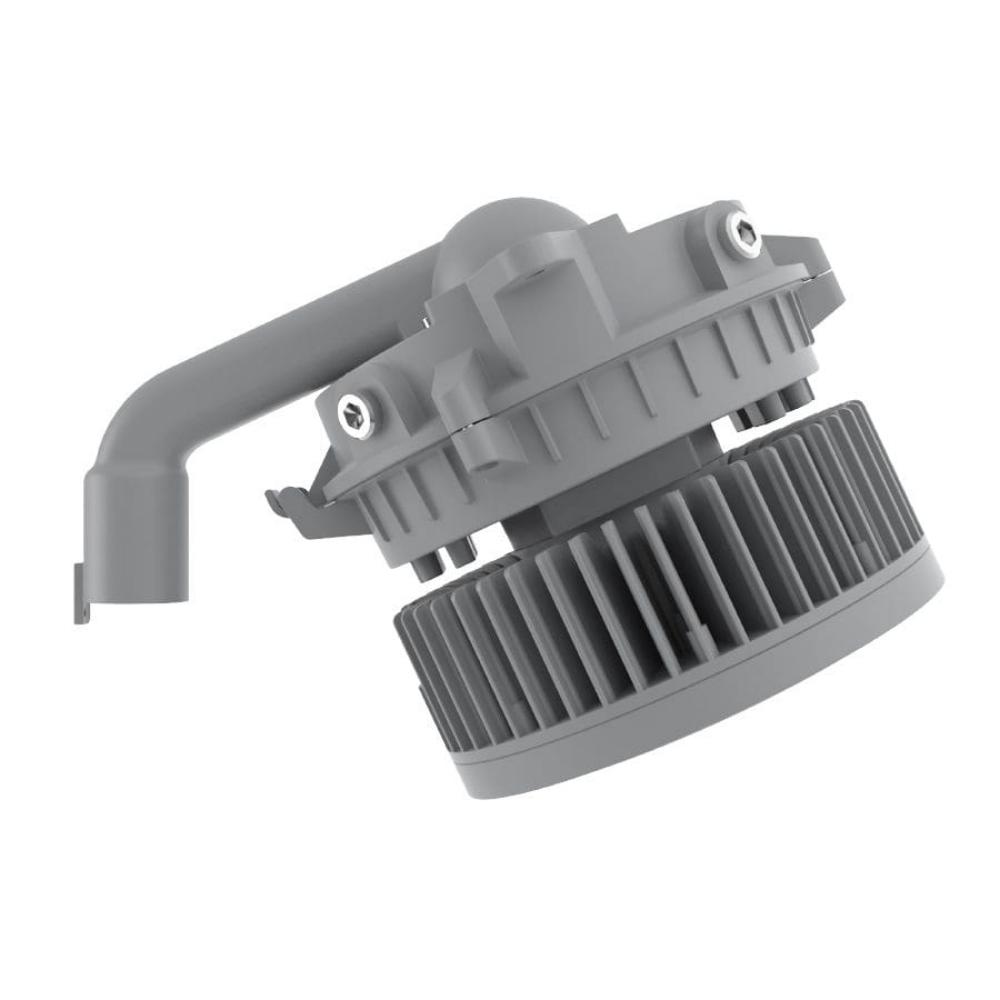

Red Sky Lighting Round Max Series Flood Light Additional Image 6

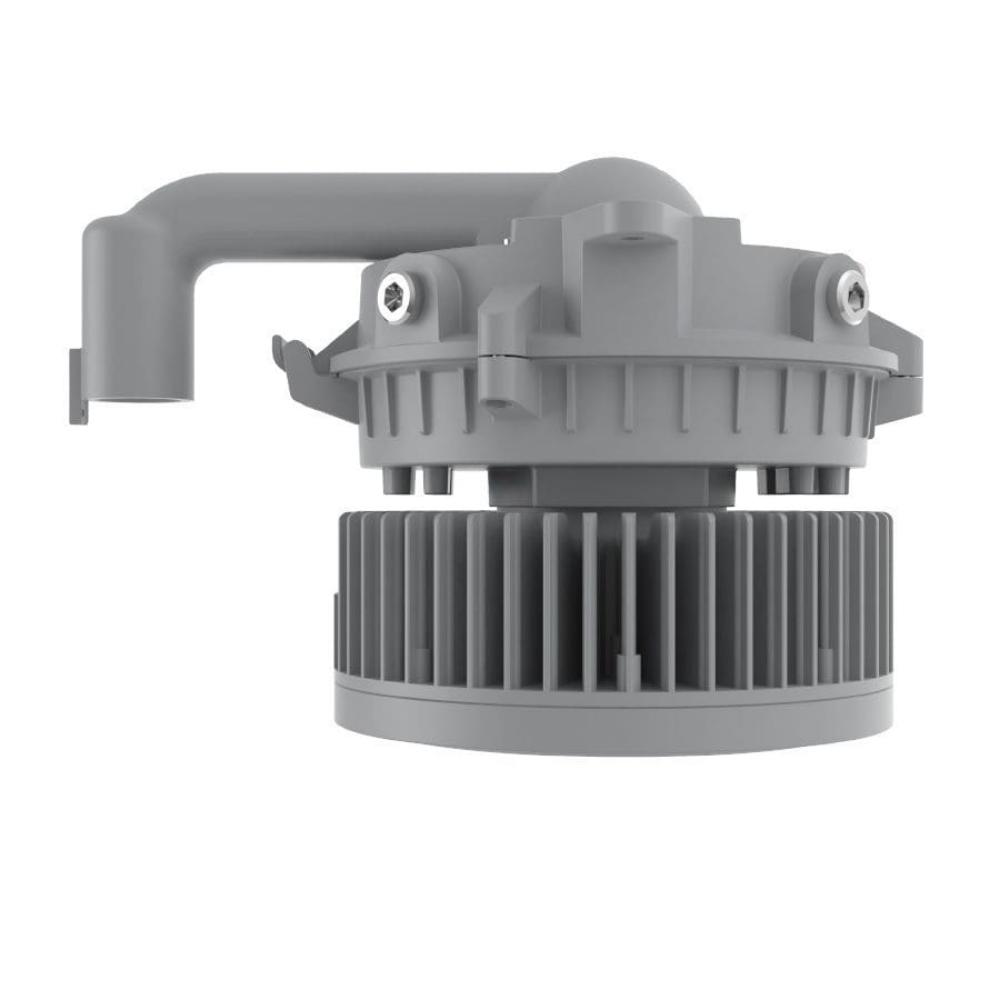

Red Sky Lighting Round Max Series Flood Light Additional Image 7
Red Sky Lighting Round Max Series Flood Light Additional Image 8

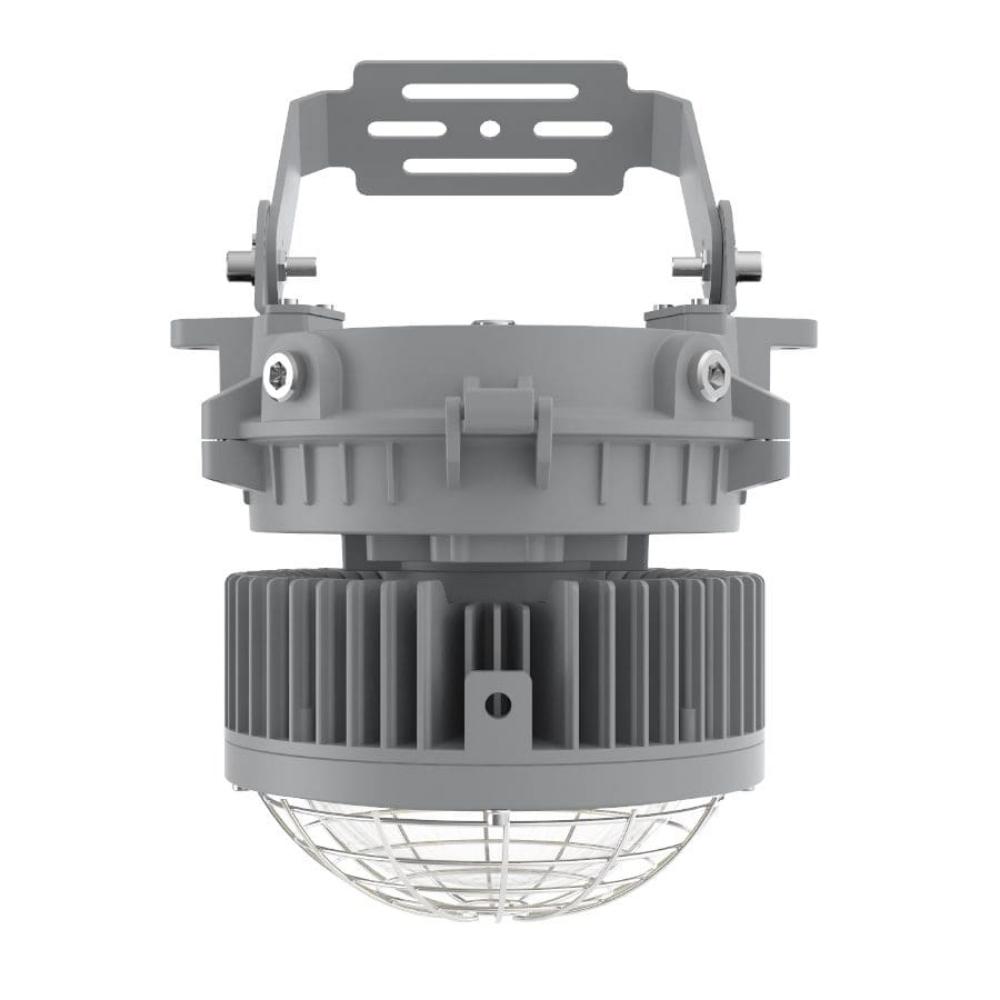

Red Sky Lighting Round Max Series Flood Light Additional Image 9

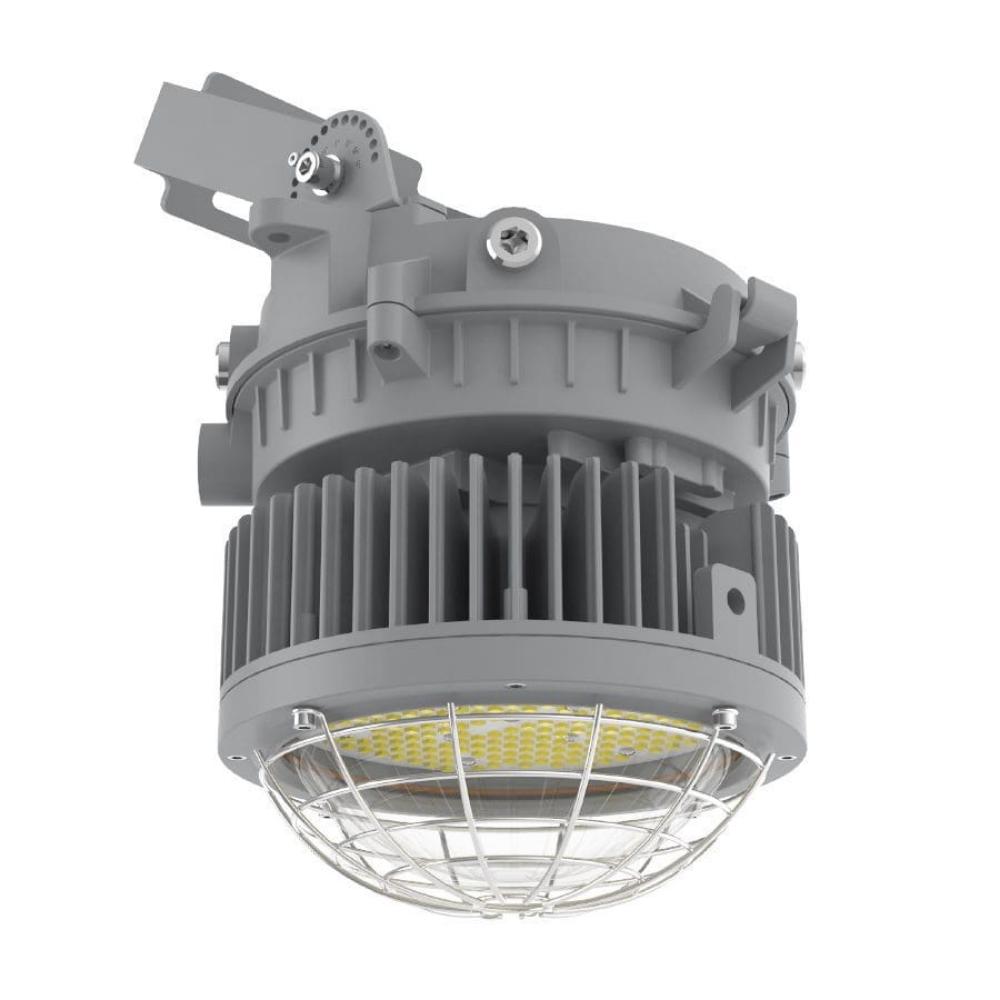

Red Sky Lighting Round Max Series Flood Light Additional Image 10
Red Sky Lighting Round Max Series Flood Light Additional Image 11
Red Sky Lighting Round Max Series Flood Light Additional Image 12
Red Sky Lighting Round Max Series Flood Light Additional Image 13
Red Sky Lighting Round Max Series Flood Light Additional Image 14
Roll over image to zoom in Click on image to zoom
Red Sky Lighting Round Max Series Flood LightRed Sky Lighting Round Max Series Flood Light Additional Image 1Red Sky Lighting Round Max Series Flood Light Additional Image 2Red Sky Lighting Round Max Series Flood Light Additional Image 3Red Sky Lighting Round Max Series Flood Light Additional Image 4Red Sky Lighting Round Max Series Flood Light Additional Image 5Red Sky Lighting Round Max Series Flood Light Additional Image 6Red Sky Lighting Round Max Series Flood Light Additional Image 7Red Sky Lighting Round Max Series Flood Light Additional Image 8Red Sky Lighting Round Max Series Flood Light Additional Image 9Red Sky Lighting Round Max Series Flood Light Additional Image 10Red Sky Lighting Round Max Series Flood Light Additional Image 11Red Sky Lighting Round Max Series Flood Light Additional Image 12Red Sky Lighting Round Max Series Flood Light Additional Image 13Red Sky Lighting Round Max Series Flood Light Additional Image 14

Red Sky Lighting Round Max Series Flood Light

Red Sky LightingSKU: RDX
Price:
$0.00 USD

Description

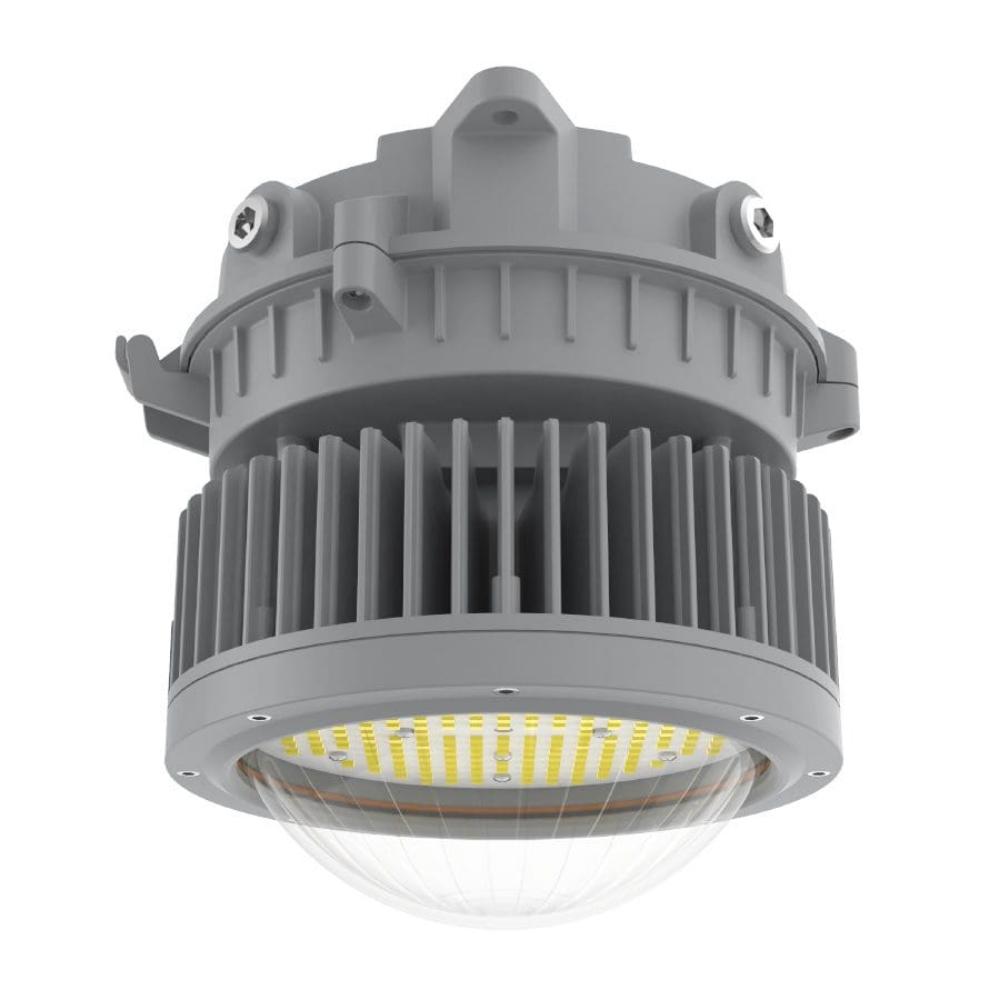

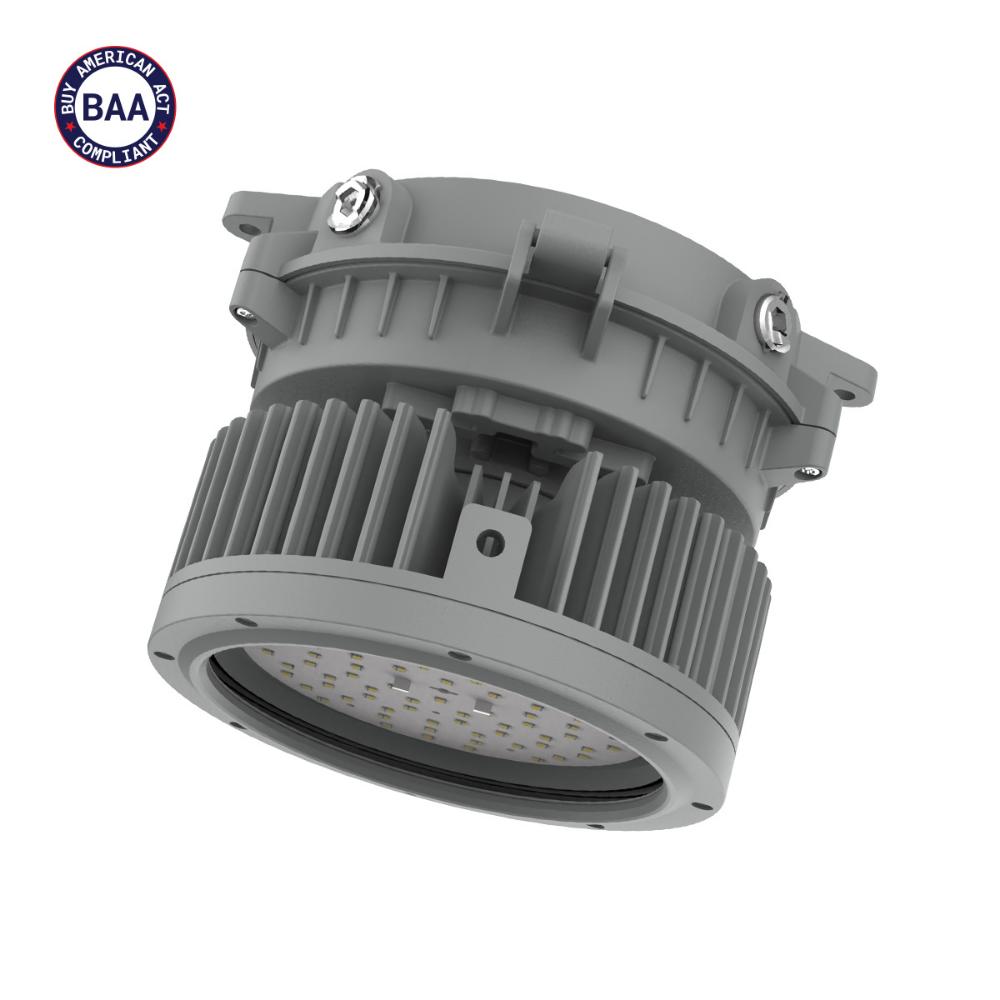

Red Sky Lighting Round Max Series Flood Light

The Round-Max is designed for indoor mid to high bay and outdoor general area applications. Available up to 30,000 lumens with type I, III and V optics, it is designed to distribute the light where needed most, reducing the number of fixtures needed. Ideal for lighting oil & gas refineries, shipyards, power plants, and other industrial applications.

Specifications

Electrical Parameters

  • Power (W): 80W, 120W, 150W, 200W
  • Voltage(V): 100-277V AC, 347-480V AC
  • Frequency: 50/60Hz
  • Power Factor: ≥0.90
  • THD: <20%
  • L70: 80/120W: 112,000 hrs@149°F 150W: 112,000 hrs@140°F 200W: 110,000 hrs@131°F
  • Dimming: 0-10V, Range 10-100%
  • Surge Protection: 10KV
  • Warranty: LEDs: 10 years, Driver: 7 years

Optical Parameters

  • Lumen Output: 12,157Lm, 17,388Lm, 21,771Lm, 26,076Lm
  • Lumen Efficacy: 148Lm/W
  • Available Beam Angle: T1/T3/T5/30°/60°
  • Correlated Color Temperature (CCT): 3000K/4000K/5000K
  • Color Rendering Index (CRI): 80 CRI

Mechanical Parameters

  • Hardware: Stainless steel 316
  • Lens Material: Tempered Glass or Polycarbonate

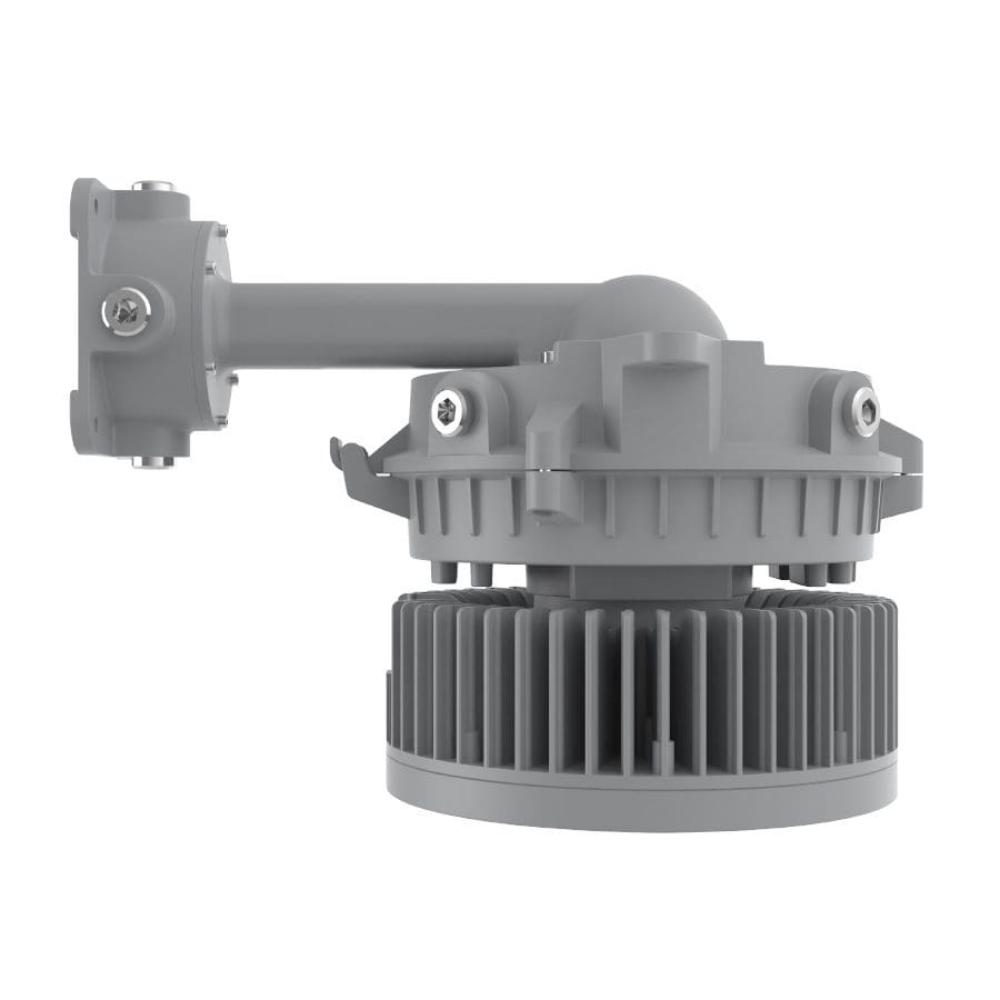

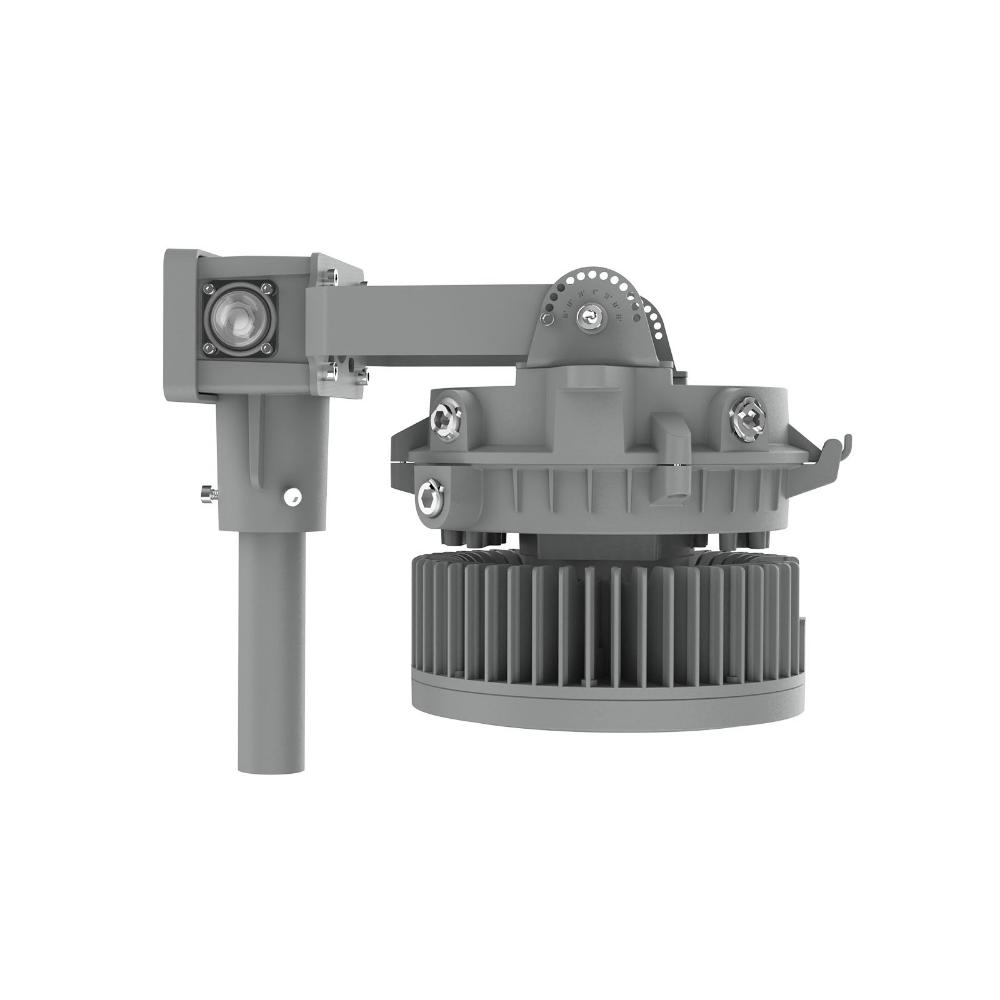

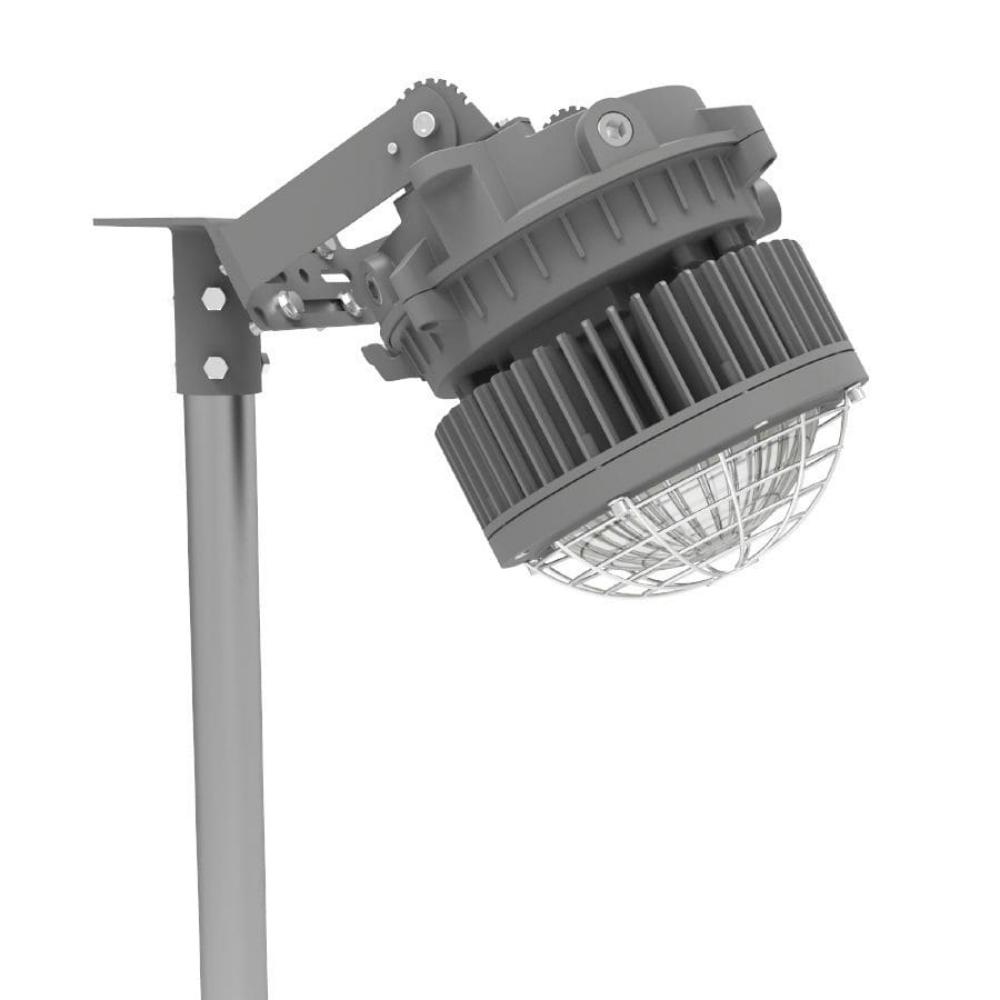

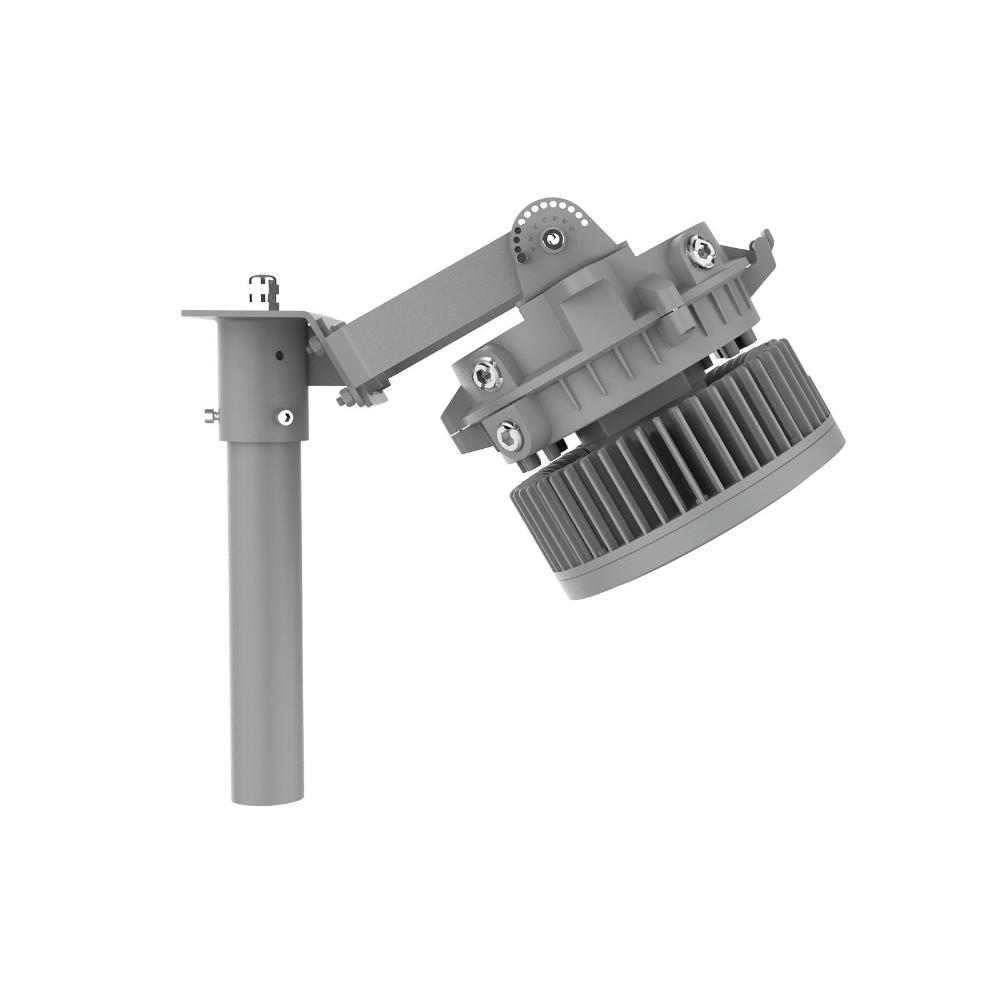

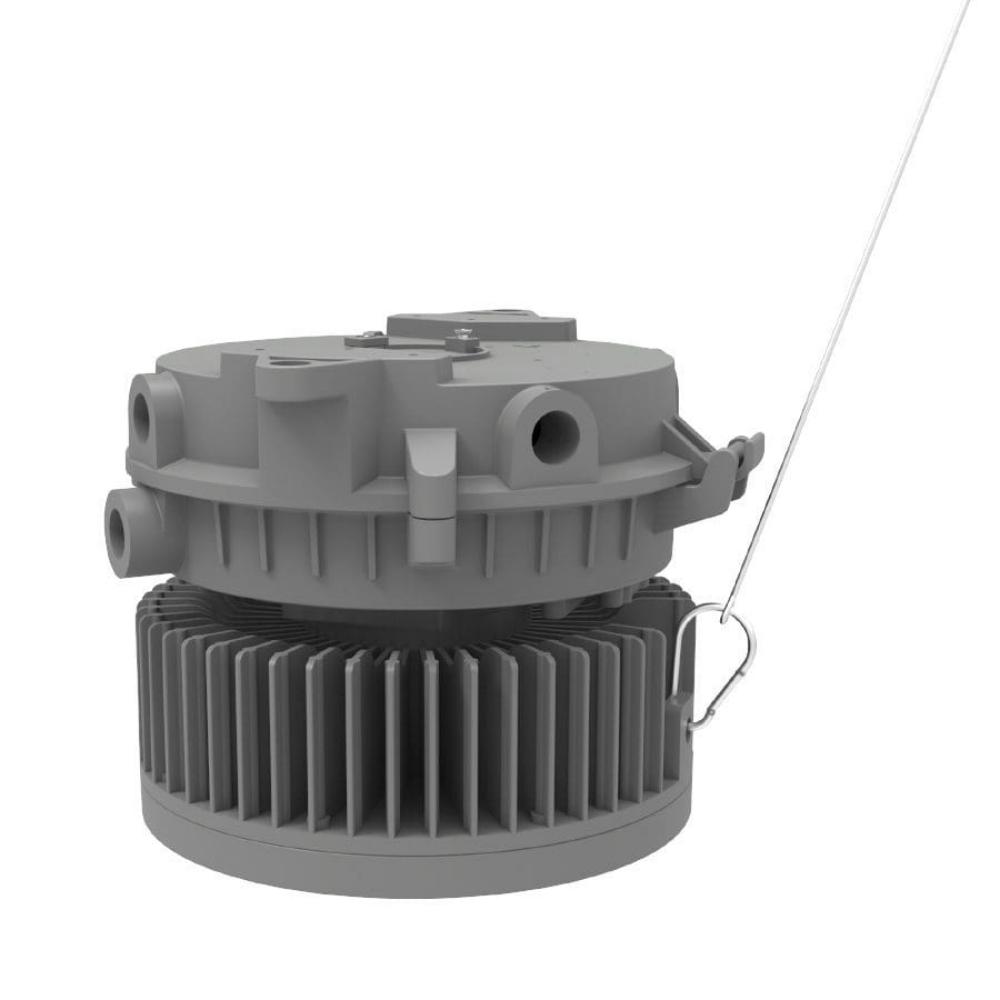

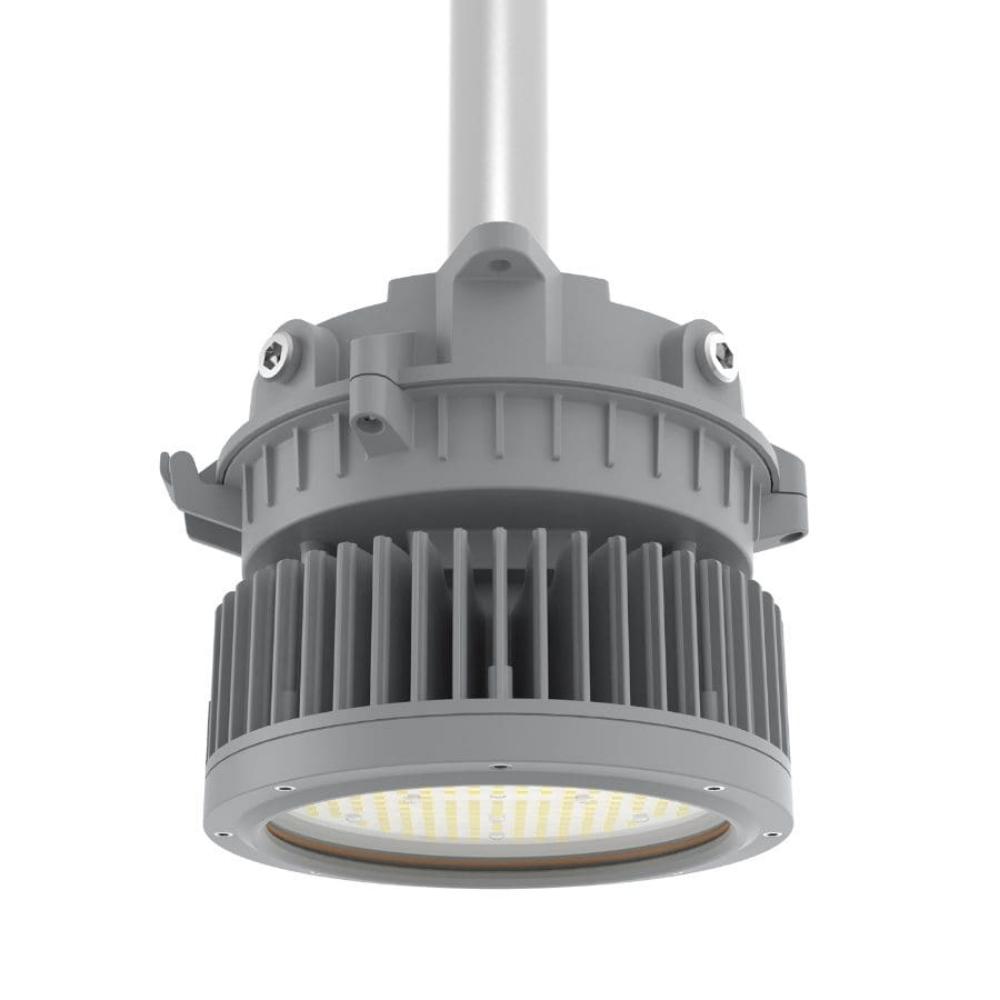

  • Mounting Options: Pendant, Ceiling, Stanchion, Wall, Yoke, Junction Box, Stanchion slip fitter
  • Product Weight: 21.6lbs/9.8kg
  • Cable Entry: (6) 3/4" NPT
  • Product Dimensions(ΦxH): Φ10.6 x 9.1in(Φ270 x 230mm)

Environmental Parameters

  • Ambient Operating Temperature: 80W/120W: -40°F ~ +149°F (-40°C ~ 65°C) 150W: -40°F ~ +140°F (-40°C ~ 60°C) 200W: -40°F ~ 131°F (-40°C ~ 55°C)
  • T-Code Rating: CID2 - T4A, CIID1 - T4A

Compliance

Ratings:

  • Class I Division 2, Group A, B, C, D
  • Class II Division 1 Group E, F, G
  • Class II Division 2, Group F, G
  • Class III
  • Class I, Zone 2, Group IIC
  • Zone 21, Group IIIC
  • Simultaneous Presence
  • UL 1598 Wet Locations
  • UL 1598A Marine Outside Type (Salt Water)
  • IP66
  • IK08
  • Salt Spray 720H (ASTM B117)
  • NEMA 4X

Certifications:

  • UL844
  • UL1598
  • UL1598A
  • CSA C22.2 No.137
  • CSA C22.2 No.250.0
  • DLC Standard*
  • FCC Part 15, Subpart B

Product Files

Click for Red Sky Lighting RDX Specification

Click for Red Sky Lighting RDX Installation Manual

Click for Red Sky Lighting RDX Certificate - UL844 Hazardous

Click for Red Sky Lighting RDX Certificate - UL1598A Marine
