Description

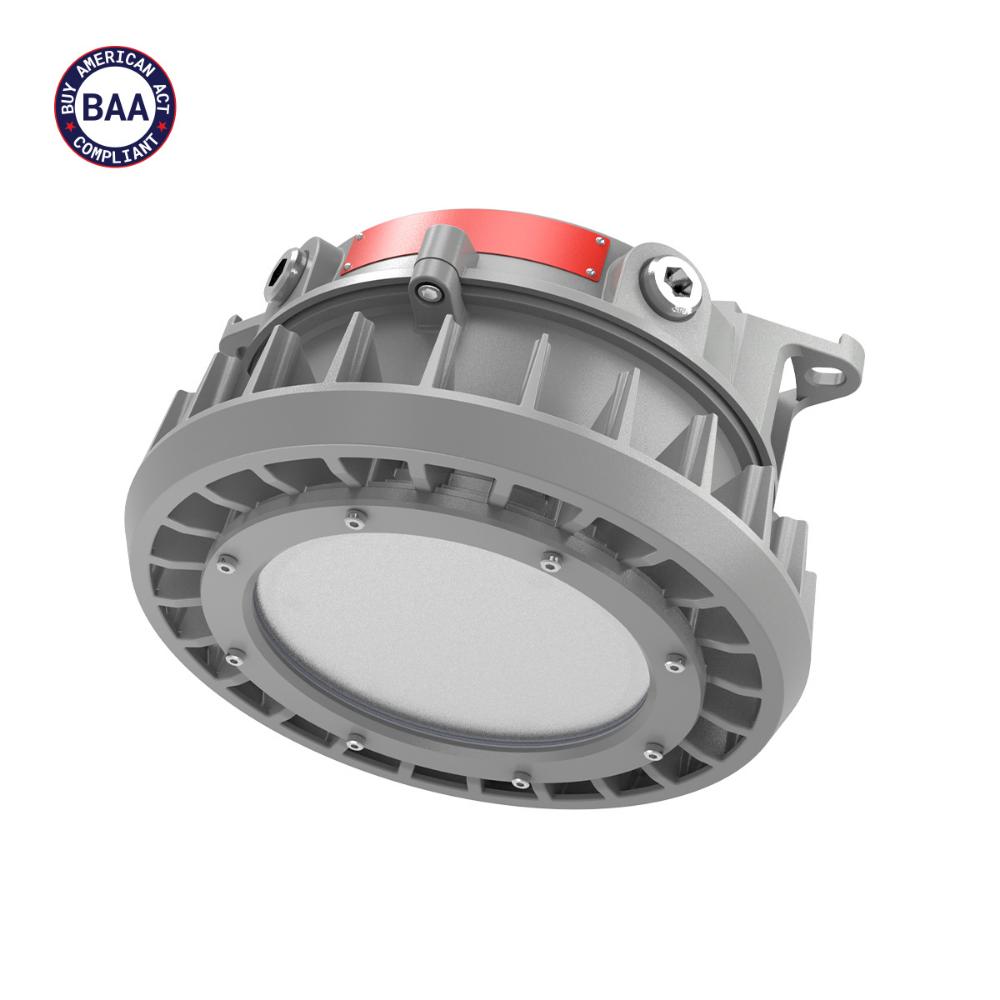

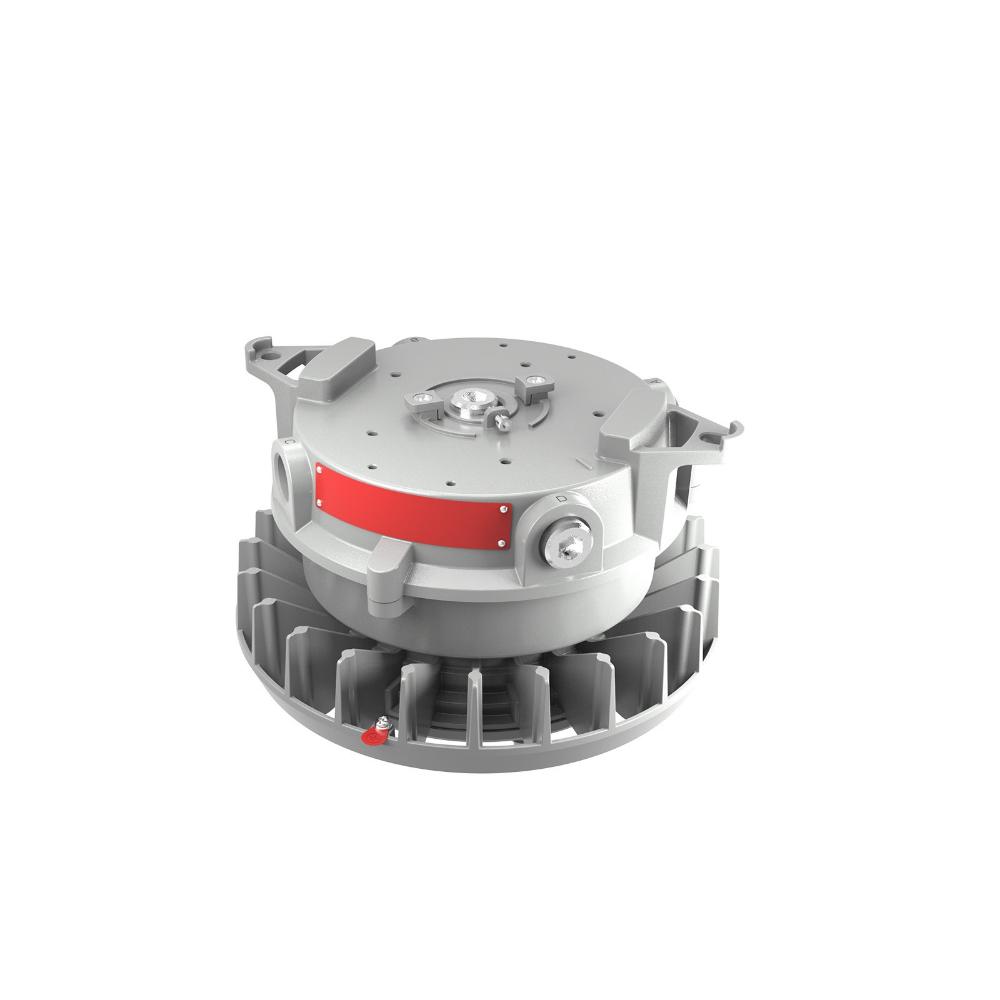

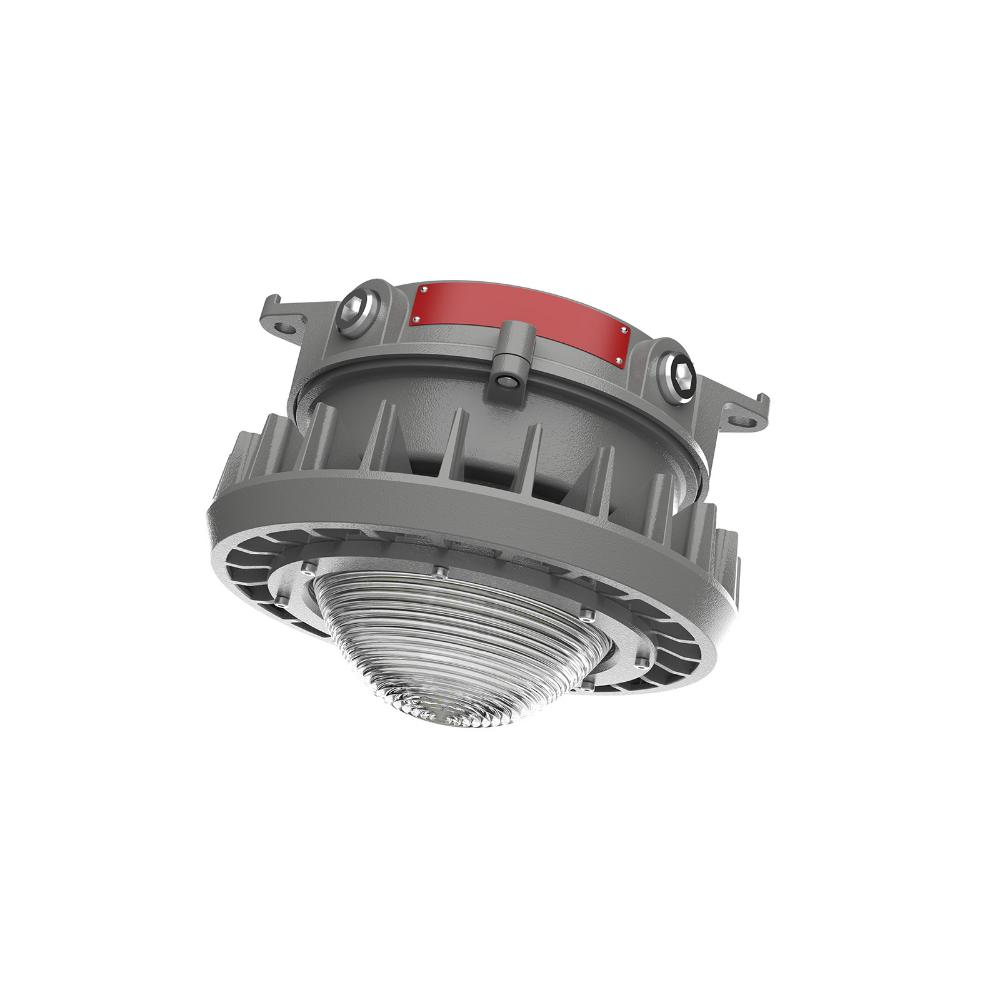

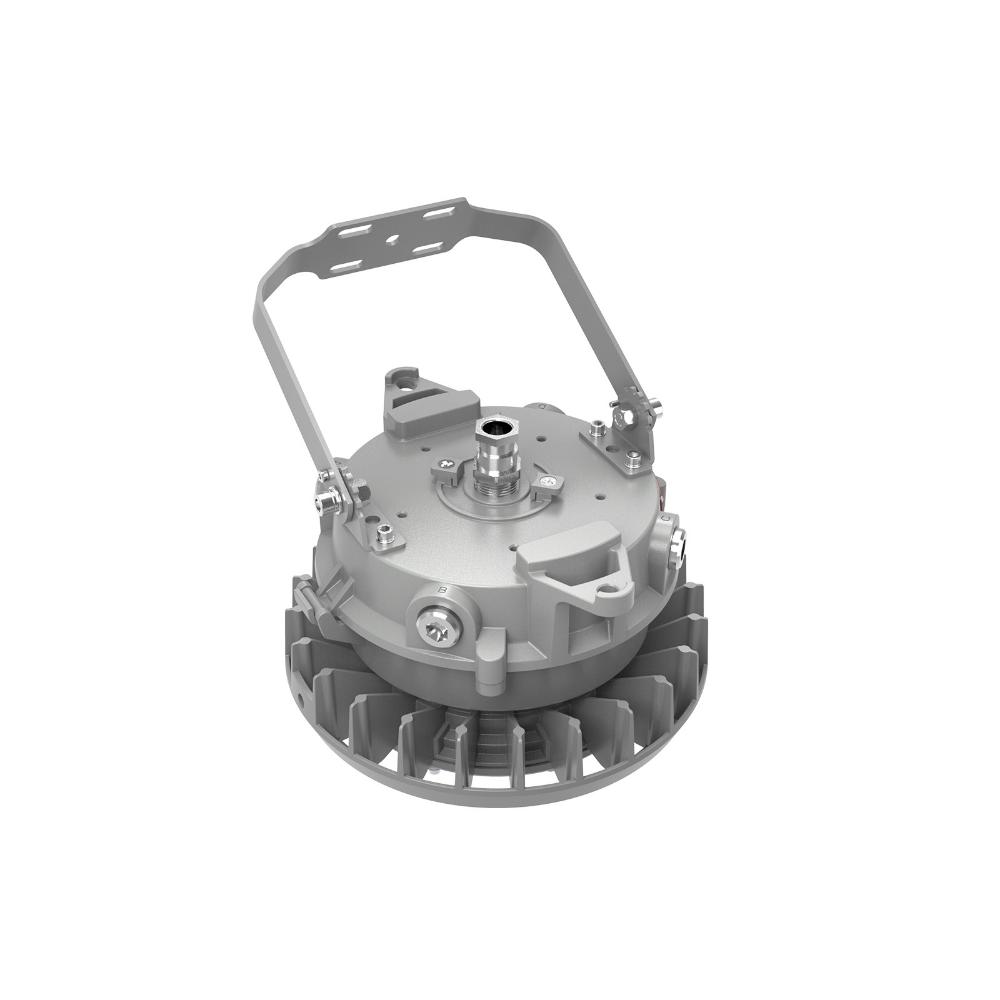

Red Sky Lighting Round Series Flood Light
The compact yet robust Round Series lights up even the tightest spaces. Measuring only 9 inches, it delivers a powerful 150 lumens per watt from high-efficiency LEDs. Approved for hazardous locations, the Round Series accommodates demanding conditions in industries like oil and gas, marine, factories and more.
Specifications
Electrical Parameters
- Power (W): 35W, 40W, 45W, 55W, 60W, 65W
- Voltage(V): 100-277V AC, 347-480V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 127,000 hrs@140°F
- Dimming: 34/40/45/55/65W: 0-10V, Range 10-100%
- Surge Protection: 10KV
- Warranty: LEDs: 10 years, Driver: 7 years
Optical Parameters
- Lumen Output: 5,048Lm , 5,617Lm, 6,532Lm, 7,982Lm, 8,901Lm, 9,591Lm
- Lumen Efficacy: 150Lm/W
- Available Beam Angle: 60°/ 120°/T1/T3
- Correlated Color Temperature (CCT): 3000K/4000K/5000K/Amber
- Color Rendering Index (CRI): 80 CRI
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Tempered Glass/Polycarbonate

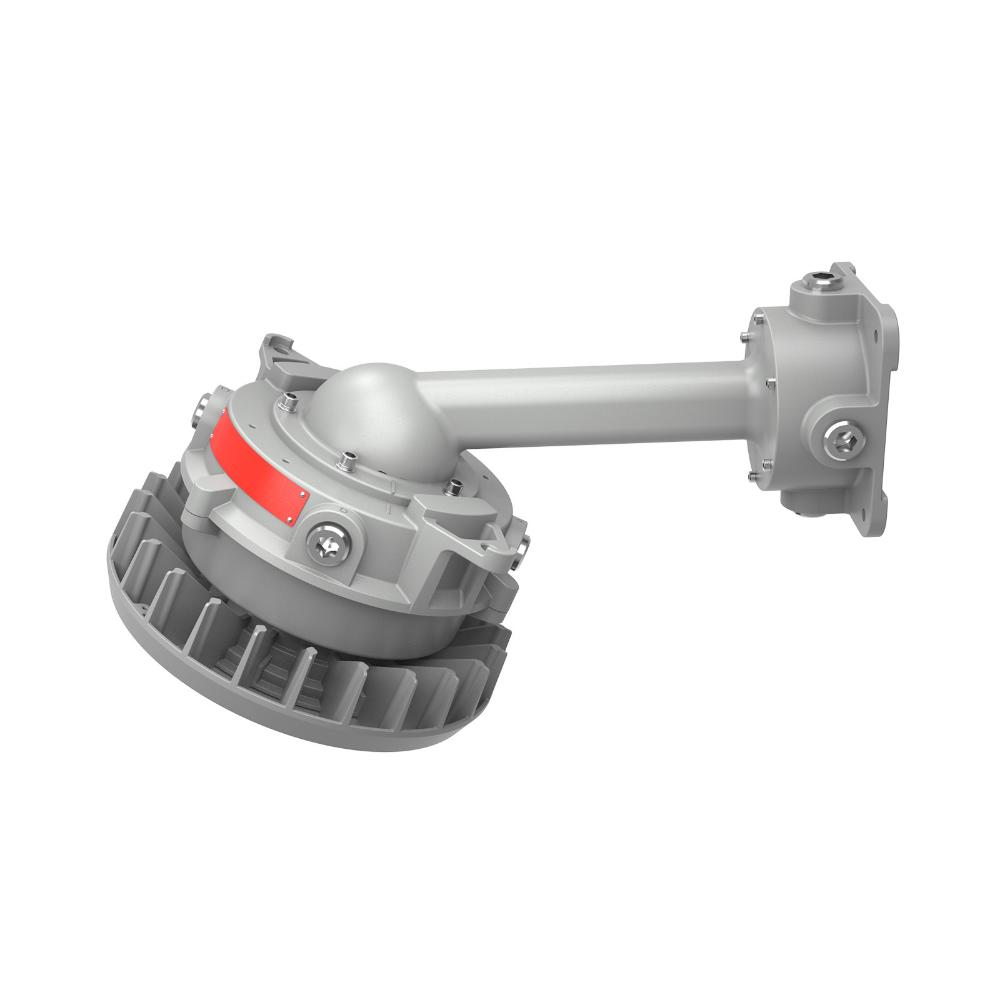

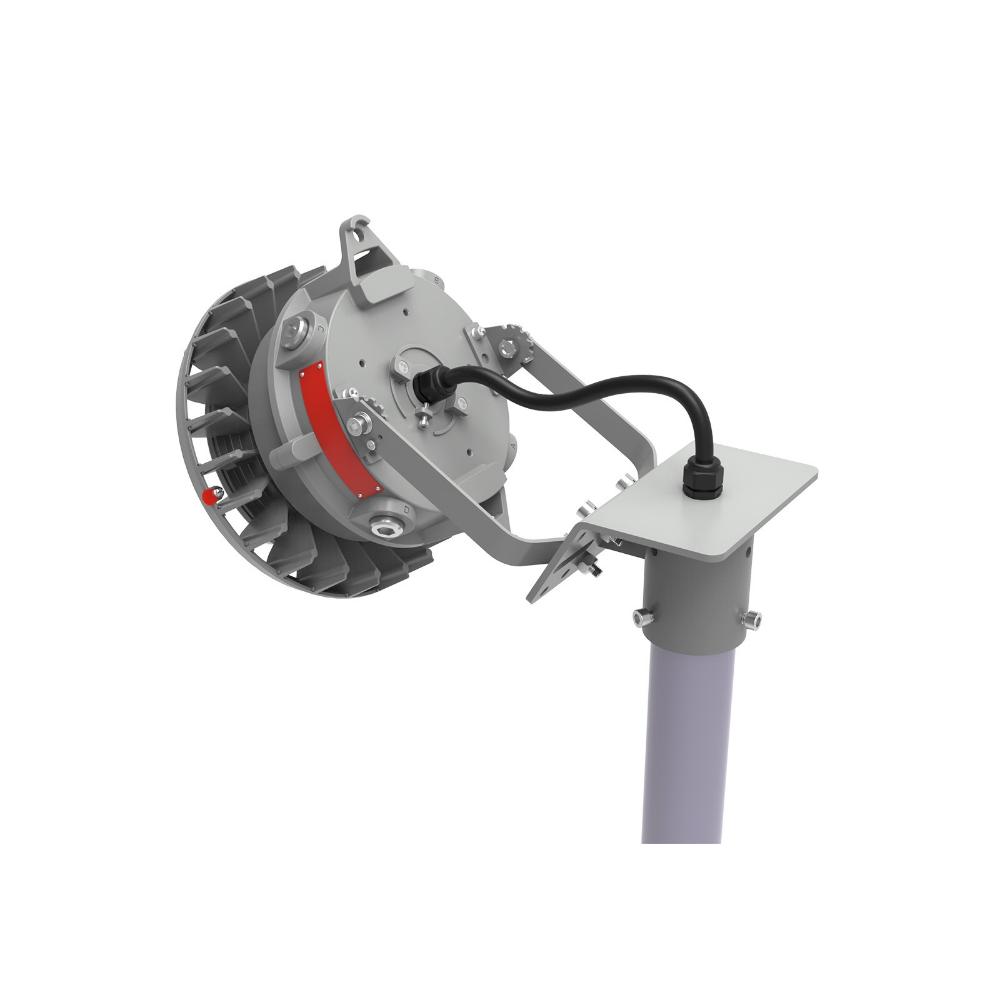

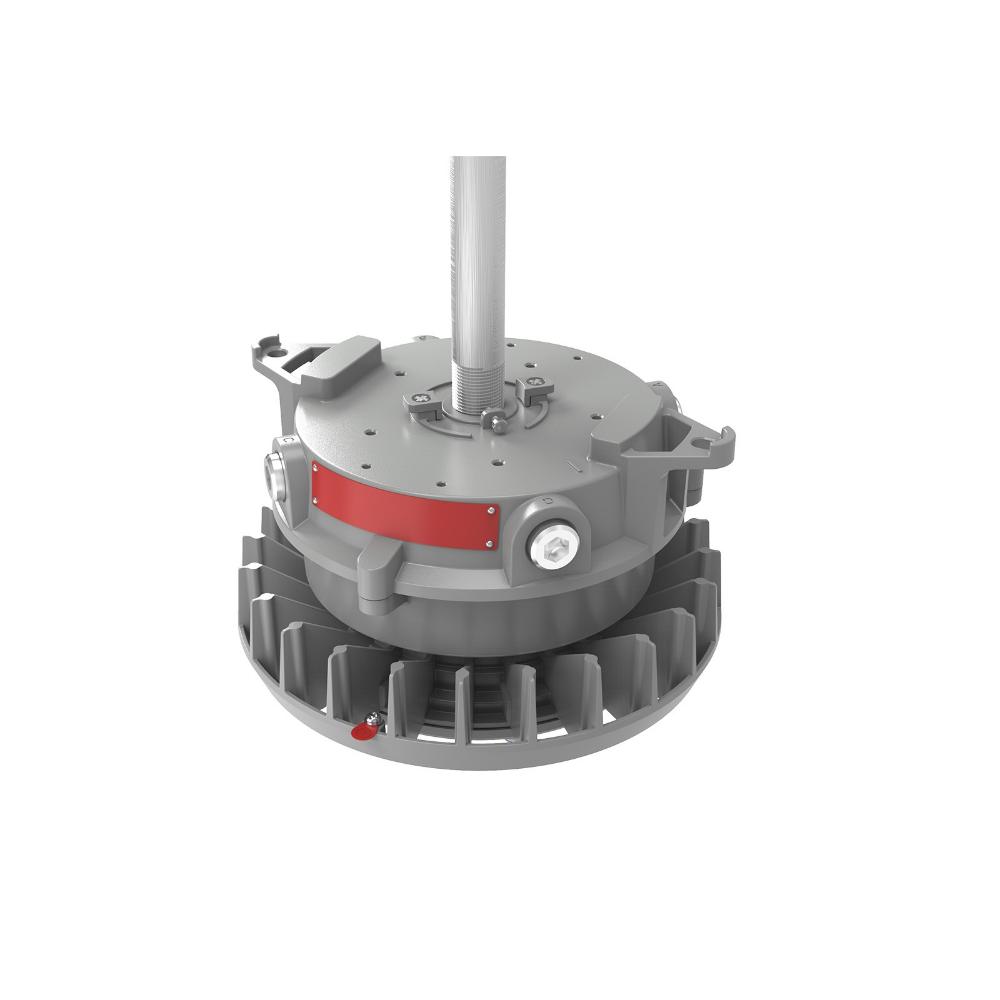

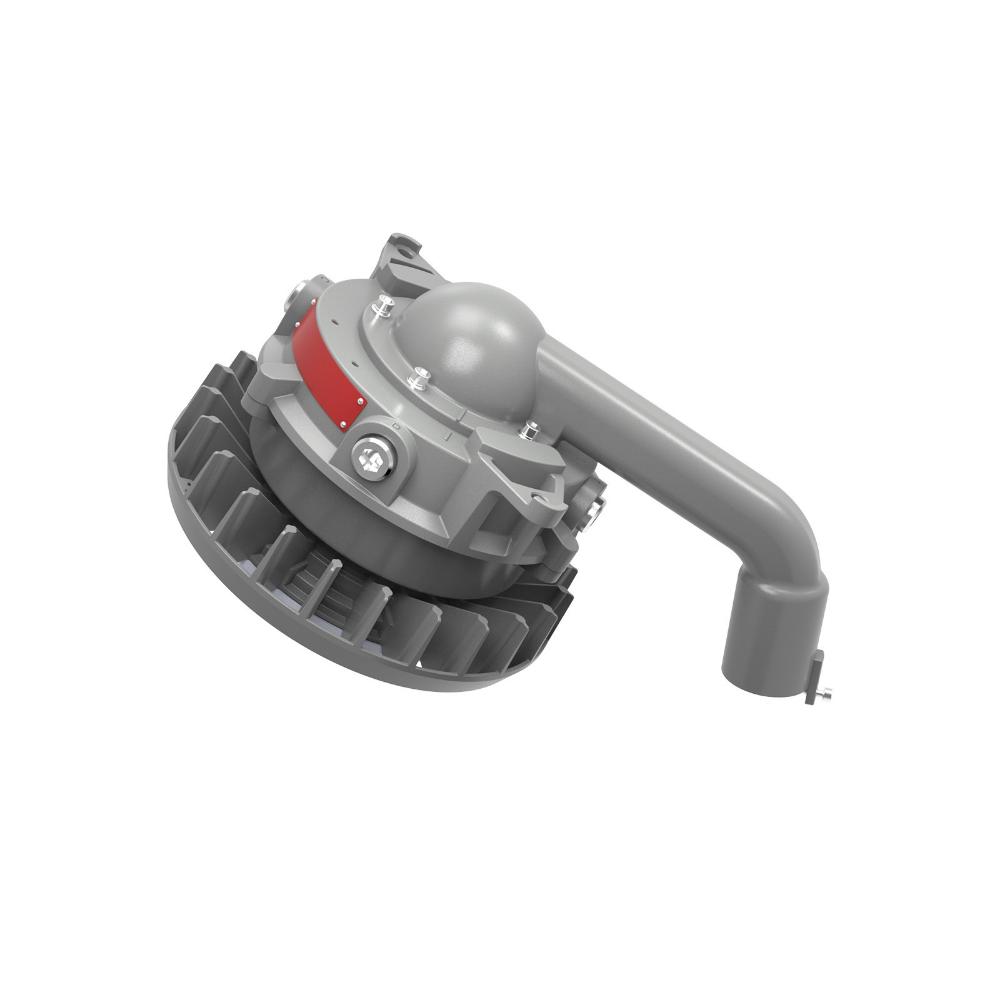

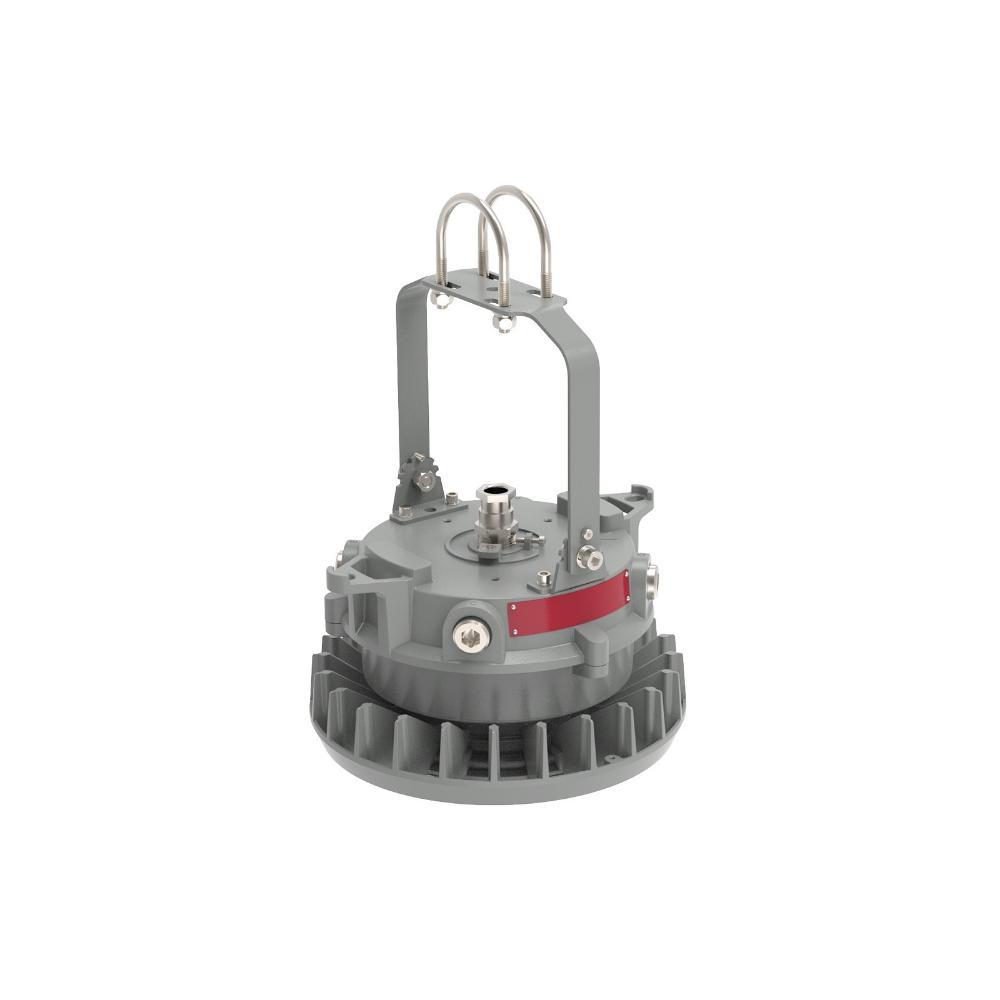

- Mounting Options: Pendant, Ceiling, Yoke, Wall, Stanchion, Pole, Pipe, Junction box
- Product Weight: 11.0lbs / 5.0kg
- Cable Entry: (5) 3/4" NPT
- Product Dimensions (LxWxH): 10.6 x 10.3 x 7.85in (269.4 x 262 x 199.3mm)
Environmental Parameters
- Ambient Operating Temperature: -40°F ~ +140°F (-40°C ~ 60°C)
- T-Code Rating: C1D2 - T4A, C2D1 - T5
Compliance
Ratings:
- Class I Division 2, Groups A, B, C, D
- Class II Division 1 Group E, F, G
- Class II Division 2, Groups F, G
- Class III
- Class I, Zone 2, Group IIC
- Zone 21, Group IIIC
- UL 1598 Wet Locations
- UL 1598A Marine Outside Type
- (Salt Water)
- IP66, NEMA 4x
- IK08(Glass)/IK10(PC)
- Salt Spray 720 hrs (ASTM B117)
- 3G (ANSI C136.31)**
Certifications:
- UL844
- UL1598
- UL1598A
- CSA C22.2 NO. 250.0
- CSA C22.2 No. 137
- DLC Premium*
- FCC Part 15, Subpart B
Product Files
Click for Red Sky Lighting RND2 Specification
Click for Red Sky Lighting RND2 Installation Maunal
Click for Red Sky Lighting RND2 Certificate - UL844 Hazardous
Click for Red Sky Lighting RND2 Certificate - UL1598 Non-Hazardous
Click for Red Sky Lighting RND2 Certificate - UL1598A Marine
