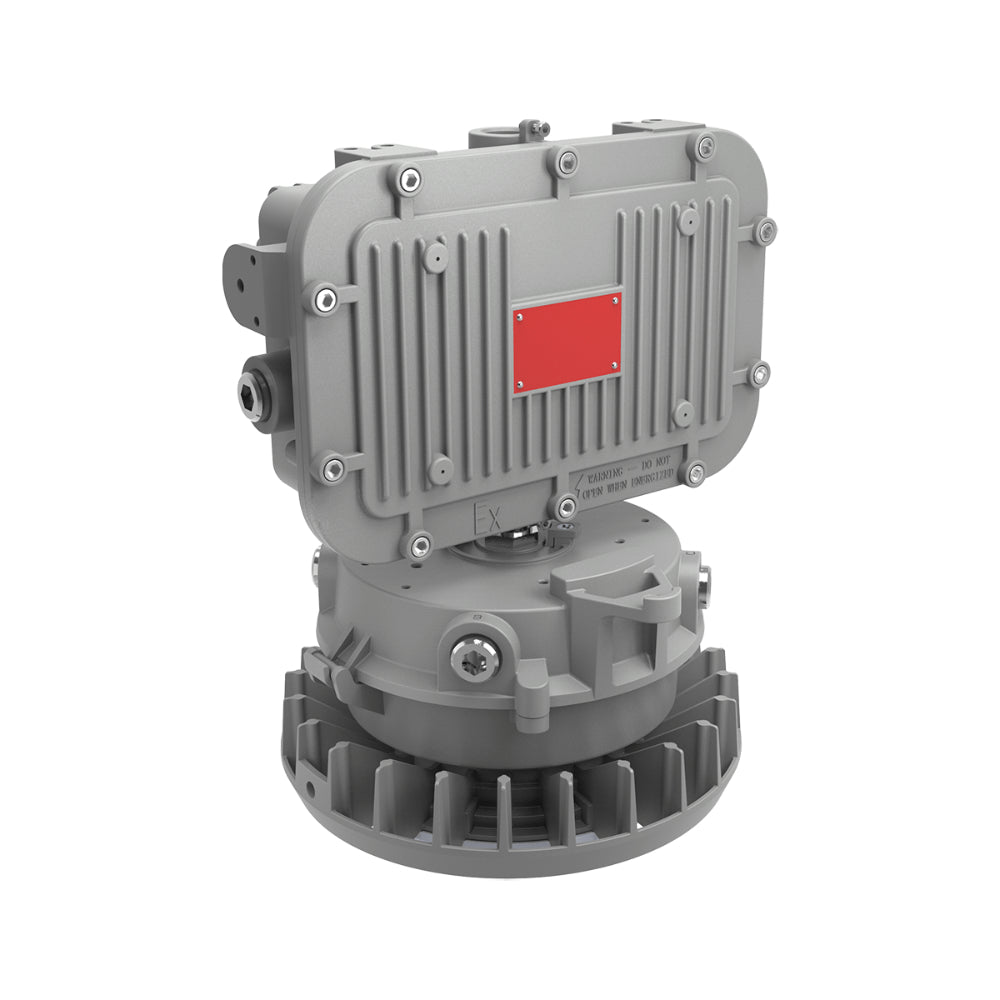

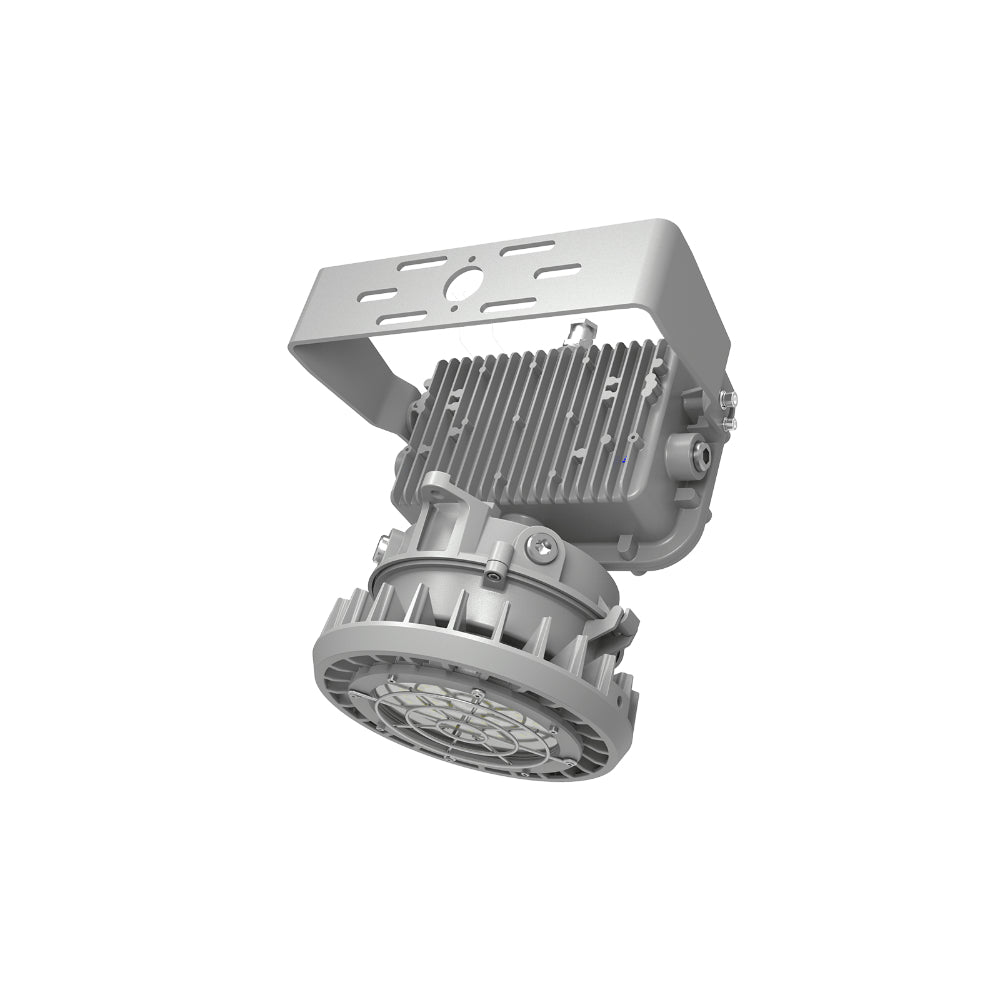

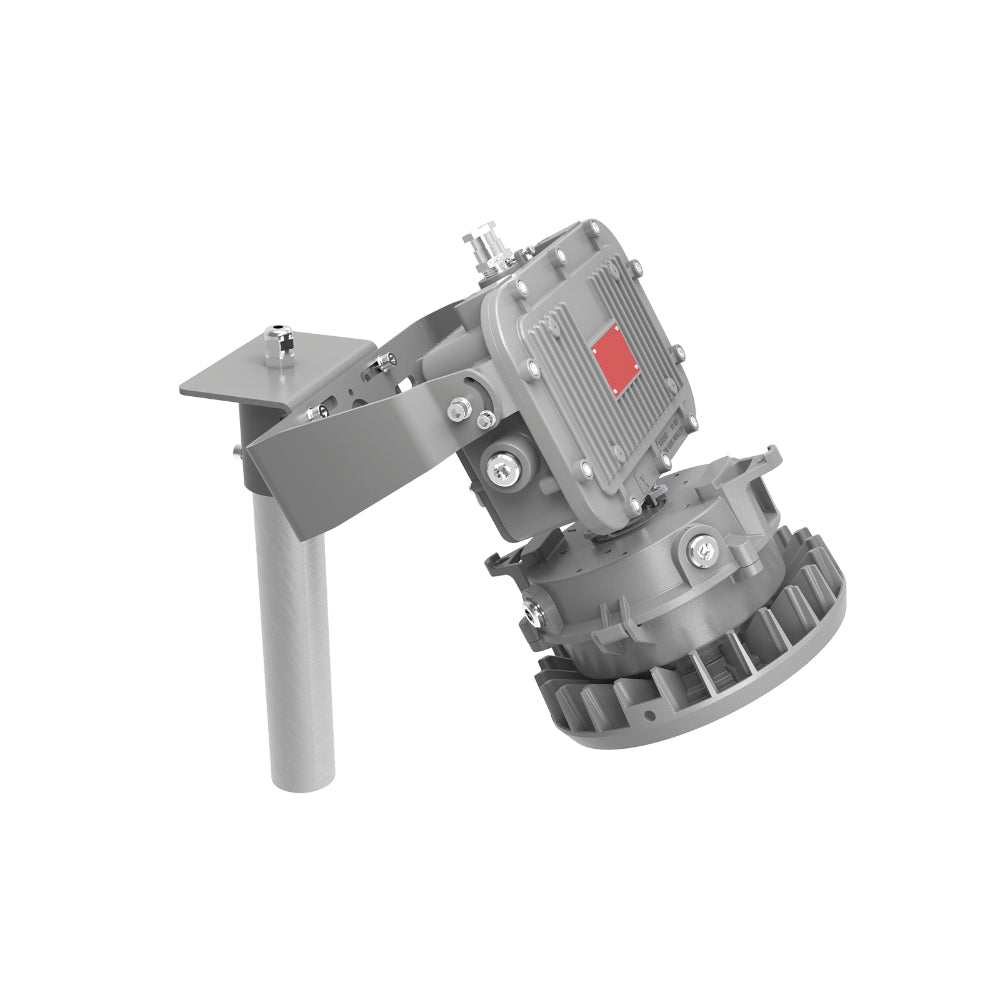

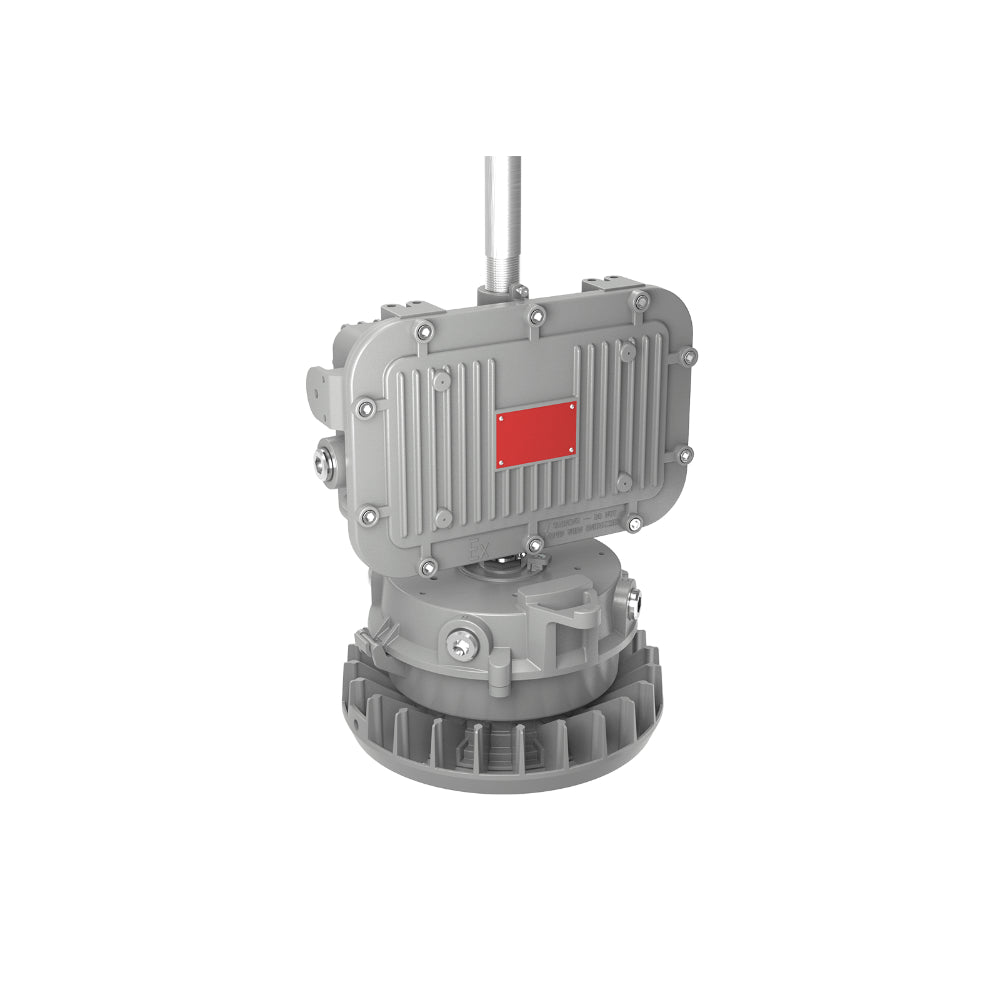

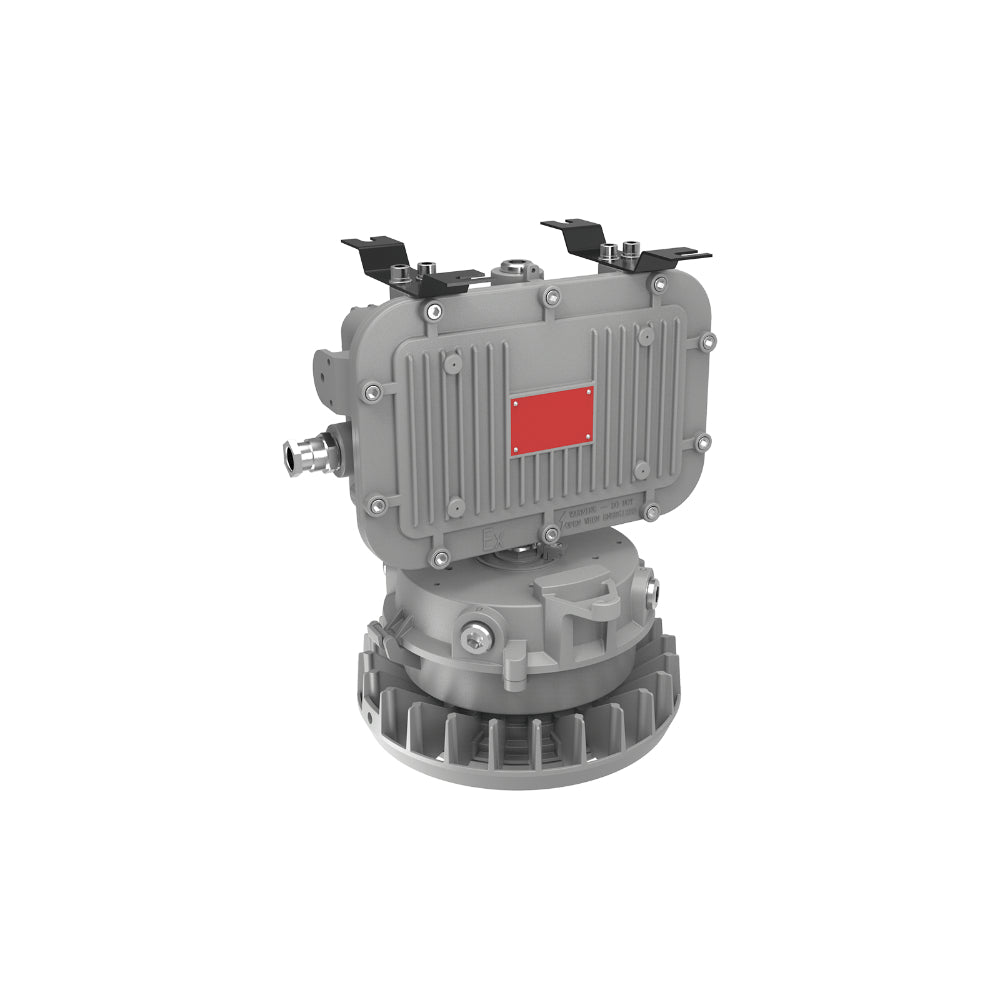

Red Sky Lighting Round X2 Series AC Emergency Version Flood Light
The RED SKY Round X2 AC Emergency is a robust LED luminaire engineered for harsh and hazardous areas, featuring 90-minute emergency backup at 1,800 lumens. With up to 11,758 lumens in normal mode, it supports 60°, 110°, and 180° beam angles. Certified for Zone 2 and 21, IP66, and ATEX/IECEx compliant, it offers superior safety and reliable illumination. Built in the USA and assembled for fast delivery, it's ideal for offshore platforms, chemical zones, and critical safety lighting needs.
Specifications
Electrical Parameters
- Power (W): 25W, 45W, 65W, 75W
- Voltage(V): 100-240V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 147,000 hrs@50°C
- Surge Protection: L/N-FG 2KV，L-N 1KV
- Warranty: Fixture: 5 Years, Battery: 1 Year
Optical Parameters
- Lumen Output (Normal)*: 4,036Lm, 7,129Lm, 10,405Lm, 11,758Lm
- Lumen Output (EM)*: 1,800Lm
- Lumen Efficacy*: 150Lm/W
- Available Beam Angle: 60°/ 110° /180°
- Correlated Color Temperature (CCT): 4000K/5700K
- Color Rendering Index (CRI): Ra>70
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Tempered Glass
- Mounting Options: Ceilingt, Pendant, Yoke, Stanchion
- Product Weight: 19.4lbs/8.8kg
- Cable Entry: (3) 3/4" NPT
- Product Dimensions (LxWxH): 11.9 x 10.6 x 14.7in (302 x 269.4 x 372.7mm)
Environmental Parameters
- Ambient Operating Temperature: -0°C~+50°C
Compliance
Ratings:
- Zone 2,21
- IP66
- IK08
- Salt Spray 720 hrs (ISO 9227)
Certifications:
- ATEX & UKEX
- II 3G Ex ec nC nR IIC T4 Gc;II 2D Ex tb IIIC T110°C Db (65W/75W)
- II 3G Ex ec nC nR IIC T6 Gc ;II 2D Ex tb IIIC T85°C Db (25W/45W)
- IECEx
- Ex ec nC nR IIC T4 Gc;Ex tb IIIC T110°C Db (65W/75W)
- Ex ec nC nR IIC T6 Gc ;Ex tb IIIC T85°C Db (25W/45W)
