Red Sky Lighting Round X2 Series AC Version Flood Light

Red Sky LightingSKU: RND X2 AC
Price:
$0.00 USD

Description

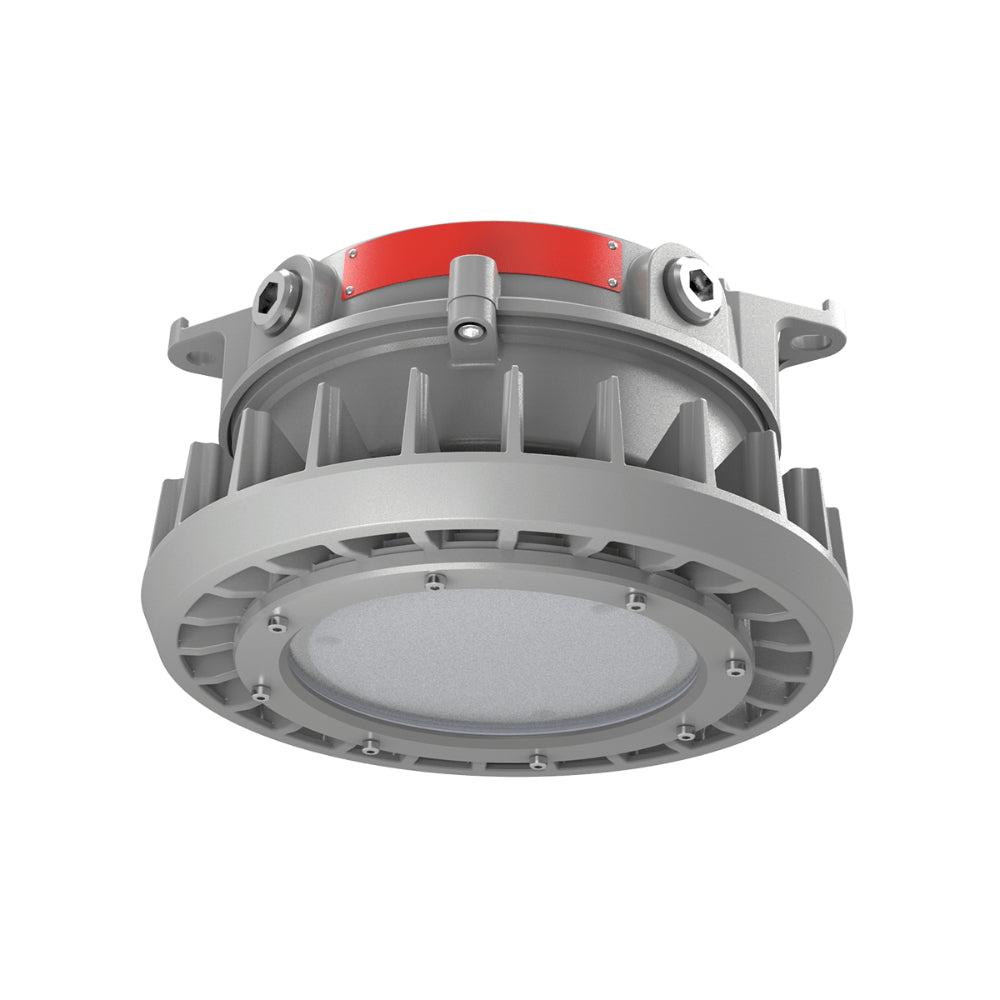

Red Sky Lighting Round X2 Series AC Version Flood Light

The RED SKY Round X2 AC Series delivers reliable LED lighting for hazardous zones (Zone 2 & 21), offering 4,000-12,000 lumens and up to 150 lm/W efficiency. Certified to ATEX, IECEx, and IP66 standards, it features marine-grade aluminum housing, versatile mounting options, and maintenance-free operation for over 147,000 hours-ideal for oil & gas, marine, and industrial settings.

Specifications

Electrical Parameters

  • Power (W): 25W, 45W, 65W, 75W
  • Voltage(V): 100-240V AC
  • Frequency: 50/60Hz
  • Power Factor: ≥0.90
  • THD: <20%
  • L70: 147,000 hrs@55°C
  • Surge Protection: L/N-FG 6KV, L-N 4KV
  • Warranty: 5 Years

Optical Parameters

  • Lumen Output*: 4,036Lm, 7,129Lm, 10,405Lm, 11,758Lm
  • Lumen Efficacy*: 150Lm/W
  • Available Beam Angle: 60°/ 110° /180°
  • Correlated Color Temperature (CCT): 4000K/5700K
  • Color Rendering Index (CRI): Ra>70

Mechanical Parameters

  • Hardware: Stainless steel 316
  • Lens Material: Tempered Glass

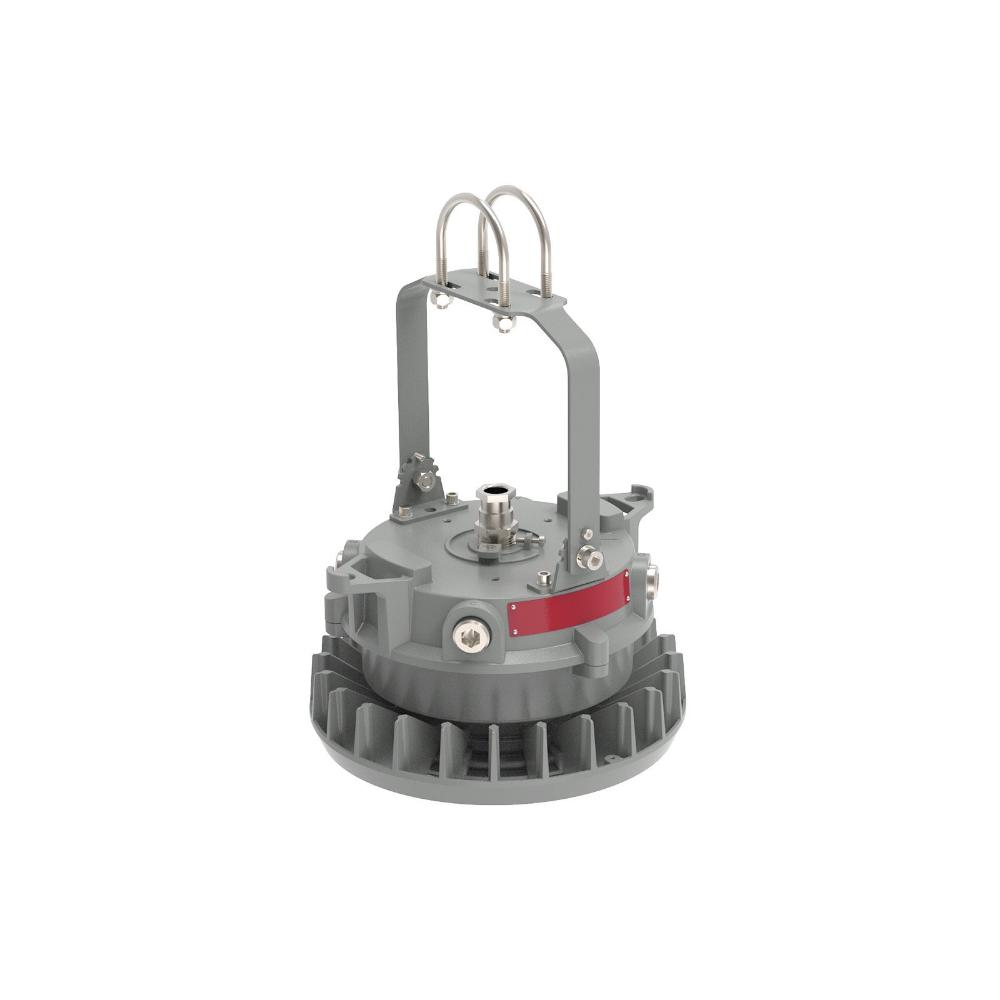

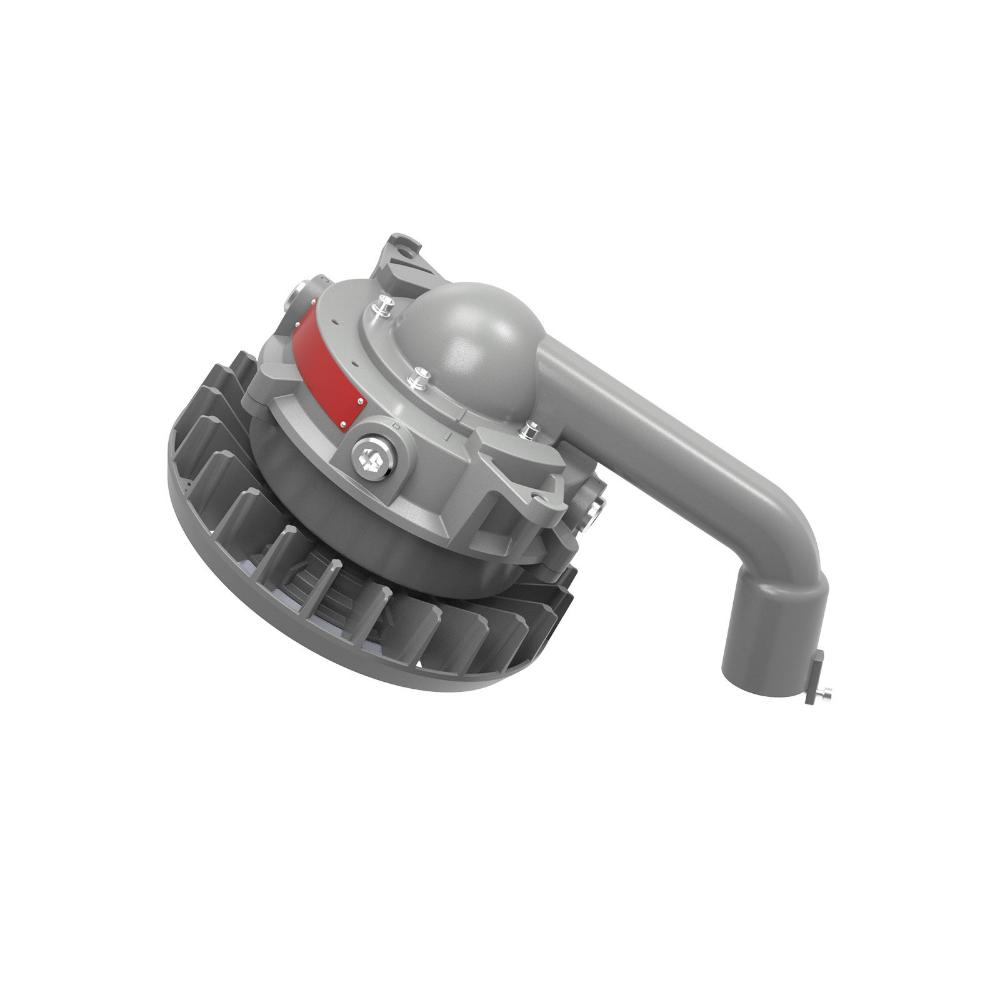

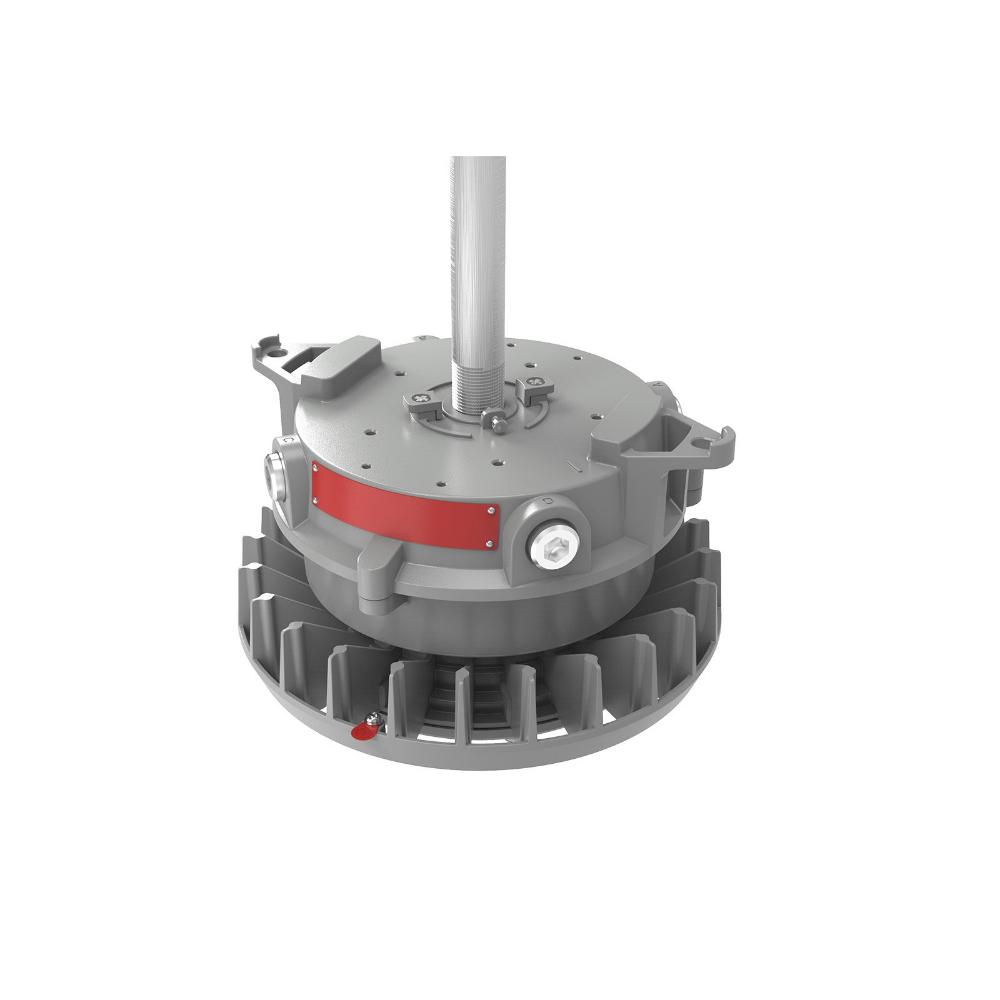

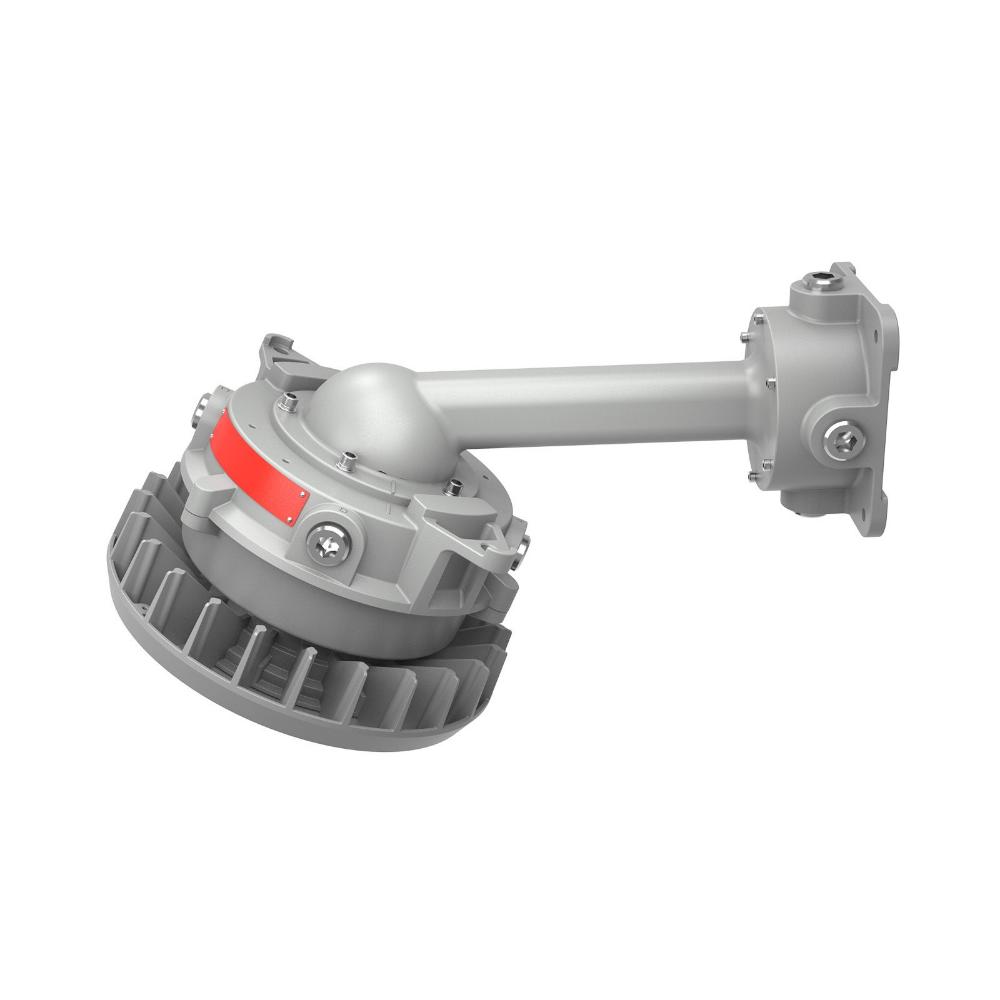

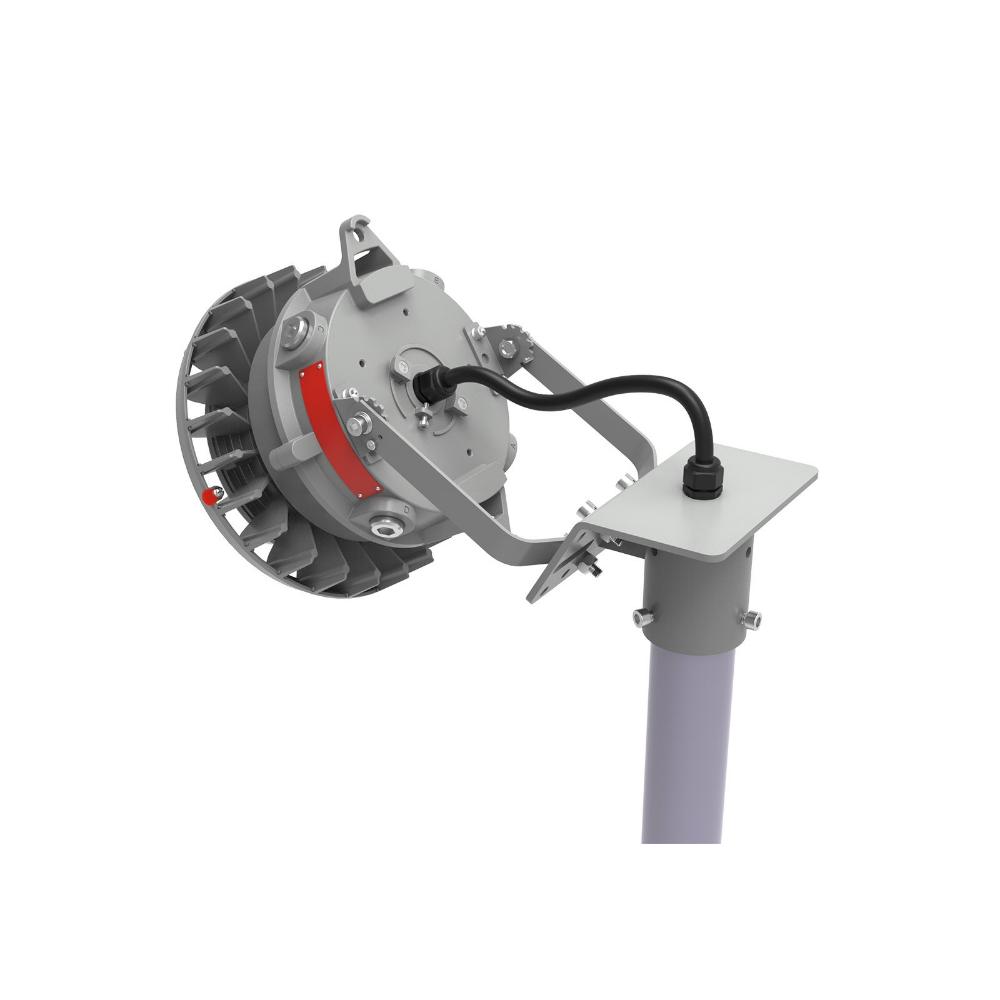

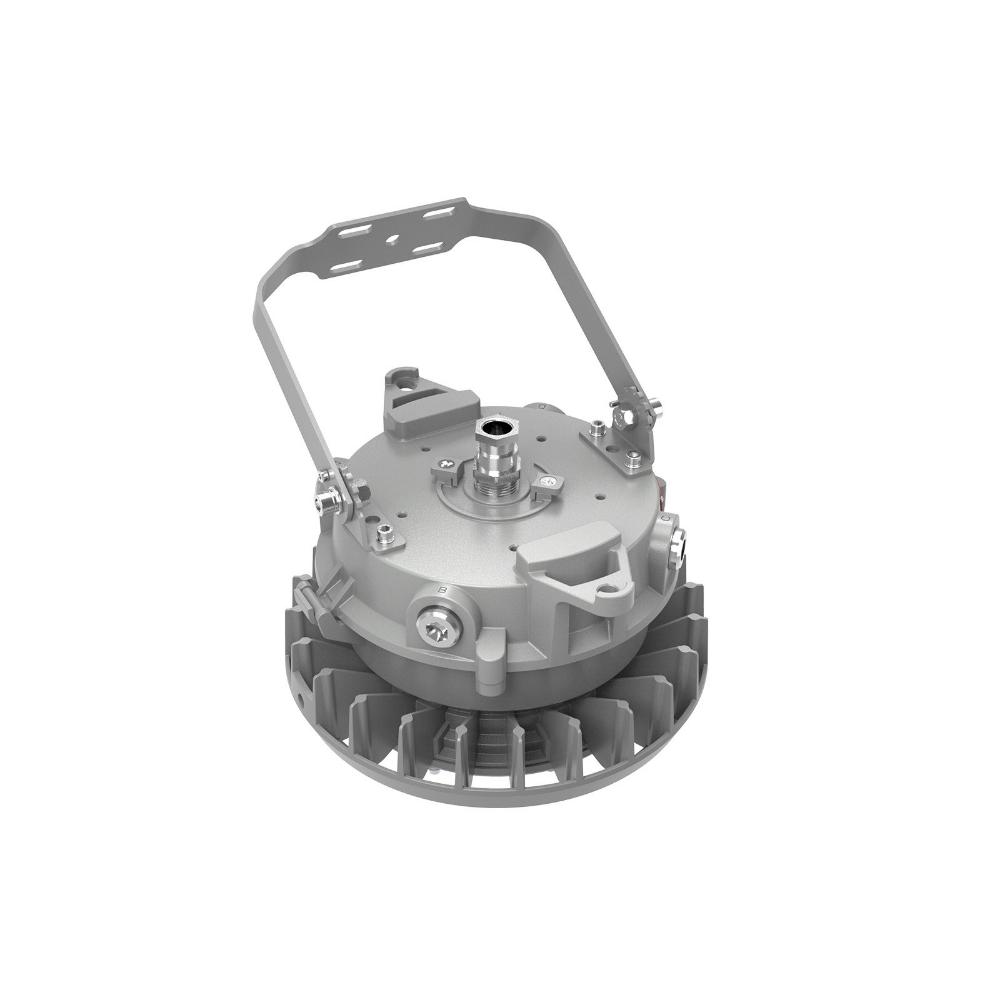

  • Mounting Options: Pendant, Yoke, Wall, Stanchion, Pole
  • Product Weight: 10.6lbs/4.8kg
  • Cable Entry: (5) 3/4" NPT
  • Product Dimensions (LxWxH): 10.6 x 10.3 x 6in (269.4 x 262 x 151.7mm)

Environmental Parameters

  • Ambient Operating Temperature: -40°C~+55°C

Compliance

Ratings:

  • Zone 2,21
  • IP66
  • IK08
  • Salt Spray 720 hrs (ISO 9227)

Certifications:

  • ATEX & UKEX
  • II 3G Ex ec nC nR IIC T4 Gc;II 2D Ex tb IIIC T110°C Db (65W/75W)
  • II 3G Ex ec nC nR IIC T6 Gc ;II 2D Ex tb IIIC T85°C Db (25W/45W)
  • IECEx
  • Ex ec nC nR IIC T4 Gc;Ex tb IIIC T110°C Db (65W/75W)
  • Ex ec nC nR IIC T6 Gc ;Ex tb IIIC T85°C Db (25W/45W)

Product Files

Click for Red Sky Lighting RND X2 AC Specification

Click for Red Sky Lighting RND X2 AC Installation Maunal
