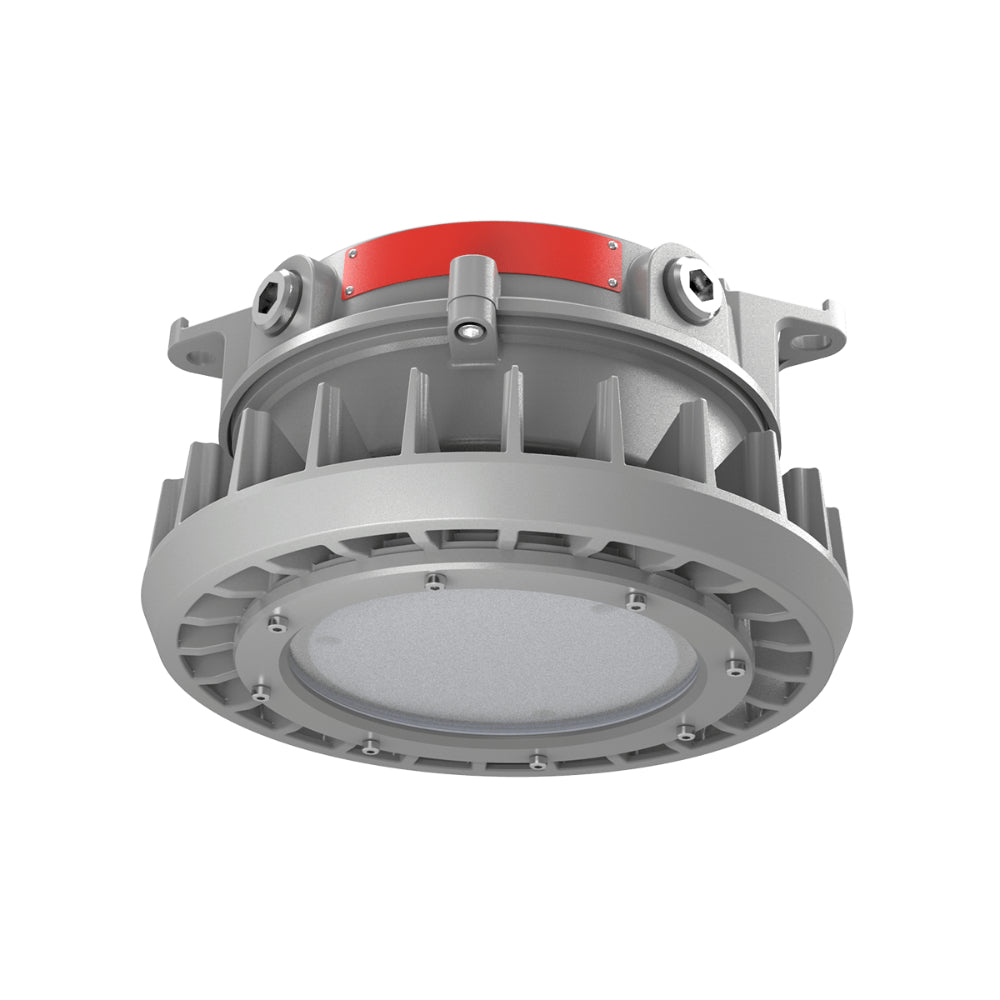

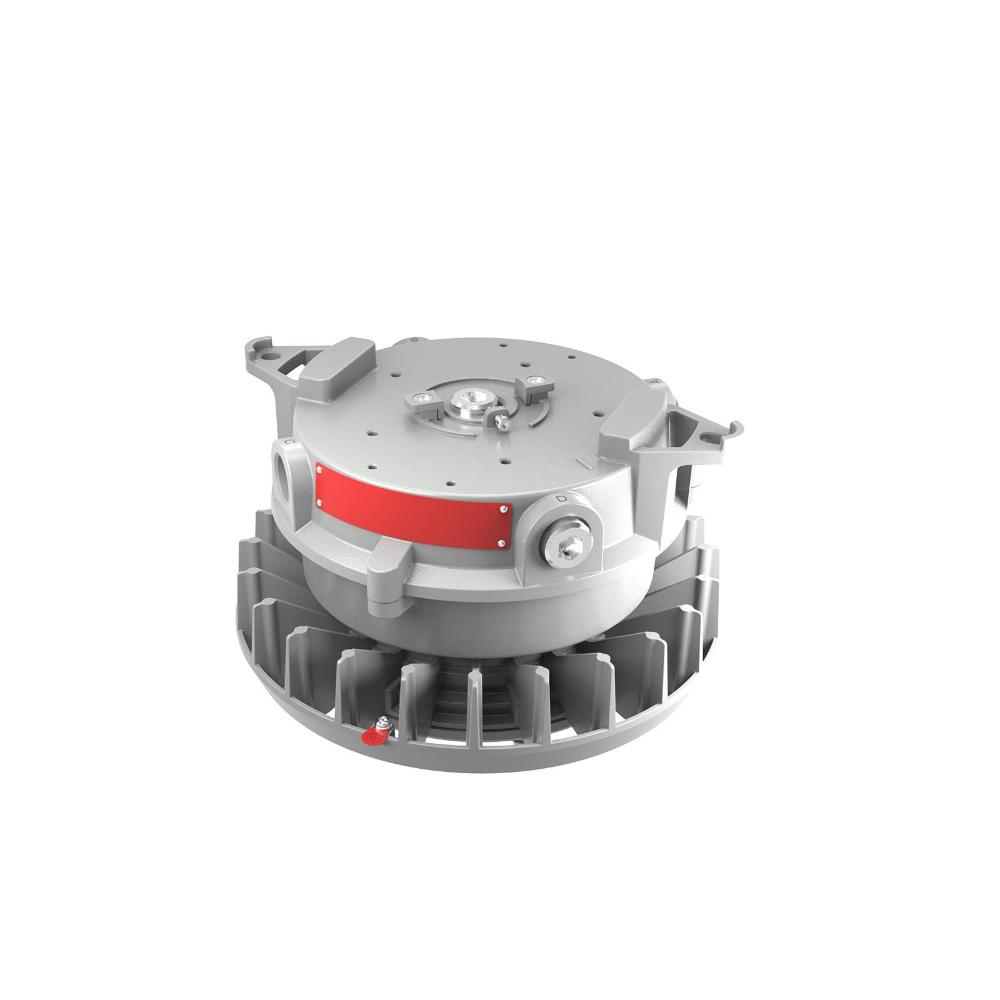

Red Sky Lighting Round X2 Series DC Version Flood Light
The RED SKY Round X2 DC is a compact, energy-efficient LED lowbay/floodlight designed for hazardous industrial environments requiring 24V DC input. Delivering up to 10,209 lumens with a wide range of beam angles (60°, 110°, 180°), it is certified for Zone 2 and 21, IP66, and ATEX/IECEx standards. With lightweight marine-grade aluminum housing and high efficacy (up to 150 lm/W), it's ideal for confined spaces, mobile equipment, and battery-powered systems in oil & gas, marine, and manufacturing sectors.
Specifications
Electrical Parameters
- Power (W): 25W, 45W, 65W
- Voltage(V): 24V DC
- Frequency: 50/60Hz
- L70: 147,000 hrs@55°C
- Warranty: 3 Years
Optical Parameters
- Lumen Output*: 4,096Lm, 7,067Lm, 10,209Lm
- Lumen Efficacy*: 150Lm/W
- Available Beam Angle: 60°/ 110° /180°
- Correlated Color Temperature (CCT): 4000K/5700K
- Color Rendering Index (CRI): Ra>70
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Tempered Glass

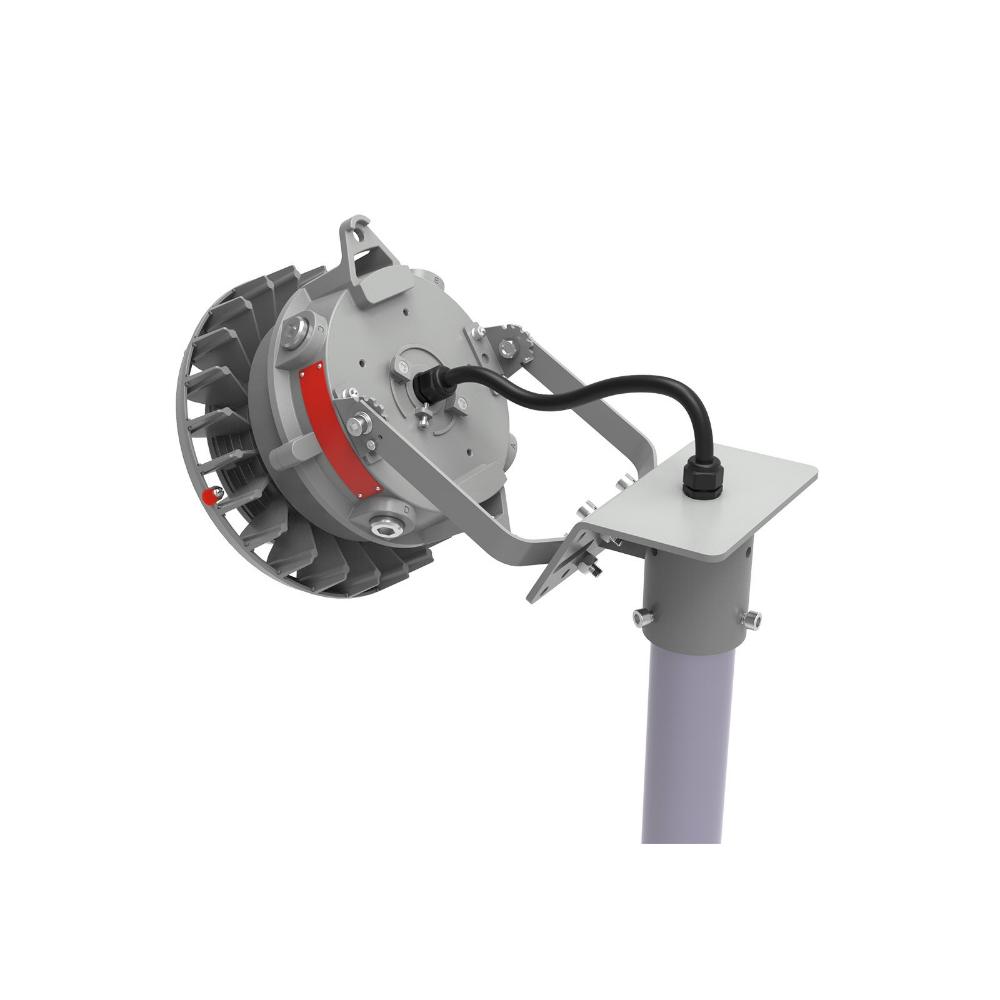

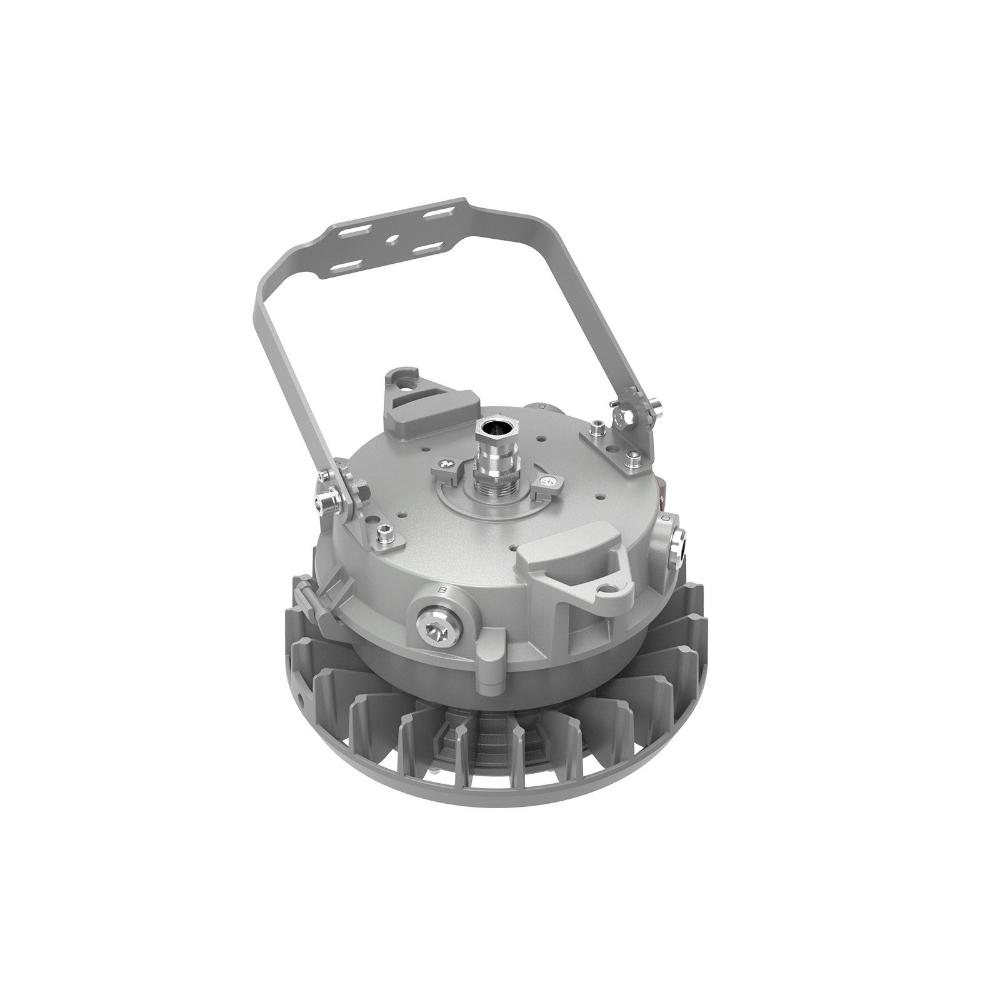

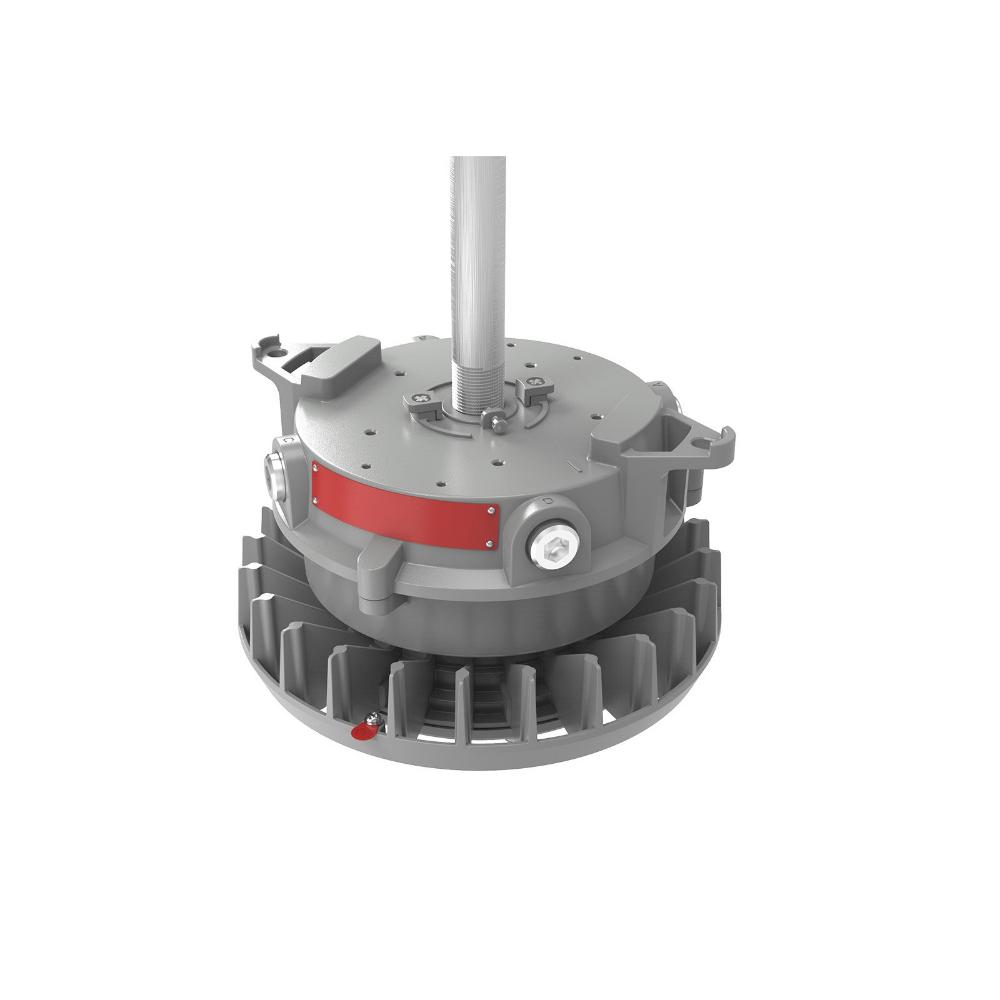

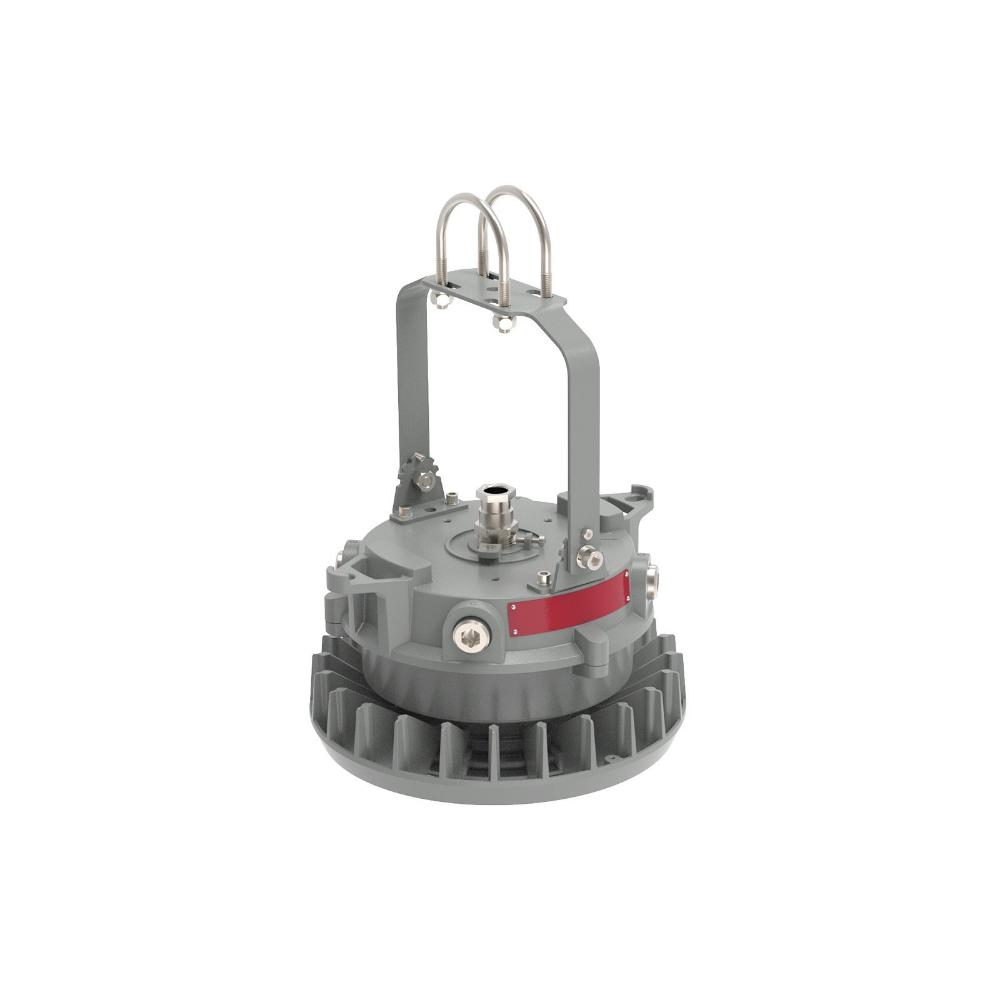

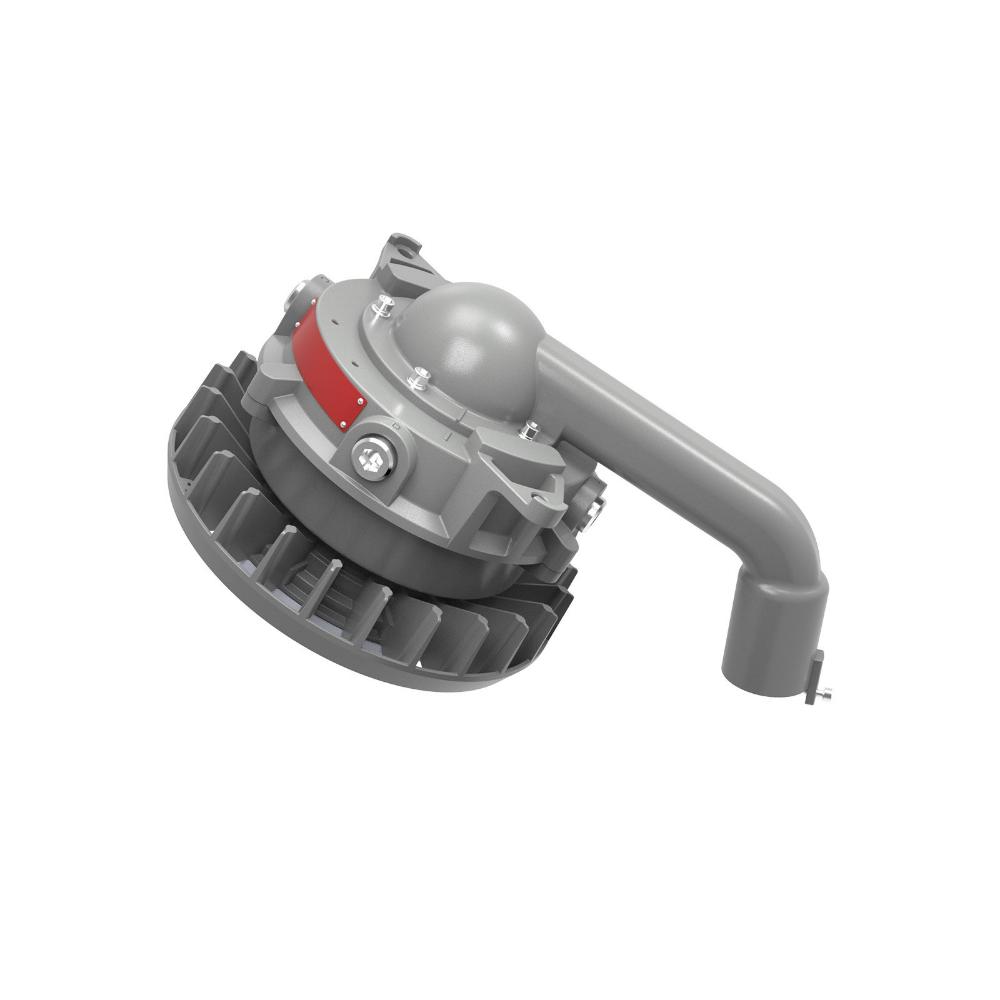

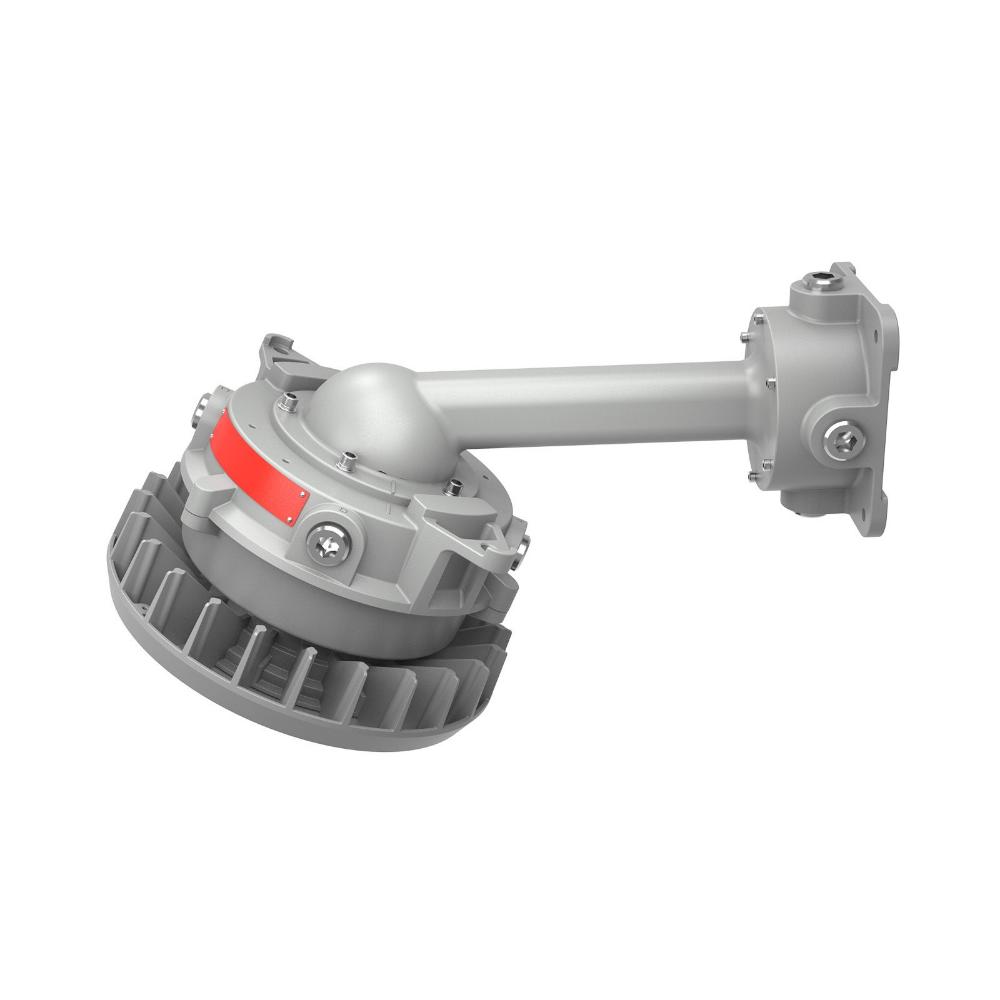

- Mounting Options: Pendant, Yoke, Wall, Stanchion, Pole
- Product Weight: 10.6lbs/4.8kg
- Cable Entry: (5) 3/4" NPT
- Product Dimensions (LxWxH): 10.6 x 10.3 x 6in (269.4 x 262 x 151.7mm)
Environmental Parameters
- Ambient Operating Temperature: -40°C~+55°C
Compliance
Ratings:
- Zone 2,21
- IP66
- IK08
- Salt Spray 720 hrs (ISO 9227)
Certifications:
- ATEX & UKEX
- II 3G Ex ec nC nR IIC T4 Gc;II 2D Ex tb IIIC T110°C Db (65W)
- II 3G Ex ec nC nR IIC T6 Gc ;II 2D Ex tb IIIC T85°C Db (25W/45W)
- IECEx
- Ex ec nC nR IIC T4 Gc;Ex tb IIIC T110°C Db (65W)
- Ex ec nC nR IIC T6 Gc ;Ex tb IIIC T85°C Db (25W/45W)
