Description
Red Sky Lighting RTR Series Retrofit Adaptor
RTR Series Retrofit Adaptor is designed for 1-for-1 retrofit installation and replacement in hazardous and harsh locations, being able to mount directly to the pre-existing mounting hoods can save a significant amount of labor time, and cost, moreover, ideal retrofit LED solutions allow facilities to utilize existing mounting hoods and conduit/wiring systems, helping to reduce new fixture installation labor costs. Retrofit adaptors are often available, allowing fixtures to mate with a wide range of mounting hoods, letting your facility consolidate with a single luminaire. RTR Series offers higher efficacy for increased energy savings, lower maintenance costs, and shorter paybacks.
Specifications
Mechanical

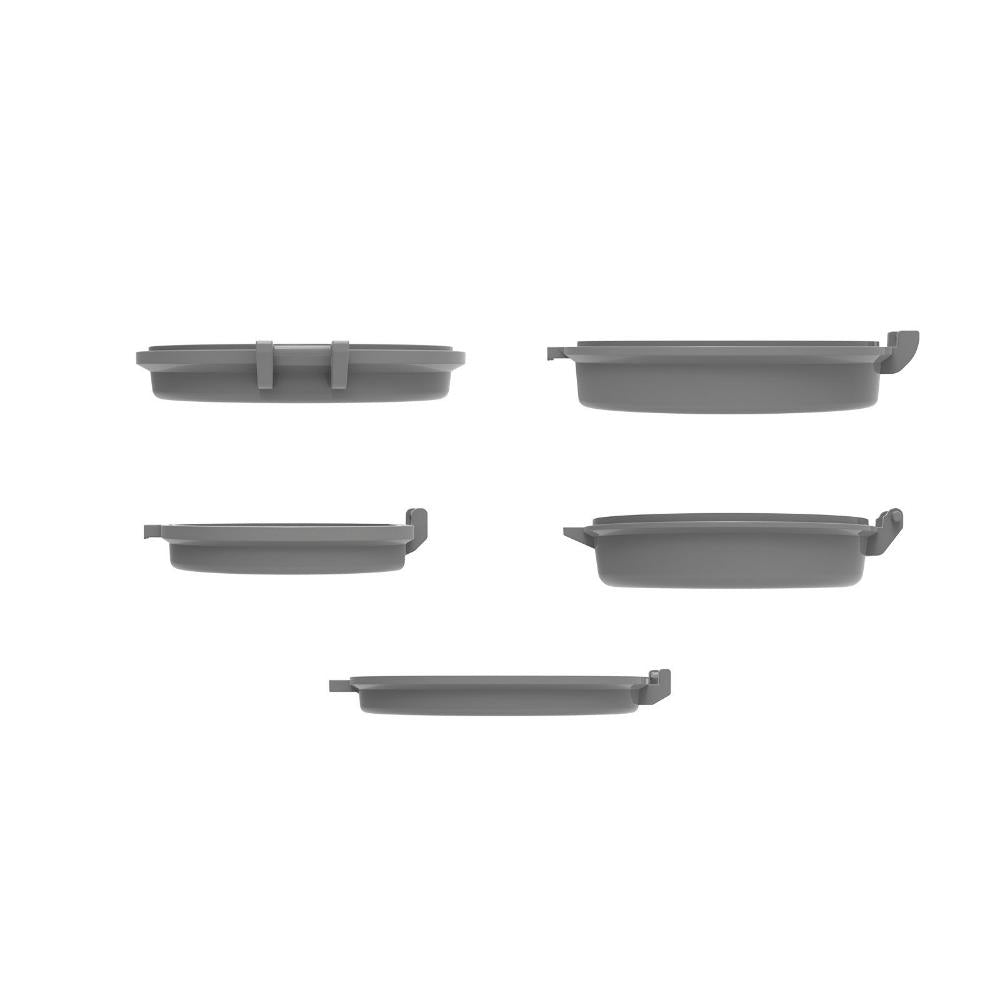

- Dimensions: RTR-CMP: Ø10.28×1.61in(Ø261×41mm)
- RTR-MM3: Ø12.09×2.36in(Ø307×60mm)
- RTR-MM2: Ø9.69×1.61in(Ø246×41mm)
- RTR-HZL: Ø11.85×2.68in(Ø301×68mm)
- RTR-HLX: Ø12.6×1.61in(Ø320×38mm)
- Material: Aluminium alloy
Warranty/Certifications
- Warranty Terms: Standard: 5-Year
Compliance
NEC/CEC Standard:
- UL514A
- CSA C22.2#18.1
- UL844 listings with RDX series
- Class I, Division 2, Groups A, B, C, D
- Class I, Zone 2 Group IIC
- Class II Division 2, Groups F, G
- Class III
