Description

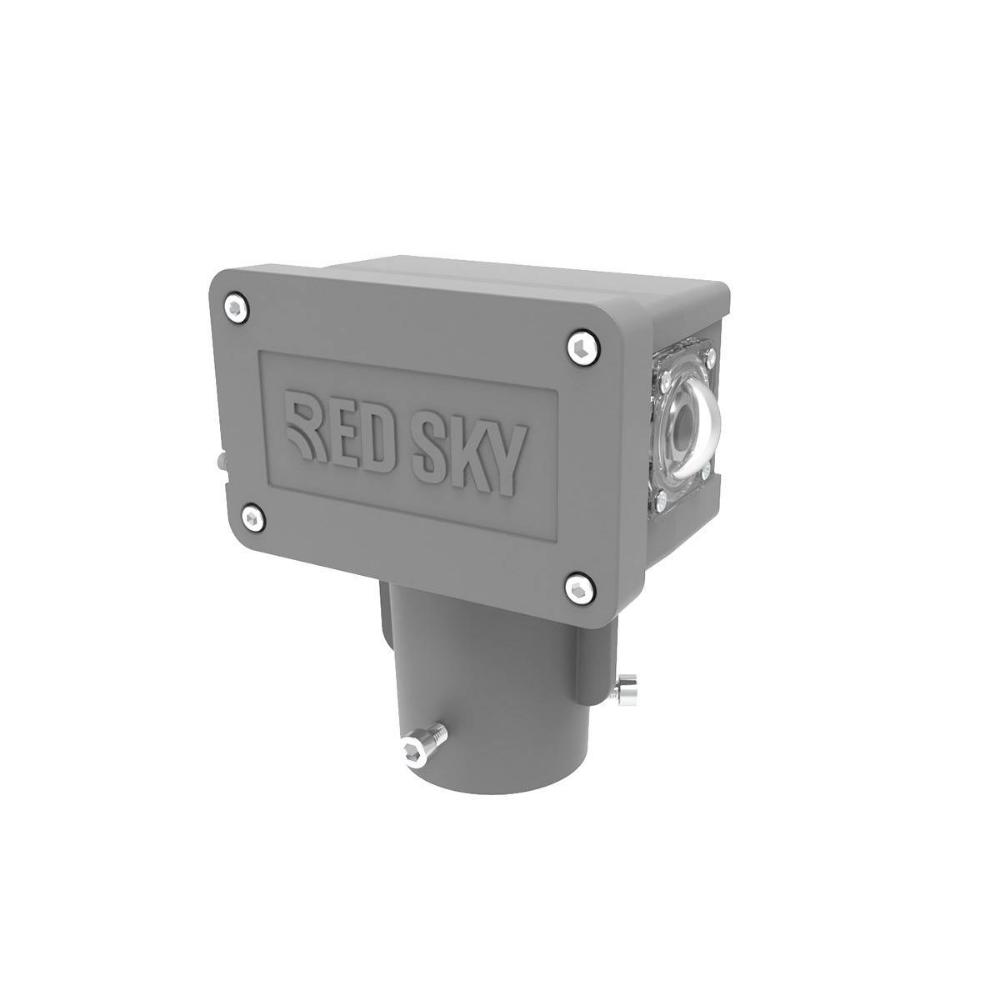

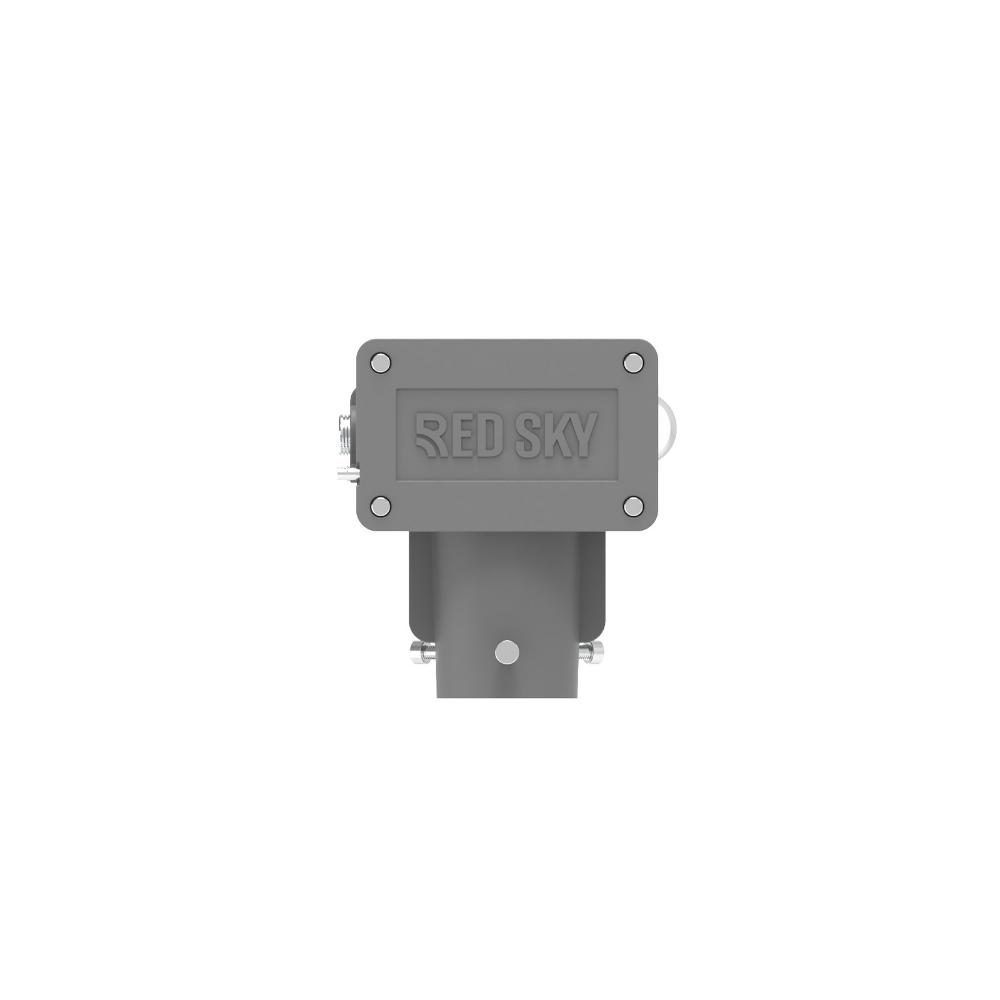

Red Sky Lighting Slip-Fit Junction Box

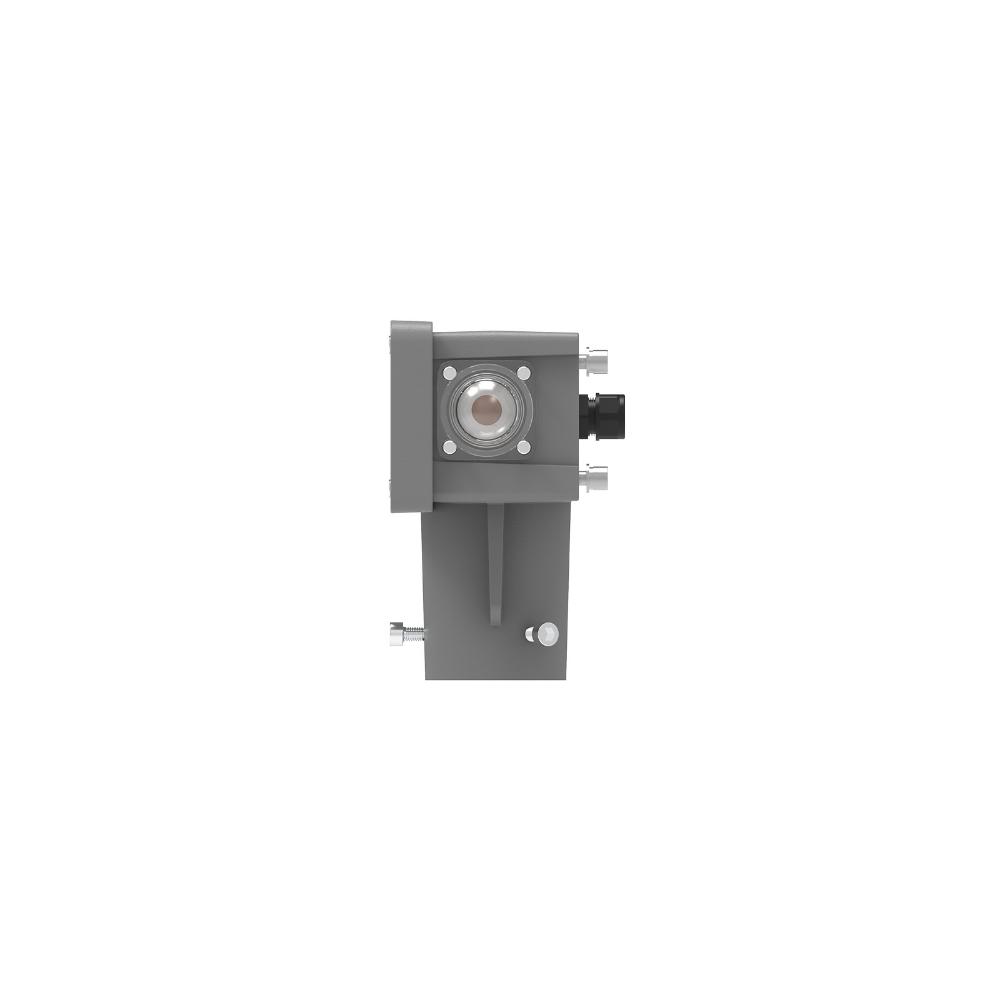

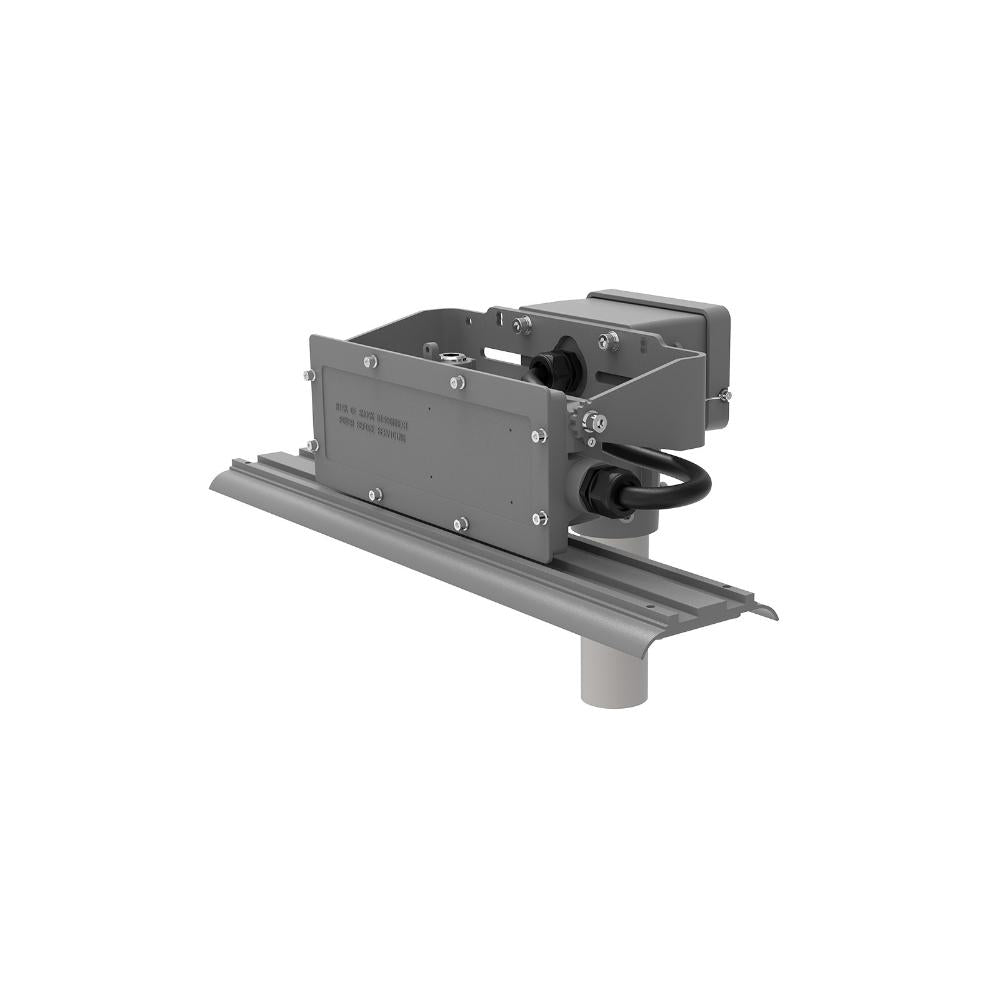

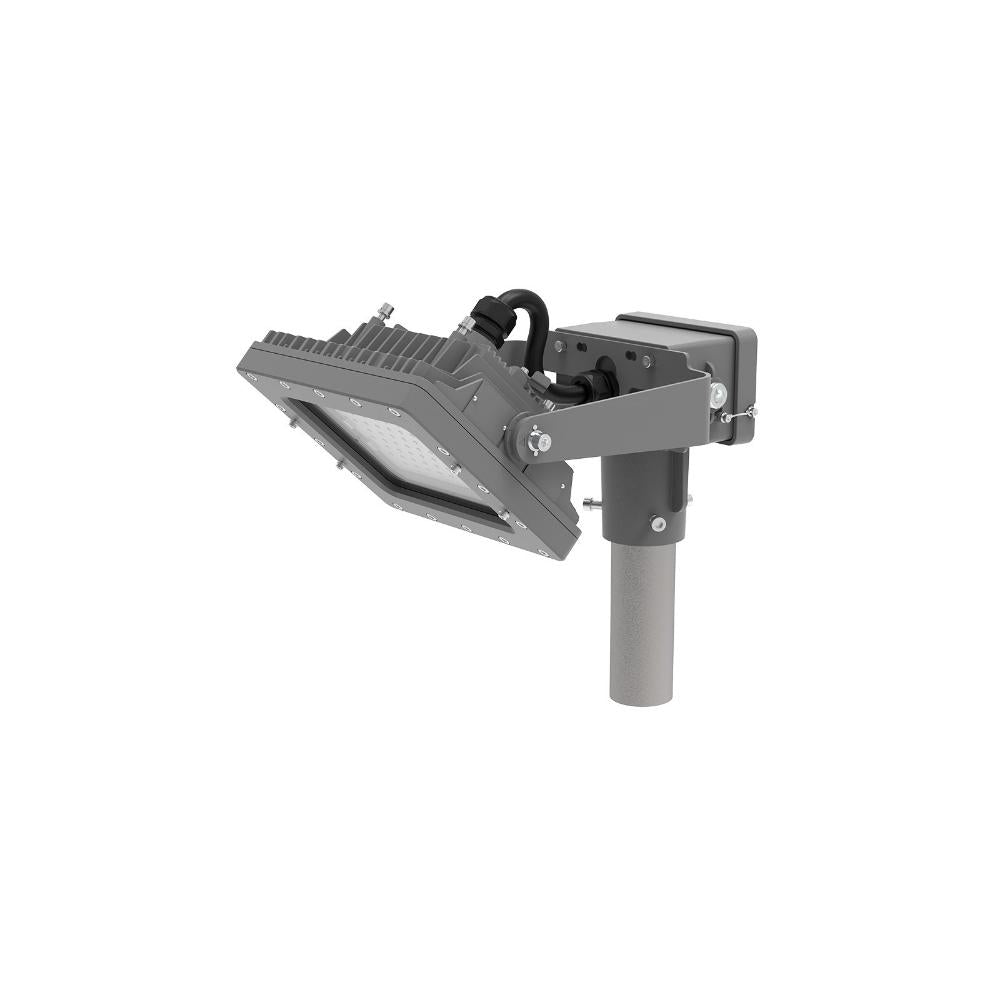

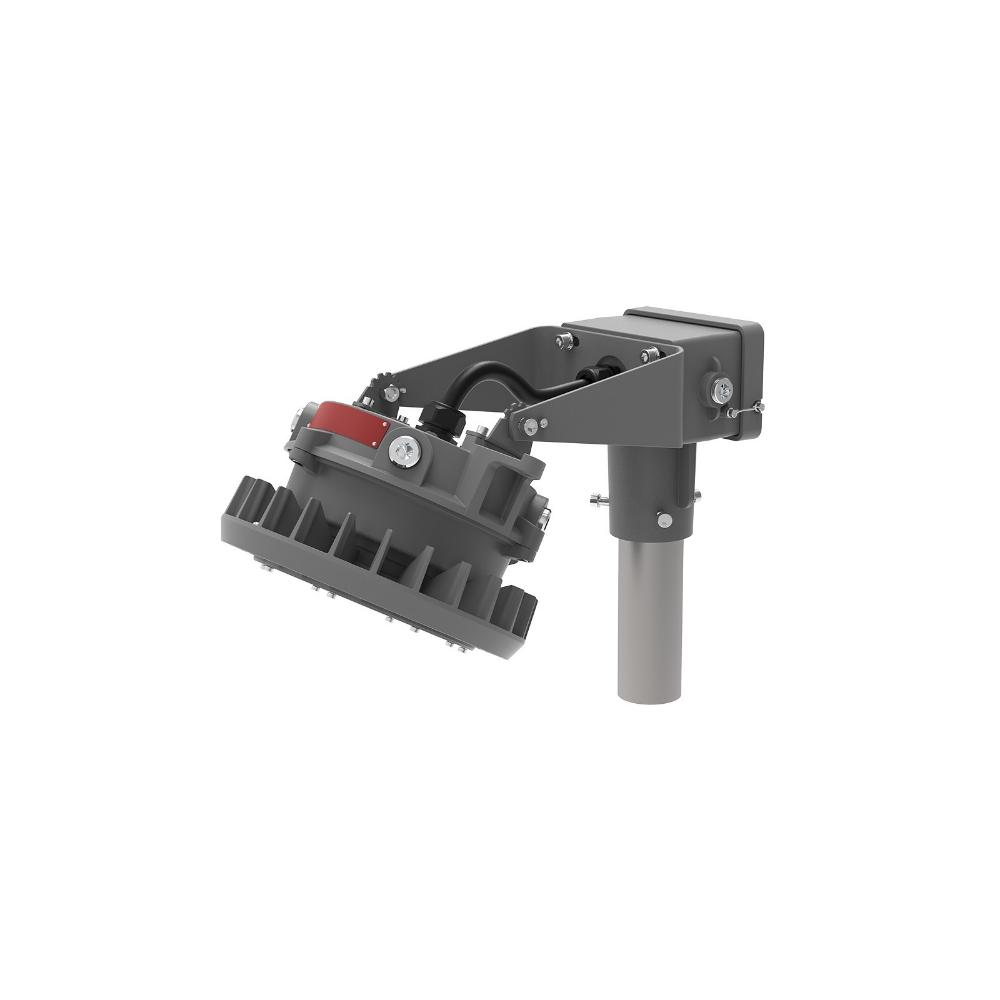

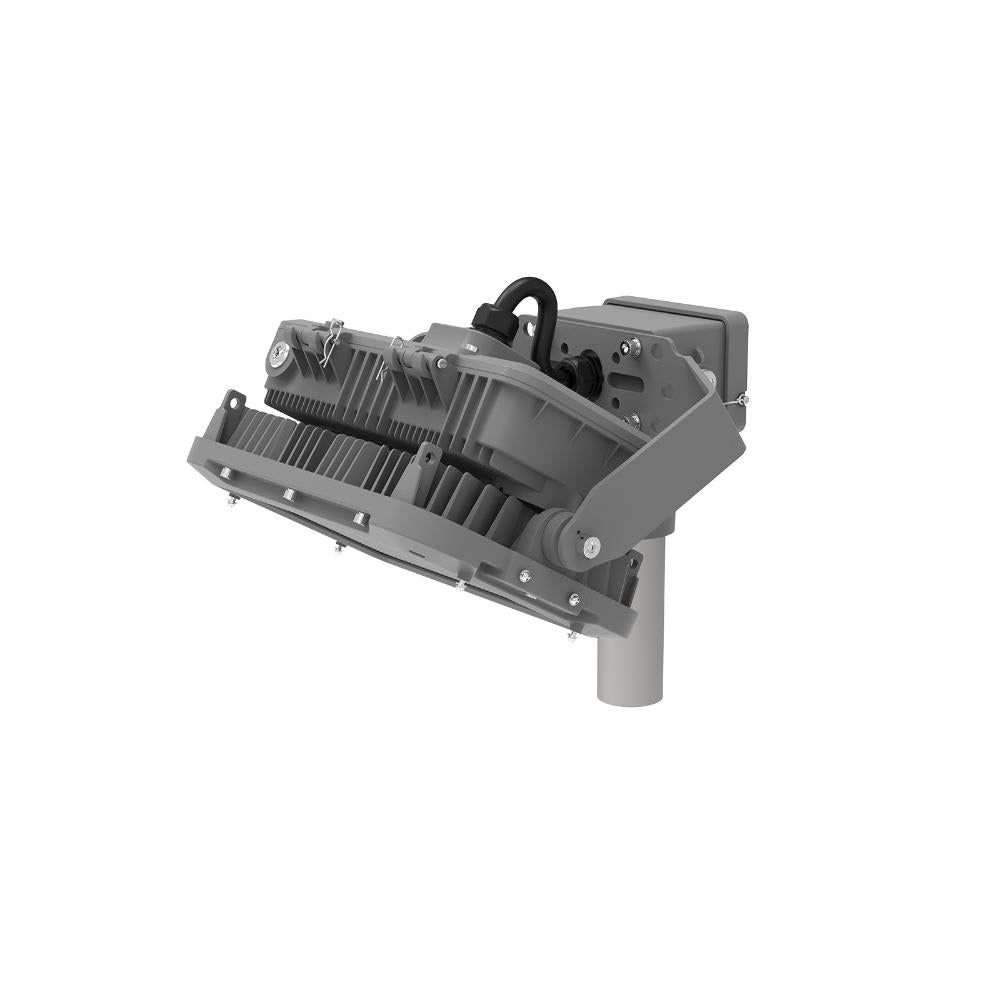

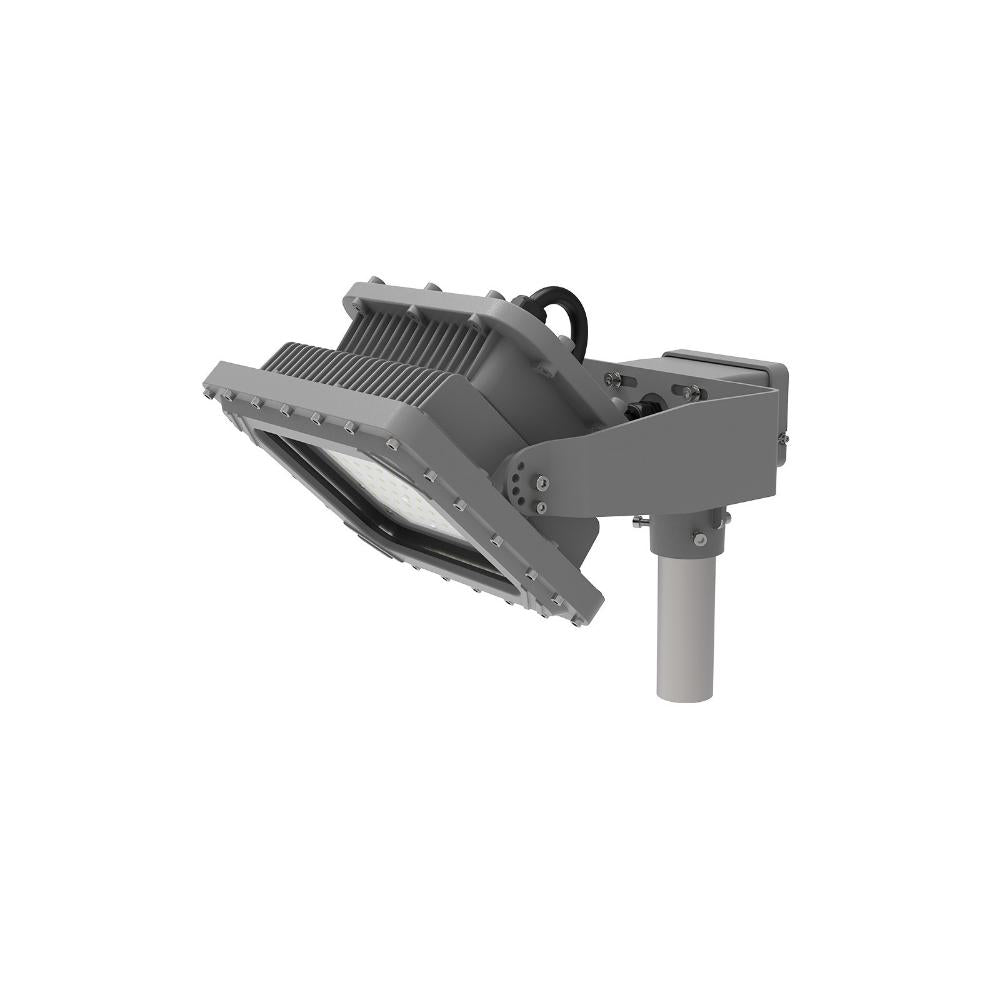

Junction Box is constructed as a multi-piece assembly consisting of a cast-aluminum copper free housing and front cover and cable gland. Design is to accommodate either Stanchion installation or other optional methods and used on 2" (2 3/8" OD) and 1.5" (1.9"OD) Poles ( NPT-threaded and without ).
Specifications
- Material: LM6
- Cable Entry: 1xNPT3/4, 1xNPT1/2
- Product Weight: 5.7lbs（2.6kg）
- Product Dimensions(l×w×h): 7.24 x 4.04 x 7.68 in (184 x 103 x 195mm)
- Ambient operating temperature: -45°C ~ +65°C（Standard）
- Accommodated pole: 1.9° 1.9° non-threaded pole, 2 3/8" non-threaded pole , 1.5" NPT-threaded pole, 2" NPT-threaded pole
Compliance
Ratings:
- Class I Division 2,Groups A,B,C,D
- UL 1598 Wet Locations
- UL 1598A Marine Outside Type (Salt Water)
- NEMA 3R
- IP66
- IK10
- Salt Spray 720 hrs (ISO 9227)
Certifications:
- UL844
- UL1598
- UL1598A
- CSA C22.2 NO.250.0
- CSA C22.2 No.137
