Description

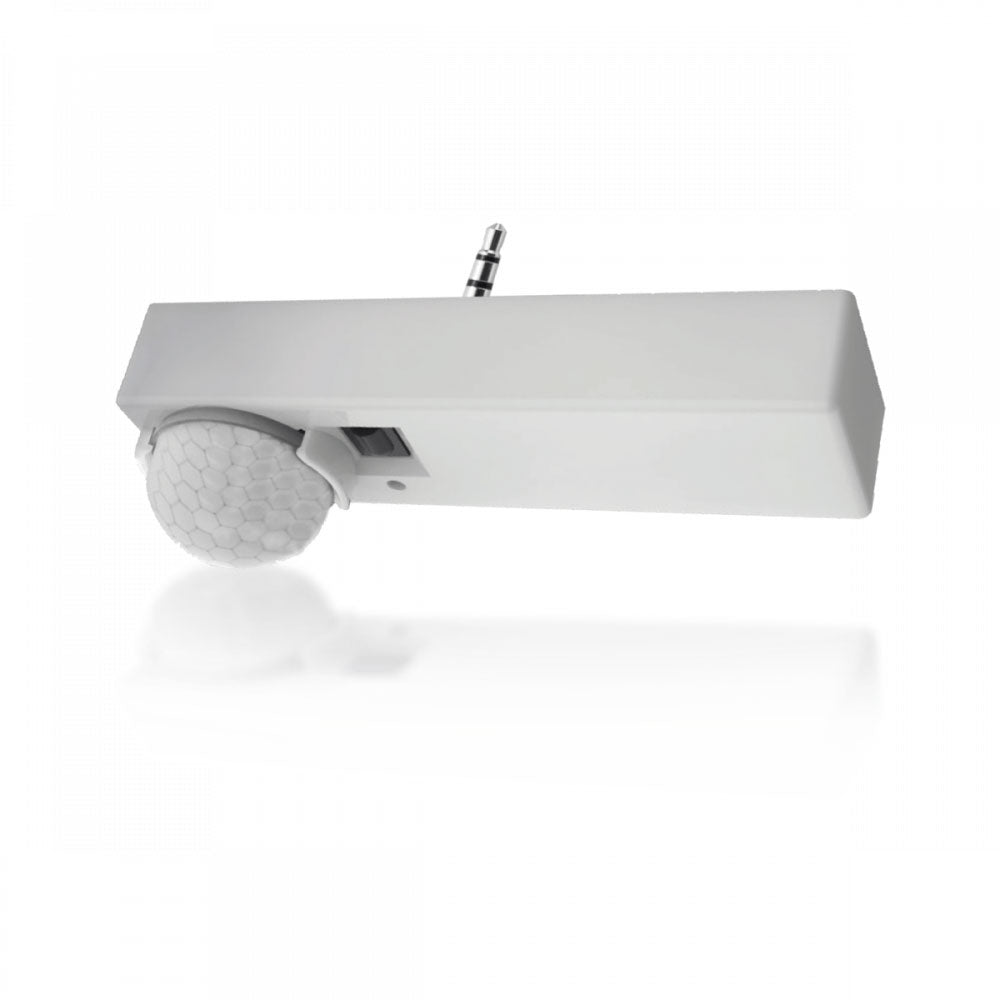

SLG Lighting 2.5mm PIN Standalone Twist-Lock Sensor
The MS-DCE-08-TL25 is a standalone, audio-jack plugin motion sensor designed for troffers, panels, strips, and other low-bay lighting applications. Ideal for applications of 15' heights or less and designed for 2.5 mm audio jack plugin receptacles on 0-10V dimming LED drivers.
Specifications
- Product Series: ControlXP
- Mounting Type: 2.5mm Plug
- Environment: Indoor
- Operating Temperature: -25°C to 60°C (-13°F to 140°F)
- Shape: Round
- Listings: DLC, UL, FCC
- IP Rating: IP20
- Product Type: Control
- Generation: G1
- Voltage Rating: Input DC 12V
- Warranty: 5 Year
- Labor Warranty: No
- Controls Type: Occupancy or Motion Sensor and Daylight Harvesting
- Connection Type: 2.5mm Plug
- Antenna Type: Internal
- Dim to Off: Yes
- Input Voltage: DC 12V
- Aux Power Output: No
- Sinking Current: 10mA Max
- Input Current: <15mA Max
- Occupancy Sensor: Yes
- Sensor Range: 13ft max
- Controls Title 24: Yes
