Description

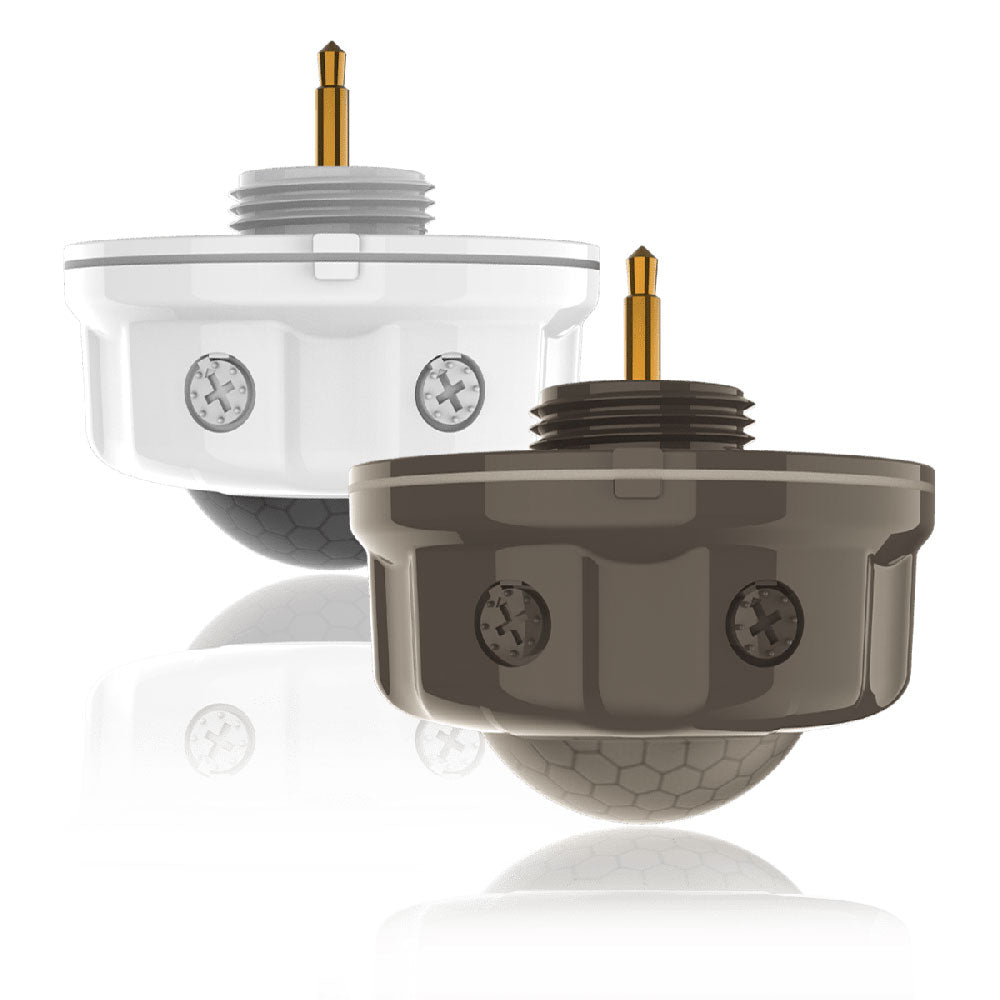

SLG Lighting Basic Plug-In High Bay Sensor
Our low-voltage wireless PIR/Daylight sensor with an integrated 3.5mm jack is designed for simple plug-in installation. This sensor provides 360° coverage at heights ranging from 20-40Ft with an IP65 rating, 40' radius detection range from 40Ft height.
Specifications
- Accessories: Optional RM06 Remote Control
- Mounting Type: 3.5mm Plug
- Environment: Indoor
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- Shape: Round
- Listings: UL, FCC, RoHS
- Product Type: Control
- Generation: G1
- Color & Finish: Non-UV Resistant White or Black Finish
- Voltage Rating: Input DC 12V
- Warranty: 5 Year
- Labor Warranty: No
- Controls Type: Occupancy or Motion Sensor and Daylight Harvesting
- Connection Type: 3.5mm
- Antenna Type: Internal
- Dim to Off: Yes
- Input Voltage: DC 12V
- Aux Power Output: No
- Input Current: <30mA
- Occupancy Sensor: Yes
- Sensor Range: 40ft
- Operating Mode: PIR and Daylight Harvesting sensor
- Controls Title 24: Yes
