SLG Lighting DesignXP™ Cntrols Ready Panel 2nd Gen

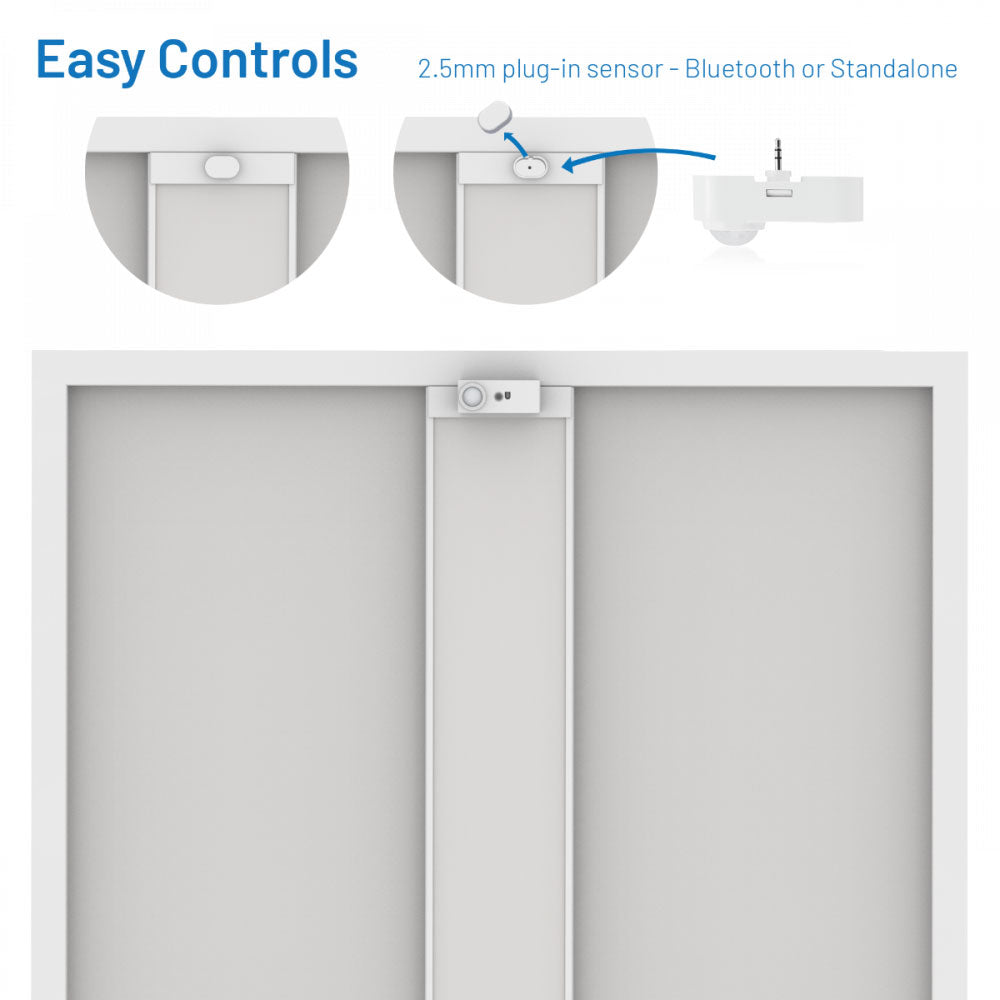

An LED Luxe Backlit Panel designed with your experience in mind. A design focused backlit panel with selectable power and CCT in 3 available sizes on top of being controls ready with a built-in audio-jack sensor receptacle. The TPL G2delivers a superb, non-intrusive light source. 0-10V Dimming - 80 CRI.
Specifications
- Product Series: DesignXP
- Wattage: LS38: 25 W / 30 W / 35 W, LS55: 30 W / 40 W / 55 W
- Lumen Output: LS38 (1x4 & 2x2): 2,750 LM, 3,300 LM, 3,850 LM, LS55 (2x4): 3,300, 4,400 LM, 5,500 LM
- Correlated Color Temperature (CCT): 3500K , 4000K , 5000K
- Color Rendering Index (CRI): 80
- Control: Optional Avi-On Bluetooth Mesh Controller
- Accessories: Emergency Backup Kit
- Mounting Type: Surface mount, drywall, or T-Grid recessed.
- Environment: Indoor
- Shape: Rectangle

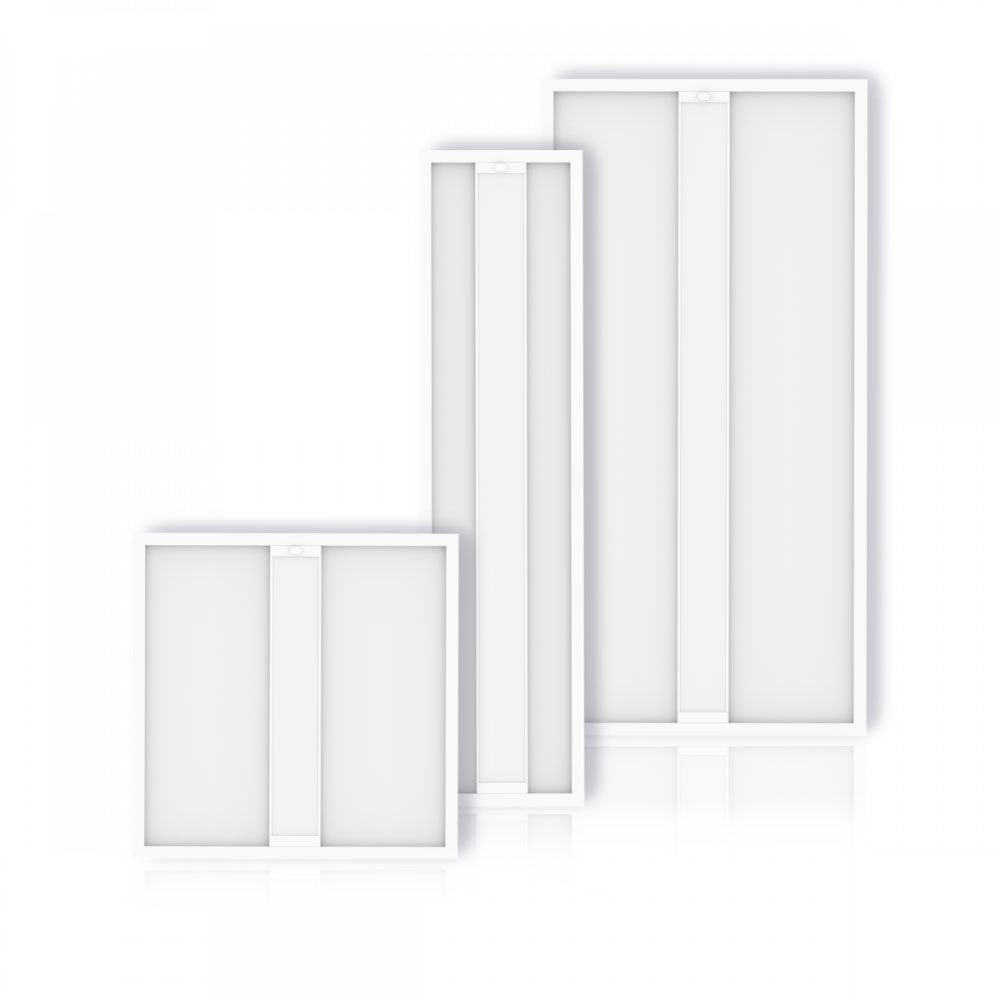

- Product Sizes: 1x4, 2x4, 2x2
- Listings: DLC Premium, UL listed, FCC, 5 year warranty, Damp location #split by comma
- Product Type: Panel
- Generation: G2
- Color & Finish: White
- Light Source: LED - Selectable
- Voltage Rating: Standard 120-277V
- Warranty: 5 Year
- Labor Warranty: No
Product Files
Click for TPL G2 Selectable Luxe LED Backlit Panel Sheet
Click for TPL G2 Selectable Luxe LED Backlit Panel Installation Guide
Click for TPL G2 Selectable Luxe LED Backlit Panel Sales Sheet
