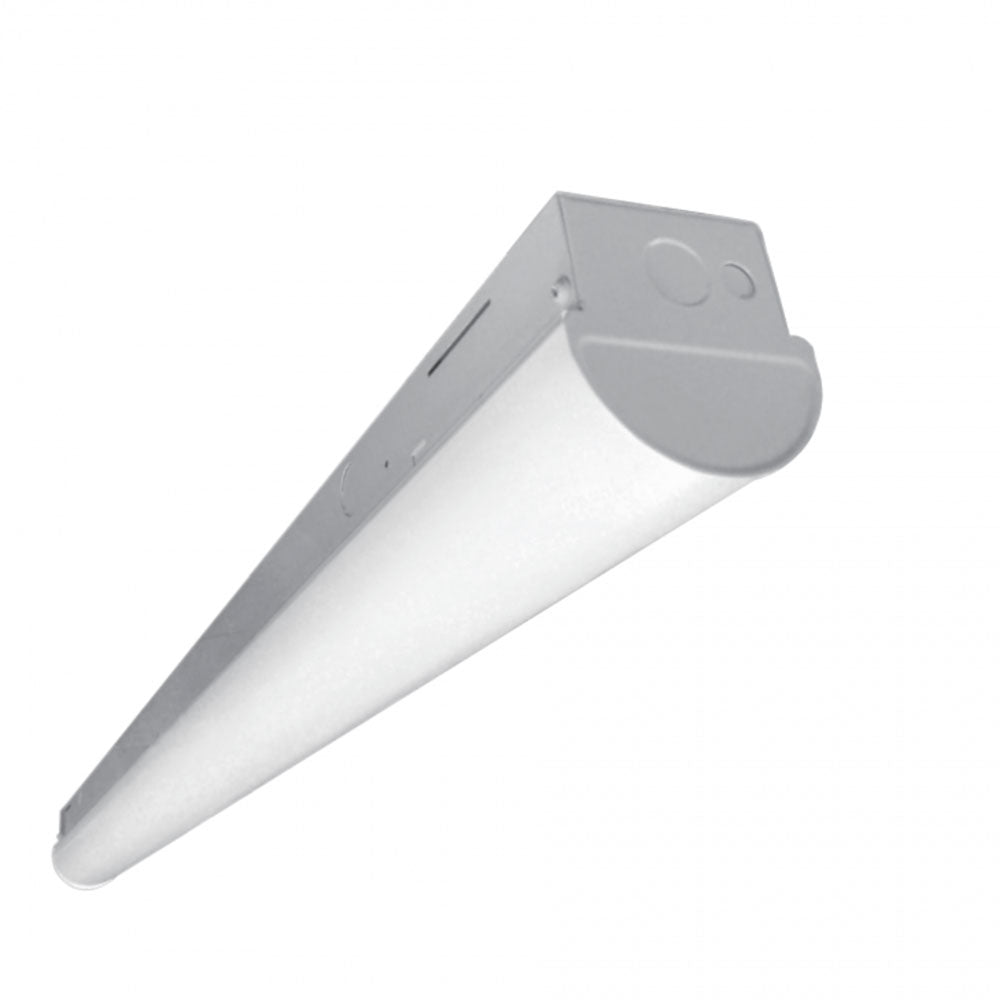

SLG Lighting Drop Lens Industrial Strip Contractor Series Gen 1
This Series Gen 1 has die-formed housing with convertible end plates to create a continuous row of illumination. This sleek luminaire is available in two sizes 4 ft and 8 ft with a width of 3.3" that is ideal for retrofit T8 lengths or new construction applications for commercial, industrial, retail and residential.
APPLICATIONS
Warehouses, Retail stores, Utility, and Fabrication areas, etc.
REPLACEMENT
1 Lamp T8 32W, 2 Lamp T8 32W, 3 Lamp T8 32W,
4 Lamp T8 32W, 2 Lamp T5HO 54W
Specifications
- Product Series: Contractor
- Wattage: 34W/38W/45W 4 foot, 65W/75W/90W 8 foot Selectable
- Lumen Output: 4488/5016/5940 LM 4 foot, 8580/990011880 LM 8 foot, Selectable
- Correlated Color Temperature (CCT): 3500K/4000K/5000K Selectable
- Color Rendering Index (CRI): 80
- Product Lens: Frosted acrylic lens.
- Control: Motion Sensors
- Accessories: Motion Sensor , Emergency Backup Kit , Row Connector , Wire Guards
- Mounting Type: Surface Mount , Hook Mount
- Environment: Indoor
- Shape: Linear
- Product Sizes: 4ft and 8ft
- Listings: DLC Standard, UL
- Product Type: Troffer
- Generation: G1
- Color & Finish: Polyester Powder White Finish
- Light Source: LED - Static
- Voltage Rating: Standard 120-277V
- Warranty: 5 Year
- Labor Warranty: No
Product Files
Click for TSC G1 Selectable Drop Lens Industrial Strip Contractor Spec Sheet
Click for TSC G1 Drop Lens Industrial Strip Contractor Installation Guide
