Description
SLG Lighting DS Surface Slice Downlight GEN 1

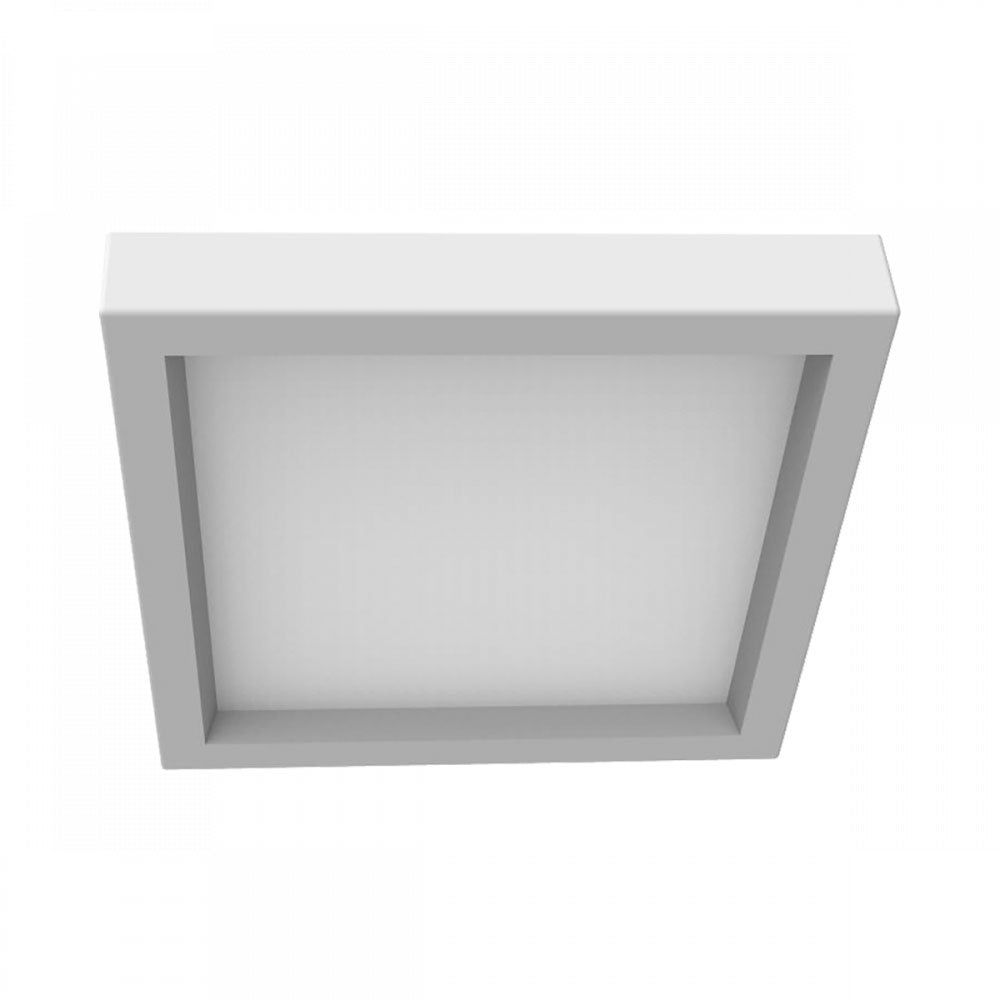

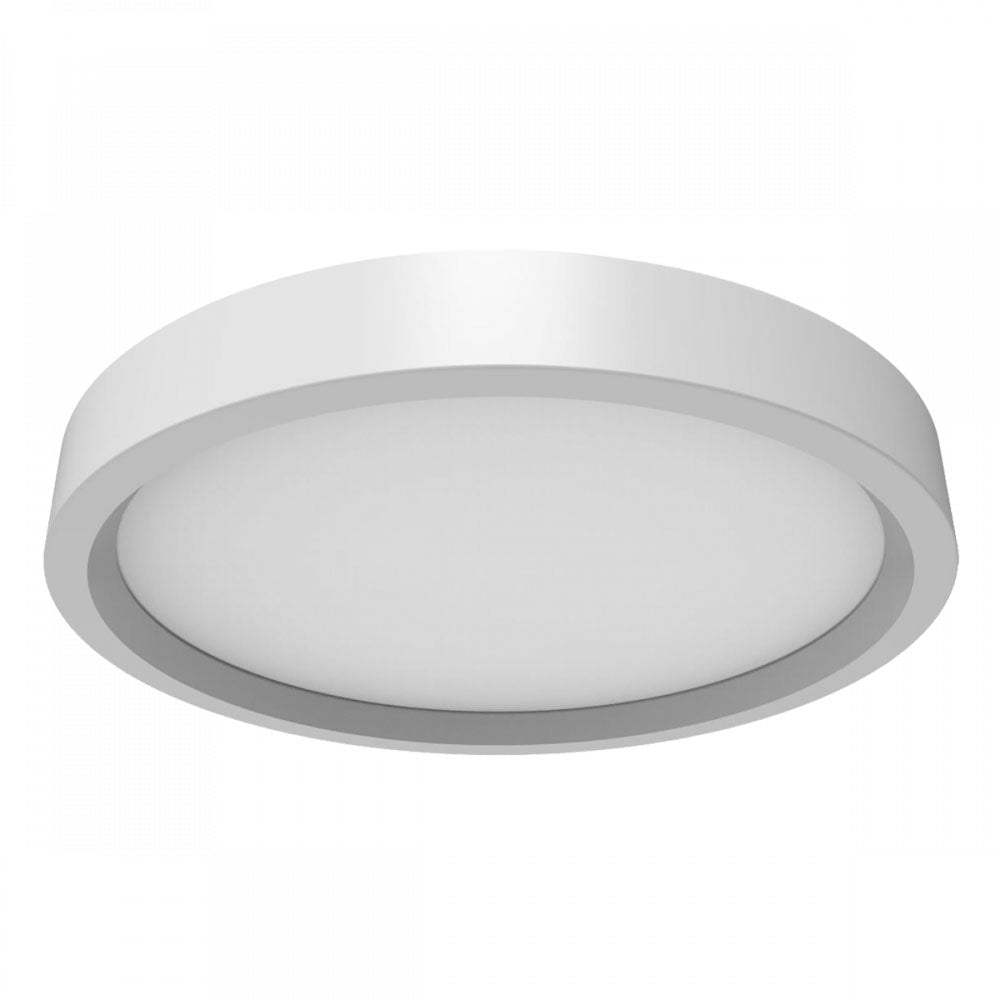

This Series is elegantly formed to imitate standard recessed downlights but in a surface mount design. Delivering high lumen output with glare controlling lens, this slim 5/8" surface mount downlight is ideal for a wide variety of applications. Easy to install on junction boxes and fits any ceiling, this downlight solves problems of limited plenum space. The SurfaceSlice is available in round or square apertures.
APPLICATIONS
Corridors, Elevators, Entry Ways, Hallways, Porches, Stairways, Utility Closets, and Work Areas. A wet and damp location listing also allows for use in showers and bathrooms.REPLACEMENT
Up to 90W PAR85W BR40
Specifications
- Wattage: 18W , 27W , 40W , 54W; 10W, 12W UNV models
- Lumen Output: 635 LM, 650 LM , 850 LM , 1000 LM ; 765 LM, 990 LM UNV models
- Correlated Color Temperature (CCT): 3000K
- Color Rendering Index (CRI): 80+ on standard, 90+ on 930K and UNV models
- Mounting Type: Surface Mount
- Environment: Indoor
- Shape: Multiple Shapes
- Listings: Energy Star pending. ETL Listed for damp and wet locations (non-conductive trim). FCC compliant. Certified to the high efficacy requirements of California T24 JA8 and T20.
- Product Type: Downlight
- Generation: G1
- Color & Finish: White finish
- Light Source: LED - Static
- Voltage Rating: Standard 120V, 120-277 UNV models
- Warranty: 5 Year
- Labor Warranty: No
Product Files
Click for DS G1 SurfaceSlice Downlight 80/90CRI Spec Sheet
Click for DS G1 SurfaceSlice UNV Downlight Spec Sheet
