Description

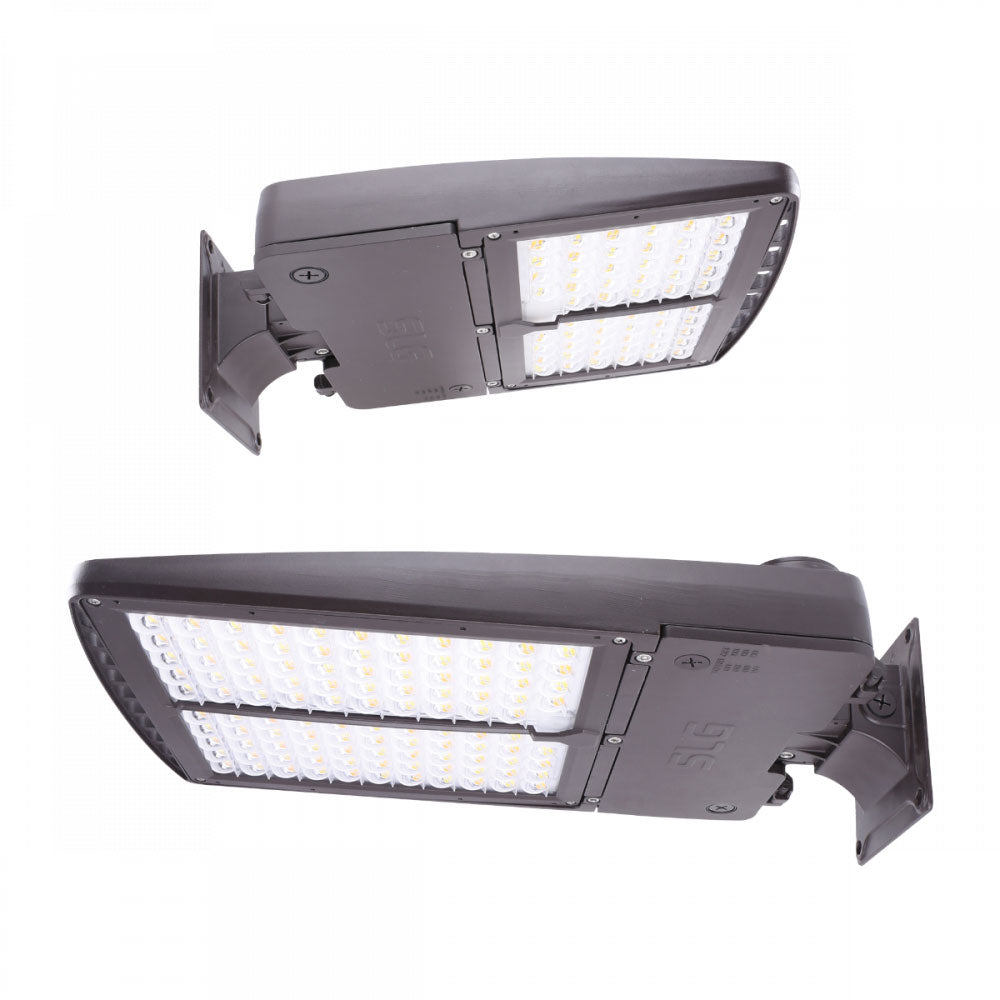

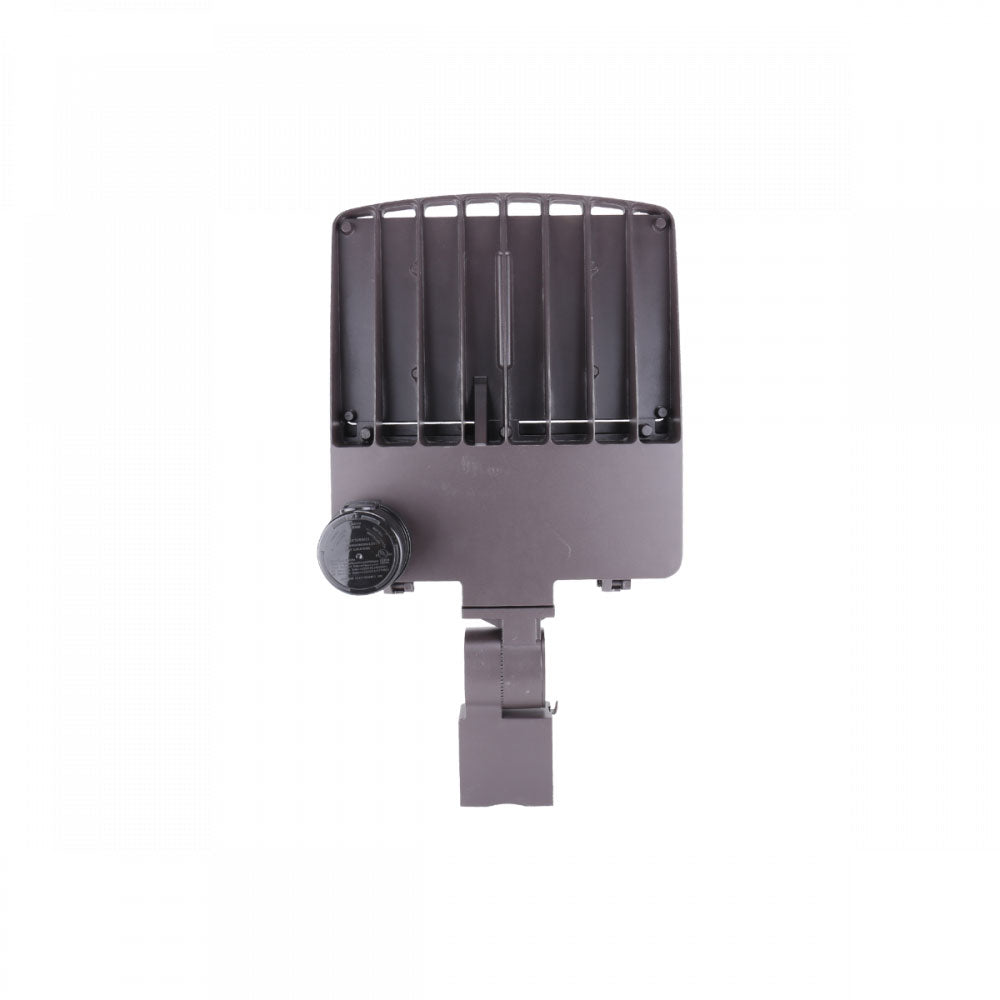

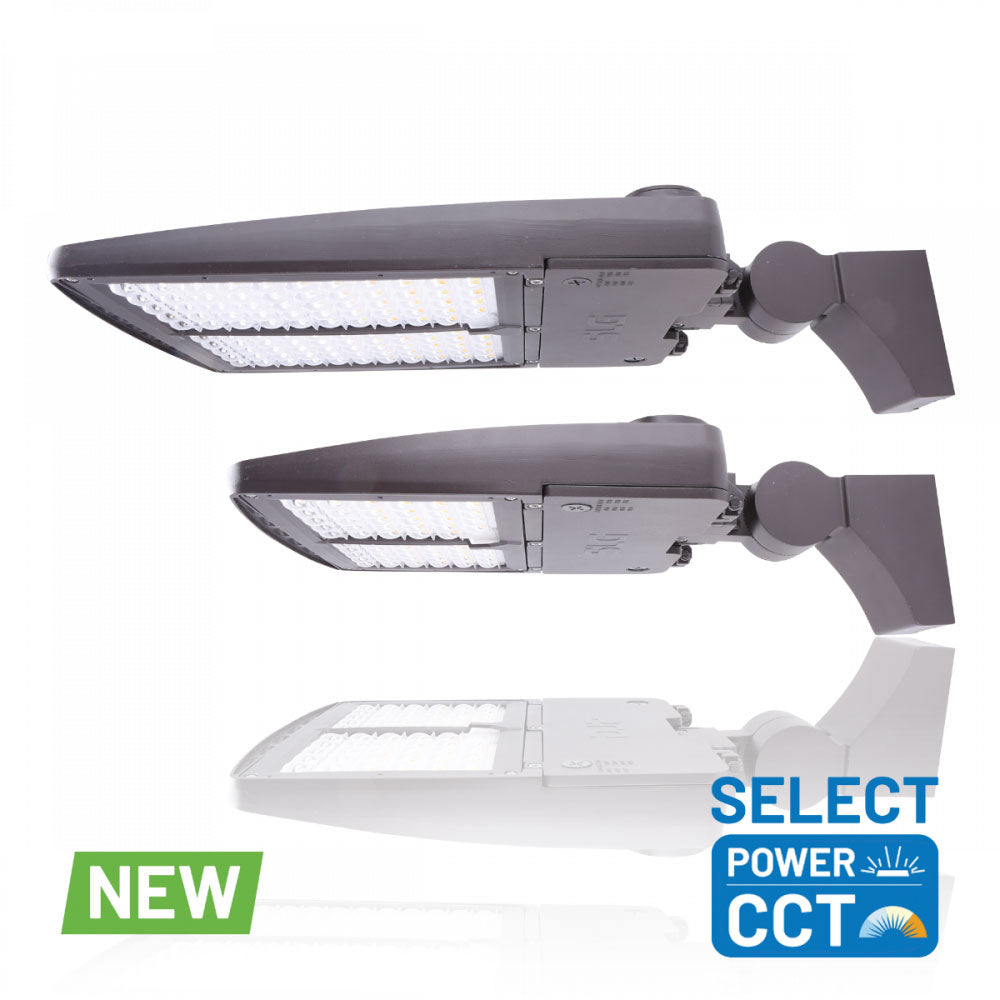

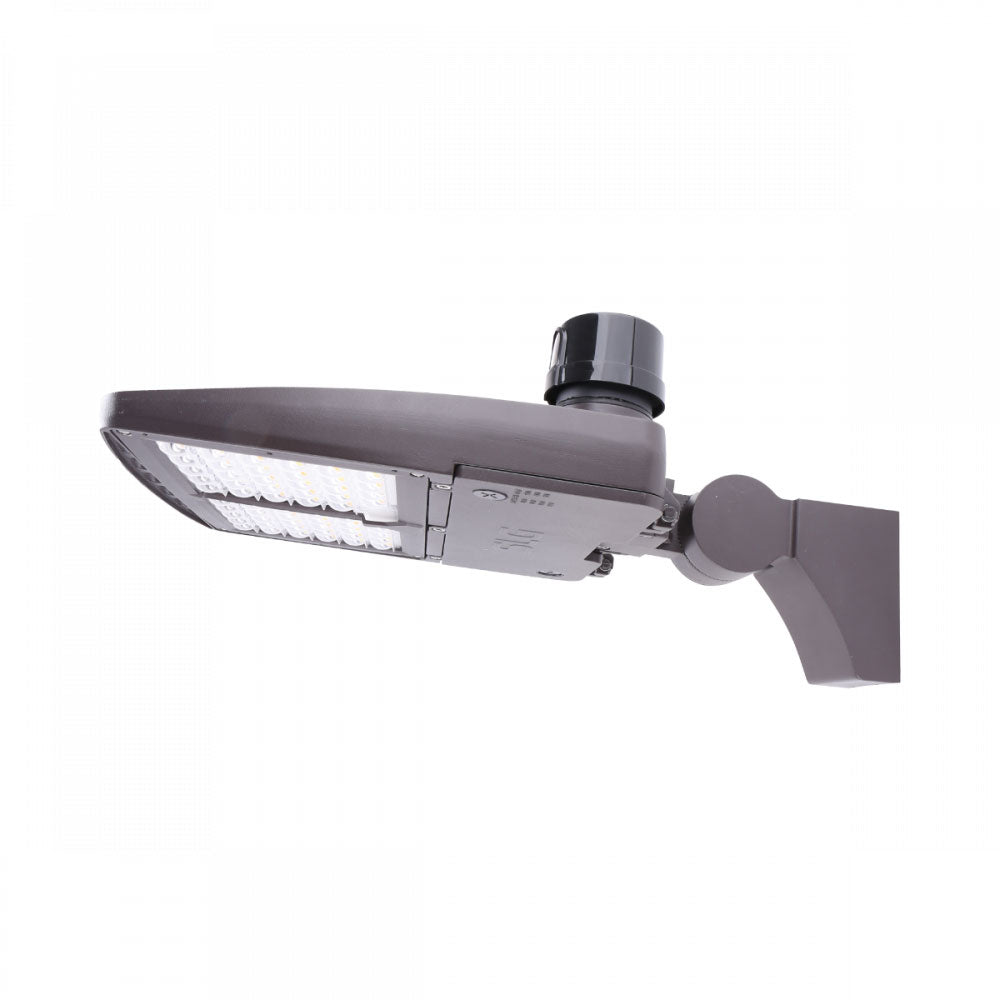

SLG Lighting LED Area Light - Controls Embedded - Gen 2
The ALF G2 LED Area Light series is a sleek, high quality lighting fixture designed for best-in-class optics and a powerhouse of options - giving you and your customers a fast-quote area light that delivers upon arrival. Plug-in controls make this area light series an ideal series for wireless lighting controls and future-proofs your customer's investment giving them the flexibility in controls today or controls tomorrow. Type II,III,IV,V distributions are available, 175 Lm/W, multiple finishes,and switch selectable power and CCT.
Applications:
Exterior lighting, parking lots, warehouse exterior bays, and more.
Specifications
- Product Series: ContractorXP
- Wattage: Medium LS250 80 W / 110 W / 140 W / 160 W - Large LS500 198 W / 264 W / 300 W / 330 W
- Lumen Output: Medium LS250 14,000 Lm / 18,000 Lm / 22,100 Lm / 25,000 Lm - Large LS500 33,500 Lm / 42,000 Lm / 48,000 Lm / 50,000 Lm
- Correlated Color Temperature (CCT): Selectable 3000K / 4000K / 5000K
- Color Rendering Index (CRI): 70
- Product Distribution Types: Type II, Type III, Type IV, Type V
- Mounting Type: Pole mount (included with 120-277V fixture), slipfitter mount (included with 120-277V fixture), wall mount, and trunnion mount
- Environment: Outdoor
- Shape: Rectangle
- Listings: DLC Premium (pending), FCC, Wet Location, NLC (Lighting controls), TAA compliant
- Product Type: Area Light
- Generation: G2
- Color & Finish: Dark bronze, black, white, silver gray, and custom colors available upon special request.
- Housing: Sealed, heavy duty die-cast aluminum.
- Light Source: LED - Selectable
- Voltage Rating: Standard 120-277V and HVU 347-480V optional
- Warranty: 5 Year
- Labor Warranty: No
Product Files
Click for ALF G2 - LED Controls Embedded Area Light - Spec Sheet
Click for ALF G2 - LED Controls Embedded Area Light - Installation Guide
Click for ALF G2 - LED Controls Embedded Area Light - Sales Sheet
