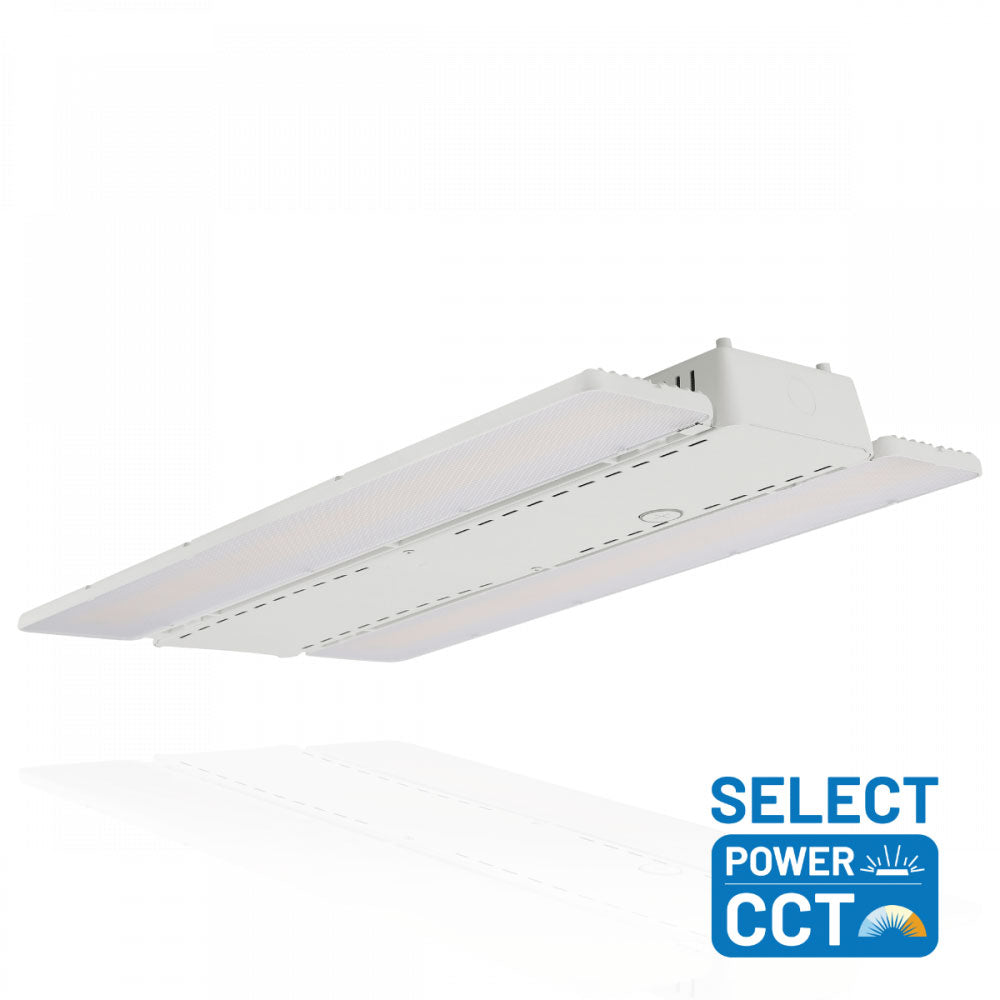

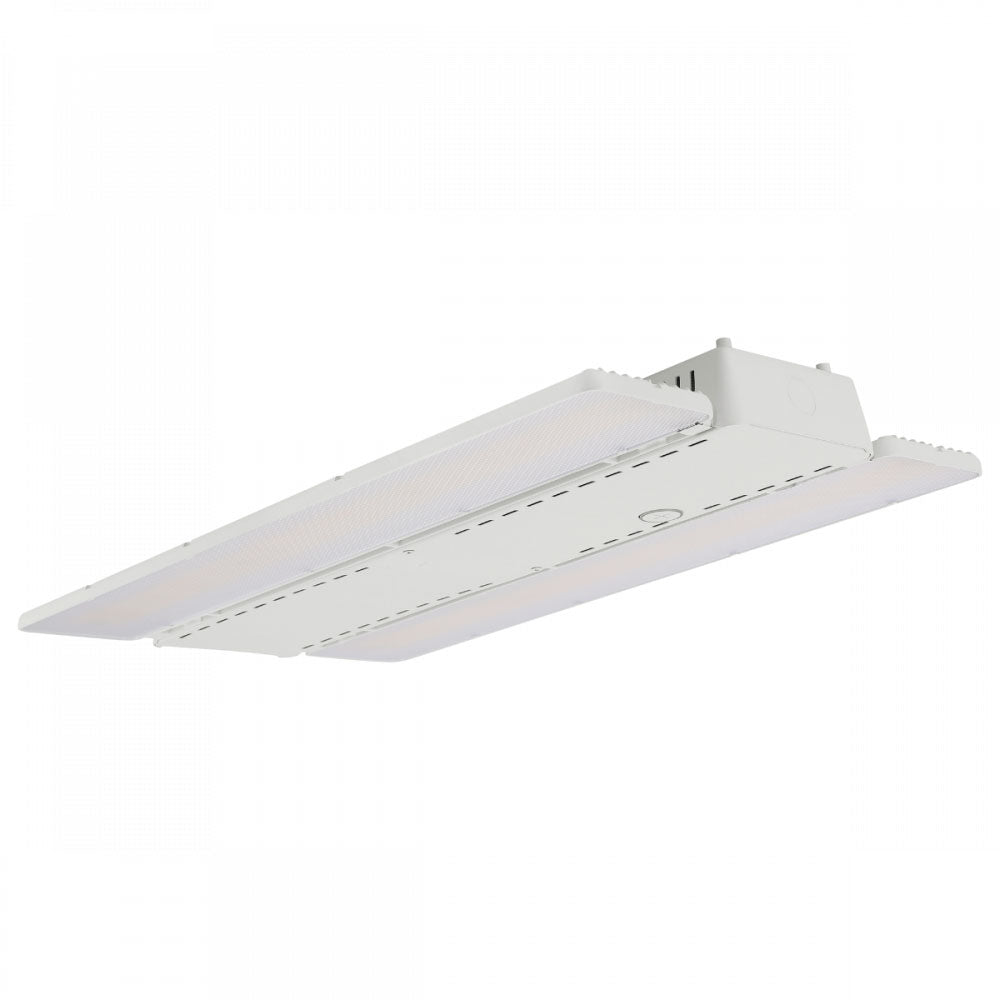

SLG Lighting LED Compact Selectable Linear High Bay
The HCL Select is the second generation of our BEST-SELLING compact linear high bay, designed to make you and your customer's lives easier. The sturdy, heat resilient housing includes a built-in "audio-jack" receptacle for easy wireless lighting controls options. Designed to unlock the highest energy rebates with the simplest solution to get you and your customers LLLC compliant. 12,000 - 38,000 Lumen range 84 - 260 Watts range 3500K/4000K/5000K selectable - Optional emergency backup driver comes pre-installed and ready for instant installation - minimizing all labor costs. Invest in the best, cost-effective linear high bay on the market with the highest rebate capabilities.
Specifications
- Product Series: Contractor
- Wattage: 84W, 100W, 115W, 130W, 160W, 165W, 220W, 260W
- Lumen Output: 12,000 - 38,000 Lm
- Correlated Color Temperature (CCT): 3500K, 4000K , 5000K Selectable
- Color Rendering Index (CRI): 80
- Product Distribution Types: Medium Beam
- Control: Optional basic and wireless controls and sensor
- Accessories: Emergency Battery Kit, Surge Protection, Wire Guard
- Mounting Type: Steel wire cable mount (default), surface mount, and pendent installation with conduit
- Environment: Indoor
- Shape: Rectangle
- Product Sizes: 20.67in x 12.4in x 2.05in
- Listings: UL , DLC Premium (Pending for LS240 Model), FCC
- Product Type: High Bay
- Generation: G2
- Color & Finish: White Polyester Powder

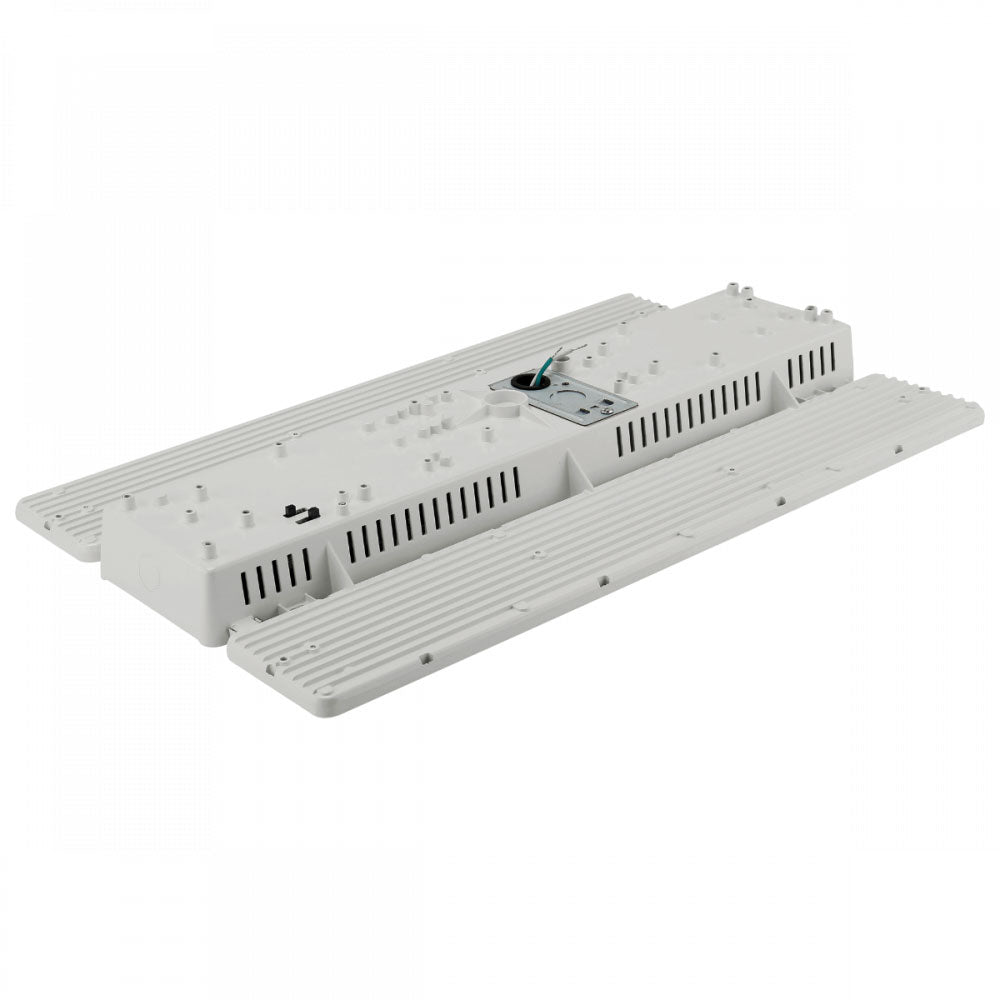

- Housing: One-piece die-cast aluminum for quality and performance

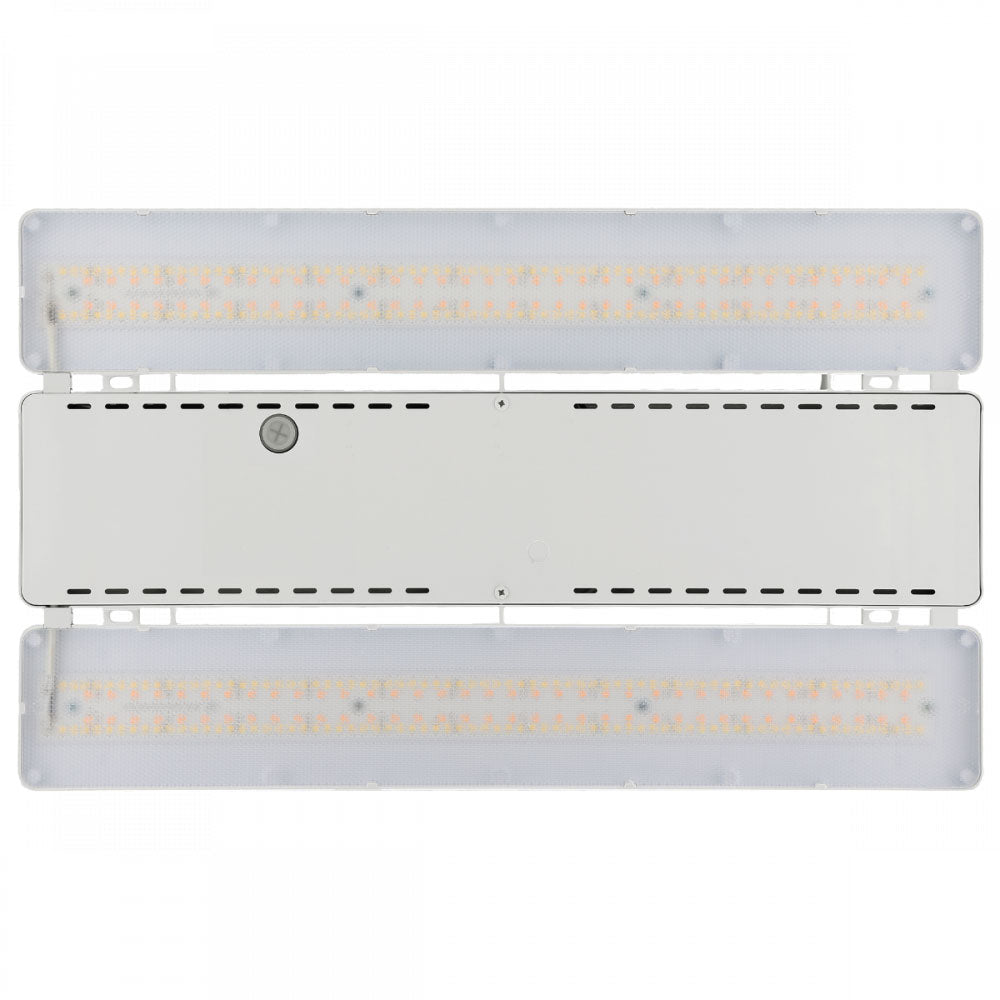

- Light Source: LED - Selectable
- Voltage Rating: Standard 120-277V, HVU 347-480V
- Warranty: 10 Year
- Labor Warranty: No
Product Files
Click for SLG HCL Select G2 Compact Linear High Bay Spec Sheet
Click for SLG HCL Select G2 LS600 Compact Linear High Bay Spec Sheet
Click for SLG HCL Select G2 Compact Linear High Bay Installation Guide
