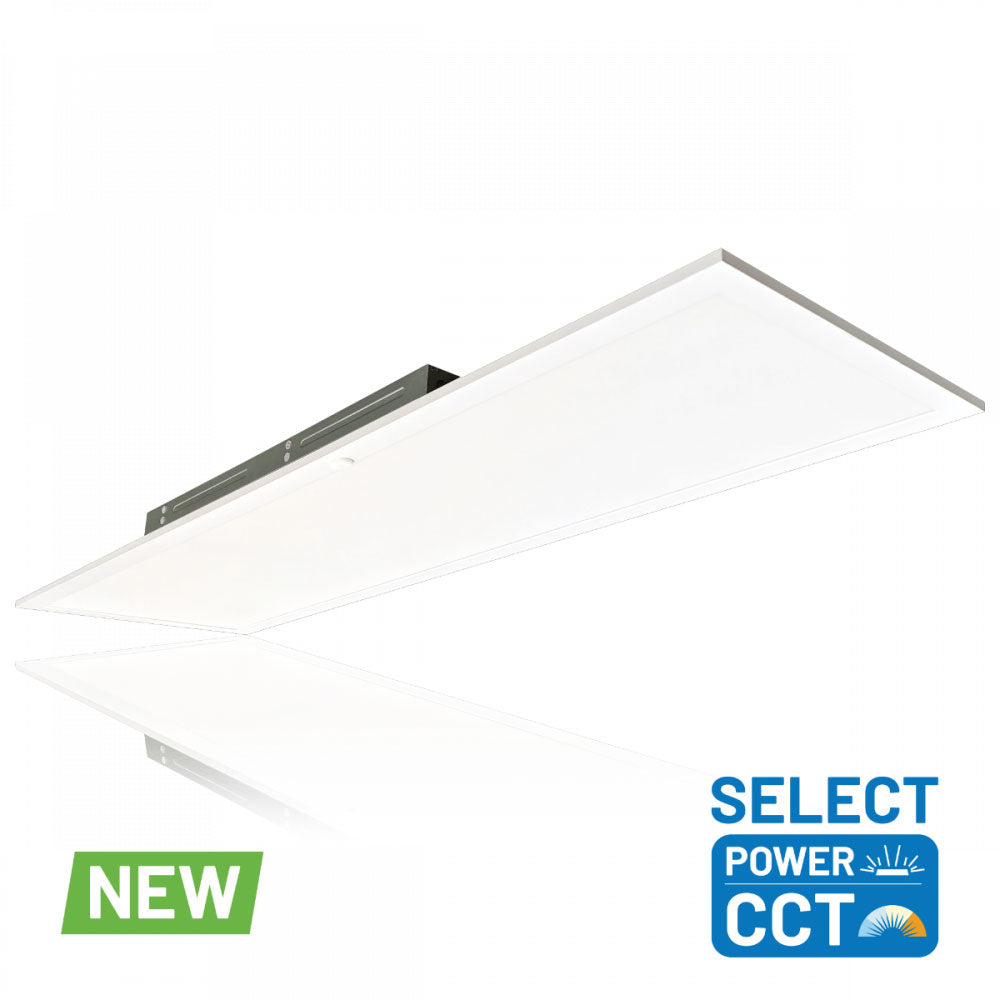

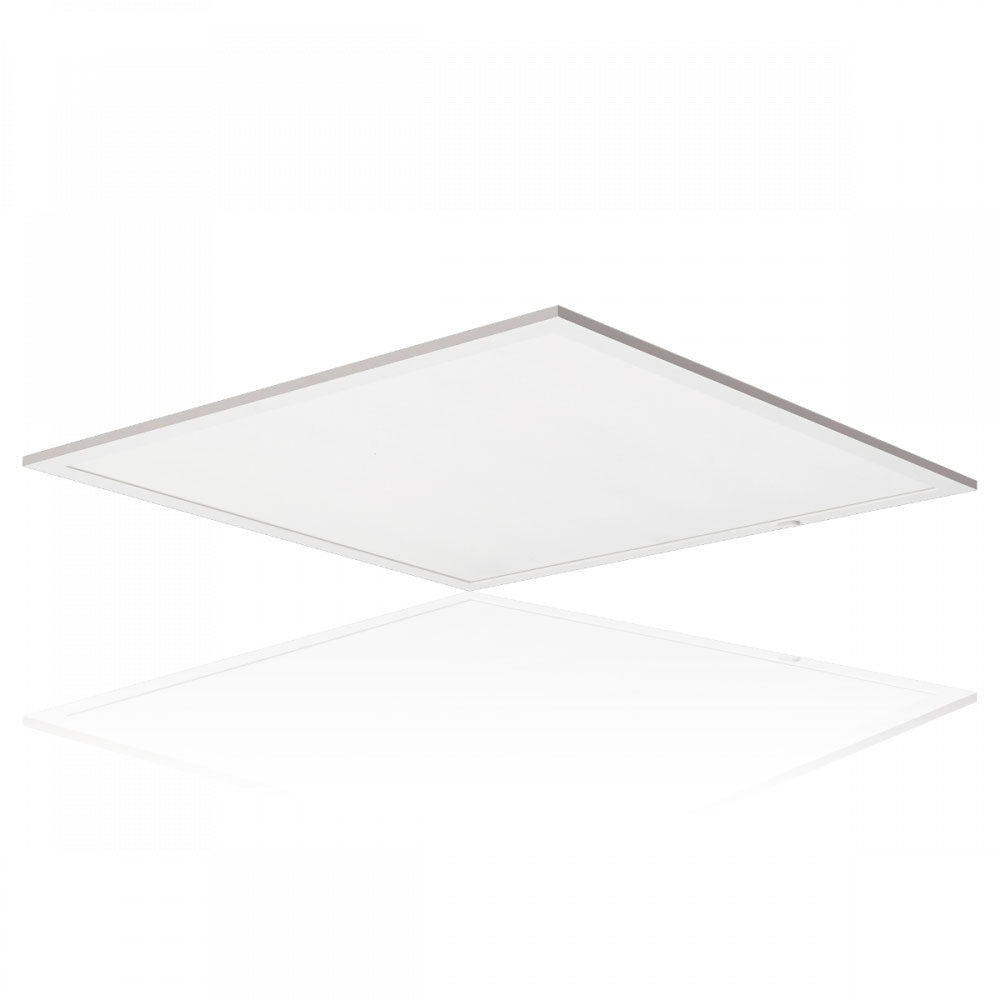

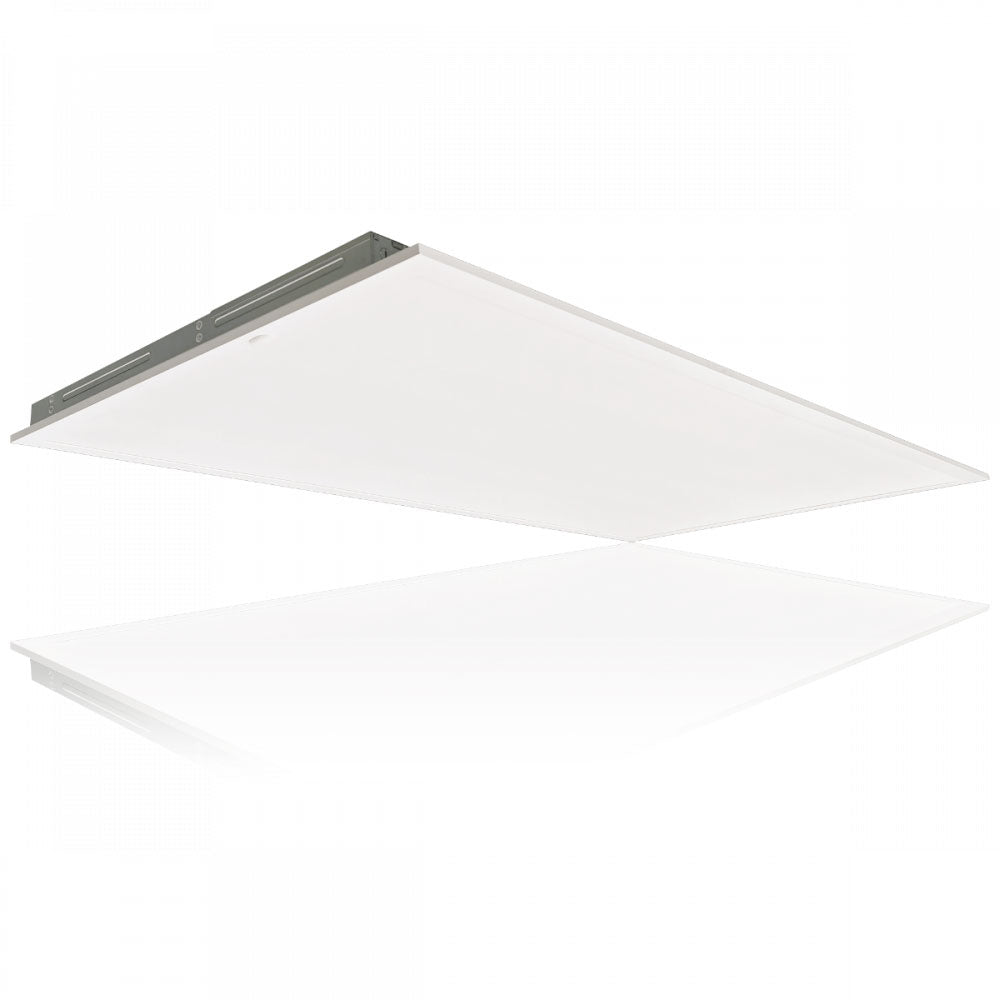

SLG Lighting LED Controls Flexible Panel

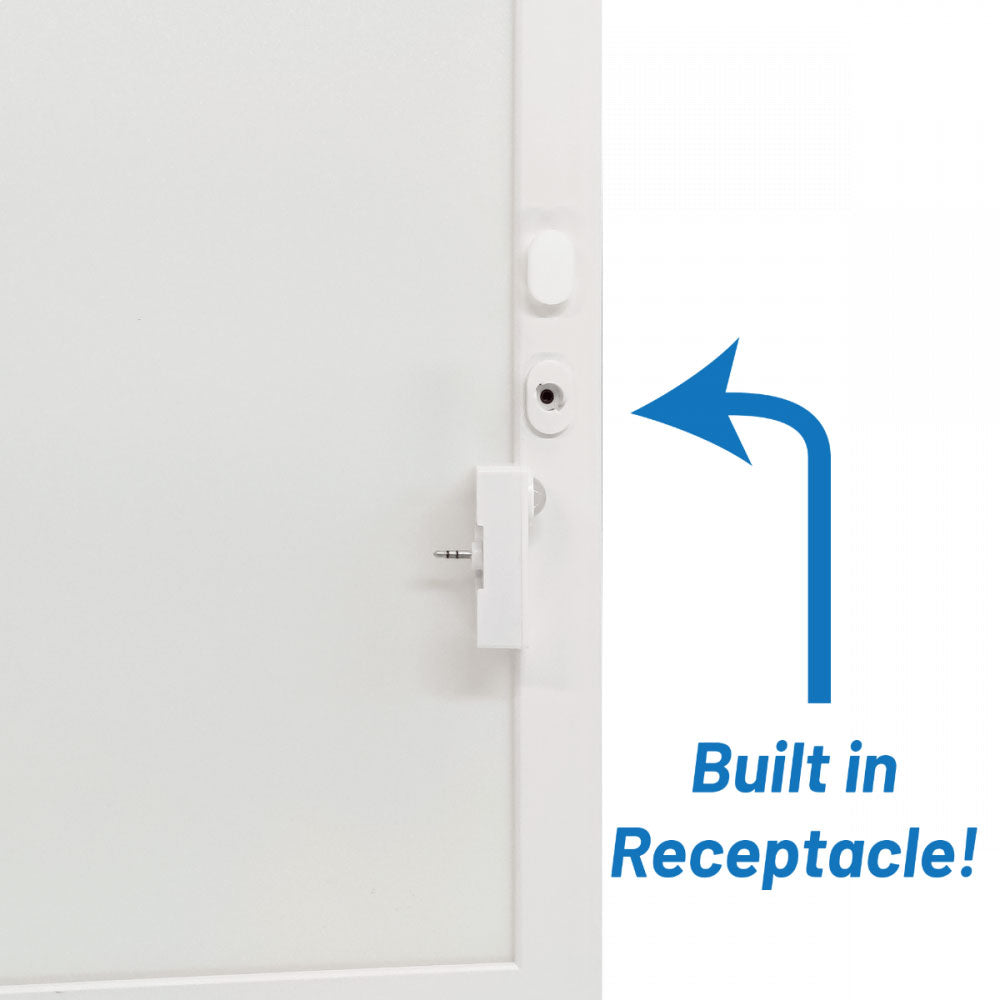

Having a controls-ready flat panel is an ideal option for your customers, that's why the TPSC Series features a built-in 2.5 mm plug-in receptacle designed for twist-lock plug-in controls. Available in 1' x 4' - 2' x 2' - 2' x 4' sizes - with selectable power and CCT drivers, giving you a quick quote panel series that covers 27 SKUs. Your customers can experience networked lighting controls with our Bluetooth mesh control options or keep it basic with a standalone sensor. The right LED panel for whatever your customers may need.
Specifications
- Product Series: ControlXP
- Wattage: 25W/30W/40W LS45, 30W/40W/50W LS55
- Lumen Output: 2750/3300/4450 LS45, 3300/4400/5500 LS55, Selectable
- Correlated Color Temperature (CCT): Selectable 3500K , 4000K , 5000K
- Color Rendering Index (CRI): 80+
- Product Lens: Frosted polysrene lens
- Control: optional basic and network controls
- Accessories: Emergency Backup Kit, optional Surface and Suspended Mounting, Flange, Basic and Network Controls
- Mounting Type: Recessed Ceilling Mounting, Optional Surface and Suspended Mounting
- Environment: Indoor
- Operating Temperature: -4° F to 122° F (-20°C to 50° C)
- Shape: Rectangle

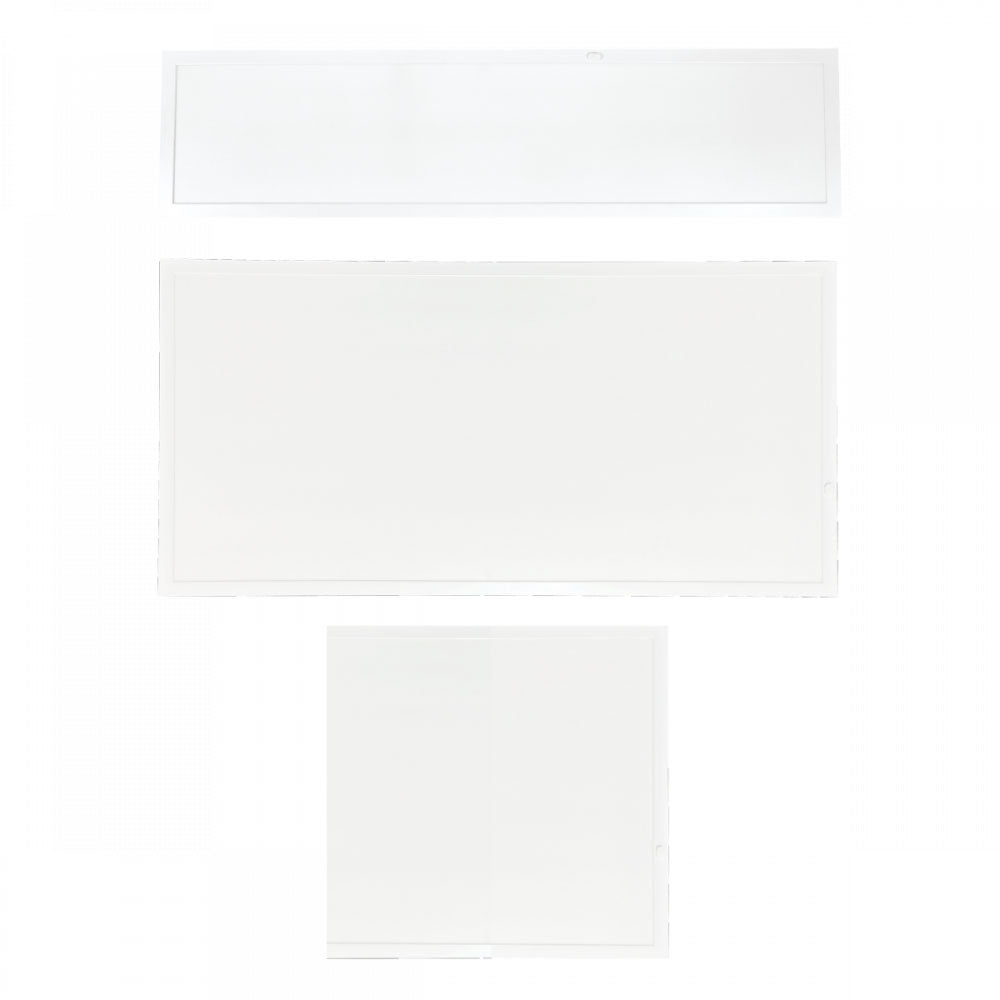

- Product Sizes: 1x4, 2x2, 2x4
- Listings: DLC Standard, UL , FCC
- Product Type: Panel
- Generation: G1
- Color & Finish: Polyester Powder White Finish
- Housing: Steel sheet and extruded aluminum
- Light Source: LED - Selectable
- Voltage Rating: Standard 120-277V
- Warranty: 5 Year
- Labor Warranty: No
Product Files
Click for TPSC G1 Selectable Panel Spec Sheet
