Description

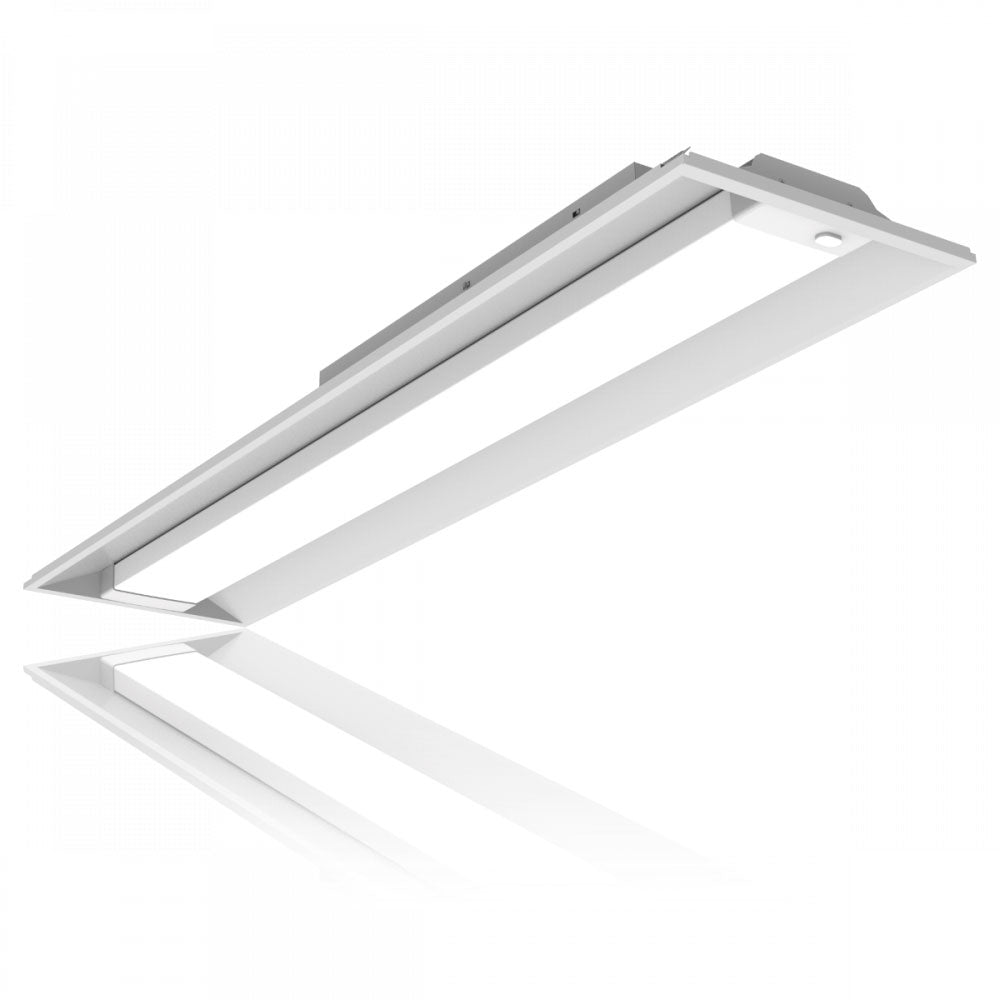

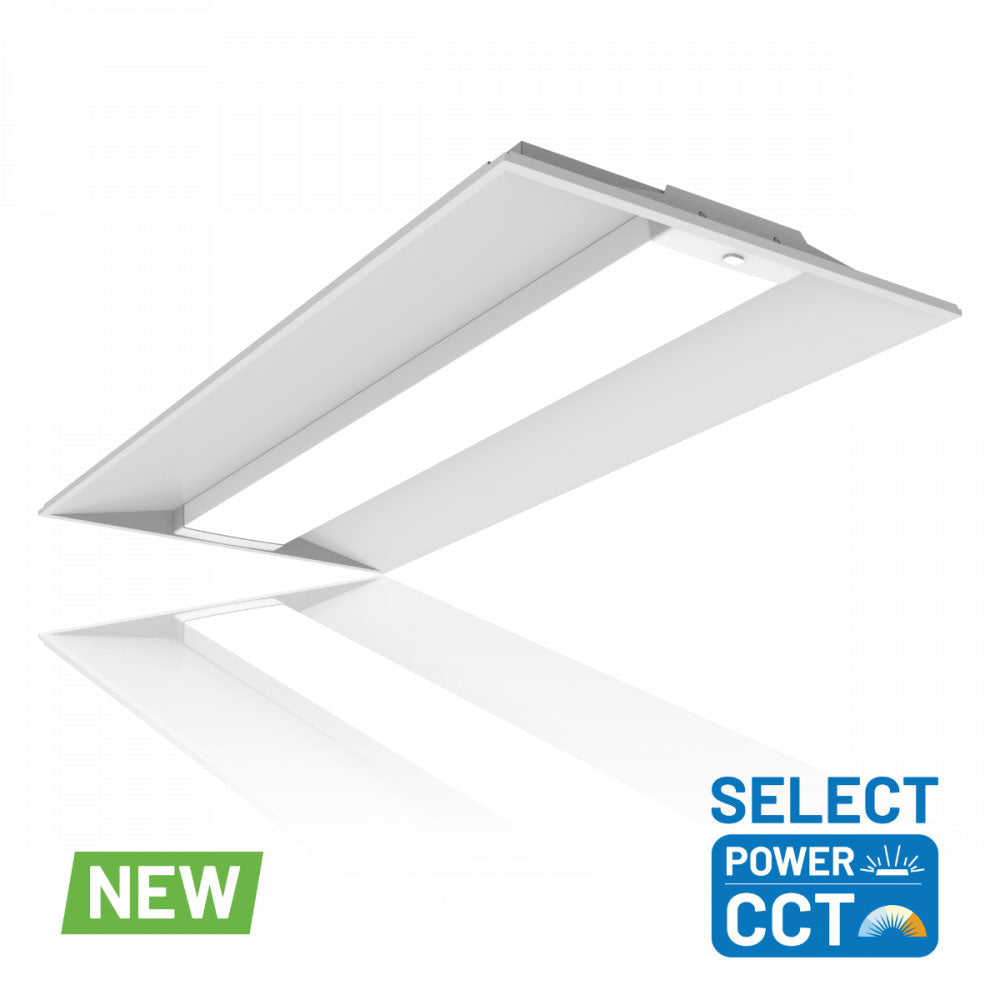

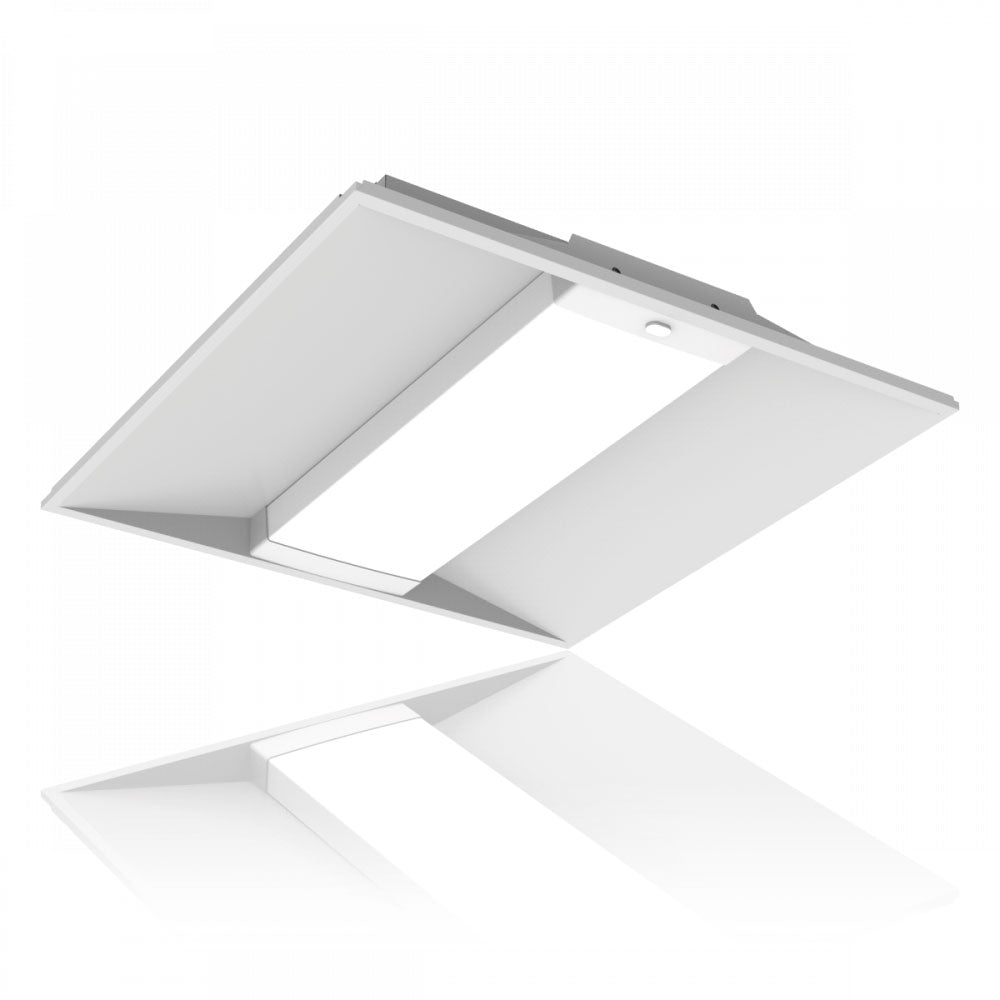

SLG Lighting LED Controls Flexible Troffer
The TDSC Series features a built-in 2.5 mm plug-in receptacle designed for twist-lock plug-in controls. Available in 1' x 4' - 2' x 2' - 2' x 4' sizes - with selectable power and CCT drivers, giving you a quick quote troffer series that covers 27 SKUs. The squared lens featuring an enhanced PC diffuser gives a beautiful light output without the individual diodes being seen. Your customers can experience networked lighting controls with our Bluetooth mesh control options or keep it basic with a standalone sensor.
Specifications
- Product Series: ContractorXP
- Wattage: 20W/25W/30W LS40, 34W/38W/45W LS60 Selectable
- Lumen Output: 2640/3250/3750 Lm LS40, 4556/5016/5805 Lm LS60, Selectable
- Correlated Color Temperature (CCT): 3500K , 4000K , 5000K Field Selectable
- Product Lens: Frosted lens
- Control: optional Basic and Network controls
- Accessories: Emergency Backup Kit, Surface Mount Kit, Flange, Basic and Network controls
- Mounting Type: Recessed Mount , optional Surface Mount
- Environment: Indoor
- Operating Temperature: -4° F to 122° F (-20°C to 50° C)
- Shape: Rectangle

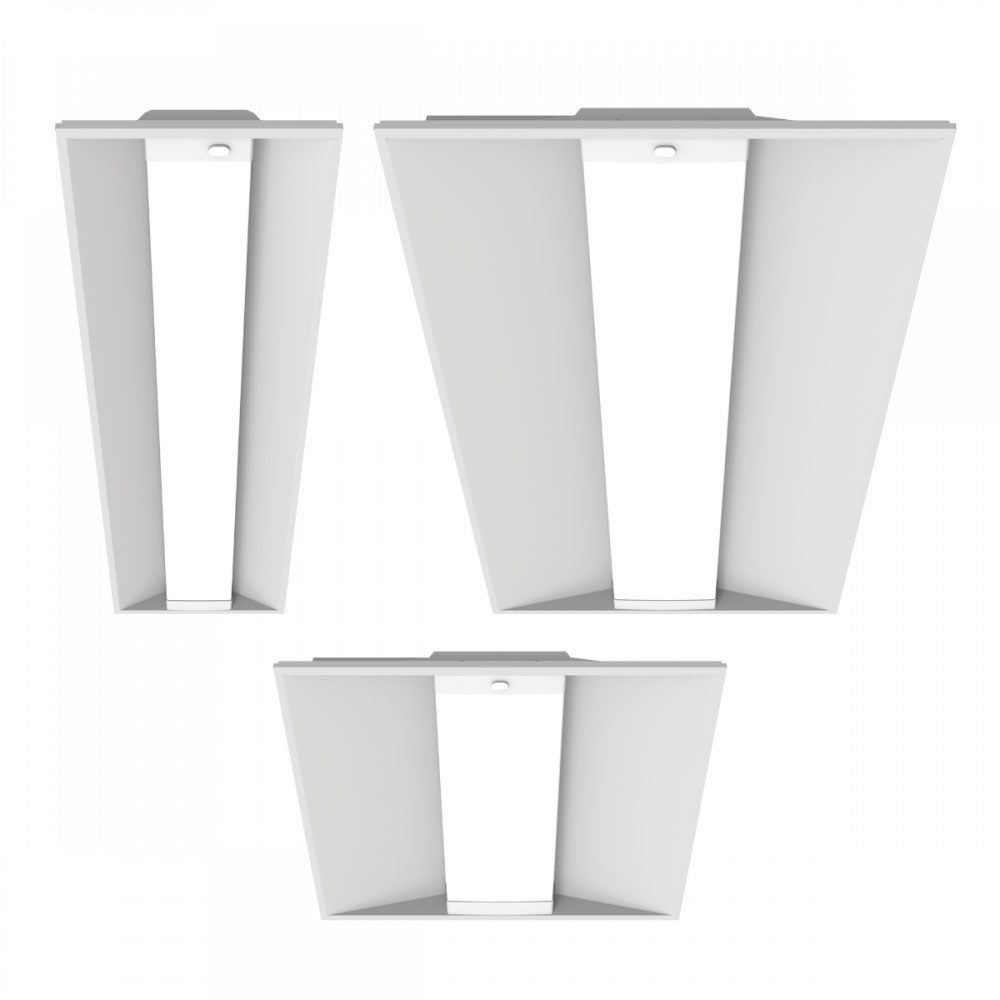

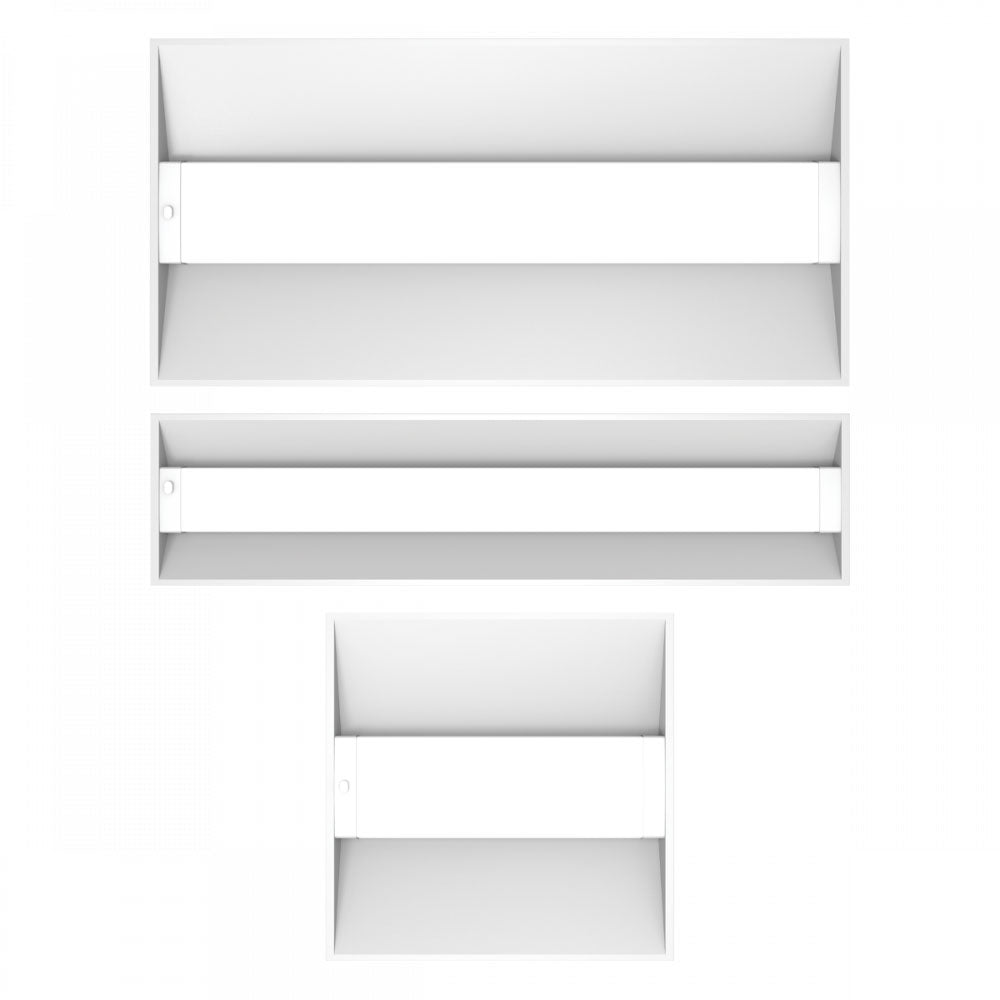

- Product Sizes: 1x4, 2x2, 2x4
- Listings: Pending : DLC Premium , UL , FCC
- Product Type: Troffer
- Generation: G1
- Color & Finish: Polyester Powder White Finish
- Housing: Galvanized steel with high-reflectance white surfaces
- Light Source: LED - Static
- Voltage Rating: Standard 120-277V
- Warranty: 5 Year
- Labor Warranty: No
Product Files
Click for TDSC G1 Selectable Recessed Troffer Spec Sheet
Click for TDSC G1 Selectable Recessed Troffer Installation Guide
