Description

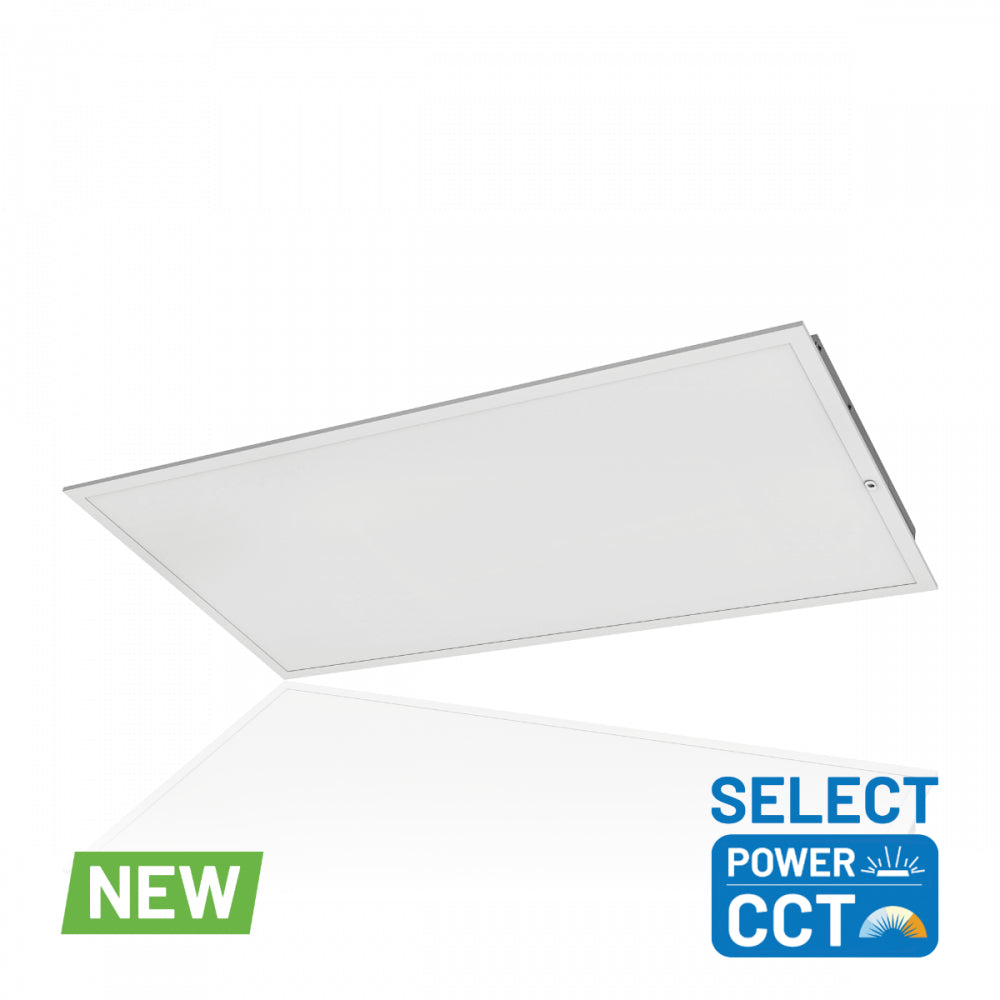

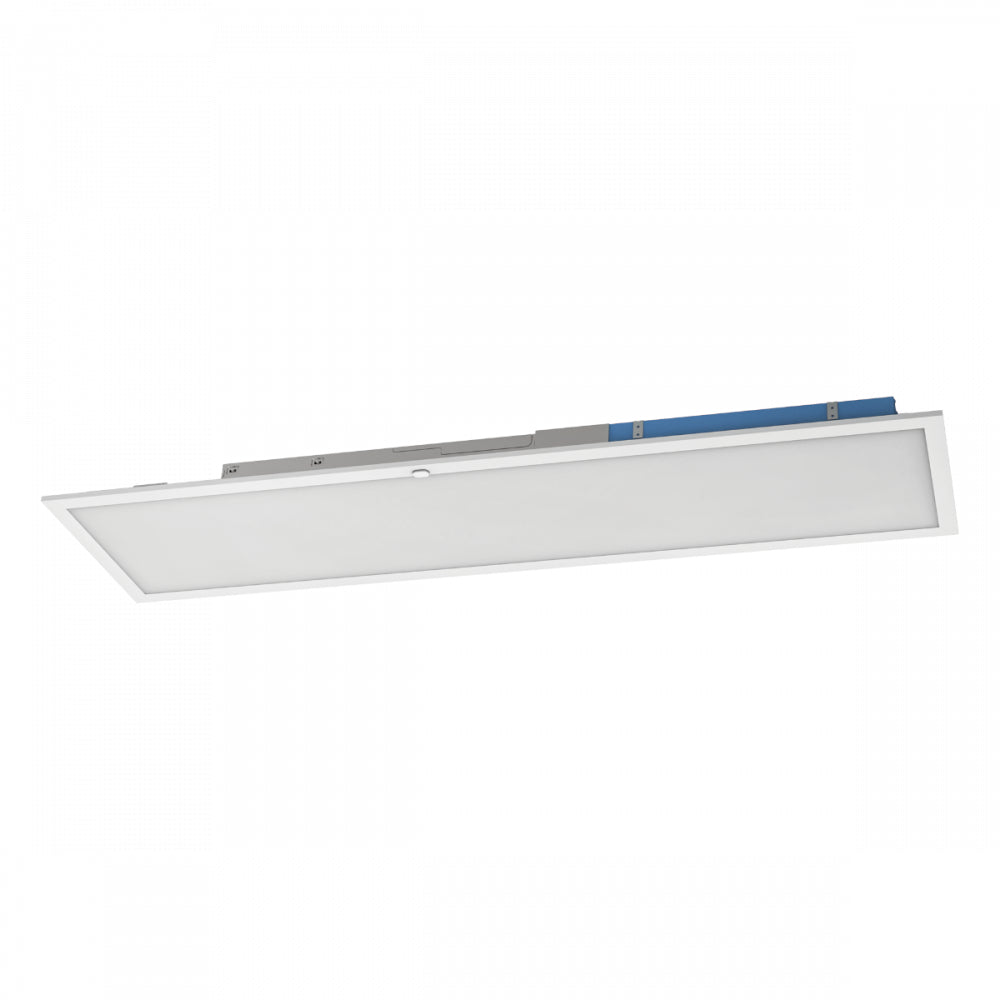

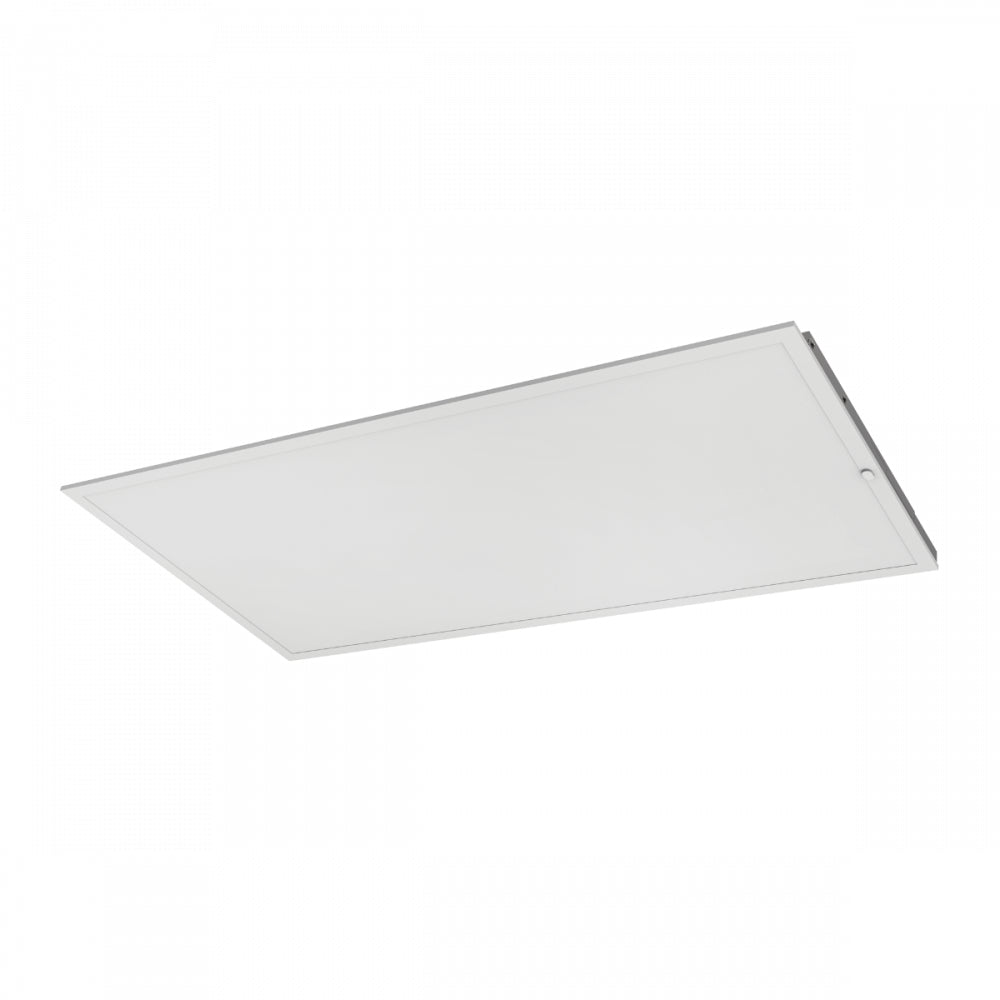

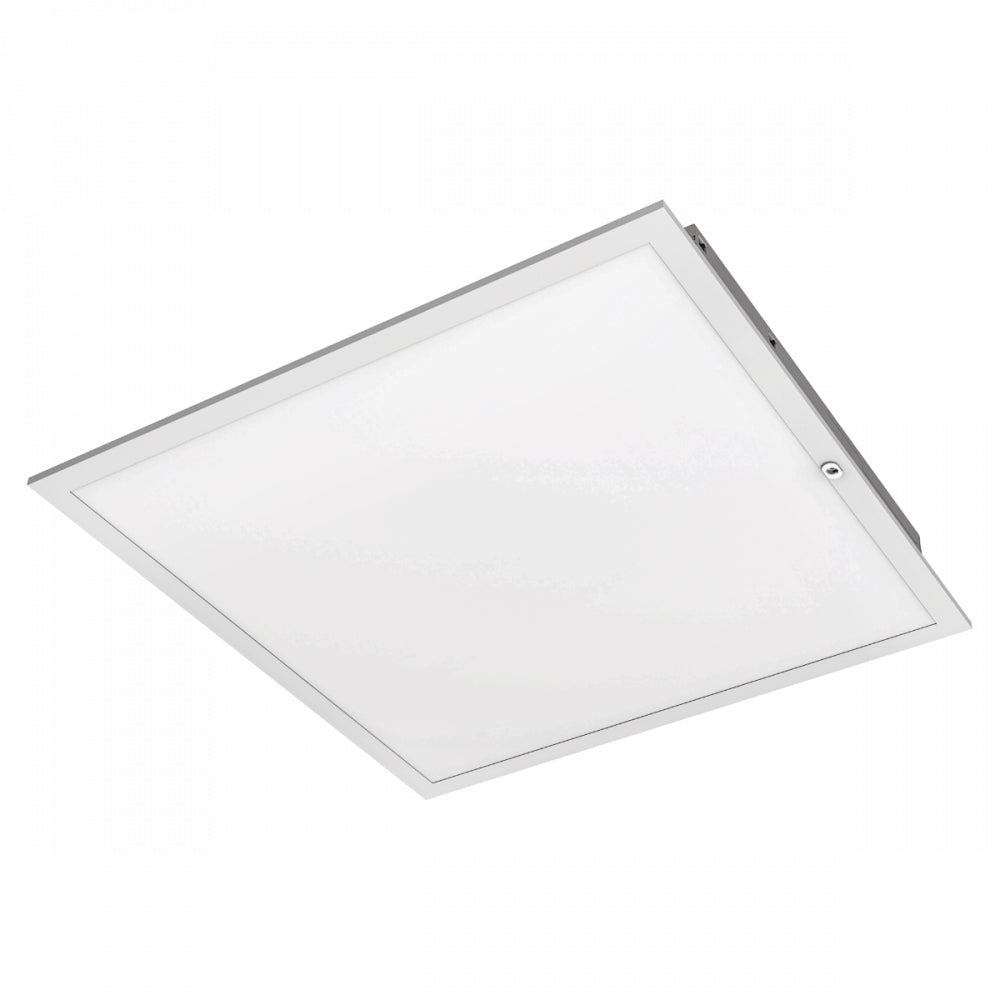

SLG Lighting LED Controls Ready Panel G2
The TPSC G2 LED Panel delivers flexibility, efficiency, and control for commercial lighting projects. With 3 selectable wattages, 3 CCT options, and a twist-lock controls receptacle, it adapts easily to multiple applications while reducing SKUs and simplifying installation. Fully controls ready for sensors or networked systems and backed by a 5-year warranty, the TPSC G2 is the smart choice for reliable, high-performance panel lighting.
Applications: Offices, classrooms, healthcare, retail, hospitality, corridors, and other commercial spaces.
Specifications
- Product Series : ControlXP
- Wattage : 20W/30W/40W/50W
- Lumen Output : 2200/3300/4400/5500Lm, Selectable
- Correlated Color Temperature (CCT) : Selectable 3500K , 4000K , 5000K
- Color Rendering Index (CRI) : 80
- Product Lens : Frosted polystyrene lens.
- Control : optional basic and network controls
- Mounting Type : Recessed mount
- Environment : Indoor
- Shape : Multiple Shapes
- Listings : FCC, ETL, FCC
- Product Type : Panel
- Generation : G2
- Housing : Steel sheet and extruded aluminum.
- Light Source : LED - Selectable
- Voltage Rating : Standard 120-277V
- Warranty : 5 Year
- Labor Warranty : No
Product Files
Click for TPSC G2 - LED Controls Ready Panel - Spec Sheet
Click for TPSC G2 - LED Controls Ready Panel - Install Guide
