Description

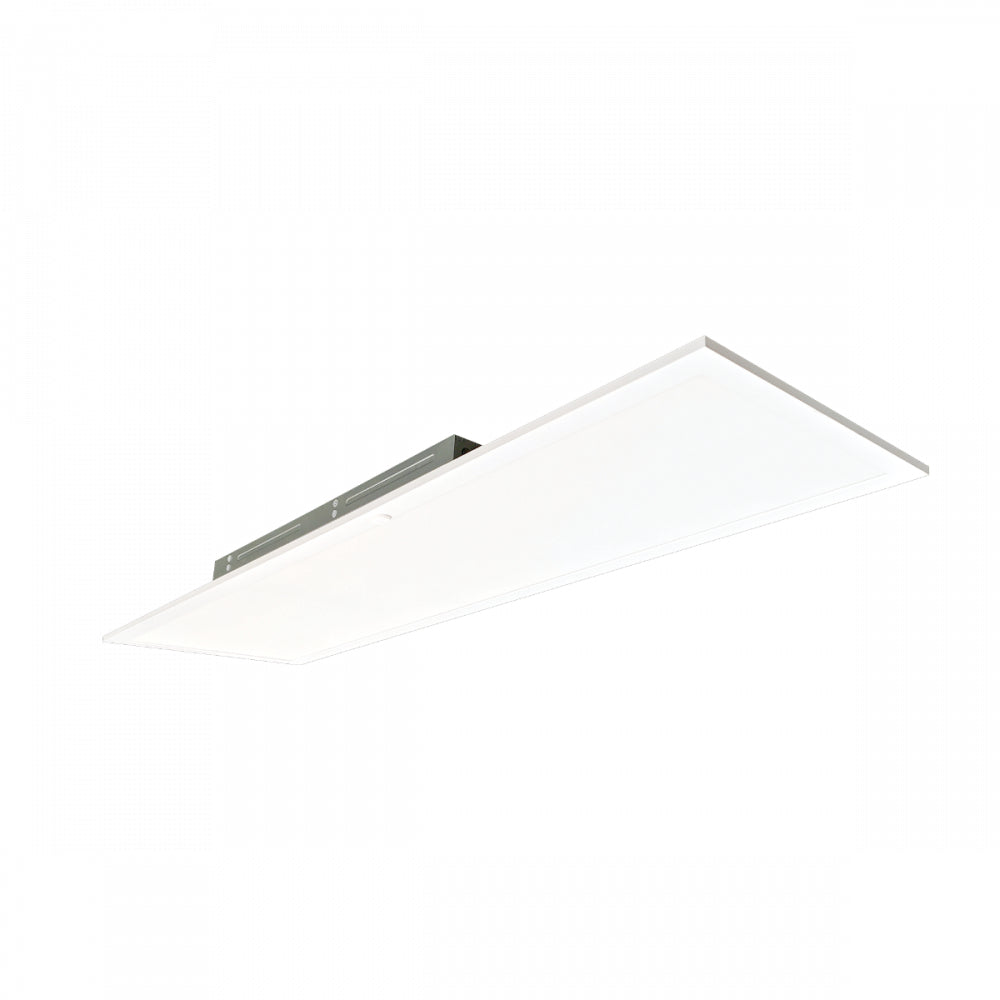

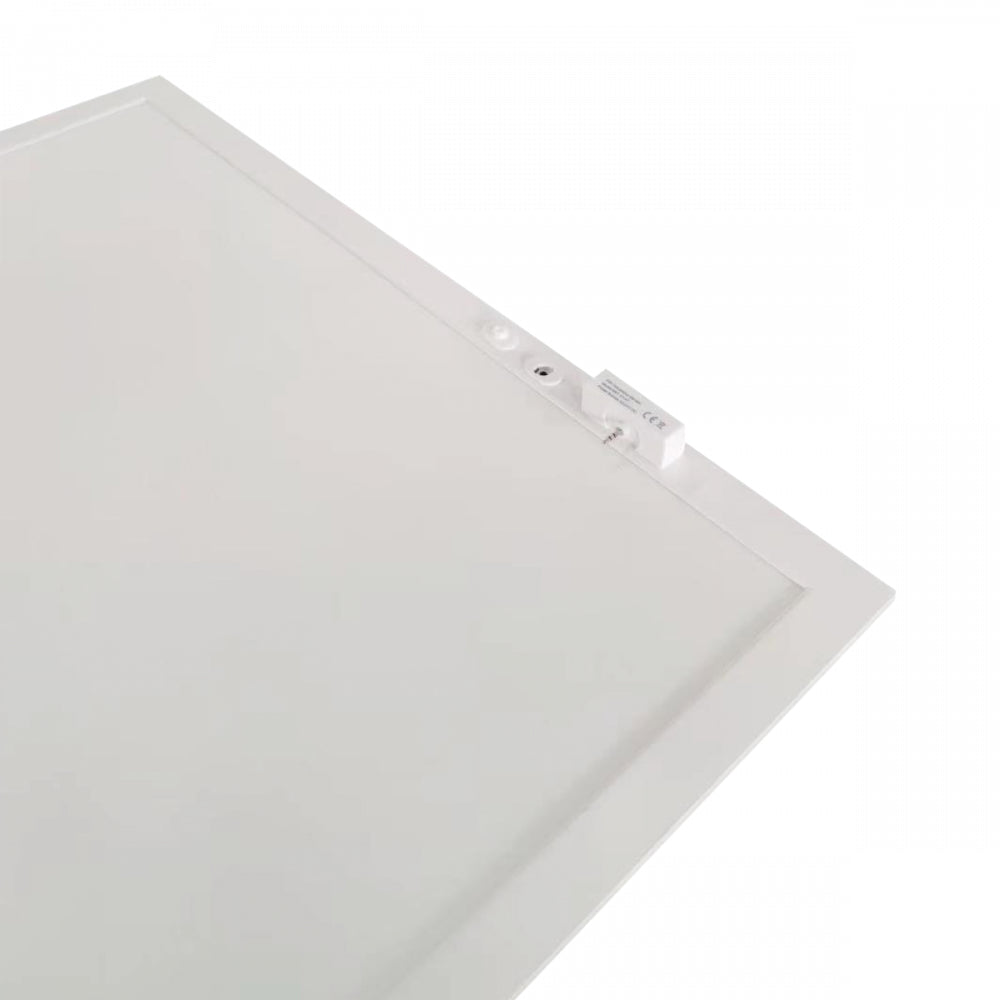

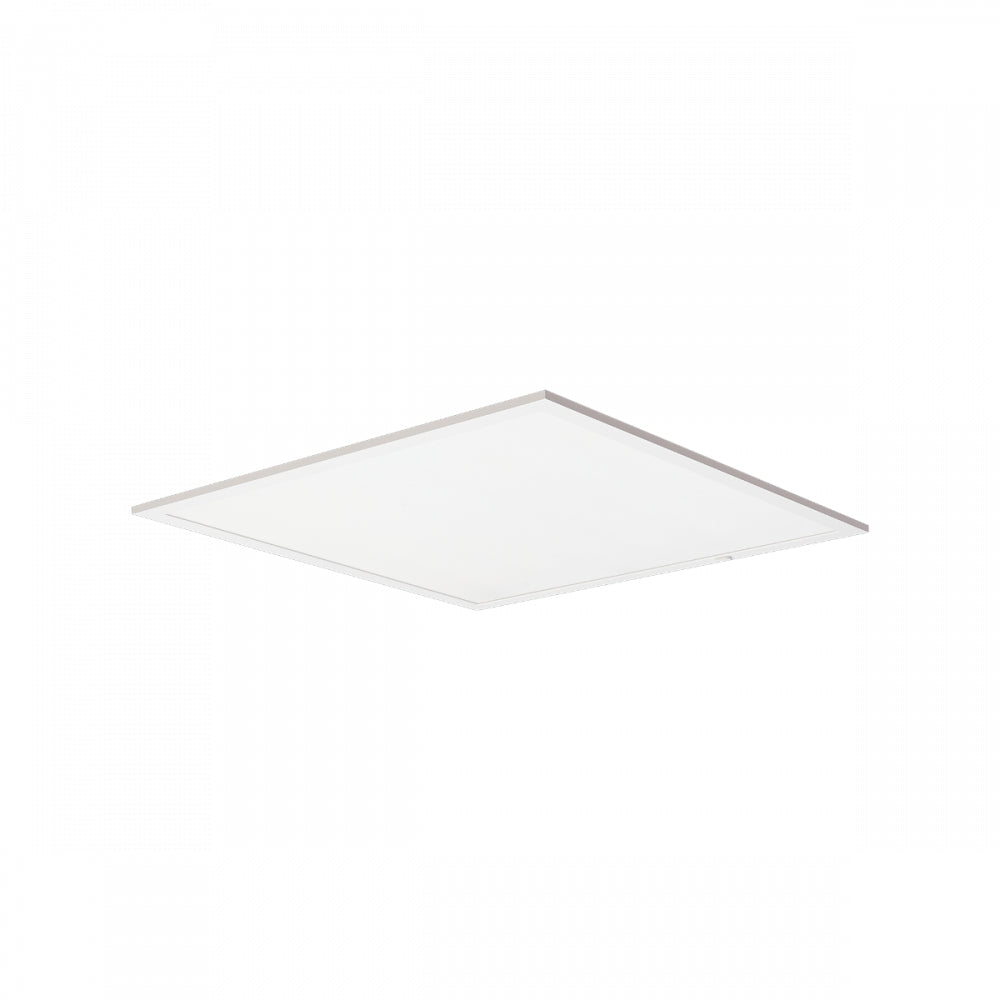

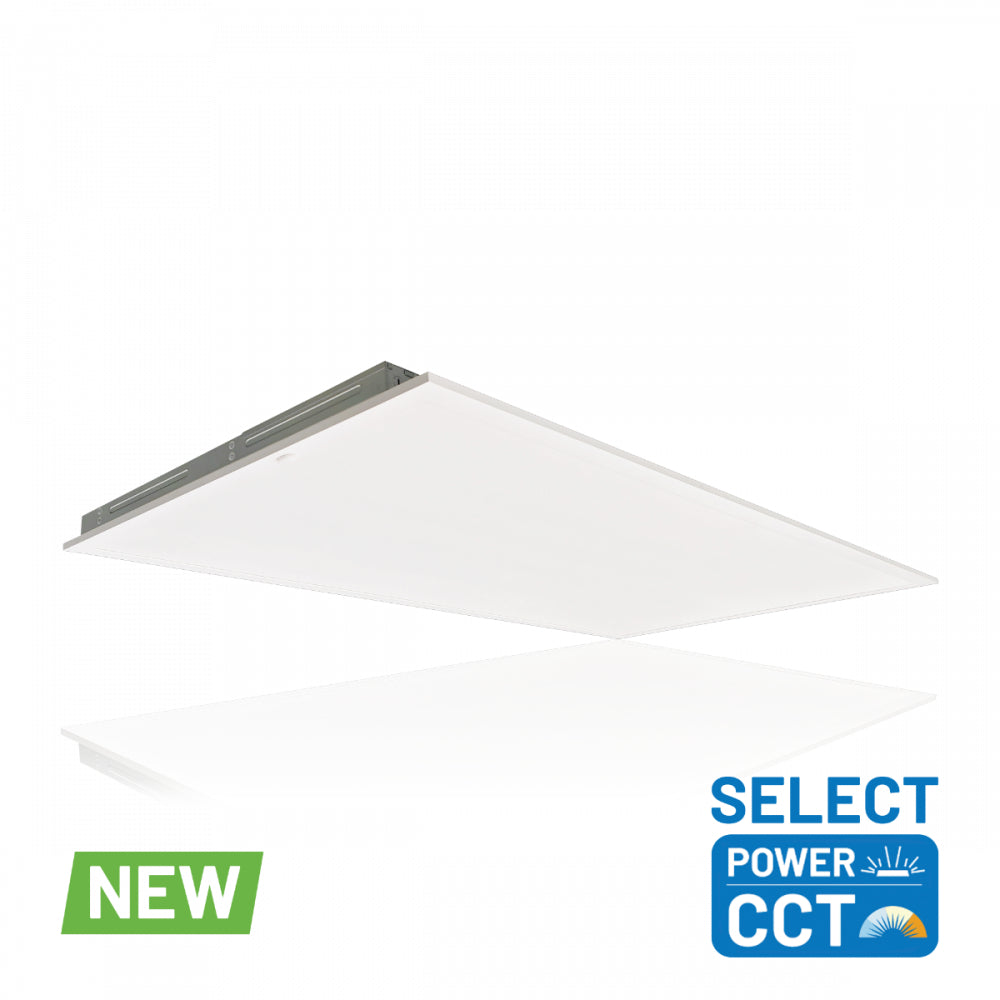

SLG Lighting LED Controls Ready Panel G3
The TPSC G3 LED Panel delivers flexibility, efficiency, and control for commercial lighting projects. With 4 selectable wattages, 5 CCT options, and a twist-lock controls receptacle, it adapts easily to multiple applications while reducing SKUs and simplifying installation. Fully controls ready for sensors or networked systems and backed by a 5-year warranty, the TPSC G3 is the smart choice for reliable, high-performance panel lighting.
Applications: Warehouse, processing plants, food-plants, and indoor/outdoor environments.
Specifications
- Product Series : ControlXP
- Wattage : 16W / 19W / 22W / 26W / 30W / 32W / 38W / 42W / 48W / 54W / 71W
- Lumen Output : 2,250 Lm / 2,650 Lm / 2,700 Lm / 3,100 Lm / 3,750 Lm / 4,200 Lm / 4,500 Lm / 5,200 Lm / 5,900 Lm / 6,750 Lm / 7,650 Lm / 10,000 Lm
- Correlated Color Temperature (CCT) : 2700K, 3000K, 3500K, 4000K, 5000K
- Color Rendering Index (CRI) : 80
- Product Lens : Polystryene lens.
- Control : optional basic and network controls
- Mounting Type : Recessed ceiling mount (default), Surface and Suspended Mount optional
- Environment : Indoor
- Shape : Multiple Shapes
- Product Sizes : 1x4, 2x2, 2x4
- Listings : UL
- Generation : G3
- Color & Finish : White finish
- Housing : Sheet metal stamping
- Light Source : LED - Static
- Voltage Rating : Standard 120-277V
- Warranty : 5 Year
- Labor Warranty : No
Product Files
Click for TPSC G3 - LED Controls Ready Panel - Spec Sheet
Click for TPSC G3 - LED Controls Ready Panel - Install Guide
