Description

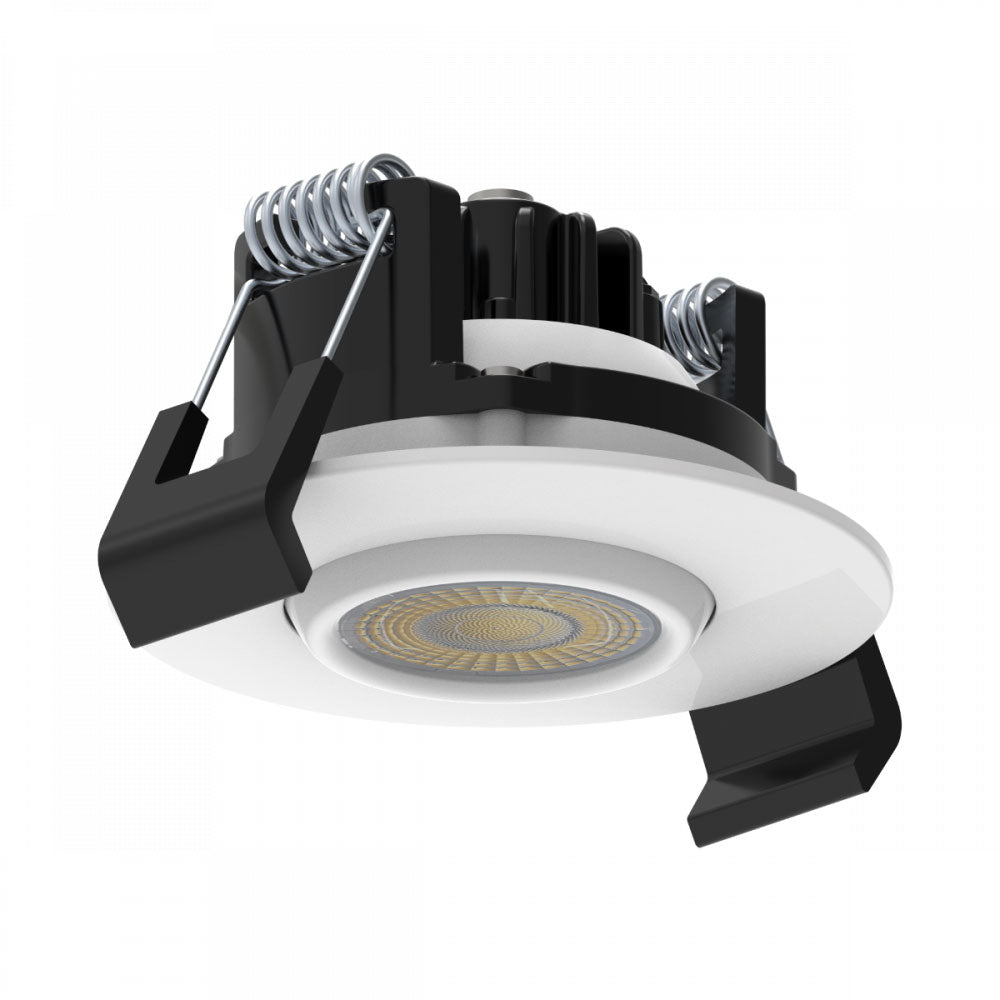

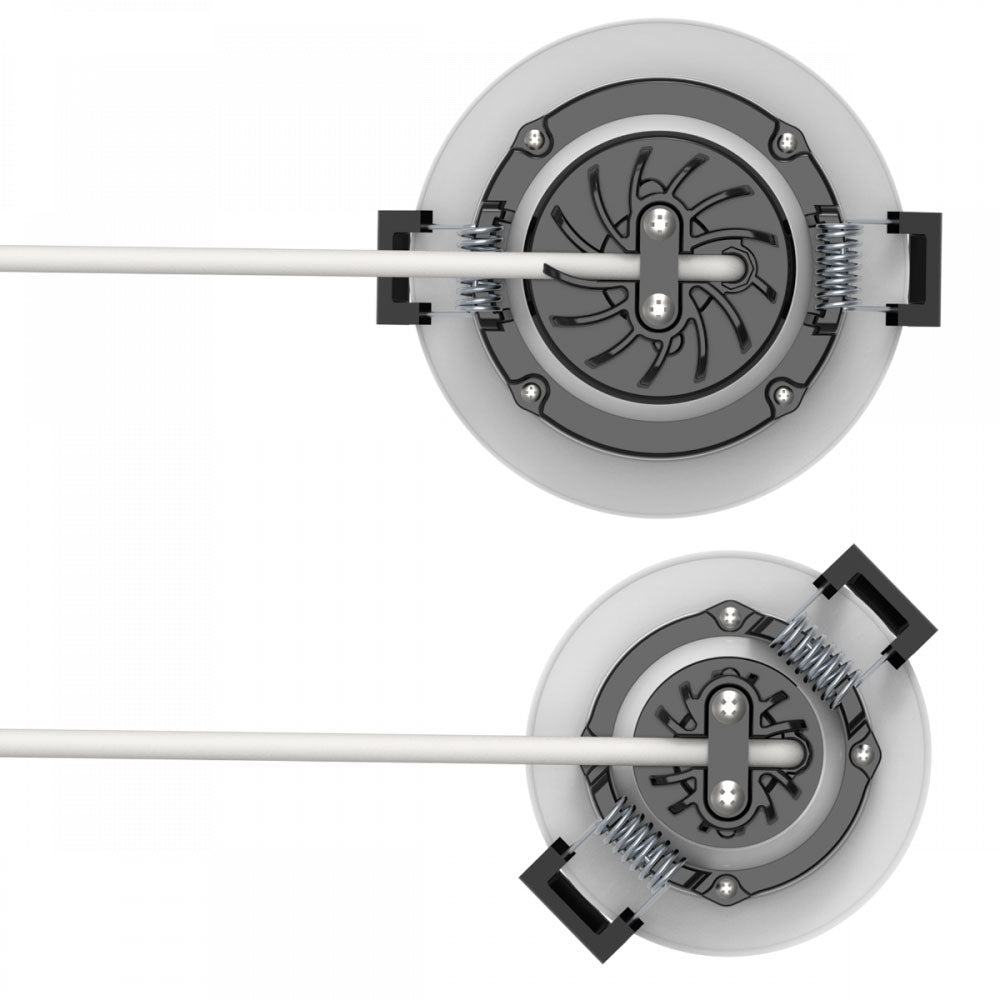

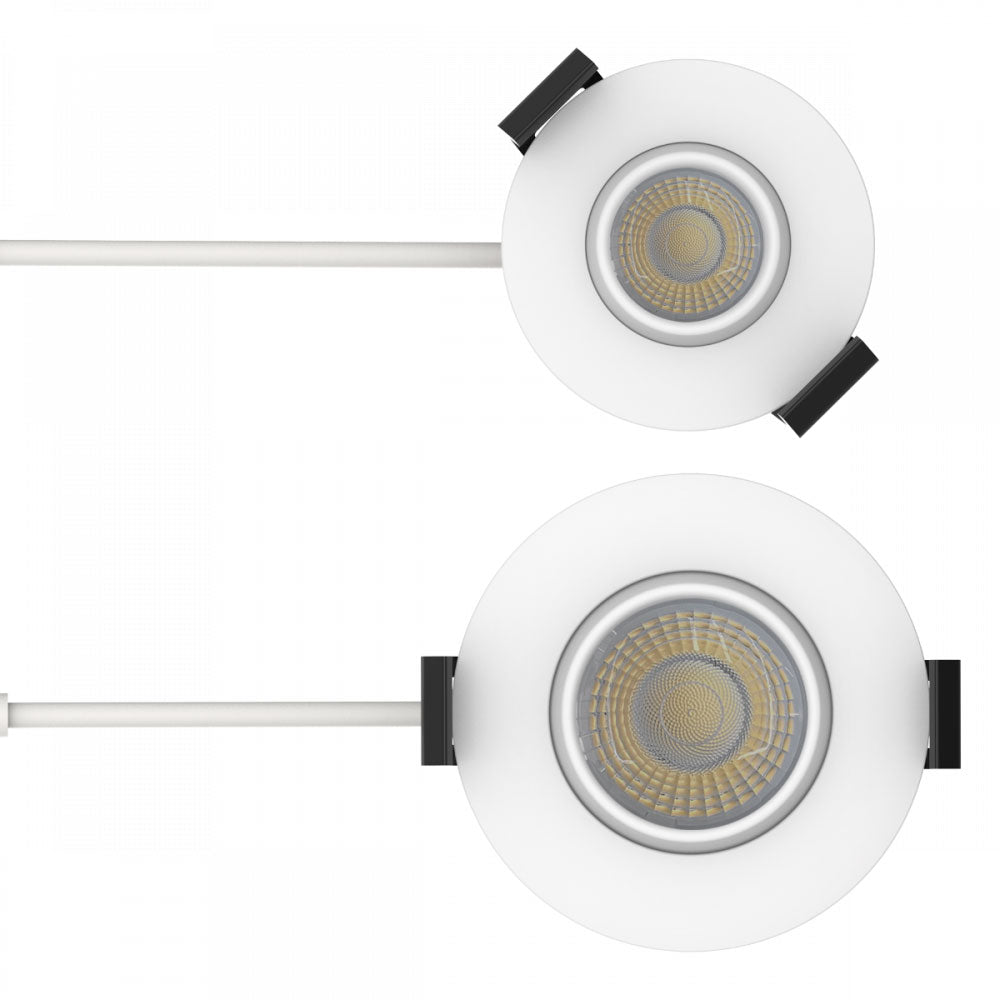

SLG Lighting LED Direct - Gimbal Downlight
The DGD Downlight Series offers a design experience featuring A FULL 360° rotation and a 30° tilt. Beautiful 90 CRI with 5 selectable CCT options, this downlight series offers a beautiful LED light in 3 sizes. Available in 2" Round (400 Lumens - 6W), 3" Round (600 Lumens - 9W), and 4" Round (1,050 Lumens - 15W) - this downlight is a great retrofit upgrade or is new-construction ready with optional housing.
Specifications
- Wattage: 12W
- Lumen Output: DGD 2R 400 Lm, DGD 3R 600Lm, DGD 4R 1050 Lm

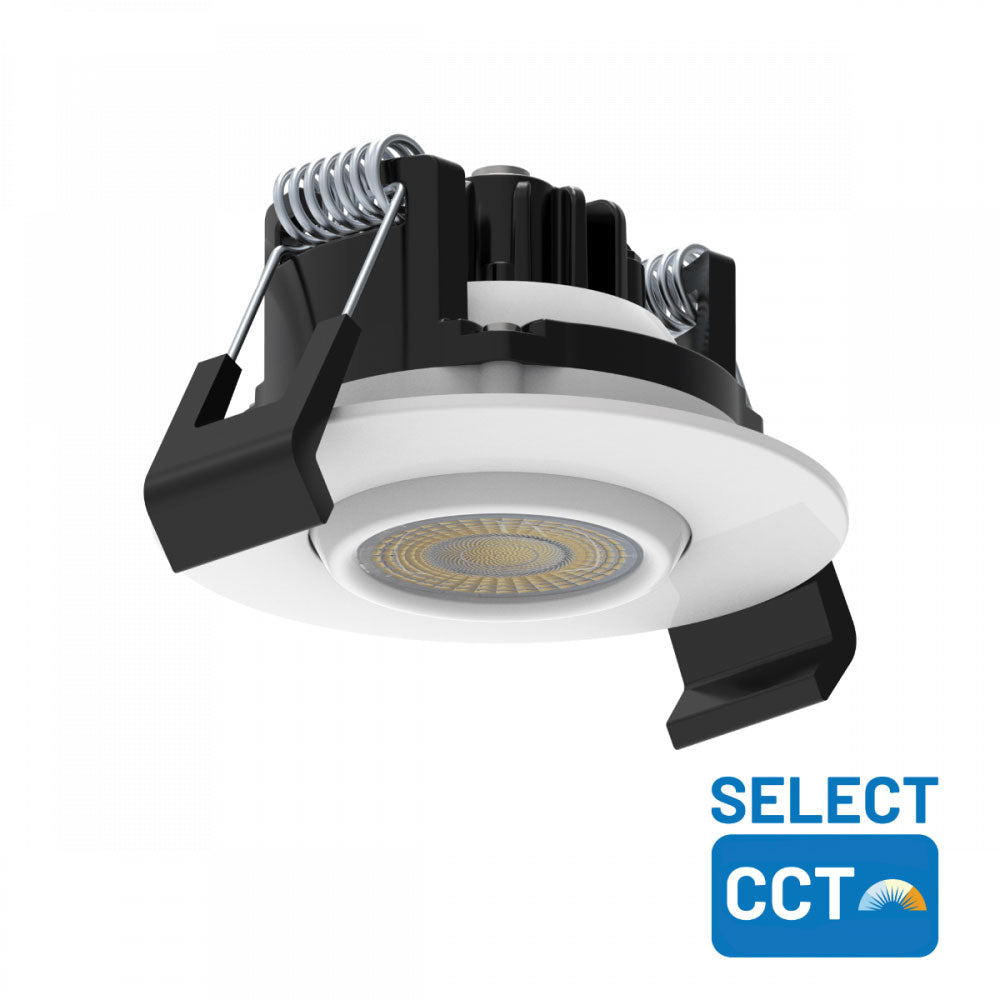

- Correlated Color Temperature (CCT): Field Selectable CCT 2700K/3000K/3500K/4000K/5000K
- Color Rendering Index (CRI): 90 CRI
- Product Distribution Types: 20° or 38° beam angle, a full 360° rotation and a 30° tilt
- Product Lens: Polycarbonate (PC) material diffuser

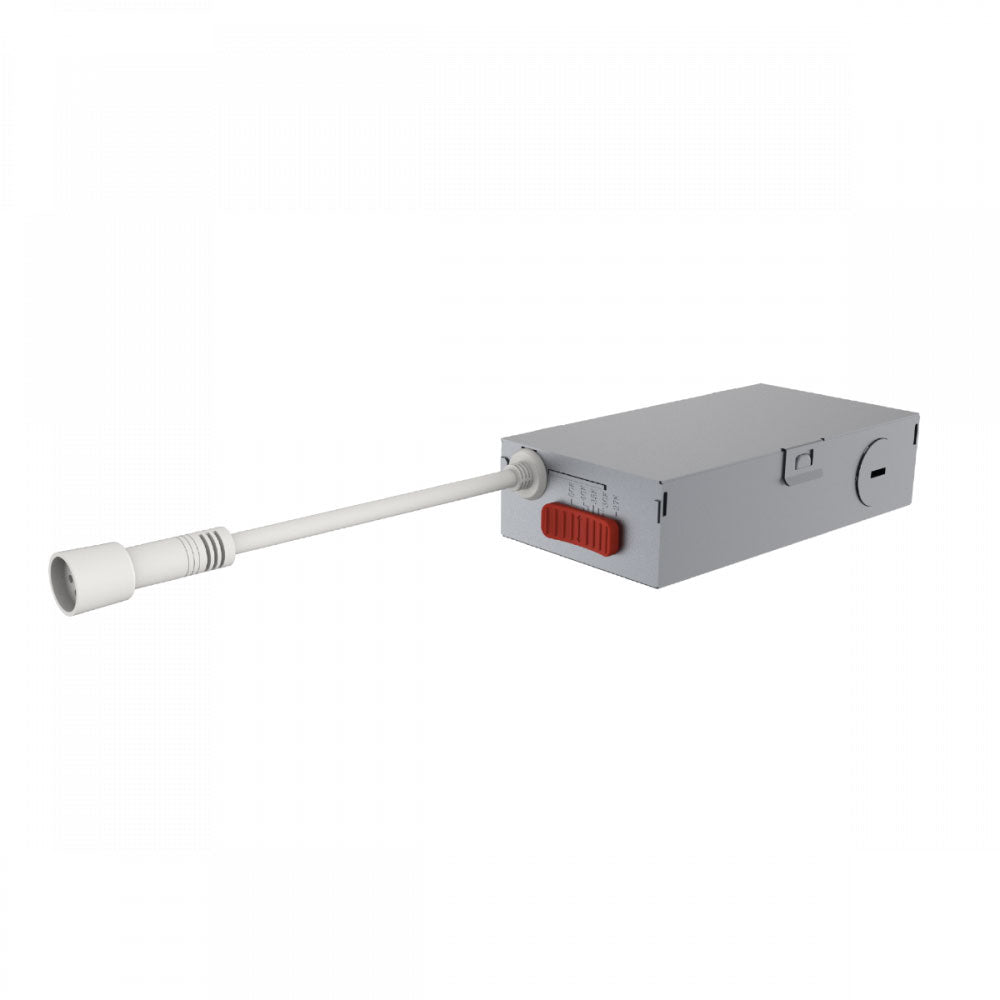

- Accessories: Emergency Battery Backup
- Mounting Type: Recessed mount
- Environment: Indoor
- Operating Temperature: -13°F/-25°C to 104°F/40°C
- Shape: Round
- Product Sizes: DGD 2R 1.9 inch diameter, DGD 3R 2.7 inch diameter, DGD 4R 3.9 inch diameter
- Listings: ETL, Energy Star, FCC, Title 24, Title 20
- Product Type: Downlight
- Generation: G1
- Color & Finish: White flange finish
- Housing: Die-casting aluminum housing
- Light Source: LED - Selectable
- Voltage Rating: Standard 120-277V
- Warranty: 5 Year
- Labor Warranty: No
Product Files
Click for SLG DGD G1 Gimbal Direct Downlight Spec Sheet
Click for SLG DGD G1 Gimbal Direct Downlight Installation Guide
