Description

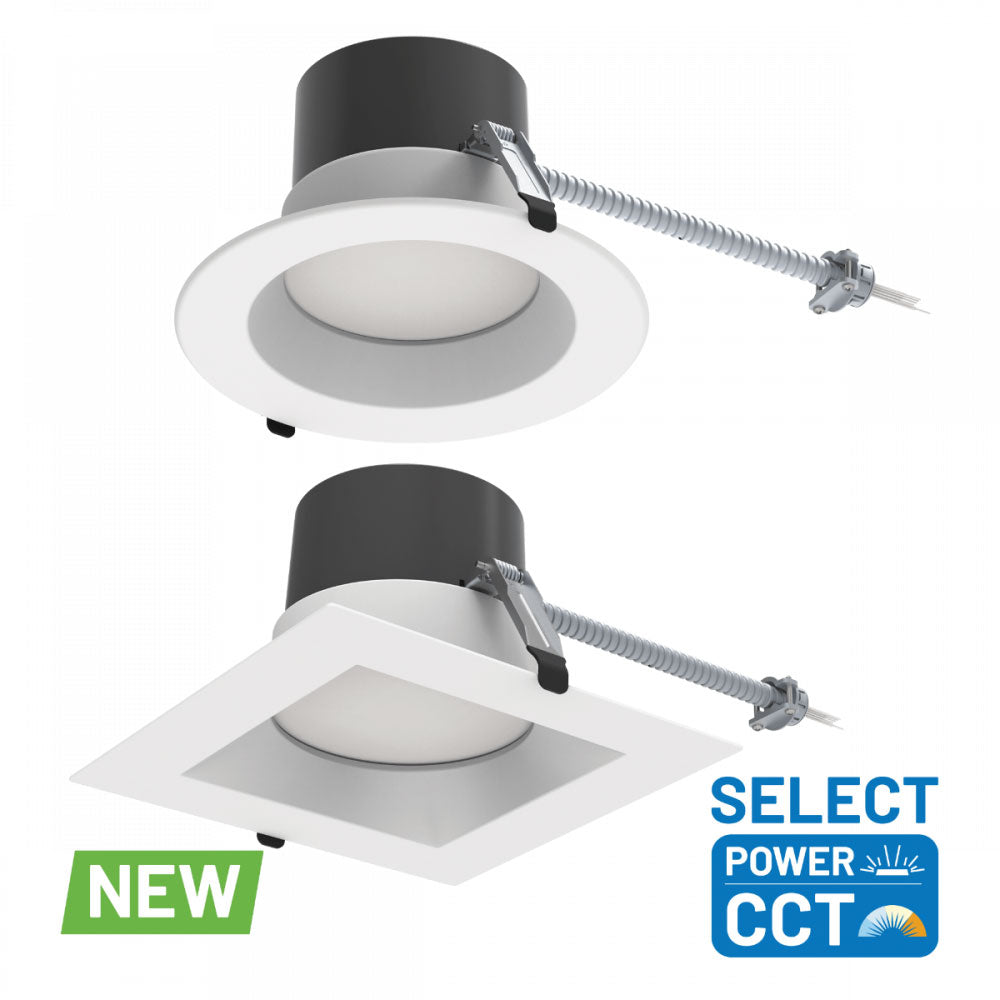

SLG Lighting LED Downlight DRS Gen 3
The Most Affordable downlight series to compete with Tier 1 and Tier 2 commercial grade, retrofit downlights. The DRS Commercial Retrofit Downlight Series Gen 3 is in-stock and stocking distributor ready with 3-in-1 Dimming driver (TRIAC, ELV, 0-10V) 5 CCT selectable outputs, 3 selectable power outputs, round/square trim, and 4" - 10" sizes. 90 CRI - 110 Lm/W - California approved.
Specifications
- Product Series: ContractorXP
- Wattage: 6-12W DRS 4R, 7-15W DRS 6R, 10-25W DRS 8R, 20-36W DRS 10R, 6-12W DRS 4S, 7-15W DRS 6S
- Lumen Output: 600-1200 Lm DRS 4R, 750-1500 Lm DRS 6R, 1100-2500 Lm DRS 8R, 2000-3500 Lm DRS 10R, 600-1200 Lm DRS 4S, 750-1500 DRS 6S

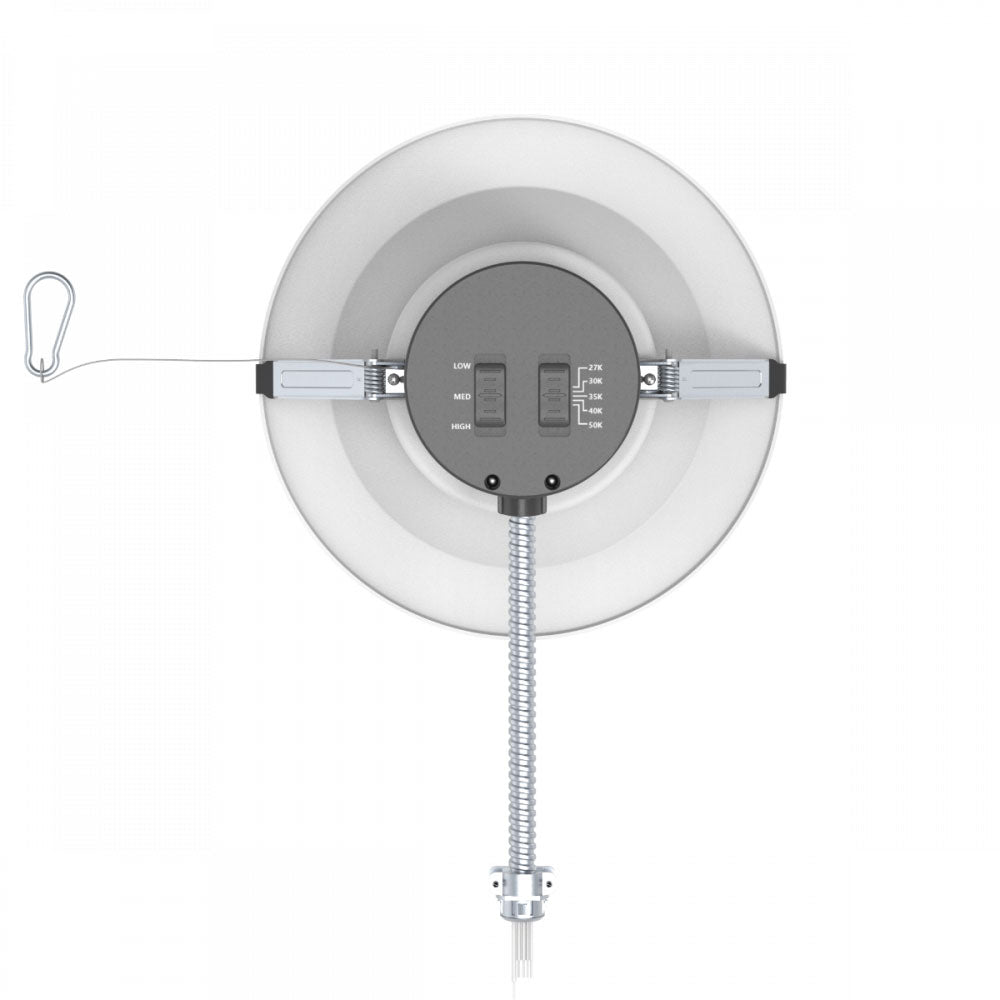

- Correlated Color Temperature (CCT): Field Selectable 2700K, 3000K,3500K,4000K, 5000K
- Color Rendering Index (CRI): 90
- Product Lens: Frosted polycarbonate lens
- Accessories: New construction housing, goof ring
- Mounting Type: Retrofit or New construction recessed mount
- Environment: Indoor
- Operating Temperature: -25°C (-13°F) to 40°C (104°F)
- Shape: Circle

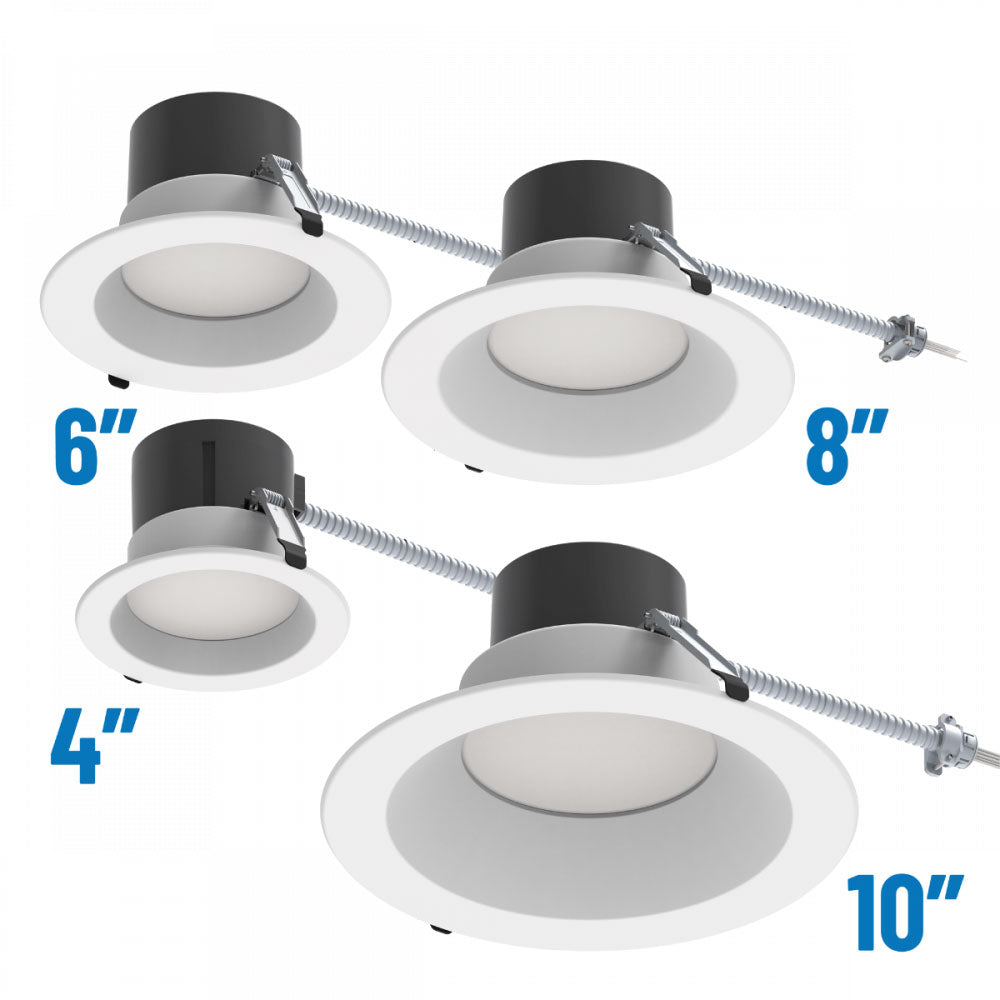

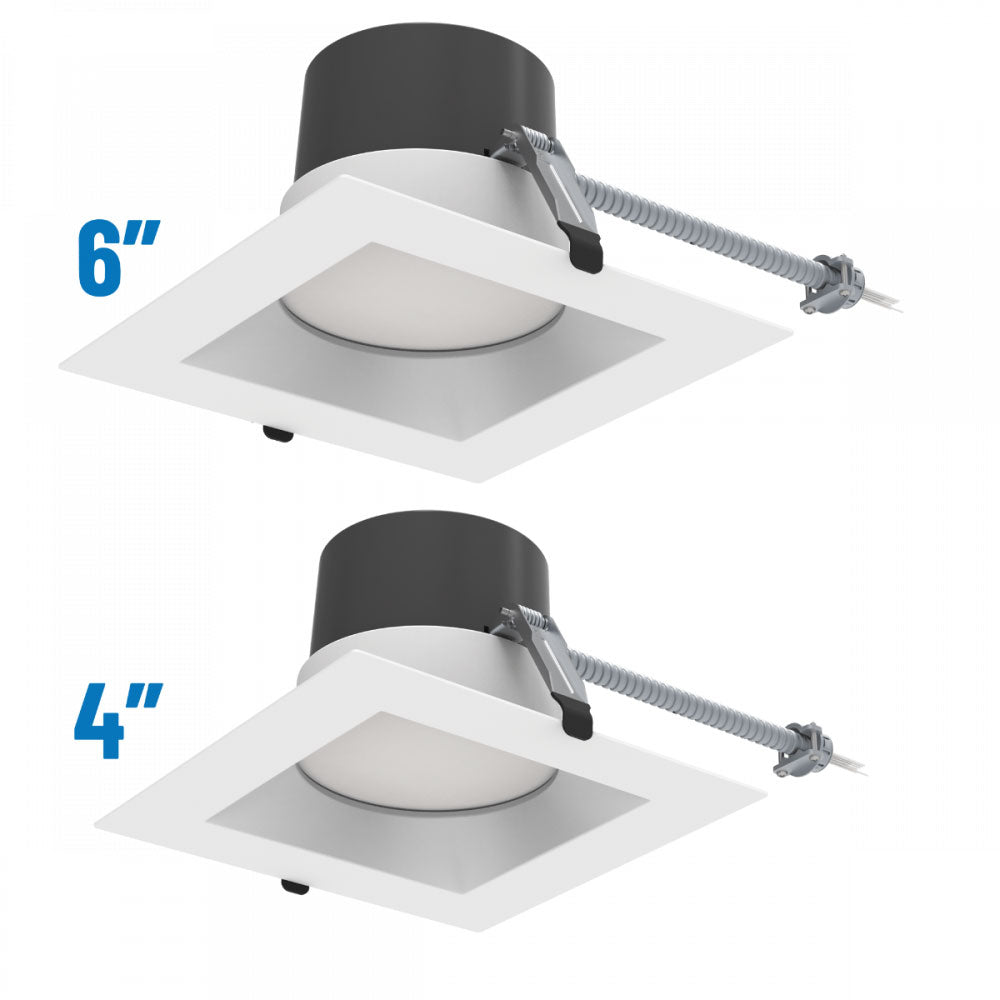

- Product Sizes: 4, 6, 8 and 10 inch Round models, 4, 6 inch Square models
- Listings: Energy Star , Wet Location, IC Rated, UL, FCC, Title 24
- Product Type: Downlight
- Generation: G3
- Color & Finish: White Finish
- Housing: UL94-5VA fire rated PC materials driver box
- Light Source: LED - Static
- Voltage Rating: Standard 120-277V
- Warranty: 5 Year
- Labor Warranty: No
Product Files
Click for DRS G3 Selectable Retrofit Downlight Spec Sheet
Click for DRS G3 Selectable Retrofit Downlight Installation Guide
