Description

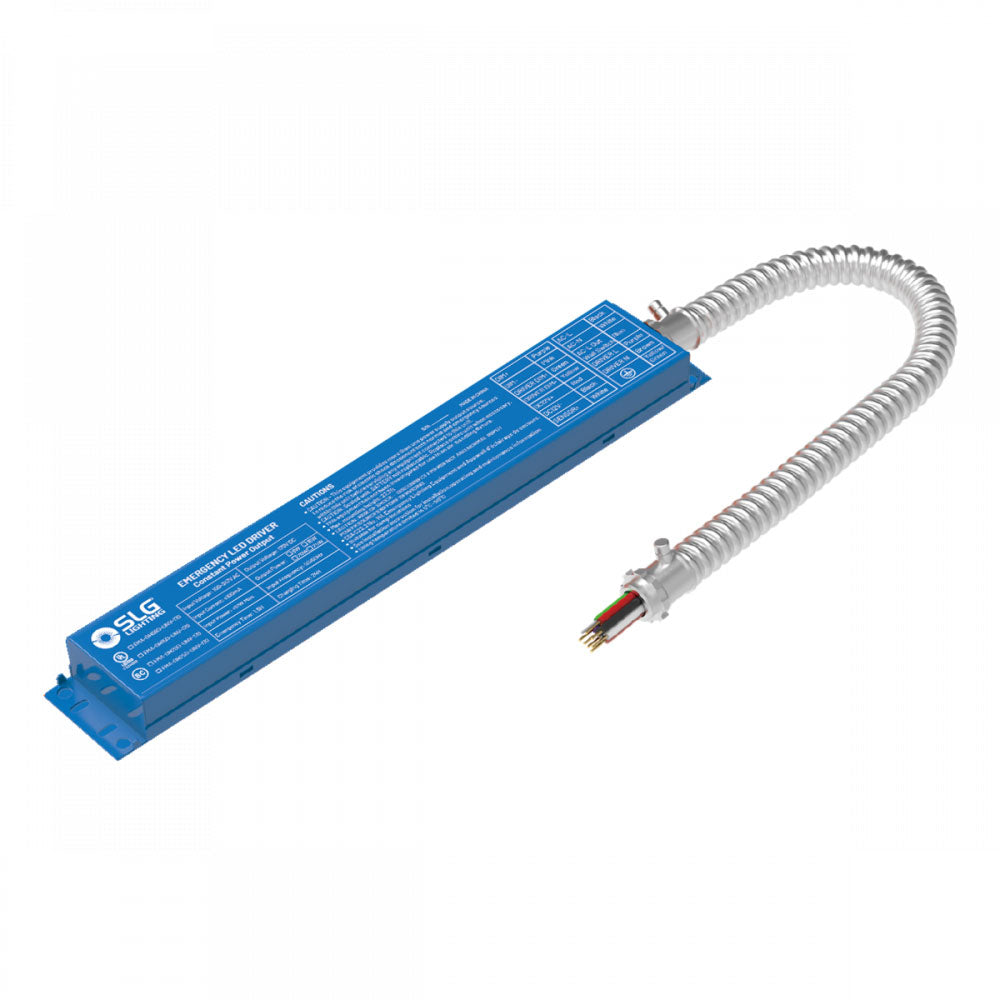

SLG Lighting LED Emergency Battery Backup EMA DH UNV 170
LED Emergency Battery Backup, Direct Wire, 8 Watt, for 0-10V Dimming fixture. 100-347V AC Input, 170V DC Output - All-in-one.
Compatibility: This product is tested and is under warranty for use with SLG Lighting products only. Other uses for this product will void all warranty and return policies.
Specifications
- Shape: Rectangle
- Product Sizes: 12.91" L x 1.97" W x 0.94" H
- Listings: UL Listed
- Warranty: 5 Year
- Labor Warranty: No
- Input Rated Voltage: 100-347-Vac, 50~60Hz
- Input Current: ≤100mA
- Input Power: 12W max
- Output Power: 8W/15W/25W
- Luminaire Power: 8W/15W/25W
- Output Voltage Range: 170V DC
- Recharge Time: ≥24 Hours
- Discharge Time: ≥90H
- Ambient Temperature: 5°C ~ 50°C (30°F ~ 122°F)
