Description

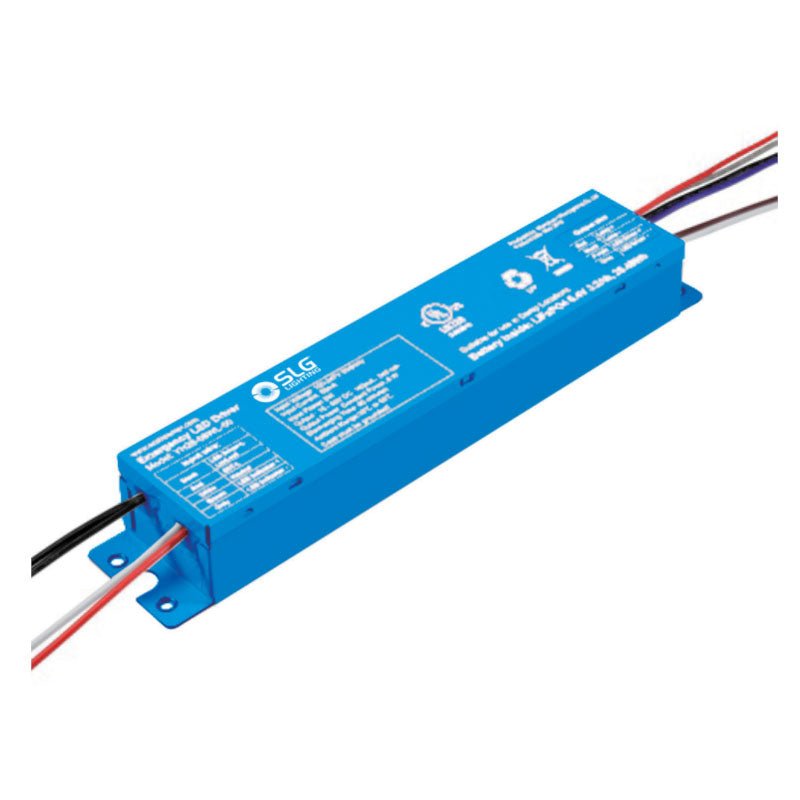

SLG Lighting LED Emergency Battery Backup EMD-DH08D
LED Emergency Battery Backup, 8 Watt, 100-347V AC Input, 15-50V DC Output.
Compatibility: This product is tested and is under warranty for use with SLG Lighting products only. Other uses for this product will void all warranty and return policies.
Specifications
- Shape: Rectangle
- Product Sizes: 9.45"x1.77"x1.8"
- Listings: UL Listed
- Warranty: 5 Year
- Labor Warranty: No
- Input Rated Voltage: 100-347-Vac, 50~60Hz
- Input Current: 80mA
- Input Power: 5W max
- Output Power: 8W Constant Power
- Luminaire Power: 8W Constant Power
- Output Voltage Range: 15-50V DC Output, 55V max; 50-180V, 2200V Max
- Battery Capacity: 6.4V/3200mAH, 21.48Wh
- Recharge Current: 0-220mA
- Recharge Time: 24 Hours
- Discharge Time: 90 minutes
- Max Temperature: max 70°C/158°F
- Ambient Temperature: 10-60°C/50-140°F
- Design Life: 50000 Hours
