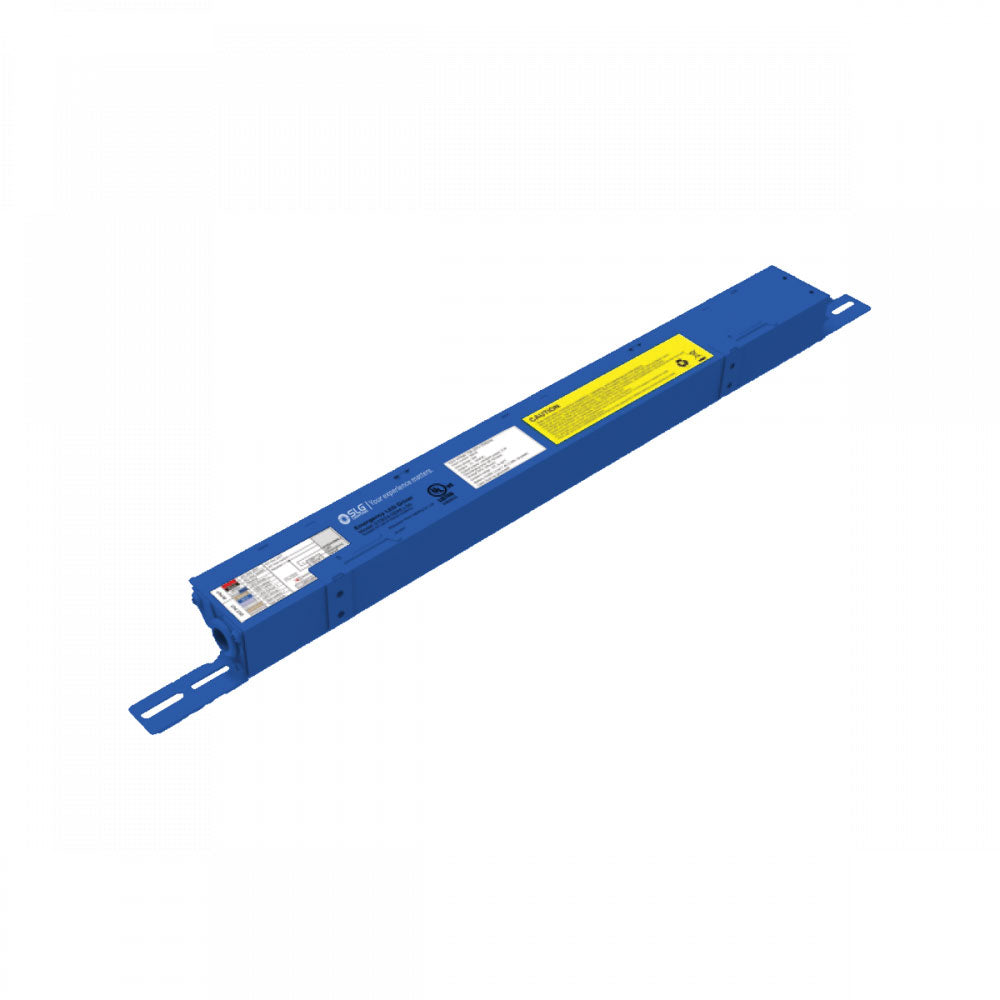

SLG Lighting LED Emergency Battery Backup EMD-PA08D-UNV-050
LED Emergency Battery Backup for Panel/Strip/Troffer, 8 Watt.100-277V AC Input, 15 -50V DC Output - All-in-one.
Compatibility: This product is tested and is under warranty for use with SLG Lighting products only. Other uses for this product will void all warranty and return policies.
Specifications
- Shape: Rectangle
- Product Sizes: 14.8"x1.5"x1.1" Driver
- Listings: UL Listed
- Warranty: 5 Year
- Labor Warranty: No
- Input Rated Voltage: 100-277-Vac, 50~60Hz
- Input Current: 100mA max
- Input Power: 5W max
- Output Power: 8W
- Luminaire Power: 8W
- Output Voltage Range: 15-50V DC Output; 55V Max
- Recharge Current: 0-250mA
- Recharge Time: ≥24 Hours
- Discharge Time: 90 minutes
- Max Temperature: 70°C
- Ambient Temperature: 0°C to +50°C (32°F to 122°F)
