Description
SLG Lighting LED Regress - Downlight

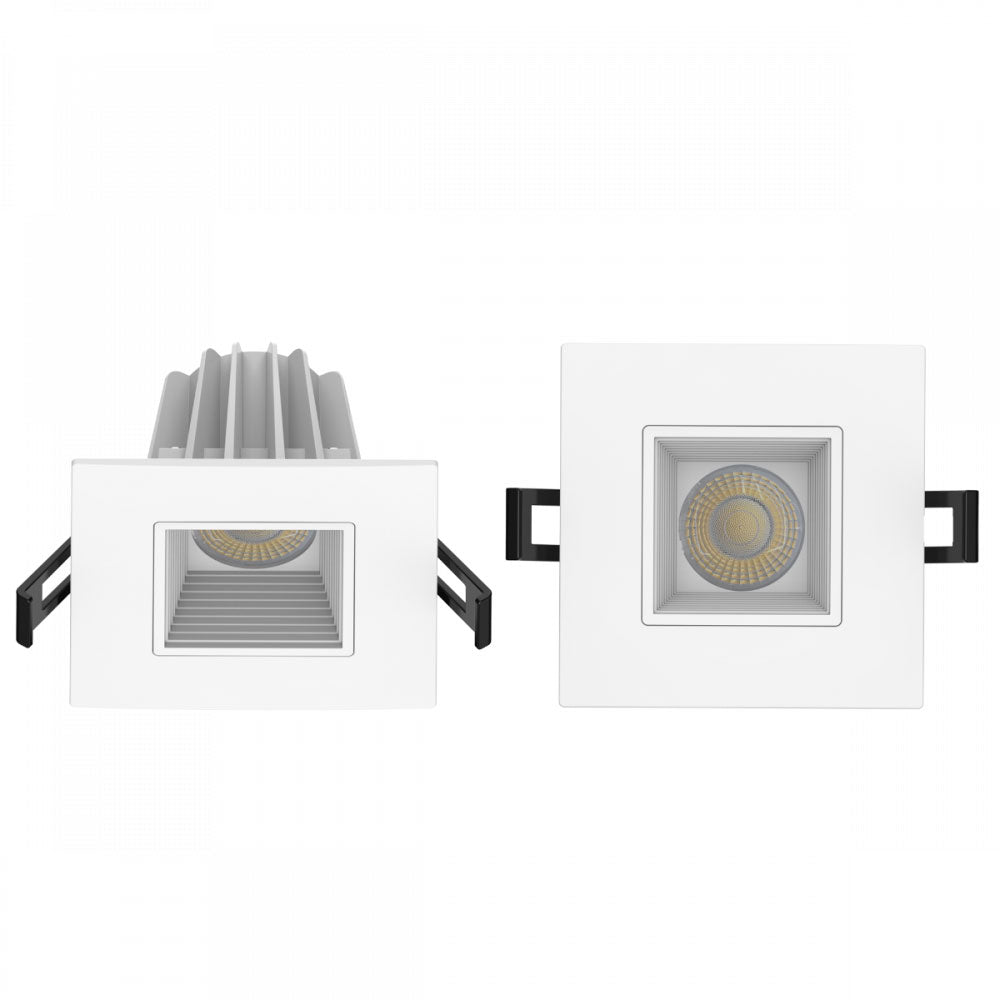

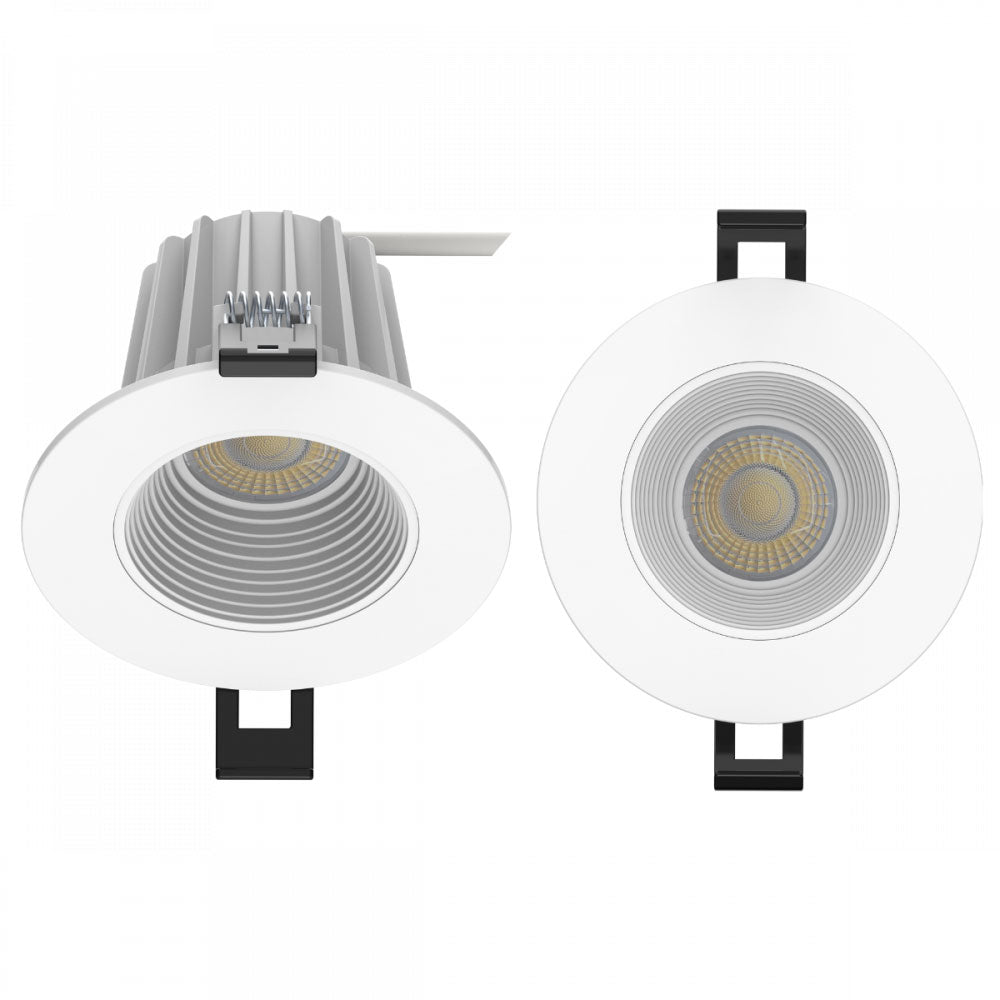

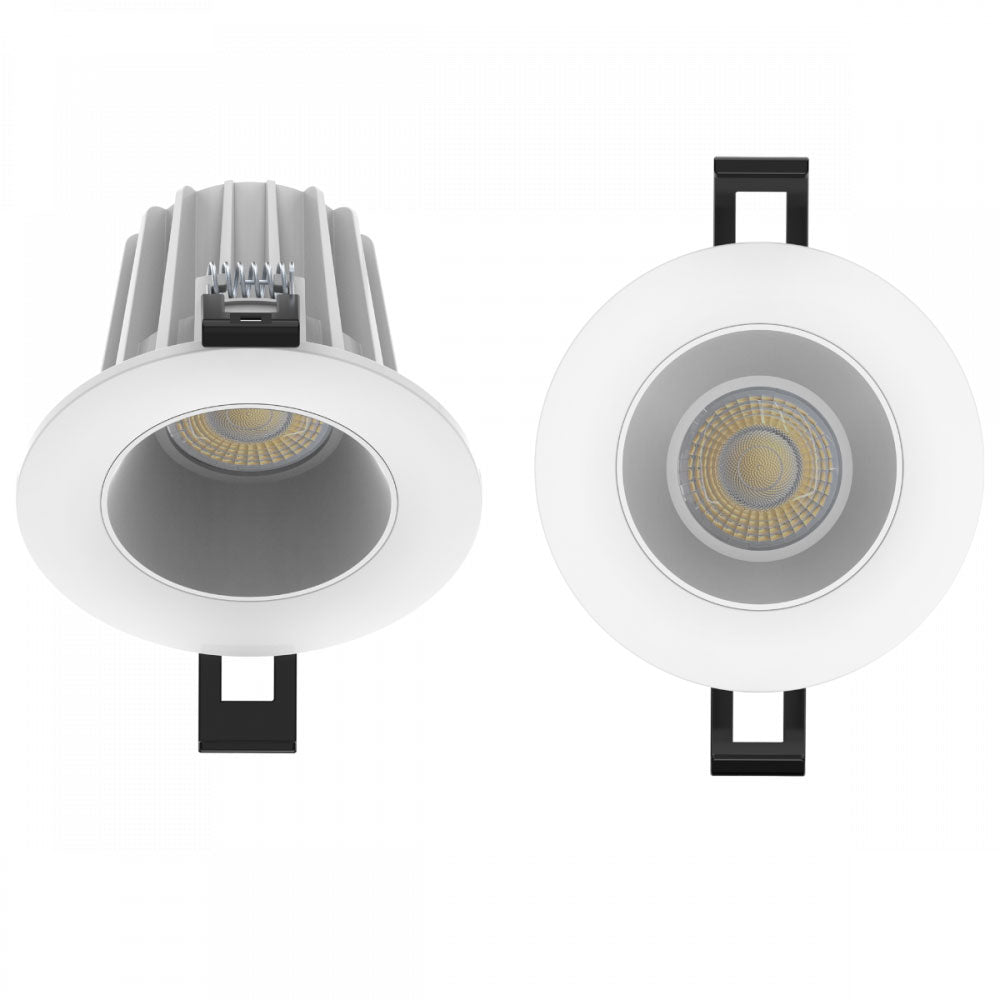

The DRF Downlight Series offers a design experience featuring beautiful regress trim design available in a smooth or baffle finish. Beautiful 90 CRI with 5 selectable CCT options, this downlight series offers a smooth, pure LED light in 3 options. Available in 3" Round Smooth, 3" Round Baffle, and 3 " Square Baffle each with 2 light engines (650 Lumens - 9W or 1,050 Lumens - 15W) - this downlight is a great retrofit upgrade or is new-construction ready with optional housing.
Specifications
- Wattage: 12W
- Lumen Output: DRF Square 650Lm, DRF Round 1050 Lm

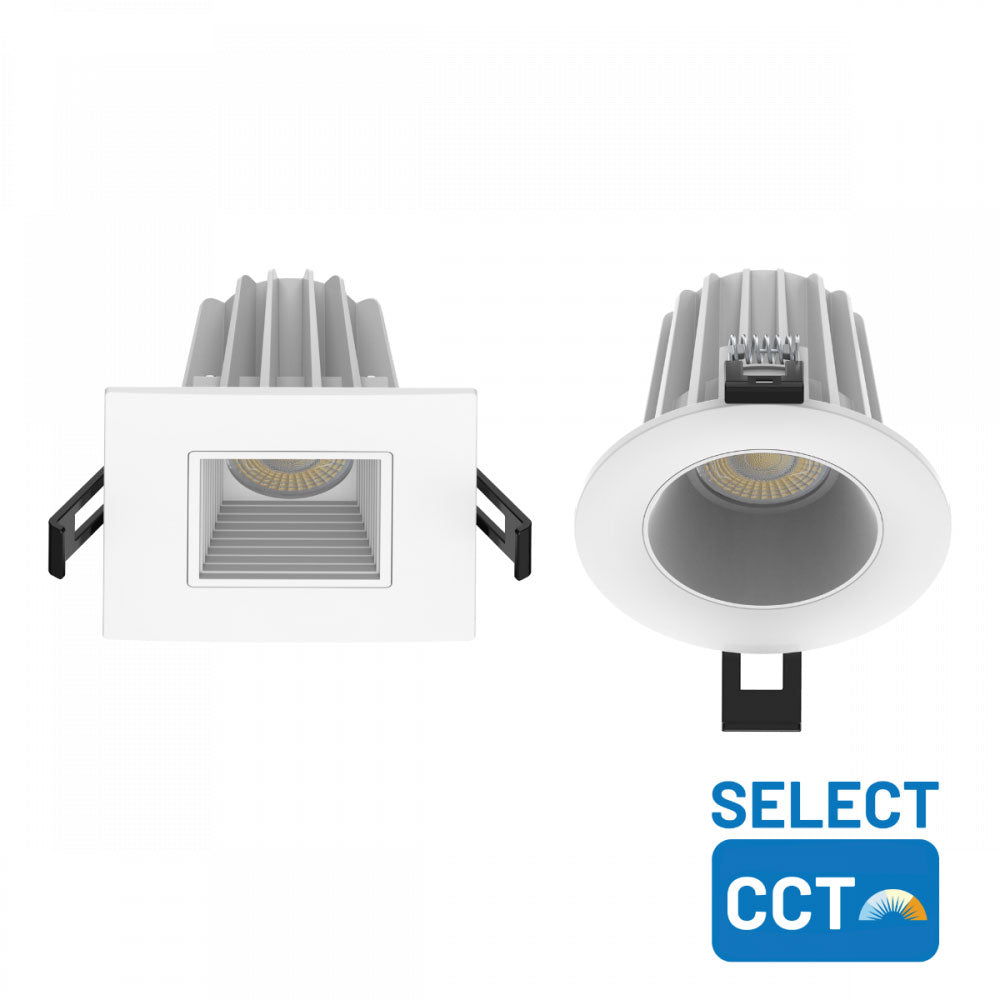

- Correlated Color Temperature (CCT): Field Selectable CCT 2700K/3000K/3500K/4000K/5000K
- Color Rendering Index (CRI): 90 CRI
- Product Distribution Types: 38° beam angle
- Product Lens: Polycarbonate (PC) material diffuser

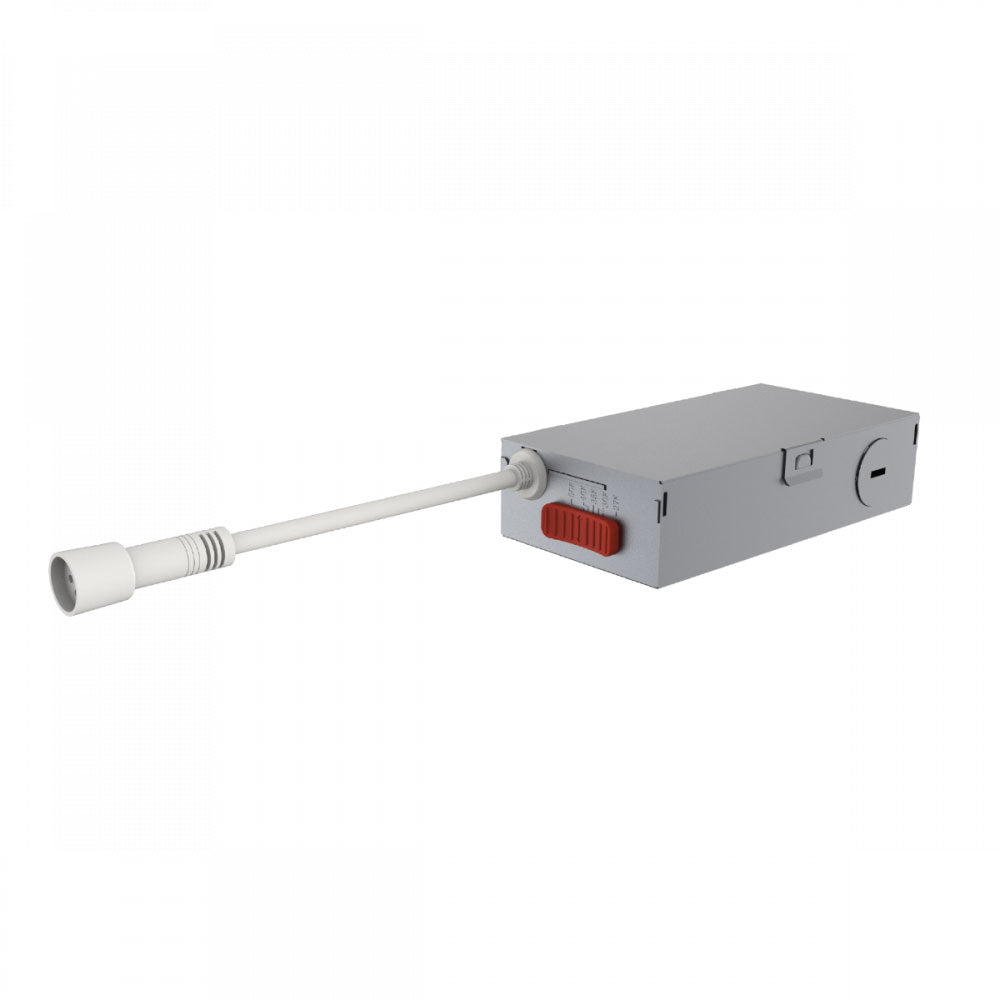

- Accessories: Emergency Battery Backup
- Mounting Type: Recessed mount
- Environment: Indoor
- Operating Temperature: -13°F/-25°C to 104°F/40°C
- Shape: Round
- Listings: ETL, Energy Star, FCC, Title 24, Title 20
- Product Type: Downlight
- Generation: G1
- Color & Finish: White flange finish
- Housing: Die-casting aluminum housing
- Light Source: LED - Selectable
- Voltage Rating: Standard 120-277V
- Warranty: 5 Year
- Labor Warranty: No
Product Files
Click for SLG DRF G1 Regress Downlight Spec Sheet
Click for SLG DRF G1 Regress Downlight Installation Guide
