Description

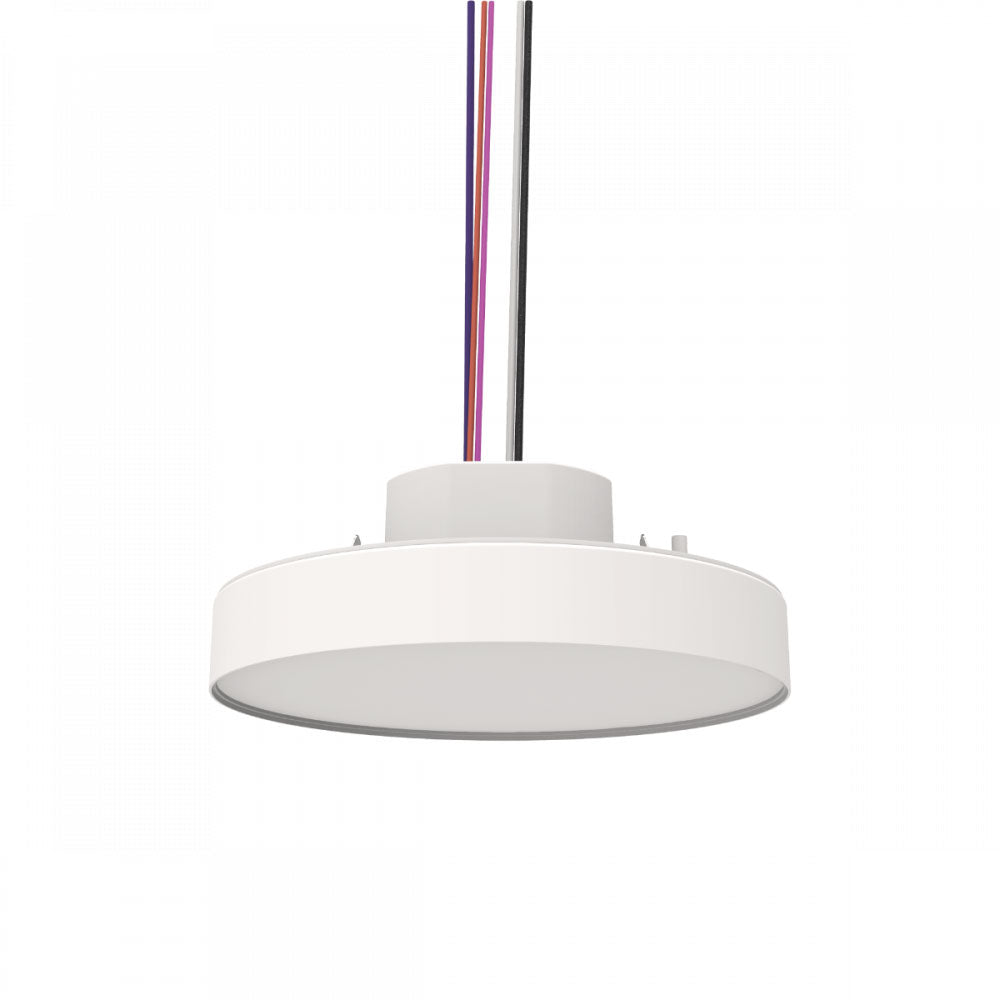

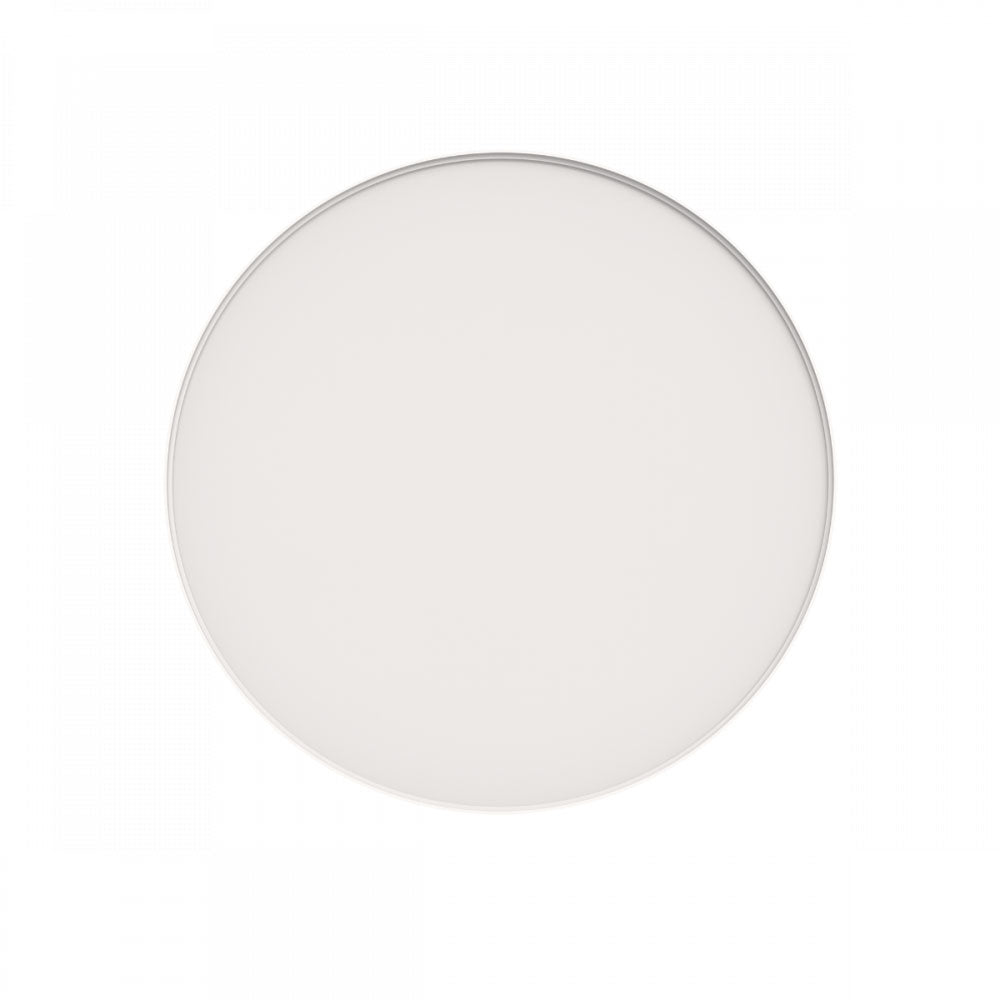

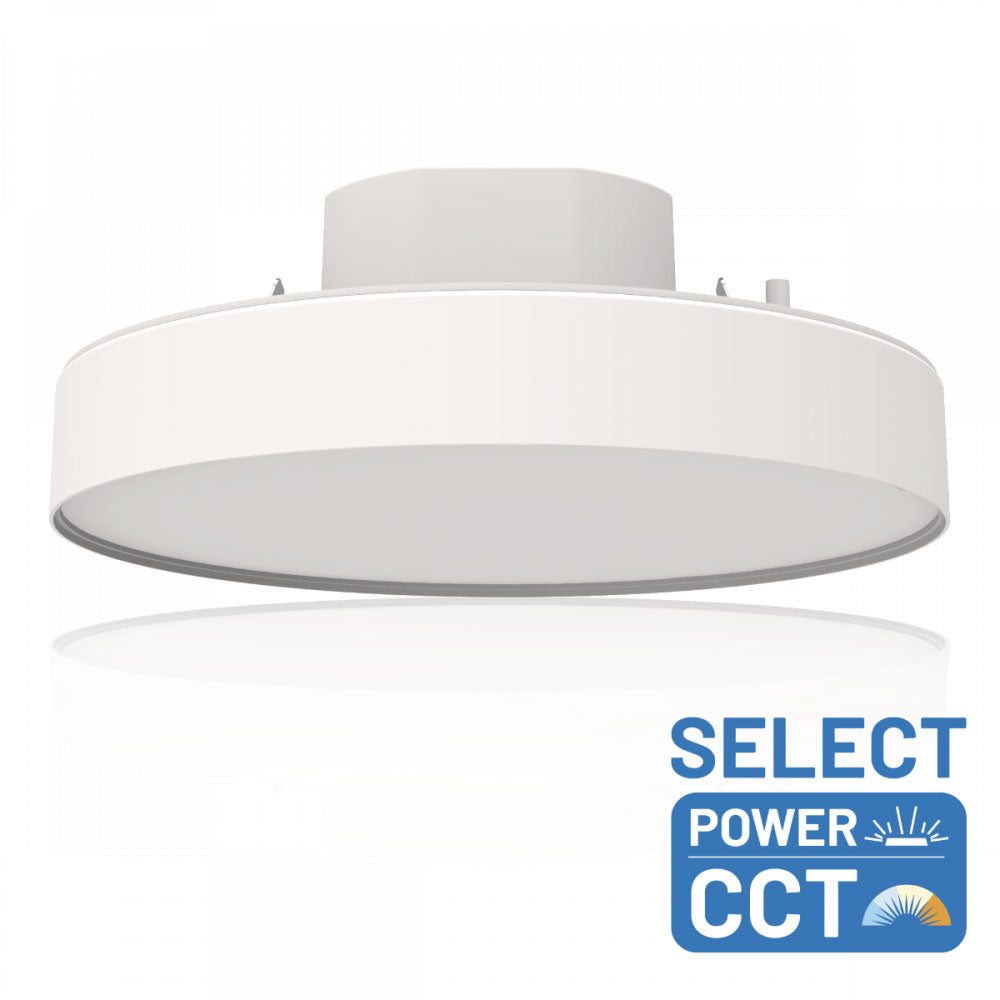

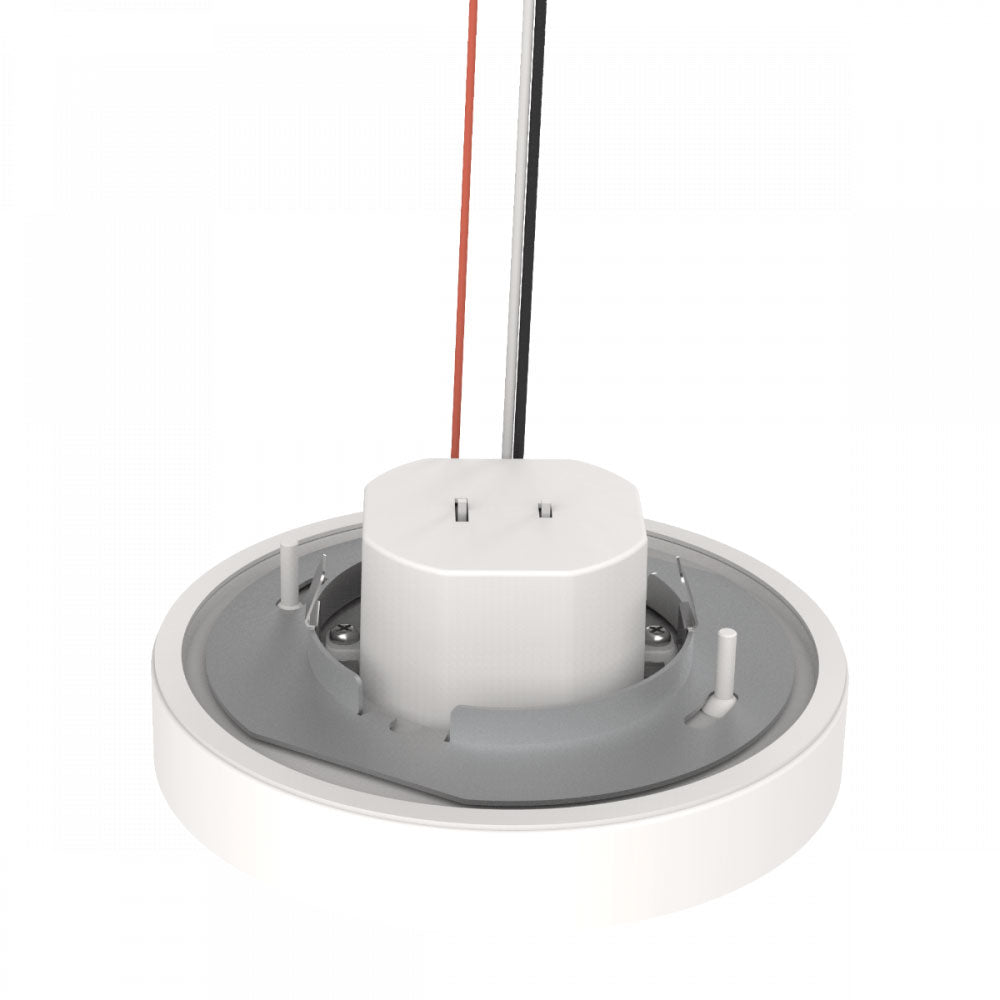

SLG Lighting LED Selectable Slim Downlight

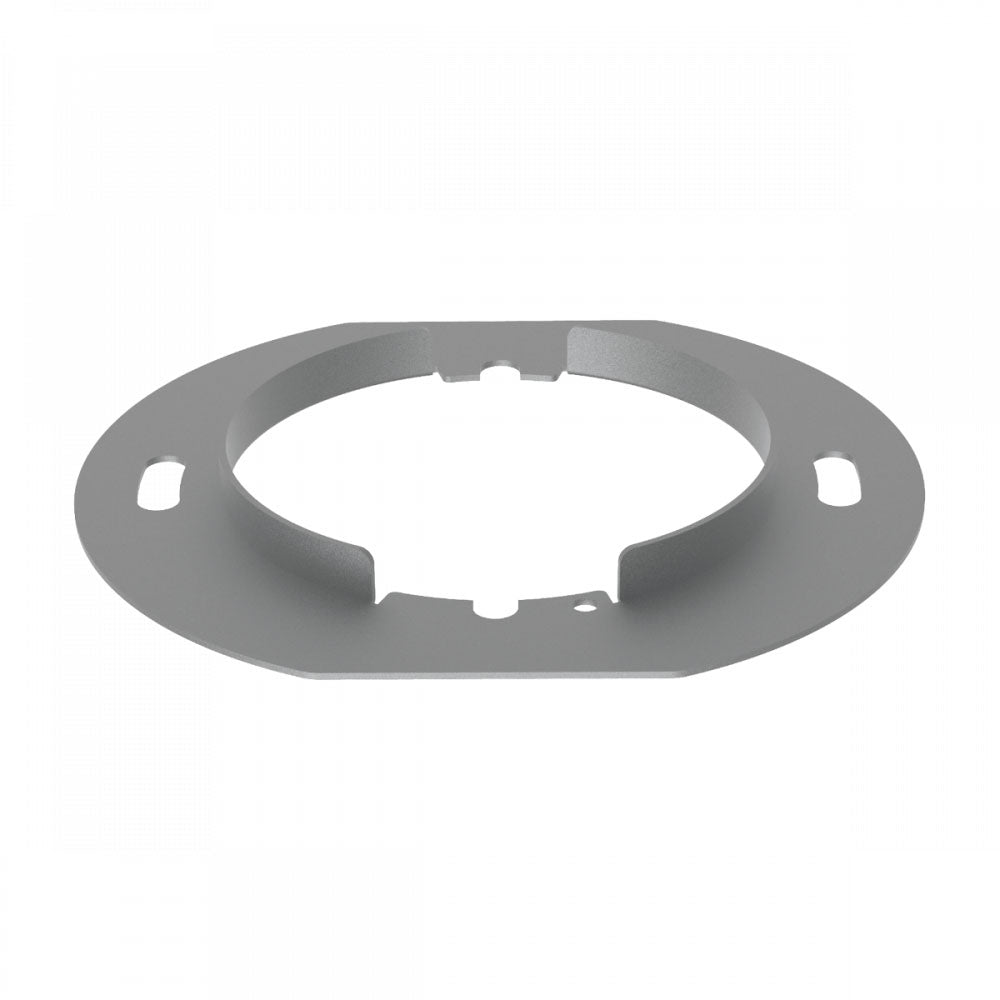

The DSD G1 is an edge-to-edge, slim profile downlight designed to disappear, and deliver a peaceful ambiance that commands respect. The included bracket makes this LED Downlight an easy installation solution and the selectable power/lumen and CCT options give you more stocking shelf space. Stop sourcing multiple vendors and make your life easy with the one and done, design focused "force-to-be-reckoned-with" LED downlight DSD G1. 90 CRI - 92 Lm/W - TRIAC/ELV 120 V Dimming - 0-10 V Universal Dimming.
Specifications
- Product Series: Design
- Wattage: Selectable 6W, 9W, 12W
- Lumen Output: Selectable 550/750/950 Tric Dimming Model, 550/750/1000 0-10V Dimming Model

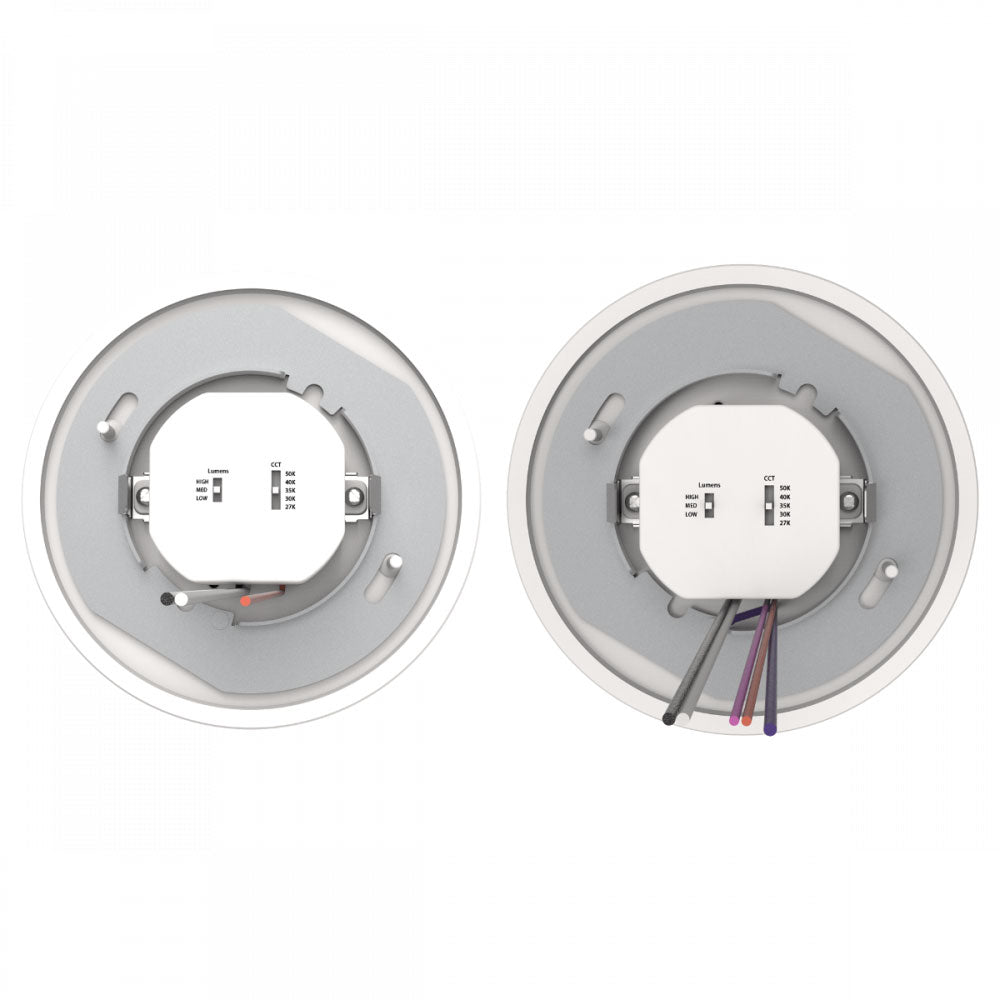

- Correlated Color Temperature (CCT): Field Selectable CCT 2700K/3000K/3500K/4000K/5000K
- Color Rendering Index (CRI): 90 CRI
- Product Distribution Types: Wide distribution 110° Direct
- Product Lens: Matte acrylic diffuser
- Mounting Type: Surface mount to J-Box
- Environment: Indoor
- Operating Temperature: -25° C to 40° C (-13° F to 104° F)
- Shape: Round
- Product Sizes: 5 Inch Round
- Listings: ETL Wet Location, Energy Star, FCC, Title 24
- Product Type: Downlight
- Generation: G1
- Color & Finish: Matte white finish
- Housing: Aluminum
- Light Source: LED - Selectable
- Voltage Rating: TRIAC/ELV driver 120V, Universal driver 120/277V
- Warranty: 5 Year
- Labor Warranty: No
Product Files
Click for DSD G1 LED Selectable Slim Downlight Spec Sheet
Click for DSD G1 LED Selectable Slim Downlight Installation Guide
Click for Selectable Advantage Guide
