Description

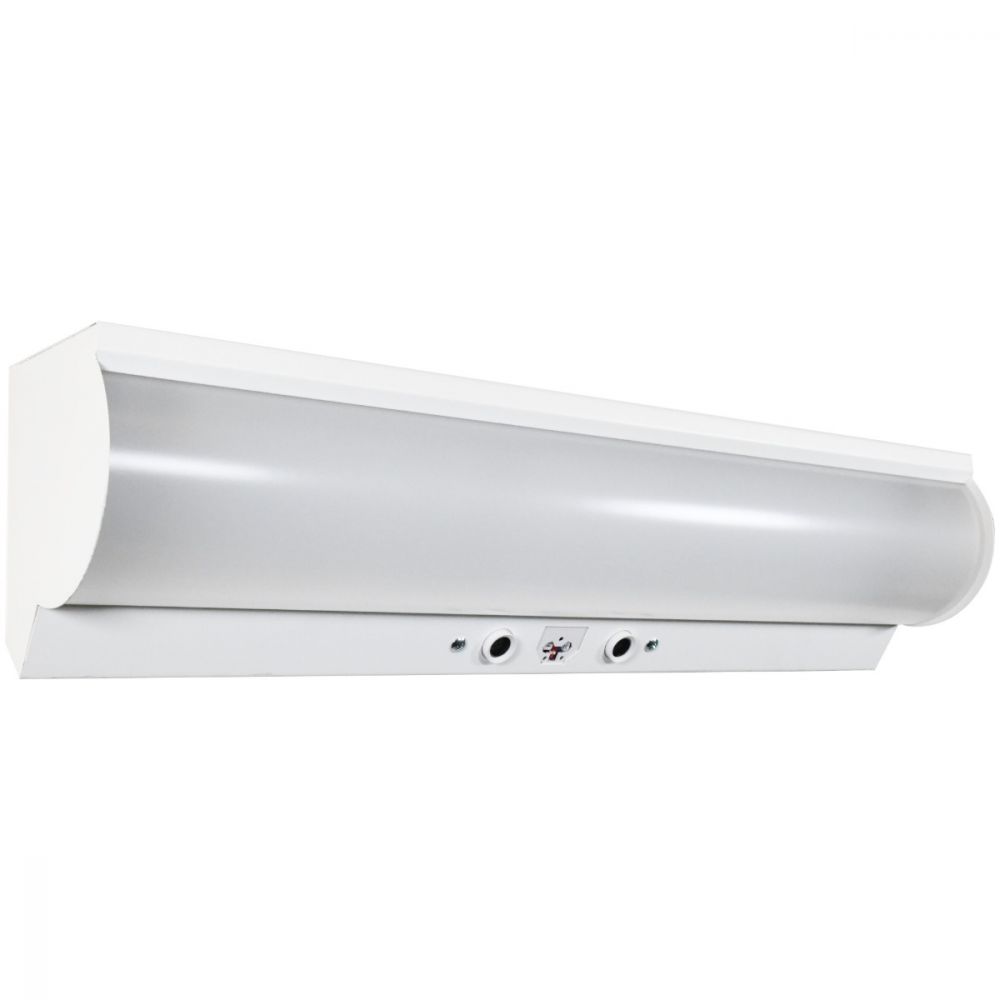

SLG Lighting LED Stairwell Gen 1
The high-performing TSF LED Stairwell luminaire comes in two convenient sizes that is ideal for stairwells and other general ambient lighting applications. This advanced luminaire uses the more applicable ultrasonic sensor to detect motion that does not require a direct line of sight instead of an infrared sensor. This luminaire is optically engineered for maximum efficacy and optimal light distribution with excellent uniformity. This luminaire is suitable for vertical and horizontal mounting and provides easy installation and long life. Emergency Battery Backup kit available.
Applications:
Corridors, aisles, stairwells
Specifications
- Wattage: 18W Static, 20W-25W-30W and 35W-45W-55W Selectable FSK Models
- Lumen Output: 2214 Lm Static, 2660-3250-3810 and 4620-5805-6930 Selectable Lm FSK Models
- Correlated Color Temperature (CCT): 5000K Static, 3500-4000-5000K Selectable FSK Models
- Color Rendering Index (CRI): 80
- Control: Ultrasonic Sensor
- Accessories: Emergency Backup Kit, Wire Guard
- Mounting Type: Wall mount
- Environment: Indoor
- Shape: Linear
- Product Sizes: 2' and 4'
- Listings: DLC Premium and Standard , UL
- Product Type: Troffer
- Generation: G1
- Color & Finish: Polyester Powder White Finish
- Light Source: LED - Static
- Voltage Rating: Standard 120-277V
- Warranty: 5 Year
- Labor Warranty: No
Product Files
Click for TSF G1 LED Stairwell Spec Sheet
