Description

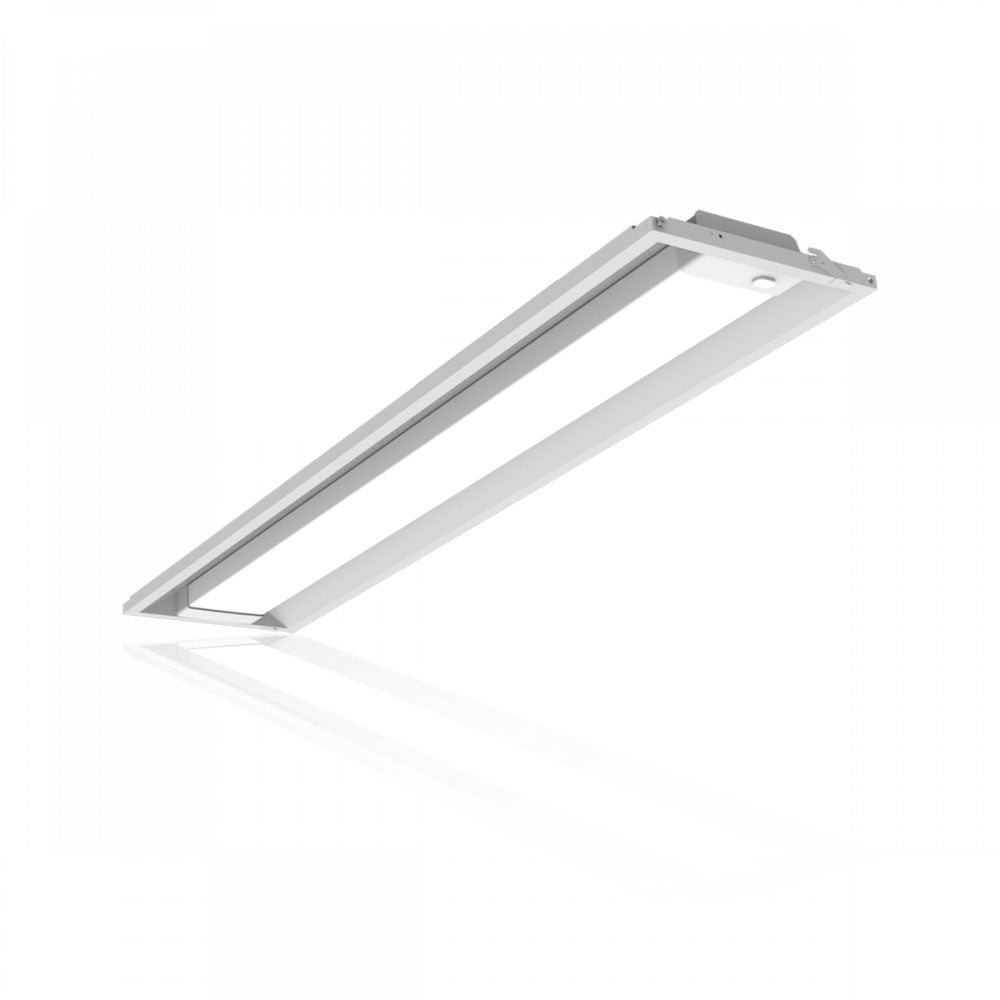

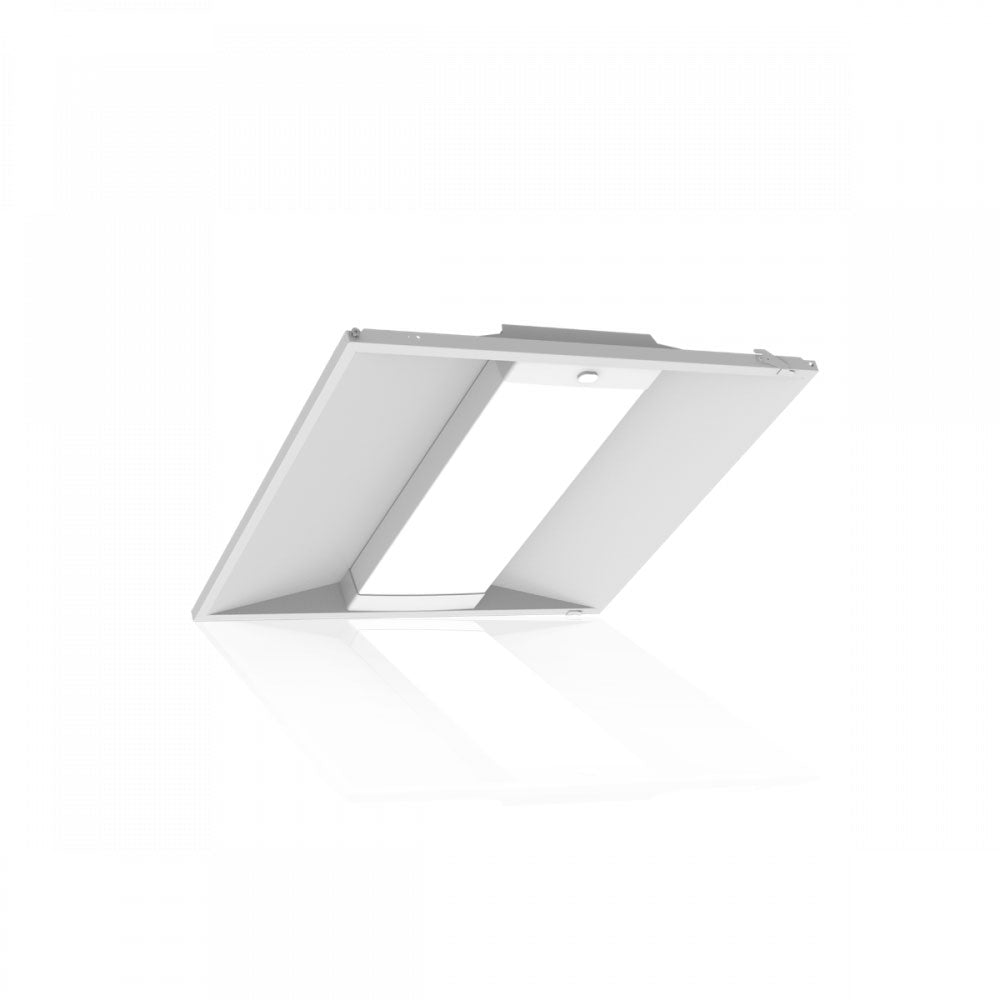

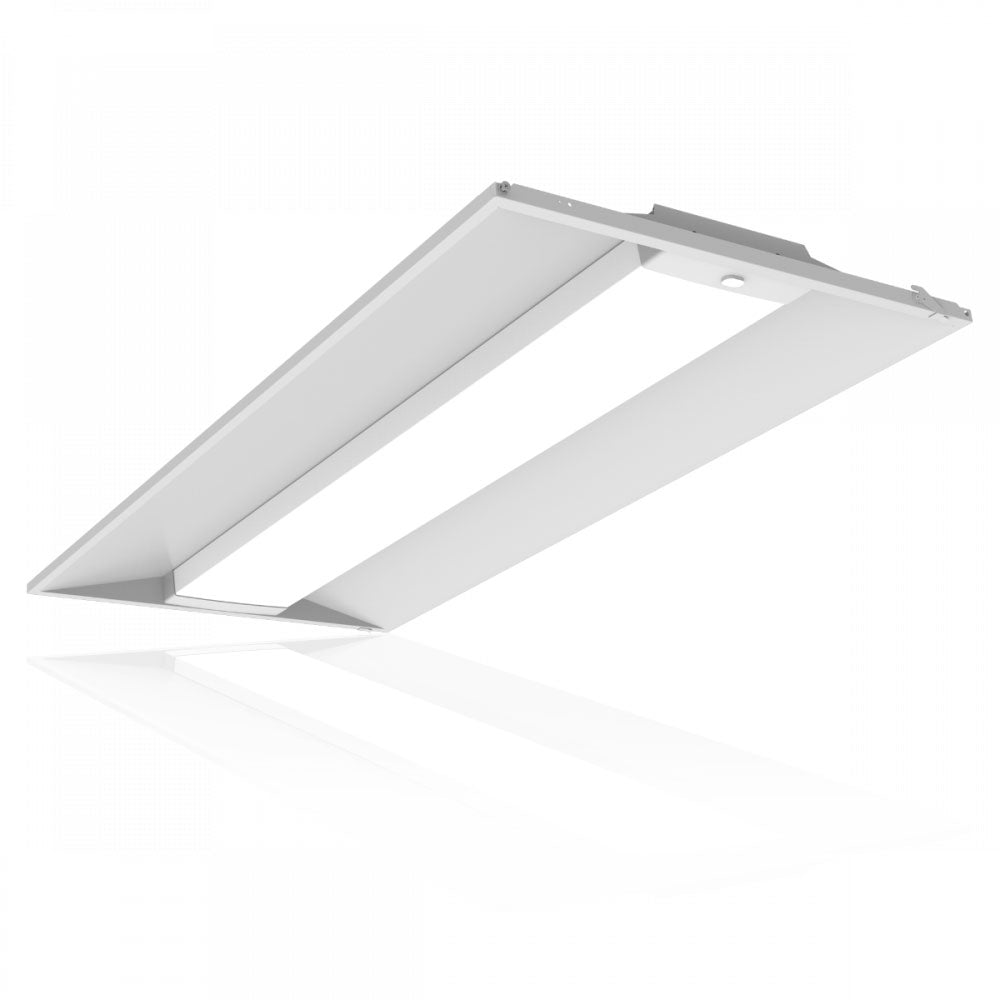

SLG Lighting LED Troffer - Retrofit Kit

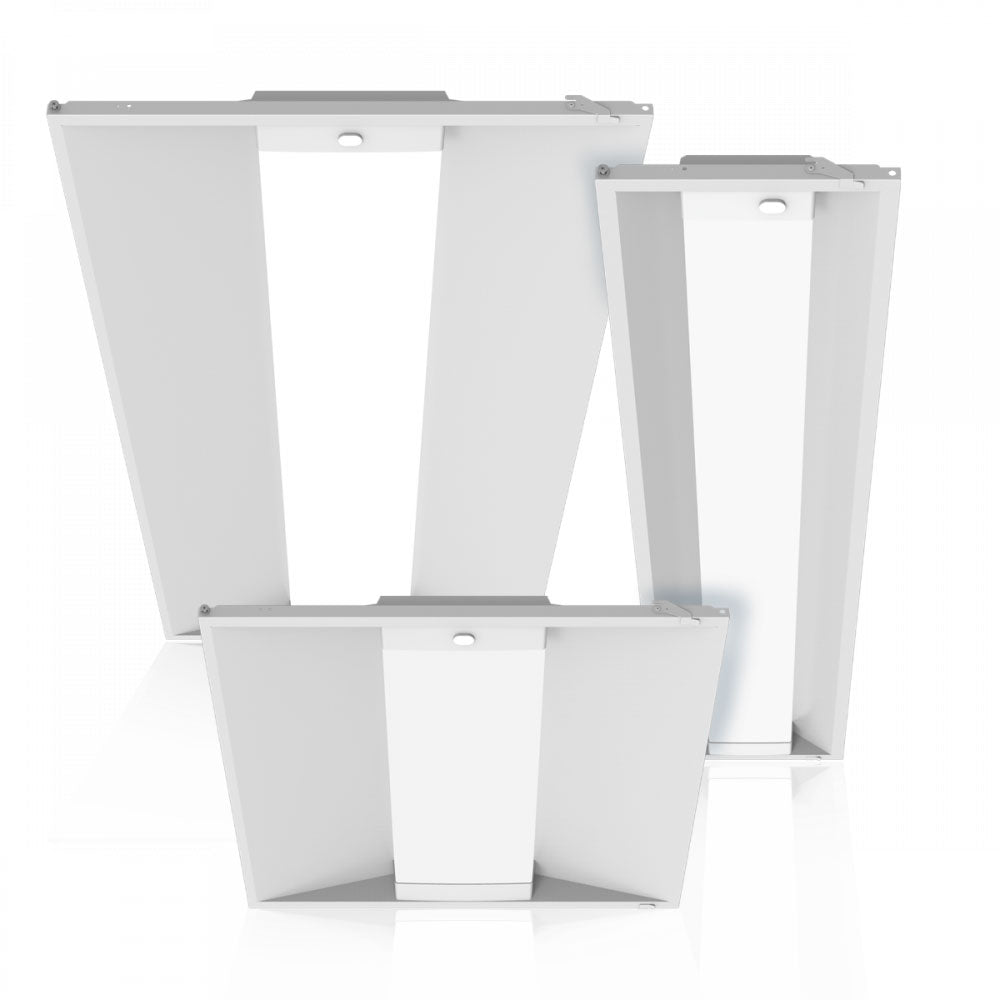

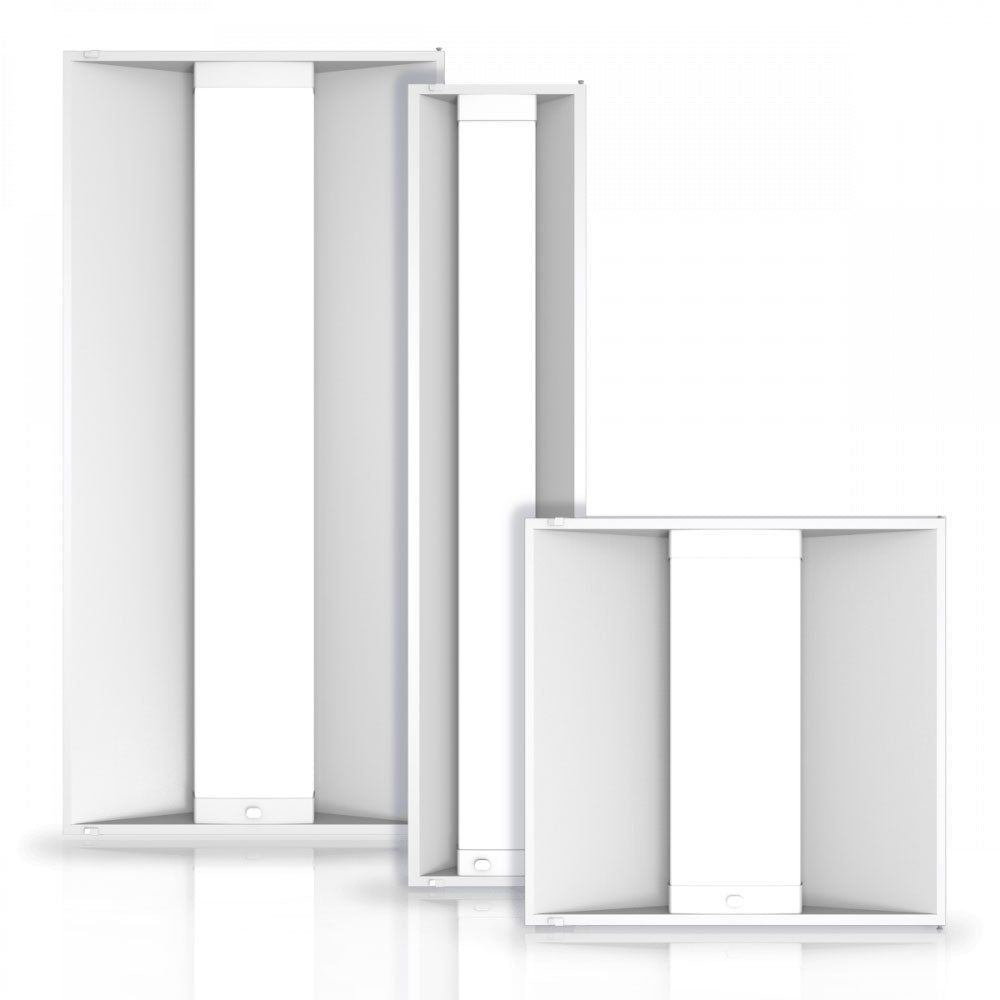

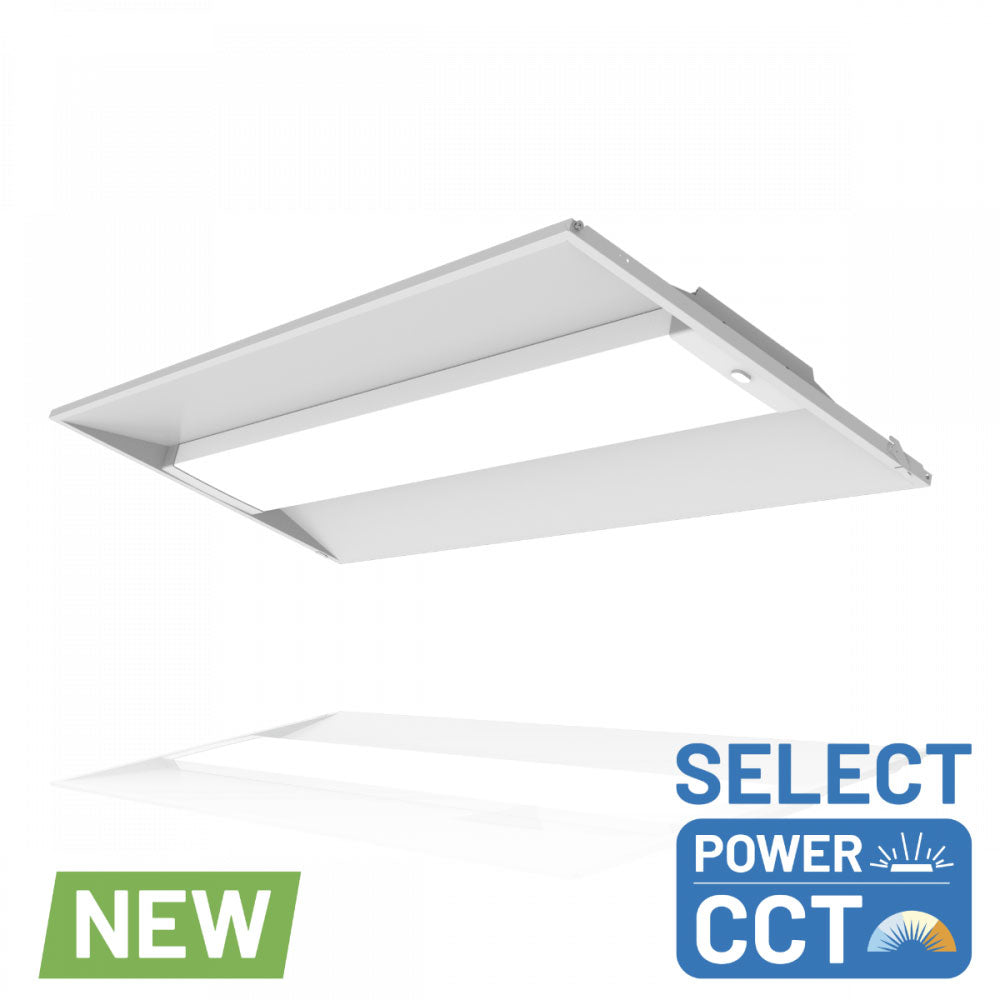

Committing to providing an ideal lighting solution, our TDRK line offers a retrofit troffer in 1' x 4' - 2' x 2' - 2' x 4' sizing at a high 150 lm/w efficacy. We've added an embedded control receptacle as a part of the housing to make wireless lighting controls easy no matter if your customers need controls today or down the road. On the back there are dip switches for easy power and CCT selectabiility, offering a SKU-reducing 9-in-1 troffer retrofit solution that is easy to quote and affordable to stock. SLG Lighting offers our standalone and networked Bluetooth sensors as a quick adder, providing your team with a single vendor option for your customers.
Specifications
- Product Series: ControlXP
- Wattage: Max 30W 1x4 and 2x2, Max 35W 2x4
- Lumen Output: Max 4500 Lm 1x4 and 2x2, Max 5300 Lm 2x4
- Correlated Color Temperature (CCT): Adjustable 3500K-5000K
- Color Rendering Index (CRI): 80
- Product Lens: Frosted PC Lens
- Control: Optional SLG Sync Bluetooth Controls or Standard Dimmer controls available
- Mounting Type: Recessed ceiling mounting
- Environment: Indoor
- Operating Temperature: -20° C to 50° C (-4° F to 122° F)
- Shape: Rectangle
- Product Sizes: 1x4, 2x2, 2x4
- Listings: UL Damp Location, FCC, DLC Standard Pending
- Product Type: Troffer
- Generation: G1
- Color & Finish: White
- Housing: Stamped sheet metal
- Light Source: LED - Selectable
- Voltage Rating: Standard 120-277V
- Warranty: 5 Year
- Labor Warranty: No
- Controls Type: Wireless Controller
- Connection Type: Optional plug-in

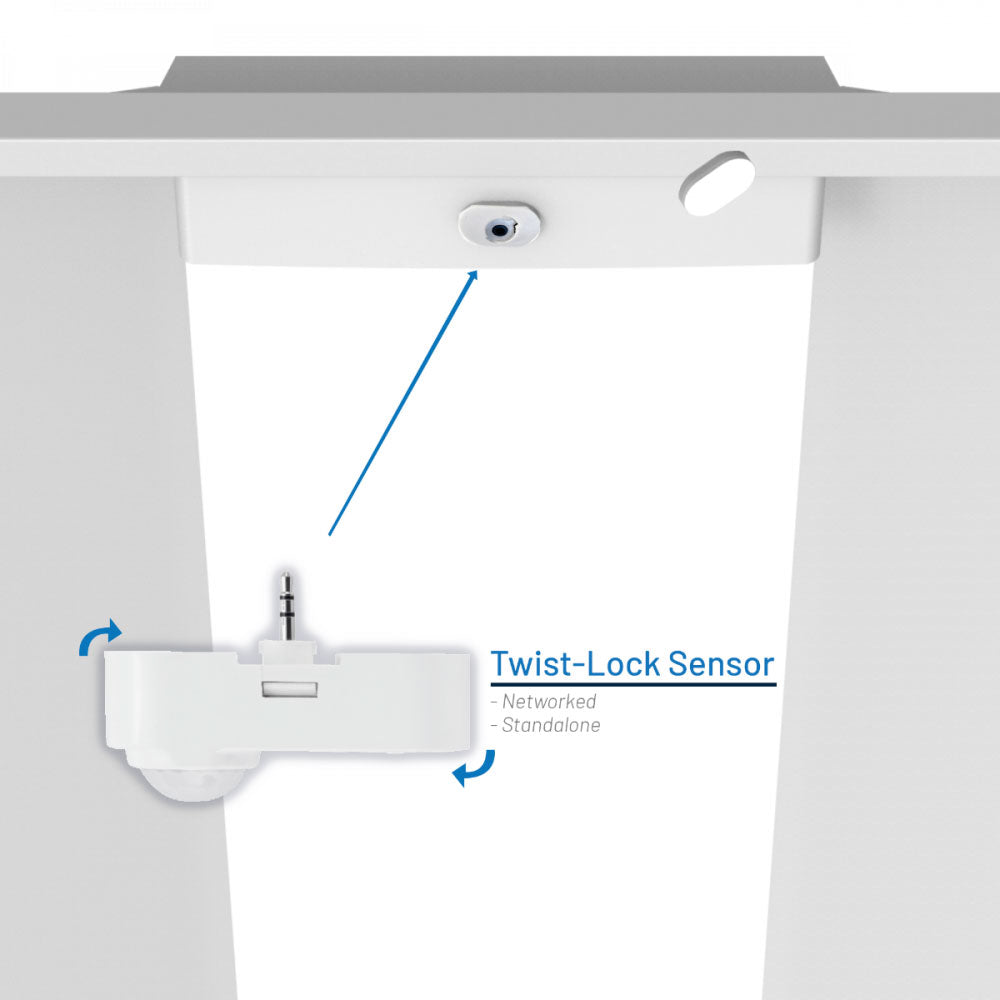

- Sensor Inputs: Optional MSB-DCE-08-TL25 or MS-DCE-08-TL25
Product Files
Click for TDRK G1 Selectable Troffer Spec Sheet
