Description

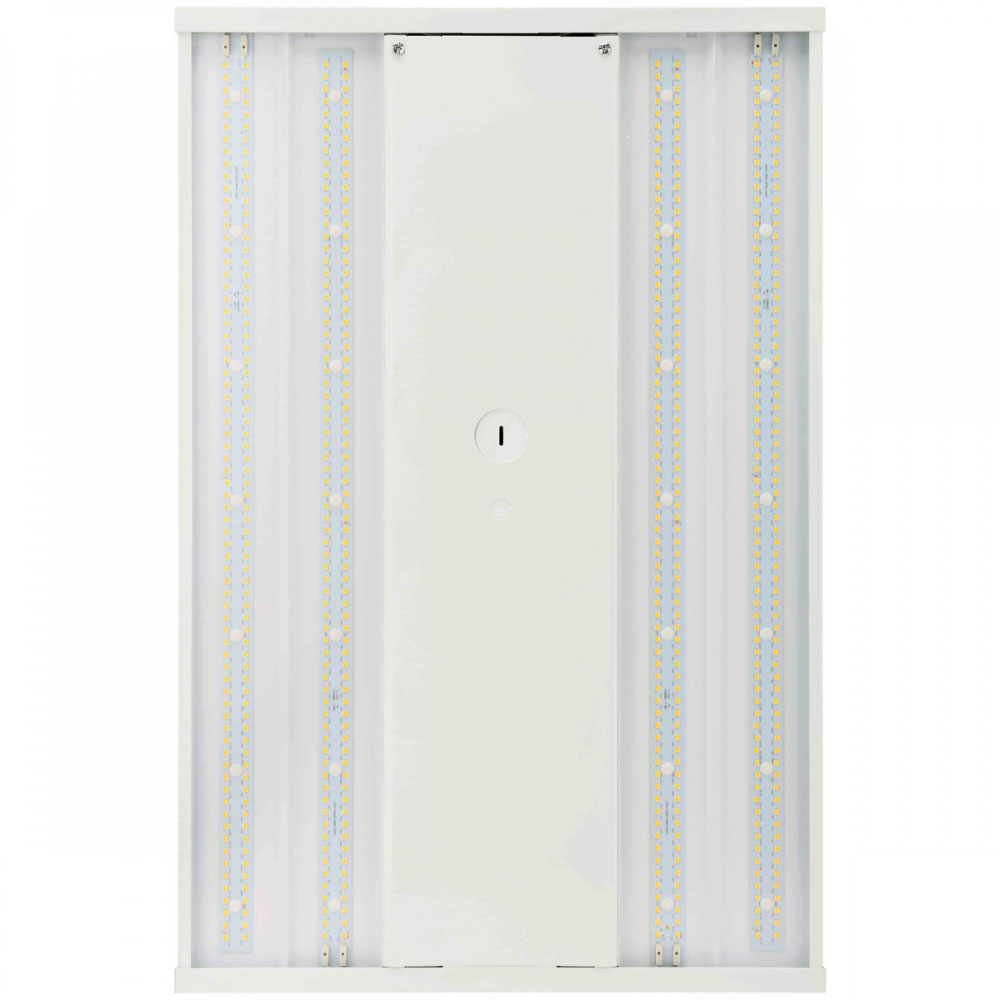

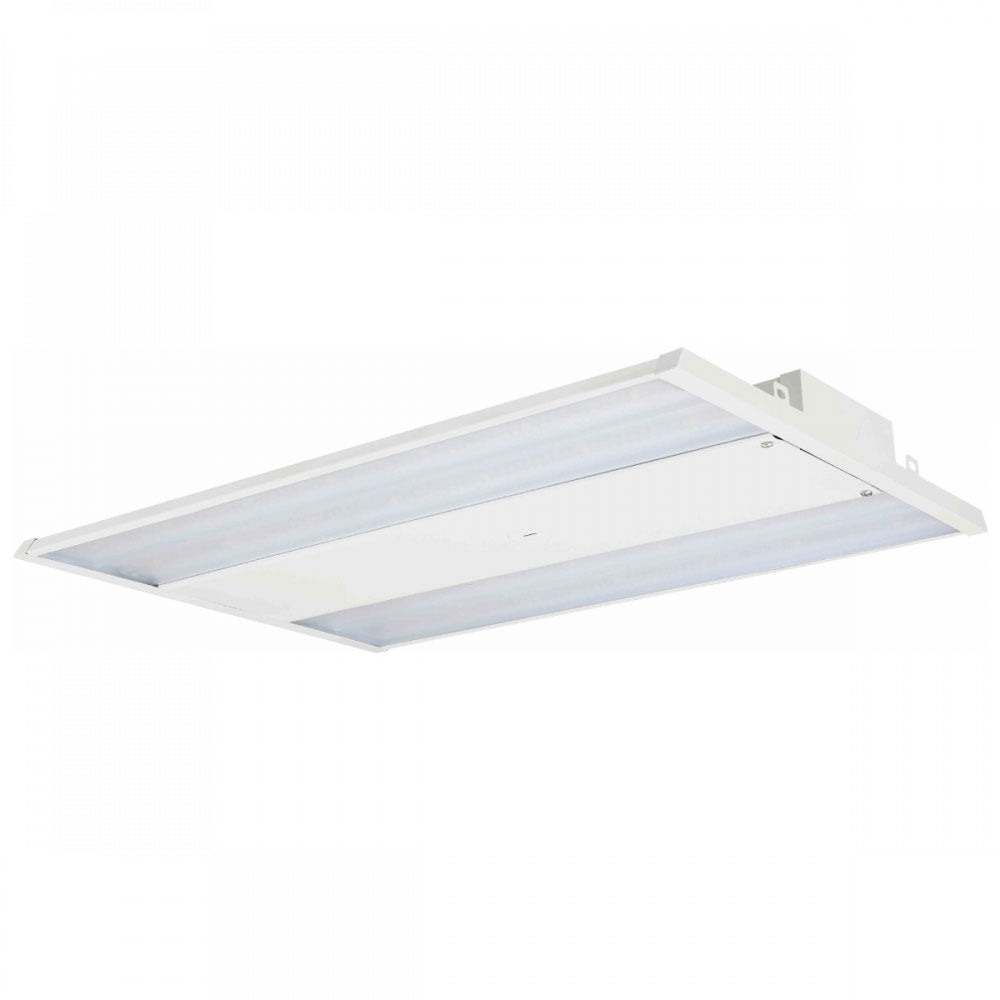

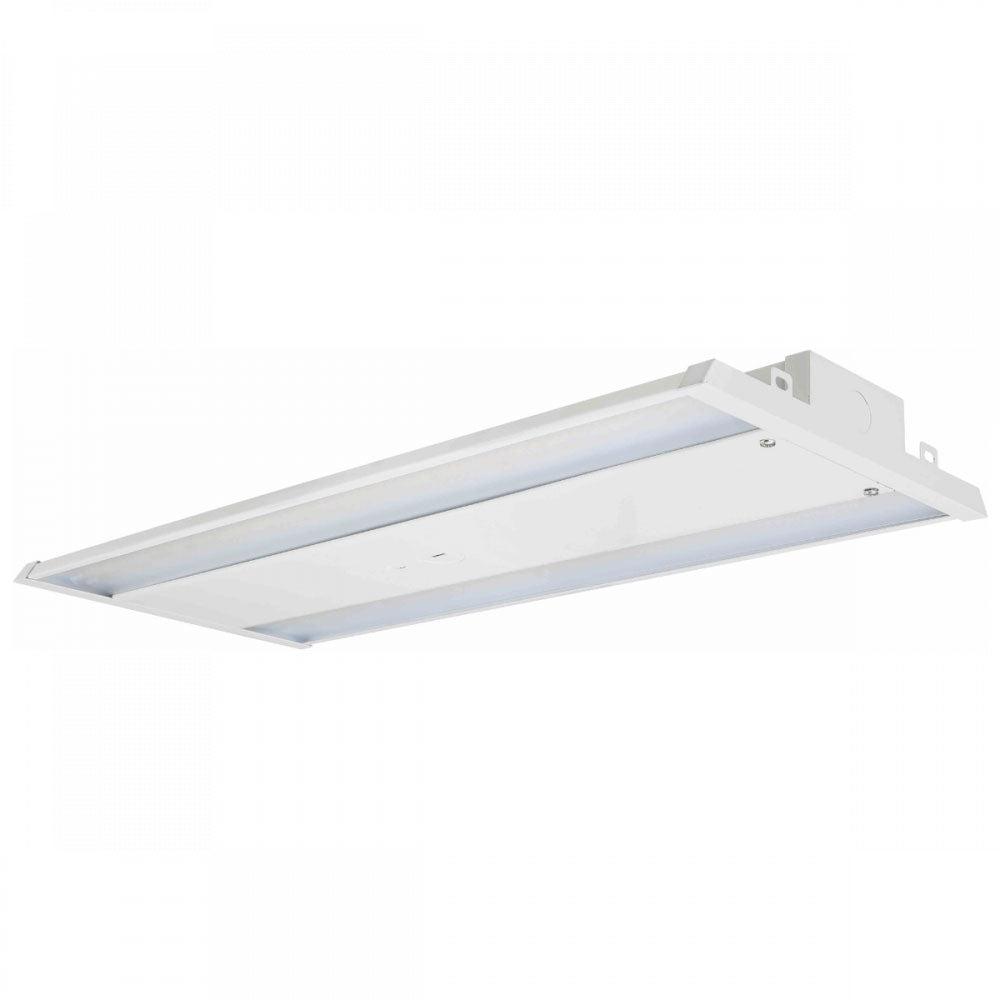

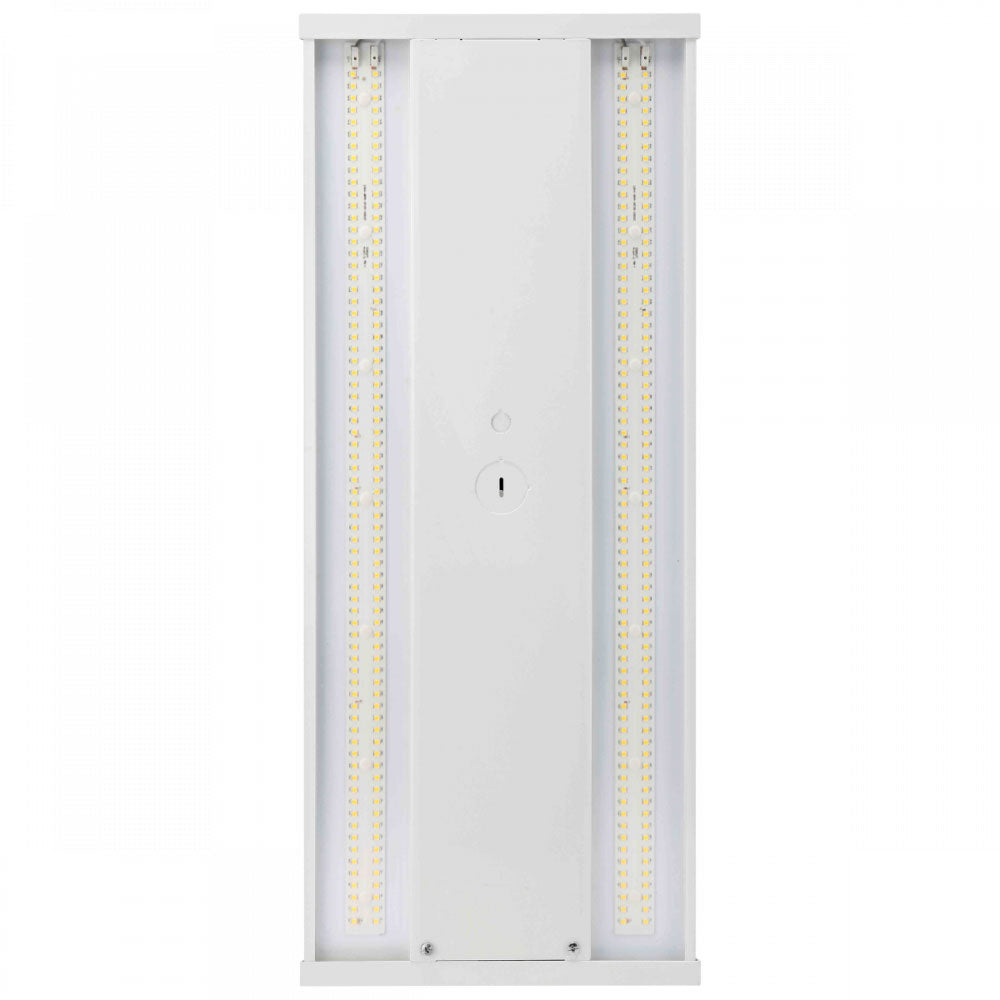

SLG Lighting Lensed High Bay Gen 2
This HE Series provides high lumen output and efficiency in three sizes, 1’ x 2’, 2’ x 2’, and 2’ x 4’. This luminaire has high-temperature polycarbonate lens to reduce yellowing and directs light to desired locations.
APPLICATIONS
Industrial, Education, and Retail applications, etc.
REPLACEMENT
4 LampT8 32W, 4 Lamp T5HO 54W, 6 Lamp T5HO 54W, 8 Lamp T5HO 54W, 10 Lamp T5HO 54W, 12 Lamp T5HO 54W
Specifications
- Product Series: Performance
- Wattage: 90W, 130W, 180W, 210W, 270W, 300W, 370W
- Lumen Output: 12200 LM, 12400 LM, 17400 LM, 17600 LM, 24200 LM, 24500 LM, 28200 LM, 28500 LM, 35500 LM, 36000 LM, 39500 LM, 40000 LM, 49500 LM, 50350 LM
- Correlated Color Temperature (CCT): 4000K , 5000K
- Color Rendering Index (CRI): 80
- Control: Motion Sensor On/Off , High Bay Sensor Cont Dimming, Avion
- Accessories: Emergency Battery Kit
- Mounting Type: Aircraft cable included or Pendent mount
- Environment: Indoor
- Shape: Rectangle
- Listings: UL , DLC Premium , FCC, RoHS
- Product Type: High Bay
- Generation: G2
- Color & Finish: White Polyester Powder
- Light Source: LED - Static
- Voltage Rating: Standard 120-277V, HVU 347-480V
- Warranty: 10 Year
- Labor Warranty: Yes
Product Files
Click for HE Lensed High Bay G2 Spec Sheet
