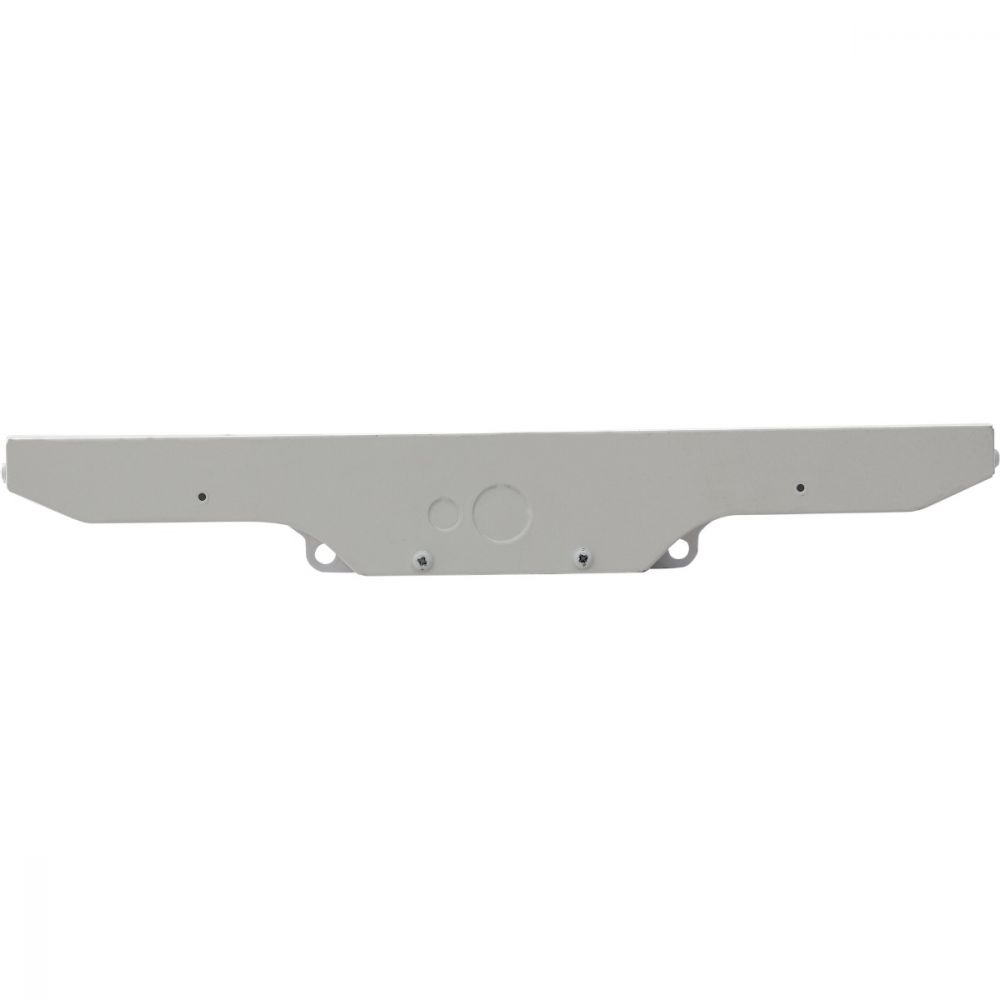

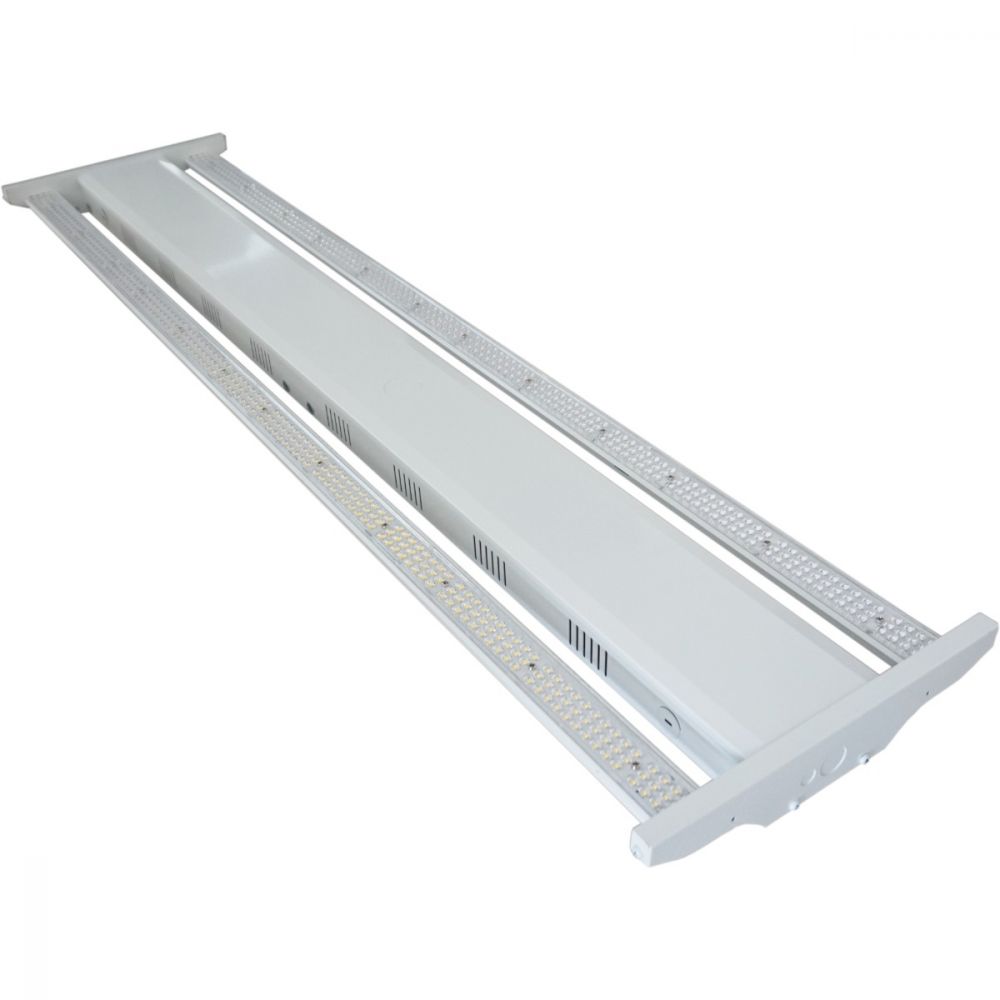

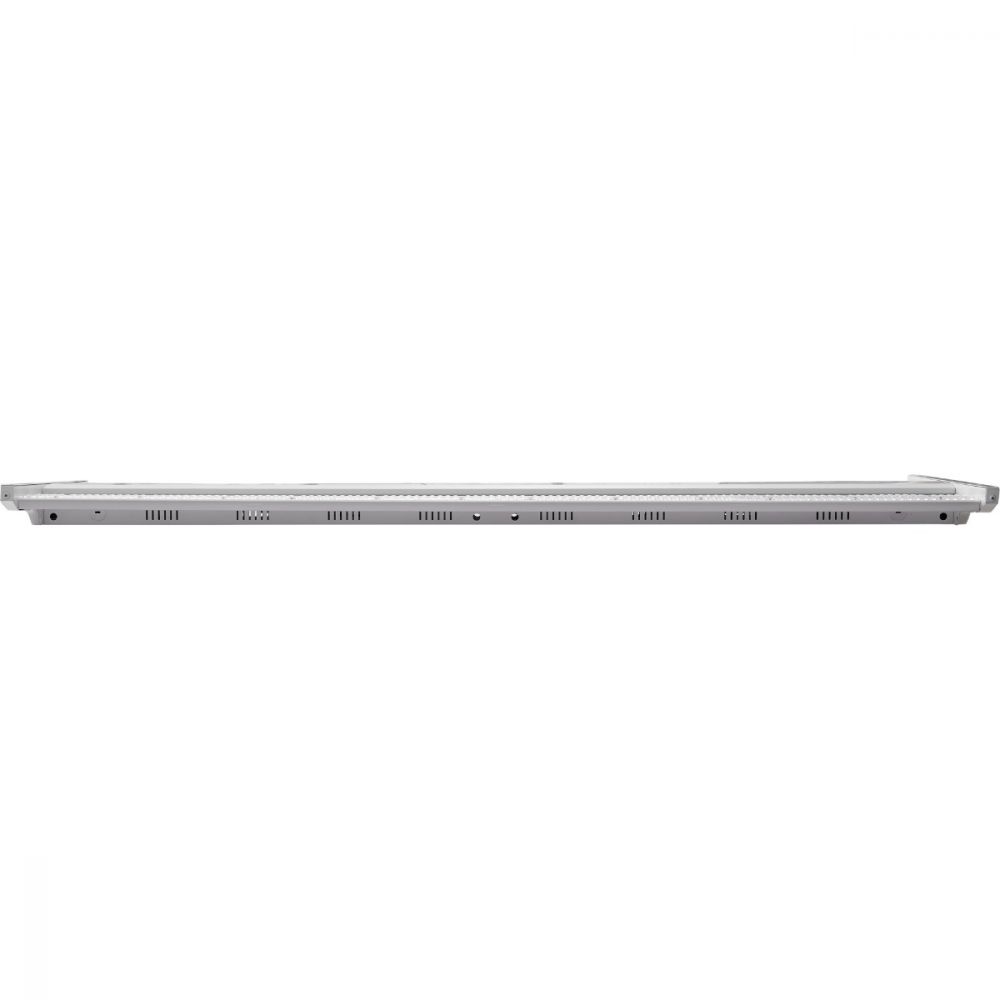

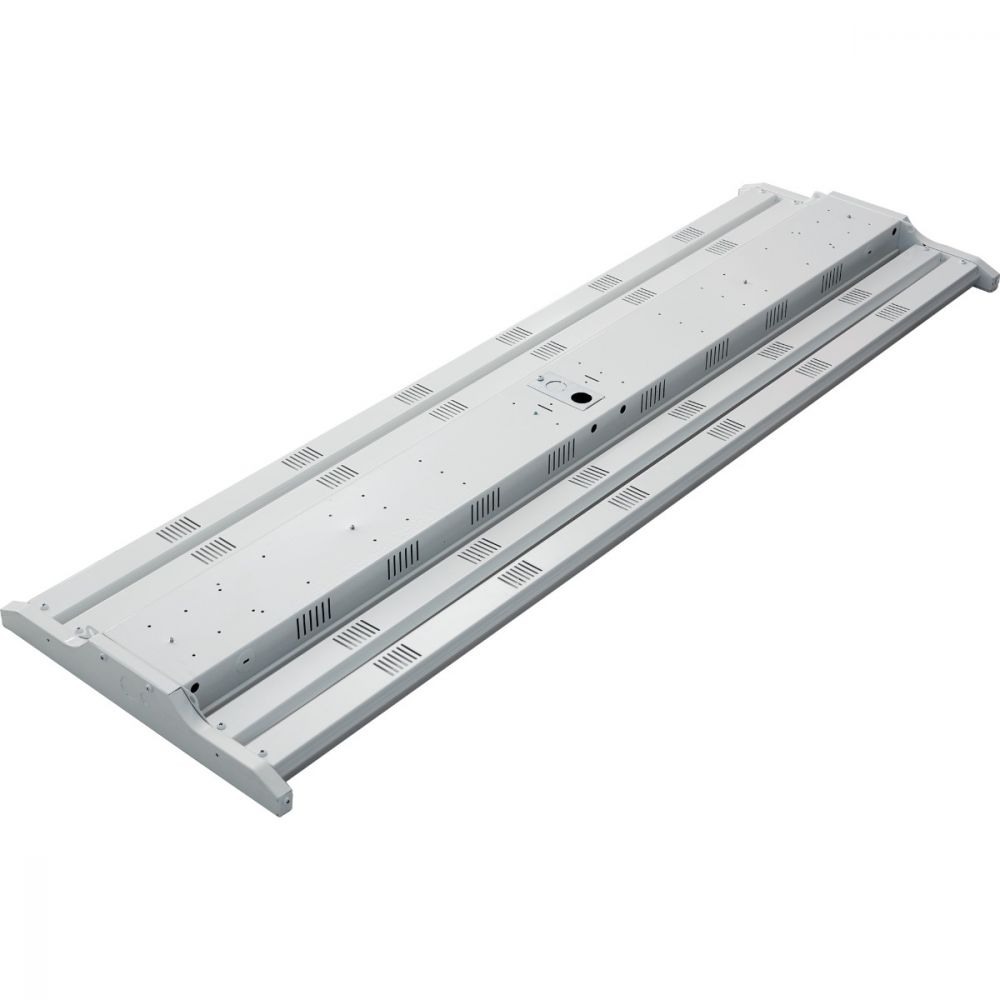

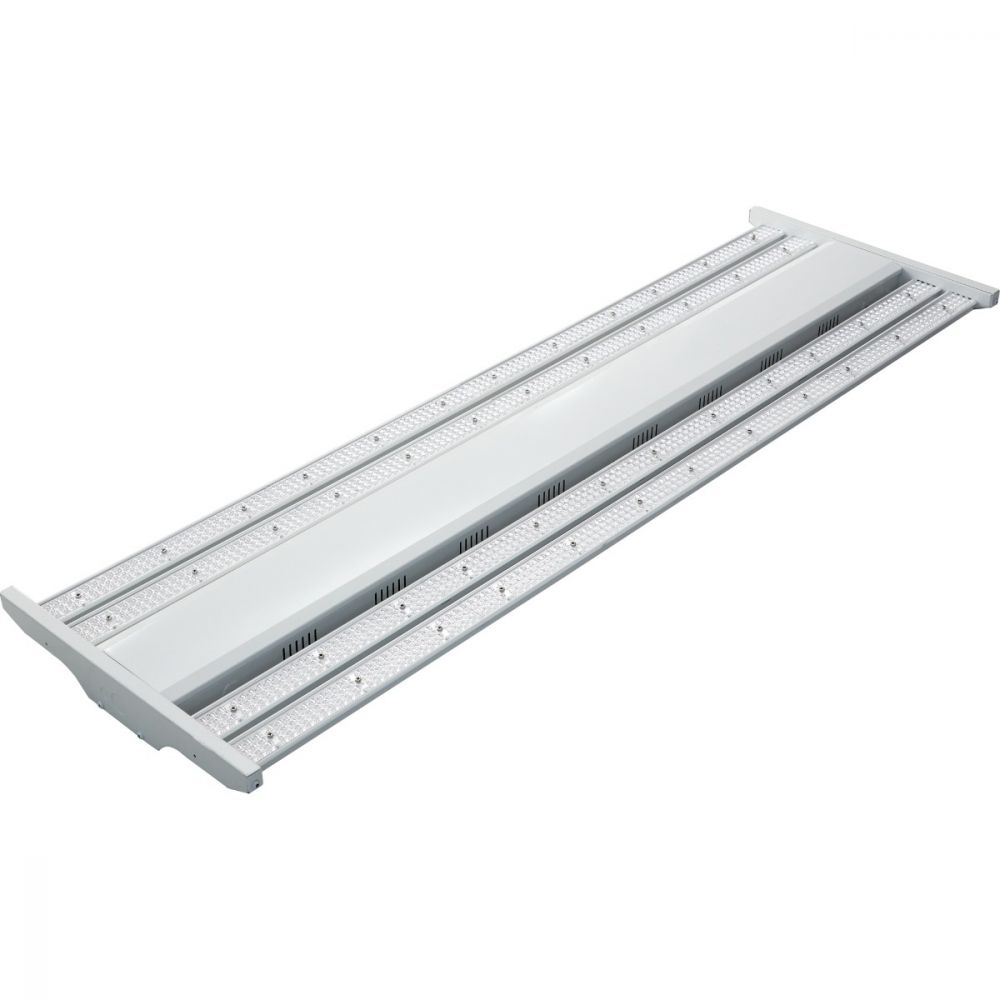

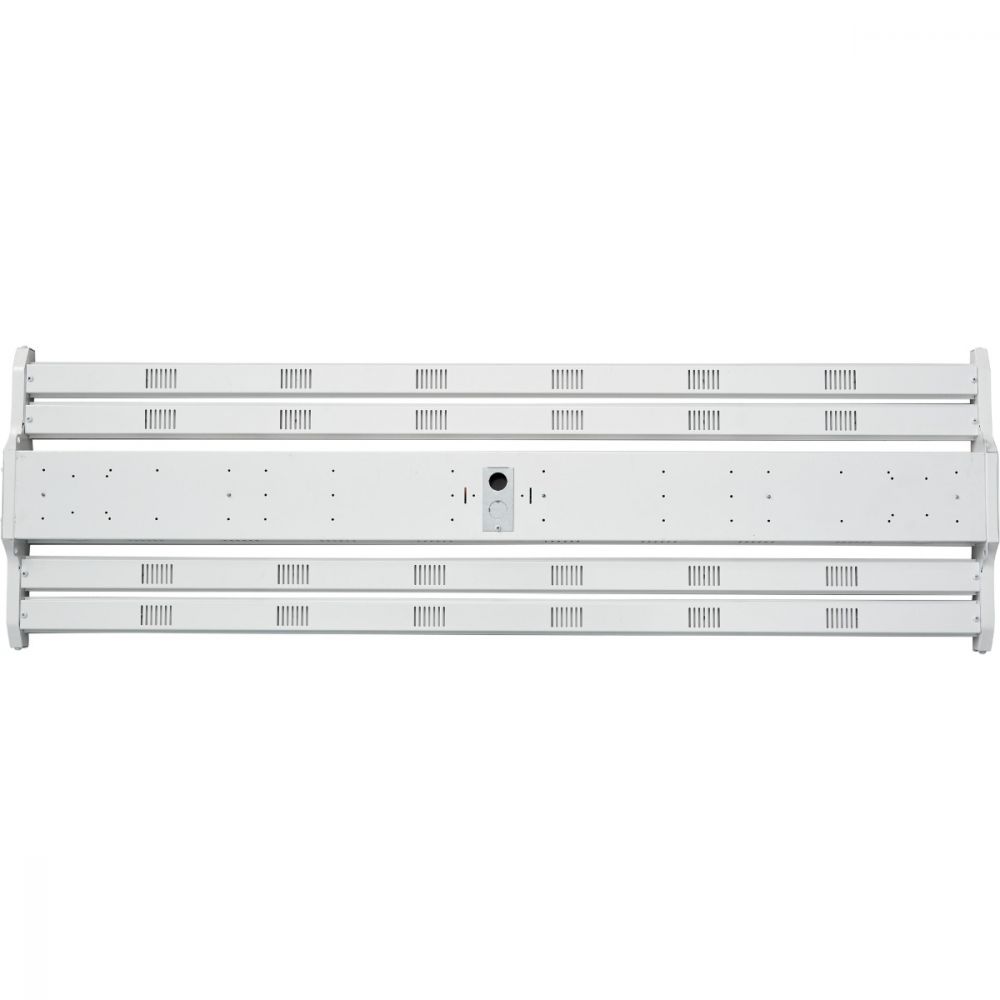

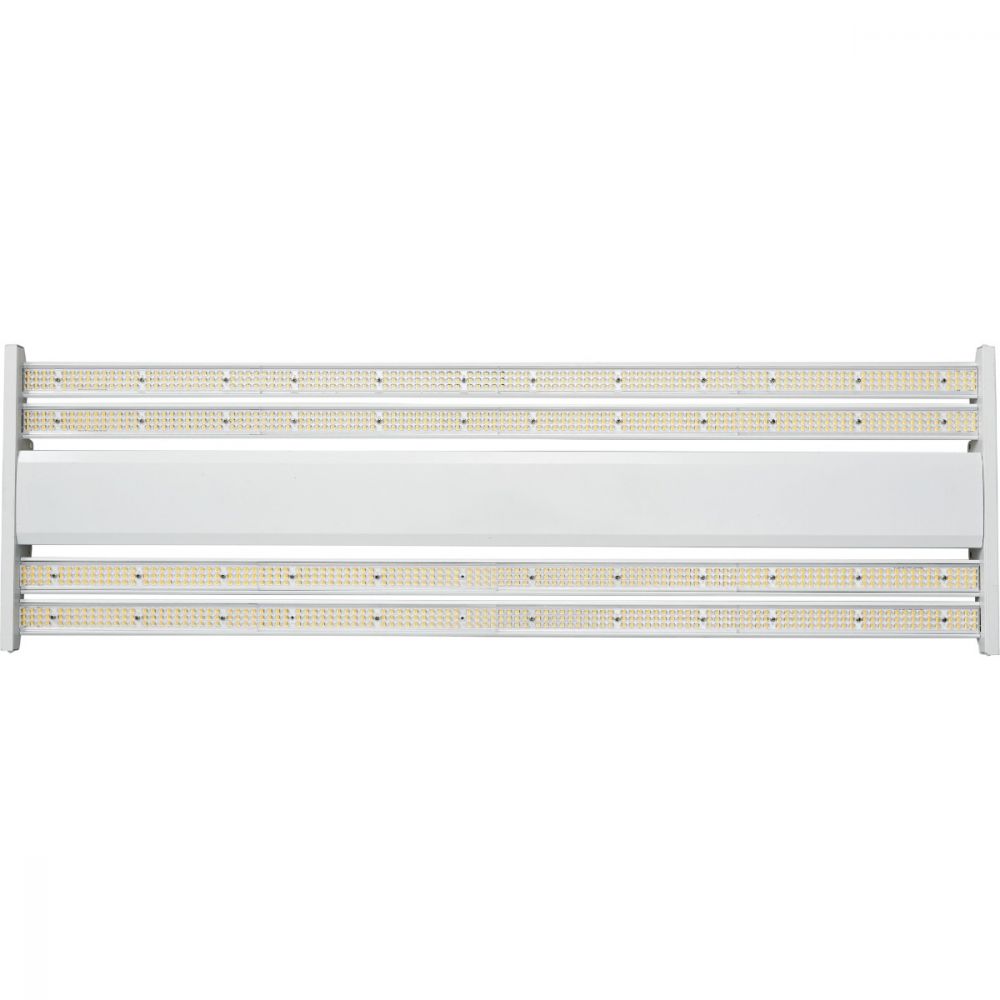

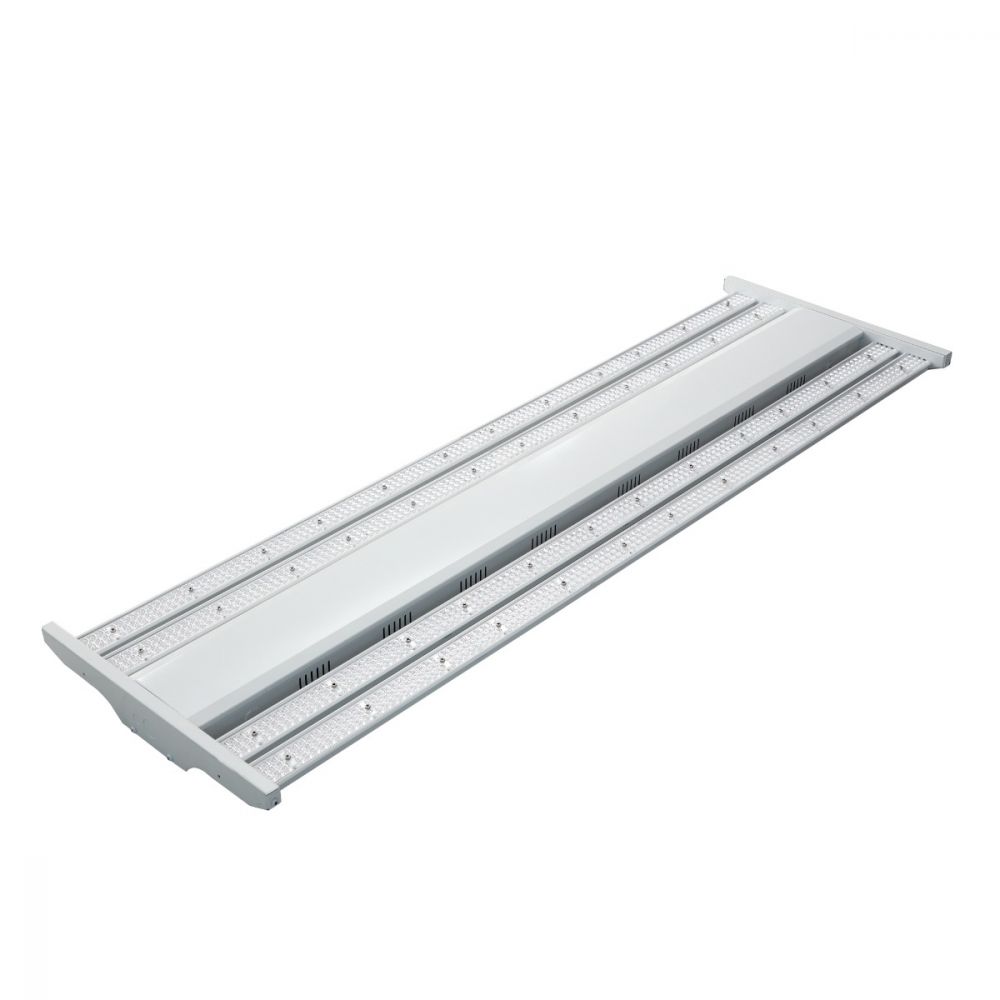

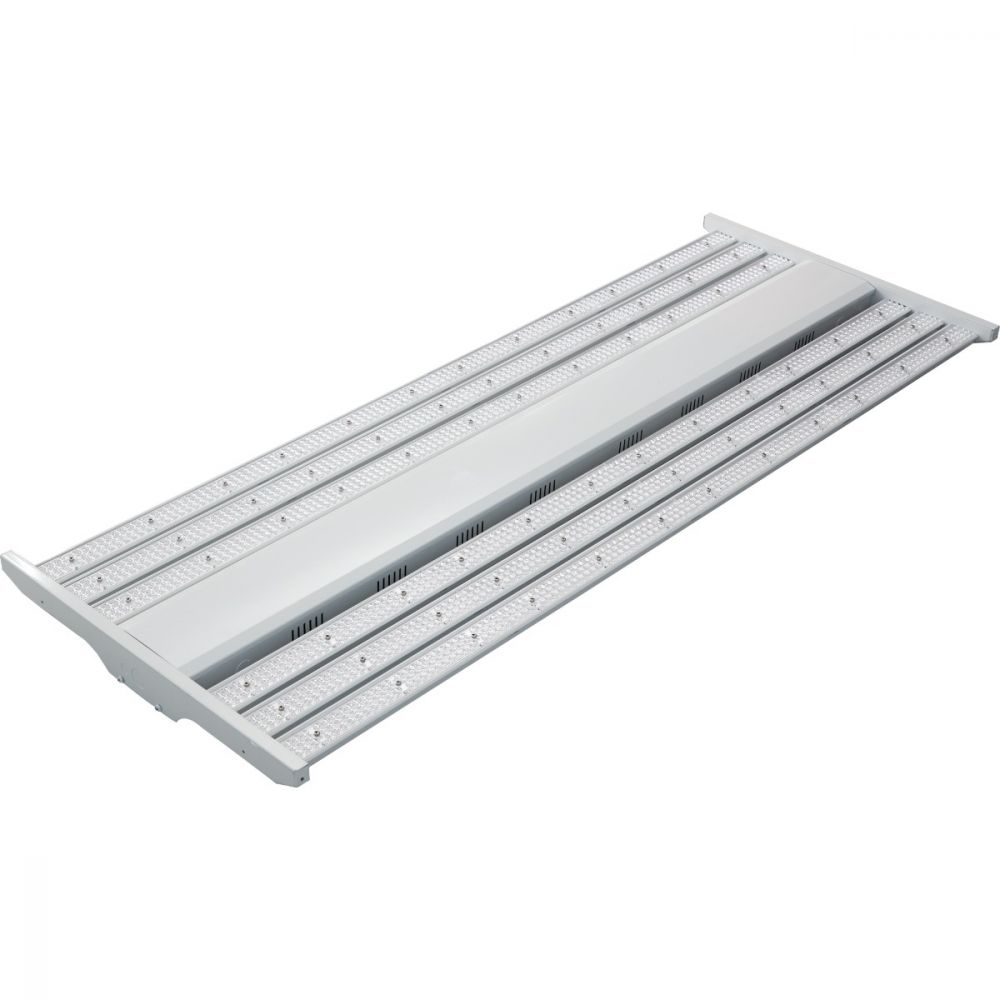

SLG Lighting Linear High Bay HL Gen 3
This HL Linear Gen 3 comes in lumen outputs between 18,000 and 60,000 lumens with Suspended, Surface, and Pendant mounting. The narrow body design features an aisle distribution that improves vertical illumination where desired. This industrial LED luminaire is ideal for lighting large indoor spaces.
APPLICATIONS
Parking Garages, Walkways, Warehouses, etc.
REPLACEMENT
4 Lamp T5HO 54W, 6 Lamp T5HO 54W, 8-10 Lamp T5HO 54W
Specifications
- Product Series: Performance
- Wattage: 120W , 160W , 200W , 240W , 320W , 400W
- Lumen Output: 18000 LM , 24000 LM , 30000 LM , 36000 LM , 48000 LM , 60000 LM
- Correlated Color Temperature (CCT): 5000K
- Color Rendering Index (CRI): 85
- Product Lens: Frosted Lens, Aisle Lens
- Control: Motion Sensor, Wireless Controller
- Accessories: Emergency Battery Kit, Surge Protection
- Mounting Type: Standard V-hook Mount, Optional Surface and Pendant Mount
- Environment: Indoor
- Shape: Rectangle
- Product Sizes: 3 Sizes - 12in x 48in, 15in x 48in, 19in x 48in
- Listings: UL Listed for damp locations , DLC Premium , FCC, RoHs
- Product Type: High Bay
- Generation: G3
- Color & Finish: White Polyester Gloss finish with less than 91% reflectivity
- Housing: Aluminum alloy
- Light Source: LED - Static
- Voltage Rating: Standard 120-277V, HVU 347-480V
- Warranty: 10 Year
- Labor Warranty: Yes
