Description
SLG Lighting Selectable Area Light Gen 1

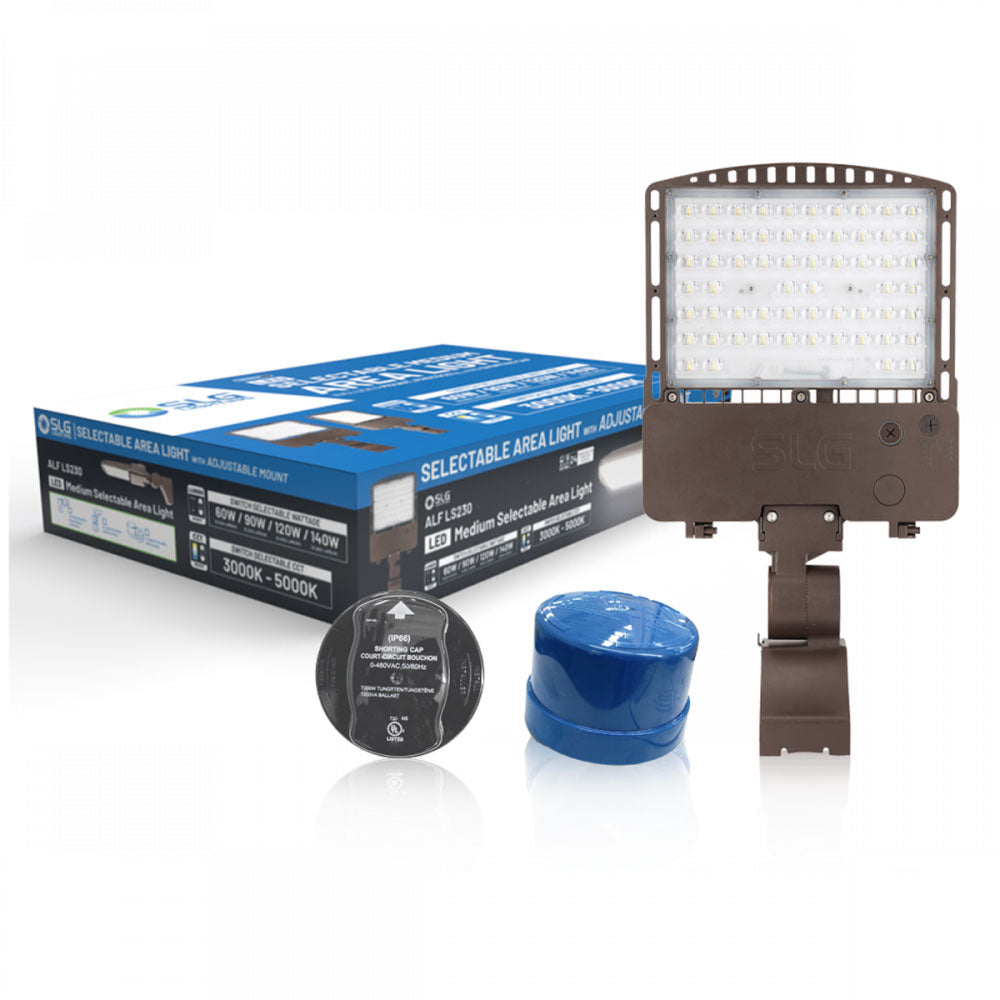

The new ALF SelectableLED Area Light Flexible Series delivers total flexibility with a Medium and Large area light. Selectable power output and selectable CCT give you an all-in-one solution for multiple mounting heights available in Type II, III, IV, and V distributions. This fixture ships in one box including mount, photocell, and shorting cap for an installation dream come true. Make the most out of your experience with the ALF Flexible Series.
Specifications
- Product Series: Contractor
- Wattage: LS230 60W, 90W, 120W, 140W LS450 120W, 180W, 240W, 300W, LS600 300W, 320W, 360W, 400W Selectable
- Lumen Output: 9700 LM , 1400 LM , 18000 LM , 19200 LM , 28000 LM , 35000 LM , 41000 LM, 47000 Lm, 51000 Lm, 56000 Lm, 60500 Lm Selectable Lumens
- Correlated Color Temperature (CCT): 3000K, 4000K , 5000K
- Color Rendering Index (CRI): 70
- Product Distribution Types: T2, T3, T4, T5
- Product Lens: One-piece, die-cast aluminum housing
- Control: LS230 Standard model includes photocell, LS450 has optional photocell and shorting cap
- Accessories: Twist-lock Photocell for HVU, House Side Shield, SLG Sync Controls
- Mounting Type: Adjustable Square and Round Pole , Slipfitter Mount
- Environment: Outdoor
- Operating Temperature: -40° C to 40° C (-40° F to 104° F)
- Product Weight: ALF LS230 12.96 Lbs, ALF 450 19.19 Lbs
- Shape: Rectangle
- Product Sizes: LS230 15.6" Length, LS450 24.9" Length
- Listings: UL , DLC Premium , FCC
- IP Rating: IP65
- Product Type: Area Light
- Generation: G1
- Color & Finish: Dark Bronze Polyester Powder
- Housing: One-piece, die-cast aluminum housing
- Light Source: LED - Static
- Voltage Rating: Standard 120-277V, HVU 347-480V
- Warranty: 5 Year
- Labor Warranty: No
Product Files
Click for ALF G1 Selectable Area Light Spec Sheet
Click for ALF G1 Selectable Area Light Installation Guide
