Description
SLG Lighting Selectable Full Cutoff Wall Pack - Contractor Series Gen 1
The WFC is a SKU saving LED full cutoff wall pack featuring 4 selectable lumen outputs and 3 selectable CCT color outputs. This budget friendly, contractor experience LED wall pack features a pre-installed, low-voltage photocell installed directly to the driver, additional heat-sink fins just for the LED module - increasing the total performance lifespan, and shipped in an "anti-crush" advanced box. Selectable lumen range: 4,100 - 9,900 lm Selectable CCT range: 3000K - 5000K Replaces: HID 175W - 250W - 400W
Installation footprint: Covers the footprint of a typical HID wall pack
Specifications
- Product Series: Contractor
- Wattage: 23W/35W/49W/65W Selectable
- Lumen Output: 4000/5700/7800/9800 Lm Selectable
- Correlated Color Temperature (CCT): 3500K/4000K/5000K Selectable
- Product Lens: Anti-UV prismatic translucent lens
- Control: Photocell
- Accessories: Emergency Backup Kit
- Mounting Type: Wall or Junction Box
- Environment: Outdoor
- Product Weight: 5.09 Lbs
- Shape: Rectangle

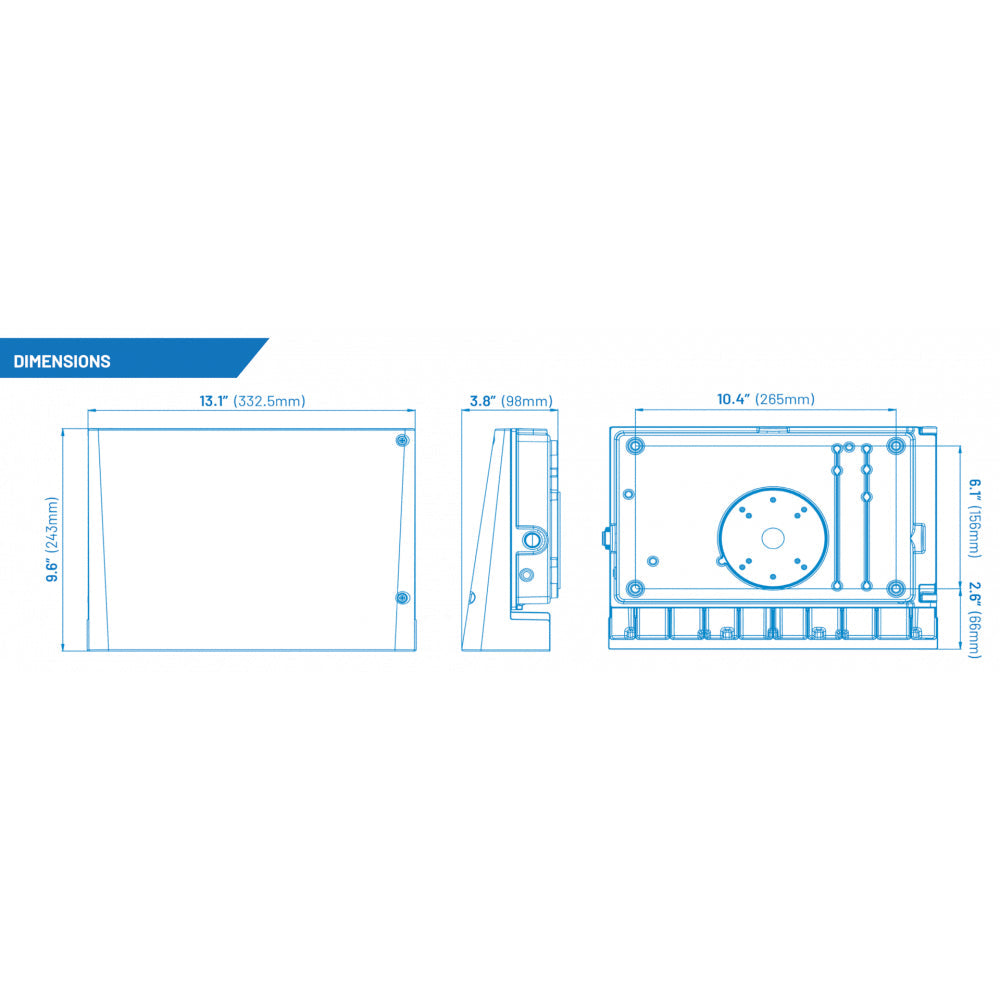

- Product Sizes: 13.1"x9.6"x3.8"
- Listings: DLC Premium, UL Listed
- IP Rating: IP65
- Product Type: Wall Pack
- Generation: G1
- Color & Finish: Dark bronze
- Housing: Two-piece die-cast aluminum housing, thermally conductive LED panel and electrical chamber, heat-sink fins for LED module
- Light Source: LED - Selectable
- Voltage Rating: 120-277V, 50/60Hz constant current
- Warranty: 5 Year
- Labor Warranty: Yes
Product Files
Click for WFC Full Cutoff Wall Pack Spec Sheet
