Description

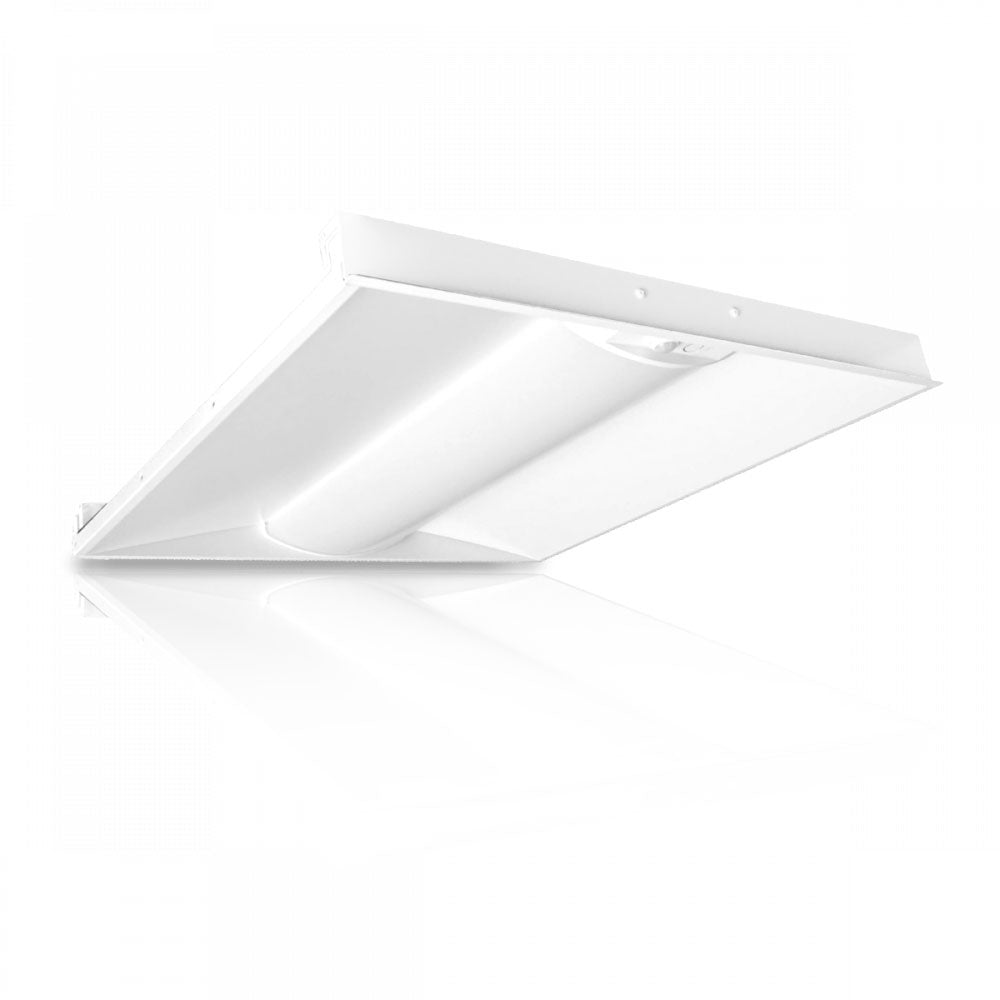

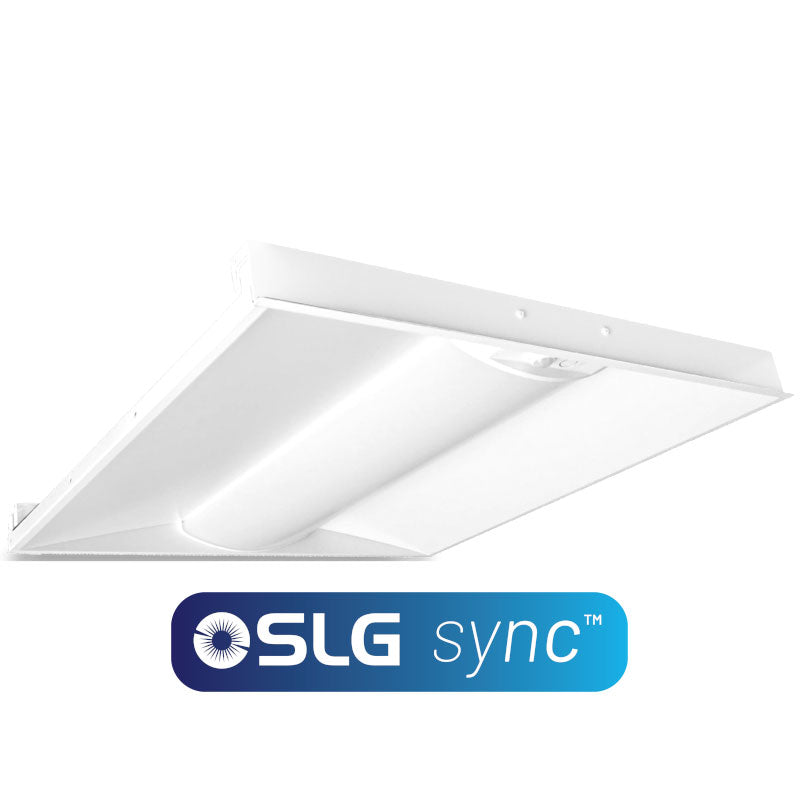

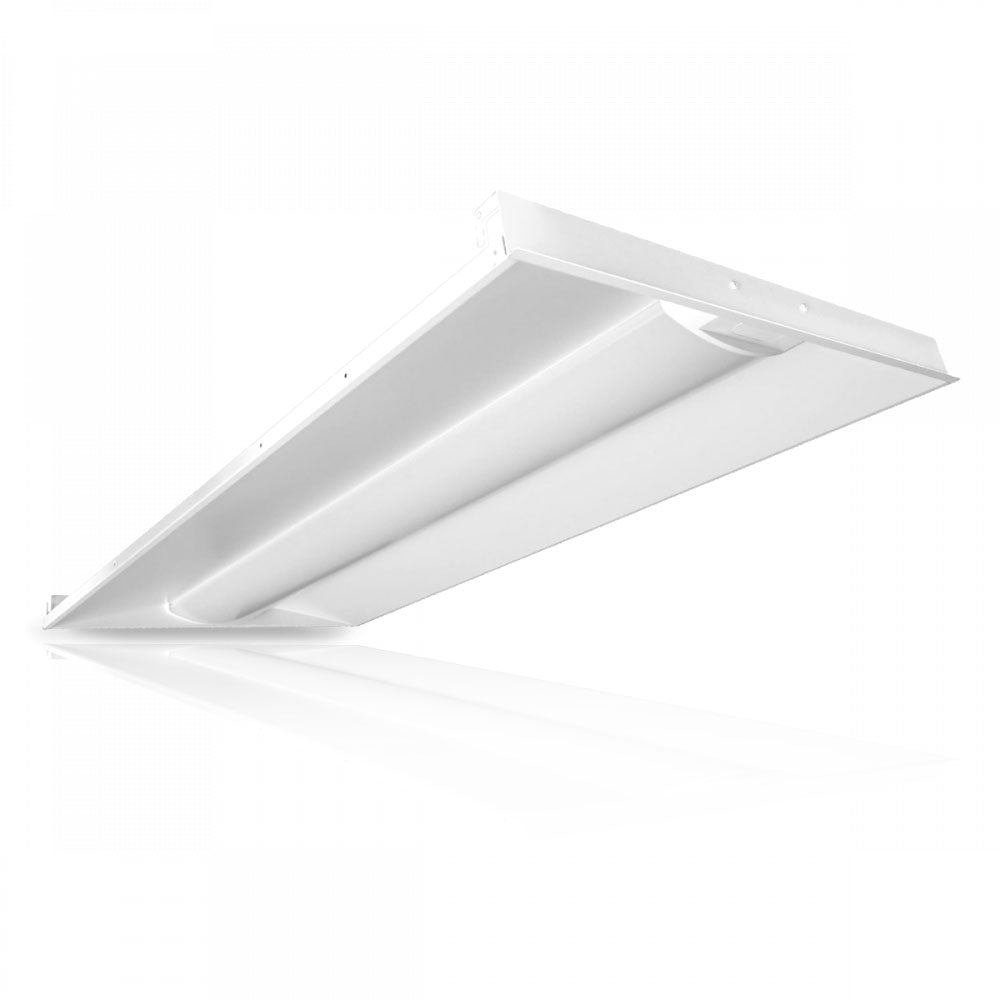

SLG Lighting TD Troffer Control Ready

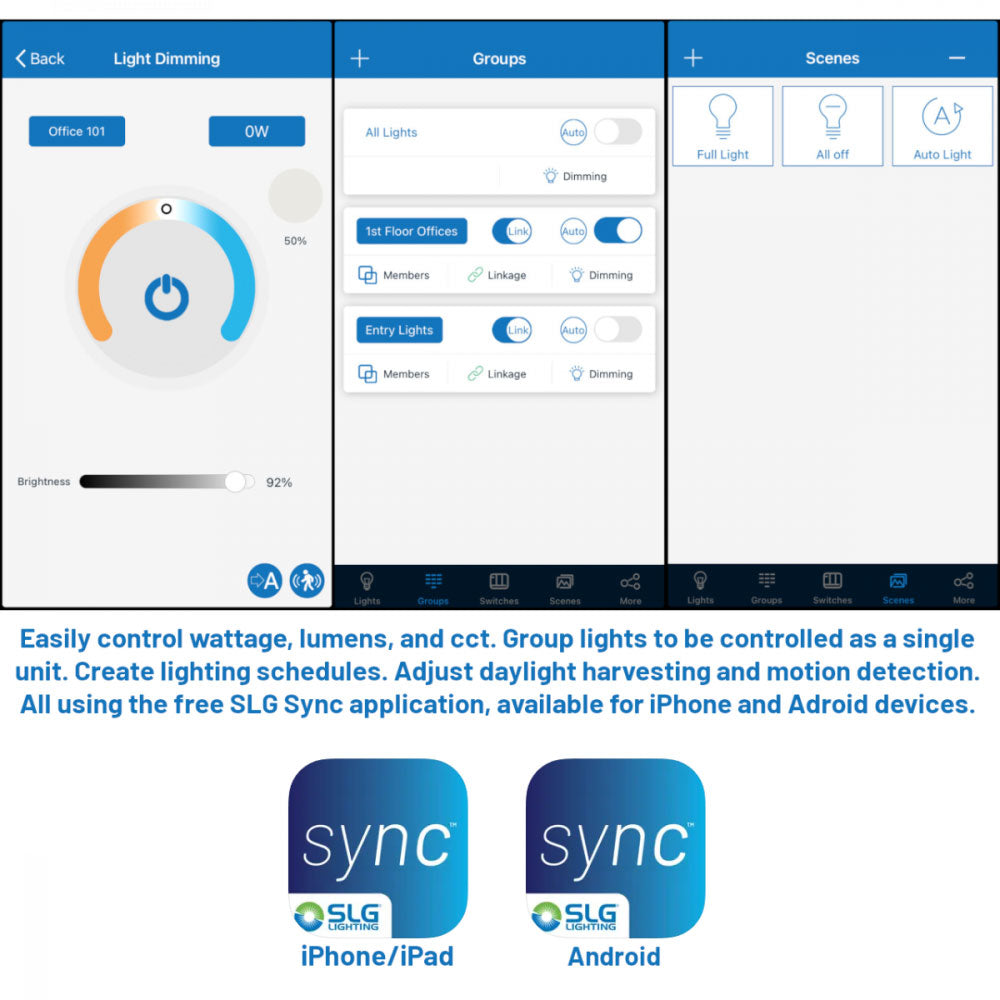

The TDB Bluetooth Controls Ready LED Troffer is a control experience LED troffer - designed to save you money, time, and install quickly. This controls ready fixture offers full lumen adjustable output and CCT color adjustable outputs and scheduling with our free mobile SLG Sync app.
Specifications
- Wattage: Max 35W 2x2, Max 45W 2x4
- Lumen Output: 4375/4410/4445/4480 Lm 2x2, 5625/5670/5715/5760 Lm 2x4
- Correlated Color Temperature (CCT): App adjustable range from 3000K-5000K
- Color Rendering Index (CRI): 80
- Product Lens: Frosted PMMA Lens
- Control: SLG Sync app controlled
- Accessories: Wall switch, Sensor, Energy Monitor
- Mounting Type: Grid ceiling, recessed drywall, surface mounting, and suspended installation
- Environment: Indoor
- Operating Temperature: -20° C to 45° C (-4° F to 113° F)
- Product Weight: 6.83Ln 2x2, 11.44Lb 2x4
- Shape: Rectangle
- Product Sizes: 2x2, 2x4
- Listings: UL, FCC, DLC/NLC Premium
- Product Type: Troffer
- Generation: G1
- Color & Finish: White
- Housing: Stamped sheet metal
- Light Source: LED - Selectable
- Voltage Rating: Standard 120-277V
- Warranty: 5 Year
- Labor Warranty: No
- Controls Type: Wireless Controller
- Connection Type: Integrated
- Wireless Standard: Bluetooth
- Antenna Type: Internal
- Comm Range: 200 ft. Max (depending on environment)
- Dimming Type: Class 2, 0-10V DC 10mA Max
- Aux Power Output: No
- Power Monitoring: Yes, requires optional monitor
- Software Updates: Yes
- Security Cert: NLC 5, UL Gold
- Sensor Inputs: Optional MSE-DCI-08 input
- Controls Title 24: Yes, requires optional monitor
- Controls Color Tuning: Yes
