Description

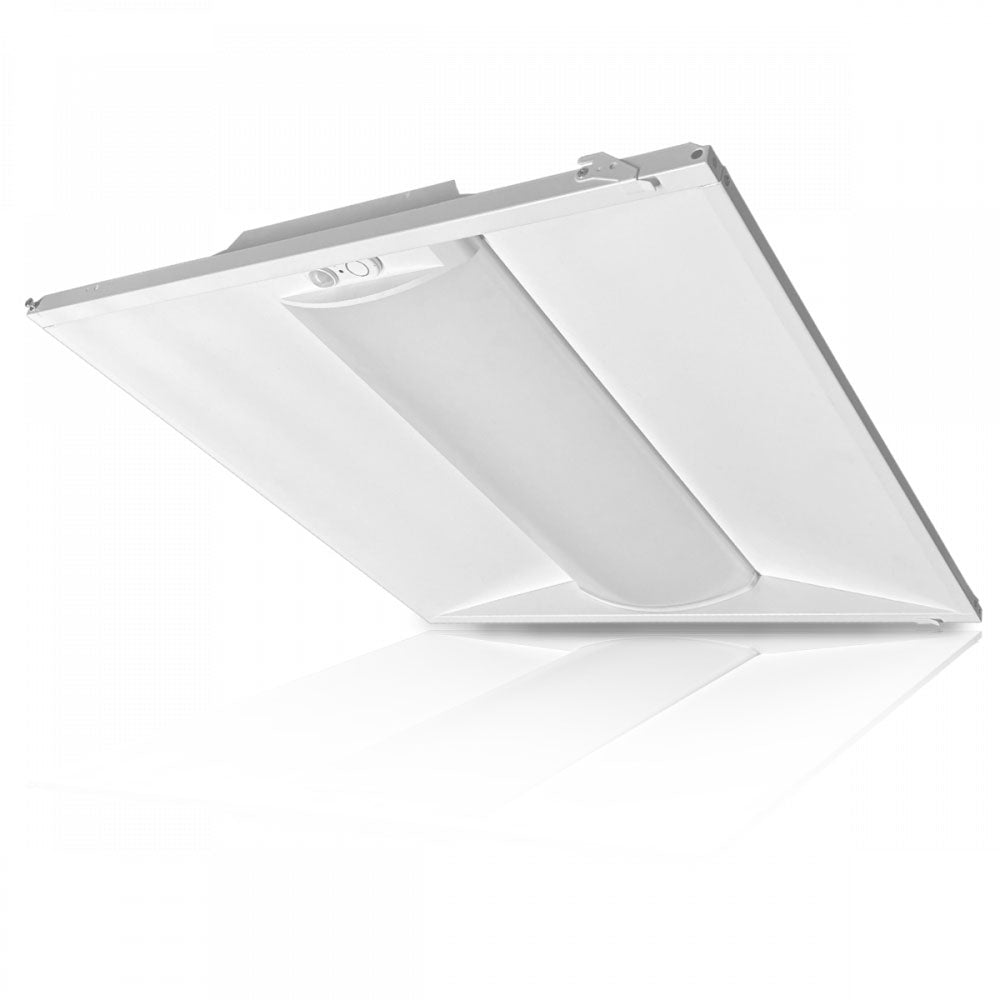

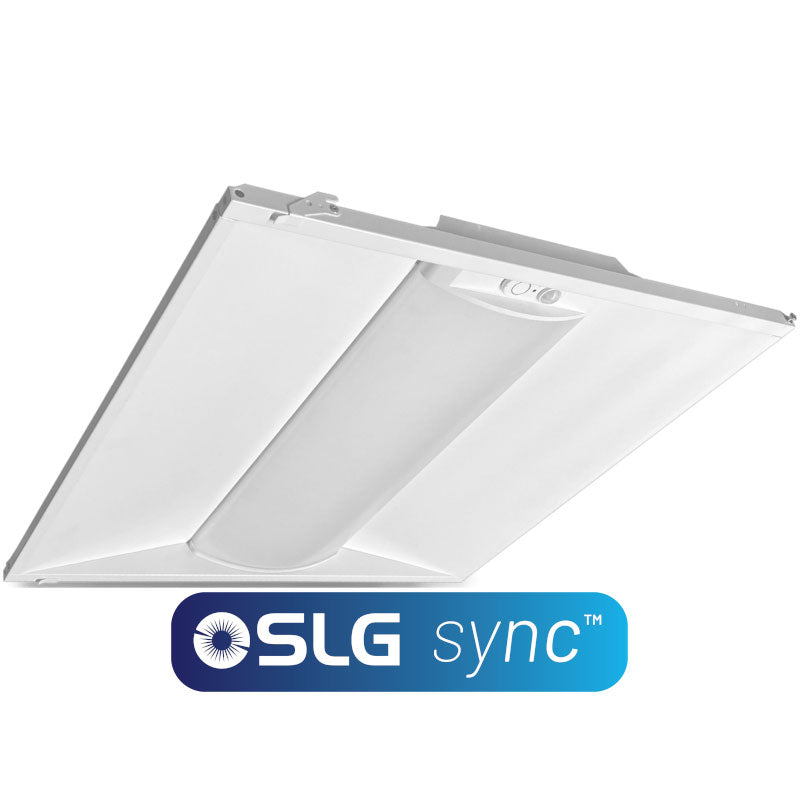

SLG Lighting TD Troffer Retrofit Kit Control Ready

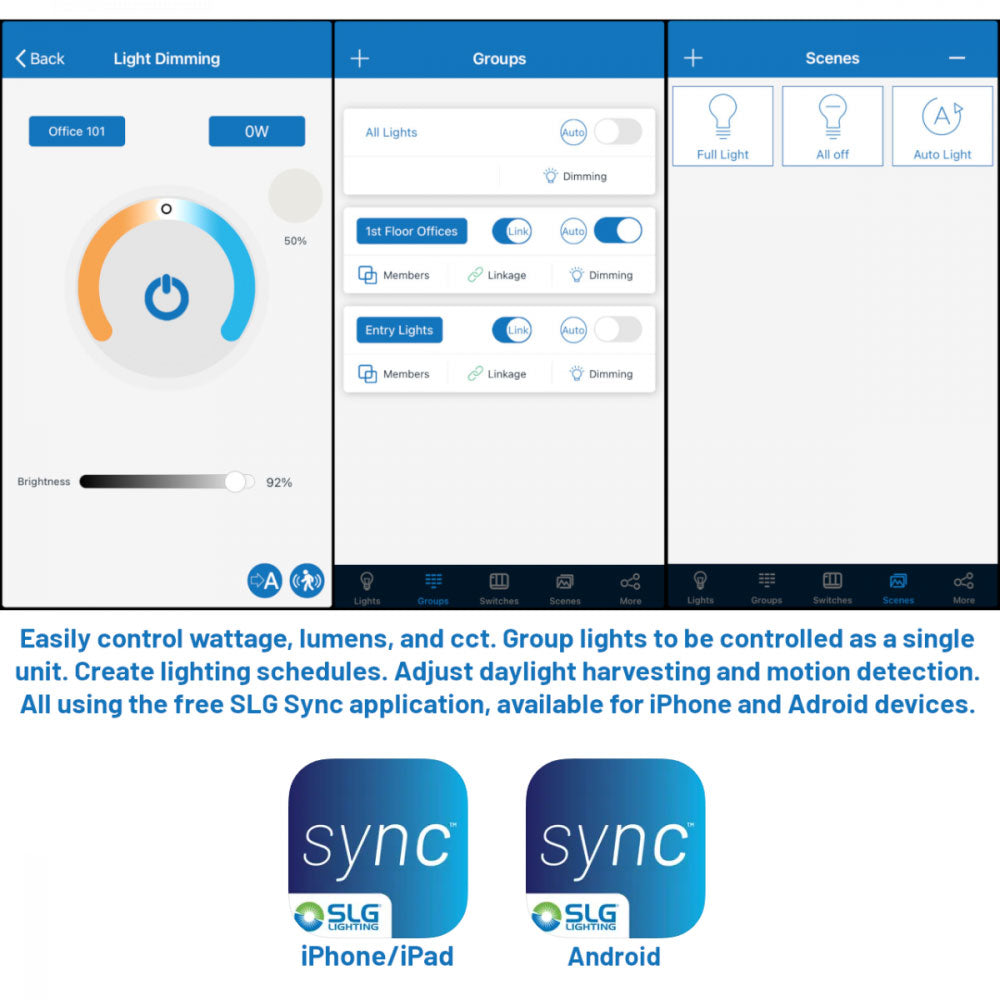

The TDRB Controls Ready Retrofit Kit Troffer is an LED Fixture with an integrated Bluetooth controls system. Designed to convert outdated fluorescent troffers into energy-efficient, contemporary LED systems. Includes everything needed for a seamless installation without removing the existing fixture mounting. The integrated Bluetooth controls system offers adjustment of lumens, wattage and CCT as well as advanced features like grouping, scenes and scheduling with our free SLG Sync mobile app.
Specifications
- Wattage: Max 35W 2x2, Max 45W 2x4
- Lumen Output: Max 4500 Lm 2x2, Max 5800 Lm 2x4
- Correlated Color Temperature (CCT): App adjustable range from 3000K-5000K
- Color Rendering Index (CRI): 80
- Product Lens: Frosted PMMA Lens
- Control: SLG Sync app controlled
- Accessories: Wall switch, Sensor, Energy Monitor
- Mounting Type: Recessed and surface mounting
- Environment: Indoor
- Operating Temperature: -20° C to 45° C (-4° F to 113° F)
- Product Weight: 8.66 Lb 2x2, 14.02 Lb 2x4
- Shape: Rectangle
- Product Sizes: 2x2, 2x4
- Listings: UL, FCC, DLC/NLC Premium
- Product Type: Troffer
- Generation: G1
- Color & Finish: White
- Housing: Stamped sheet metal
- Light Source: LED - Selectable
- Voltage Rating: Standard 120-277V
- Warranty: 5 Year
- Labor Warranty: No
- Controls Type: Wireless Controller
- Connection Type: Integrated
- Wireless Standard: Bluetooth
- Antenna Type: Internal
- Comm Range: 200 ft. Max (depending on environment)
- Dimming Type: Class 2, 0-10V DC 10mA Max
- Aux Power Output: No
- Power Monitoring: Yes, requires optional monitor
- Software Updates: Yes
- Security Cert: NLC 5, UL Gold
- Sensor Inputs: Optional MSE-DCI-08 input
- Controls Title 24: Yes, requires optional monitor
- Controls Color Tuning: Yes
Product Files
Click for TDRB Bluetooth Retrofit Troffer Spec Sheet
Click for TDRB Bluetooth Retrofit Troffer Installation Guide
