Description

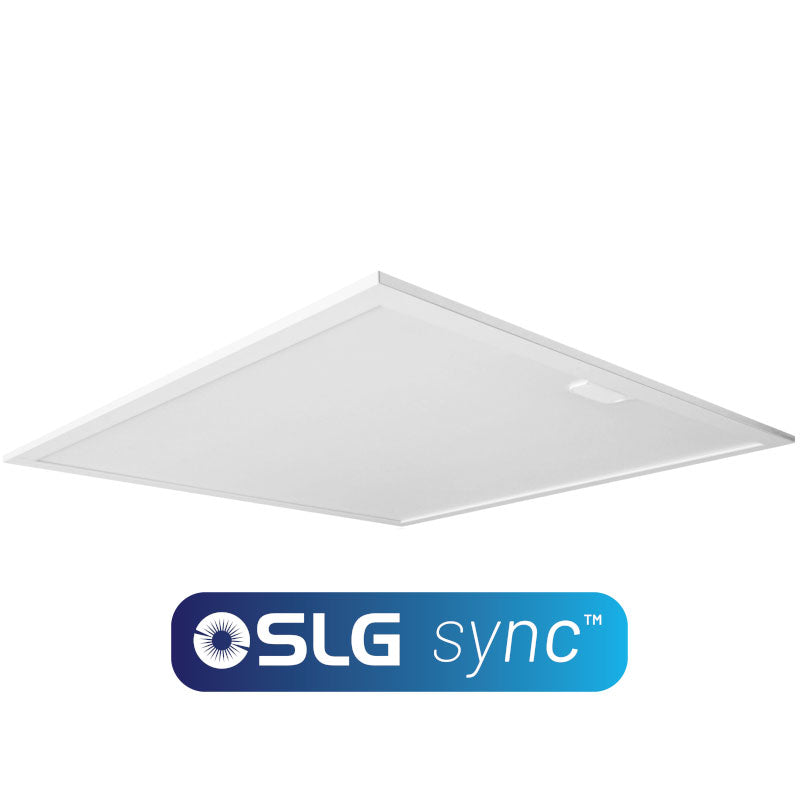

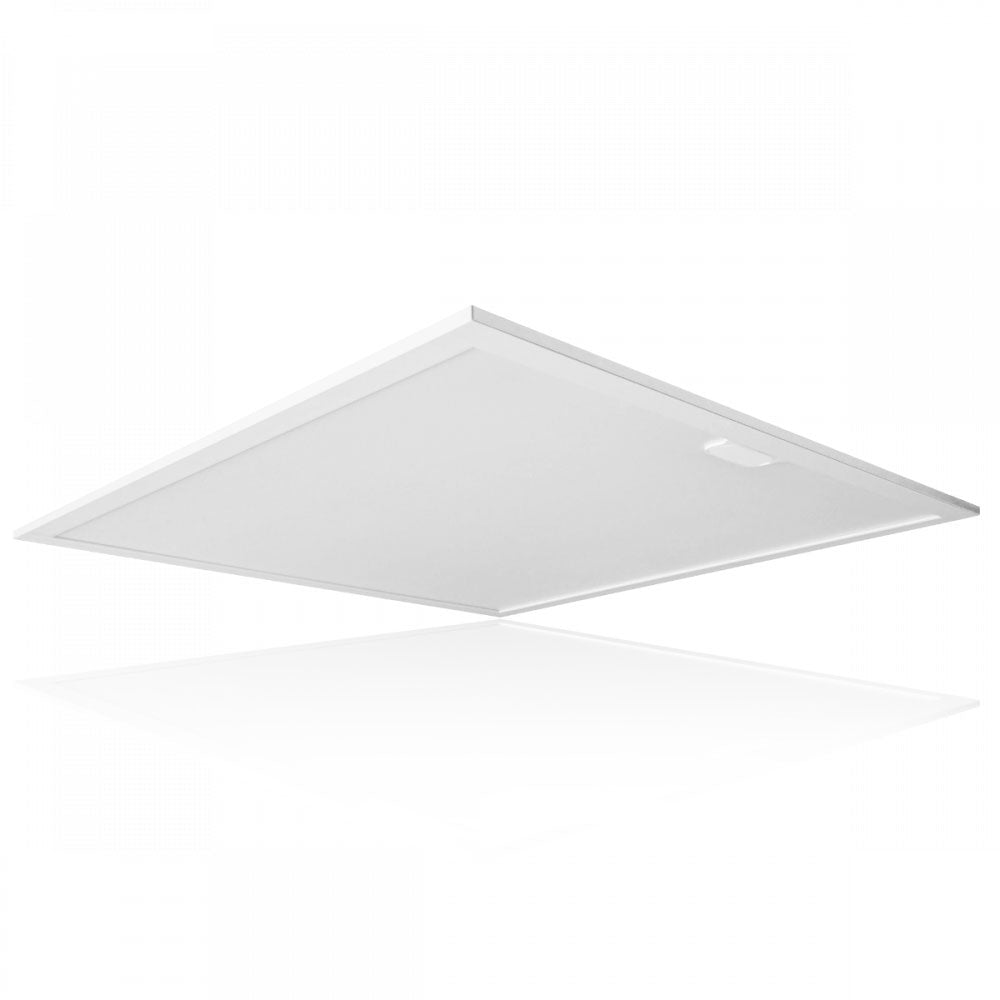

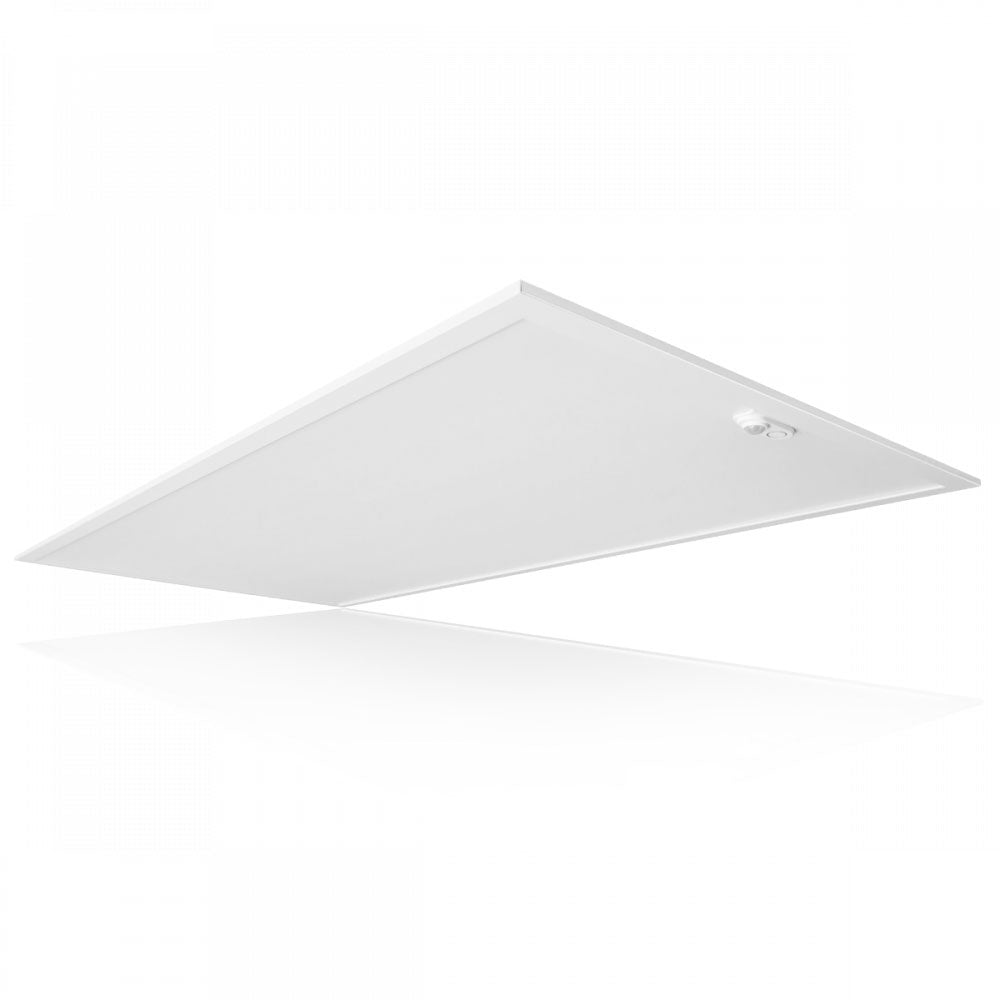

SLG Lighting TP Panel Control Ready

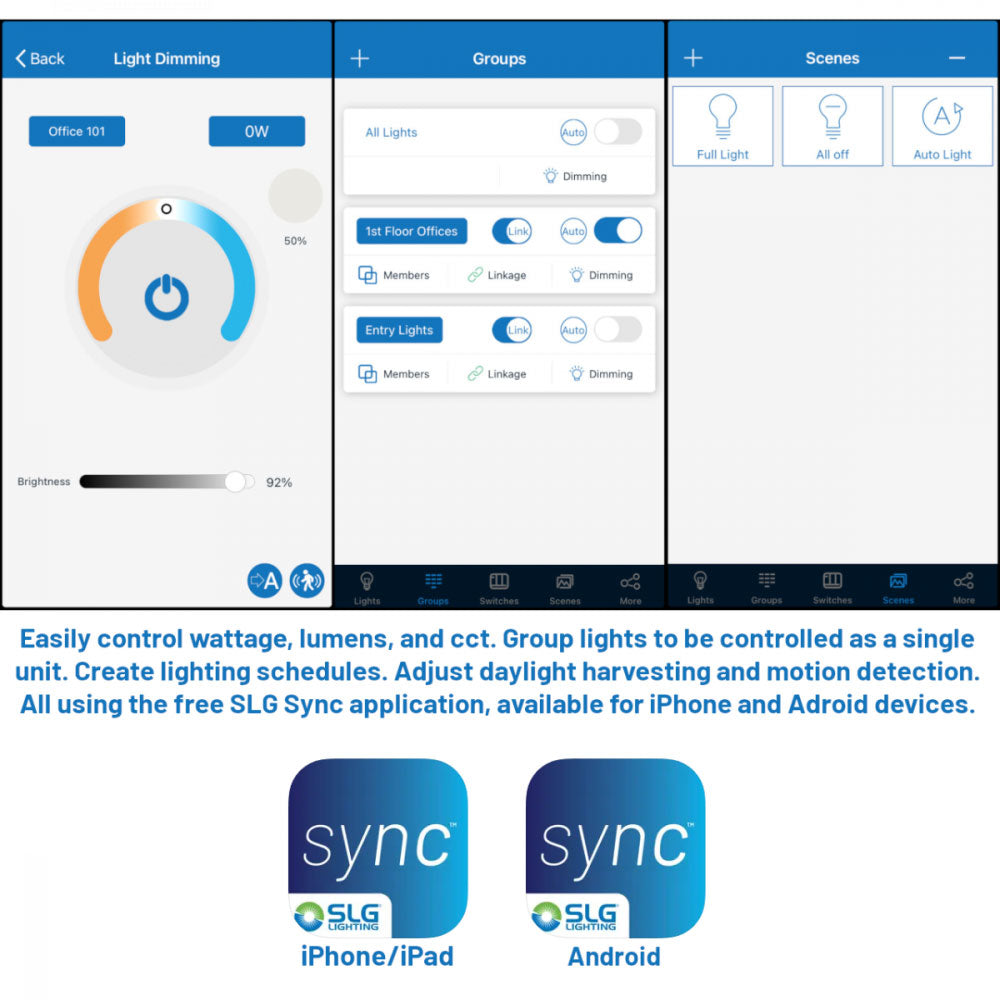

The TPB Bluetooth Controls Ready Panel is a stand alone control experience LED panel series - designed to save you money, time, and install quickly. Adjust lumens, wattage and color temperature using our free SLG Sync app. Available in 2'x 2', and 2' x 4' panels.
Specifications
- Wattage: Max 30W 2x2, Max 50W 2x4
- Lumen Output: Max 3800 Lm 2x2, Max 6400 Lm 2x4
- Correlated Color Temperature (CCT): App adjustable range from 3000K-5000K
- Color Rendering Index (CRI): 80
- Product Lens: Frosted polystyrene
- Control: SLG Sync app controlled
- Accessories: Wall switch, Sensor, Energy Monitor
- Mounting Type: Recessed ceiling mounting ready, optional surface or suspended mounting kit
- Environment: Indoor
- Operating Temperature: -20° C to 45° C (-4° F to 113° F)
- Product Weight: 5.84 Lb 2x2, 9.28 Lb 2x4
- Shape: Rectangle
- Product Sizes: 2x2, 2x4
- Listings: Ul, FCC, DLC/NLC Premium
- Product Type: Panel
- Generation: G1
- Color & Finish: White
- Housing: Extruded aluminum and sheet metal
- Light Source: LED - Selectable
- Voltage Rating: Standard 120-277V
- Warranty: 5 Year
- Labor Warranty: No
- Controls Type: Wireless Controller
- Connection Type: Integrated
- Wireless Standard: Bluetooth
- Antenna Type: Internal
- Comm Range: 200 ft. Max (depending on environment)
- Dimming Type: Class 2, 0-10V DC 10mA Max
- Aux Power Output: No
- Power Monitoring: Yes, requires optional monitor
- Software Updates: Yes
- Sensor Inputs: Optional MSE-DCI-08 input
- Controls Title 24: Yes, requires optional monitor
- Controls Color Tuning: Yes
