Soltech Lighting Solar LED Billboard Light BROADWAY PLUS
Solar LED Billboard Light BROADWAY PLUS is an installation friendly solar power sign fixture. When install BROADWAY PLUS solar led light, user do not have to do cabling, trenching, and permitting. It will save a lot of cost for them. More important, because it has IP65 waterproof body design, it can be installed in the wet place and has reliable performance in the same time.
Solar LED billboard light BROADWAY PLUS provides lighting for large and small billboards without the need for standard utility power. Billboards, entrance signs, building name signs and other similar items, oftentimes, are placed in locations with little or no access to the electrical grid. It has an extra solar panel can help improve the charging performance when the solar panel on the fixture is facing north. Connecting them to the grid involves investments of time and money, such as cabling, trenching, and permitting. Solar LED billboard light BROADWAY PLUS provides cost savings by eliminating the need to trench standard electric wires for installation and providing no electric bill for the life of the system. Solar LED billboard light BROADWAY has fast installation accessories names long arm mount to help users to mount it on the frame of the sign.
Generates More Solar Energy
- Crystalline Solar Panel with 45 degree tilted angle design. Harvest double the energy compared to horizontal panels
- Built-in tempered glass solar panel, designed to offer self-cleaning operation between rainy and sunny days

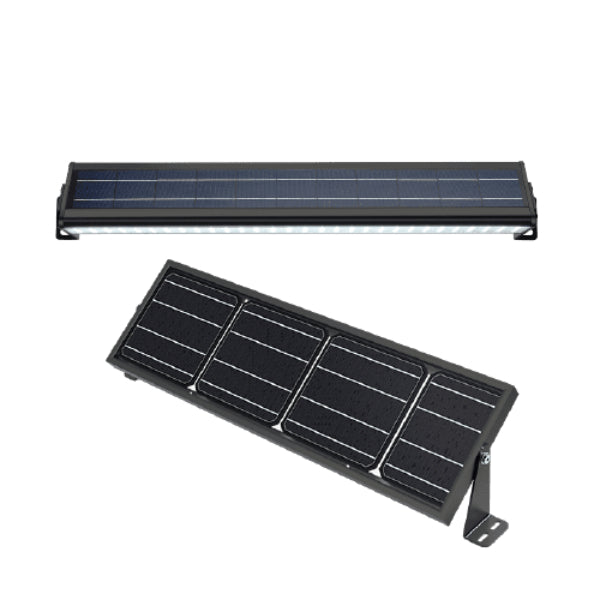

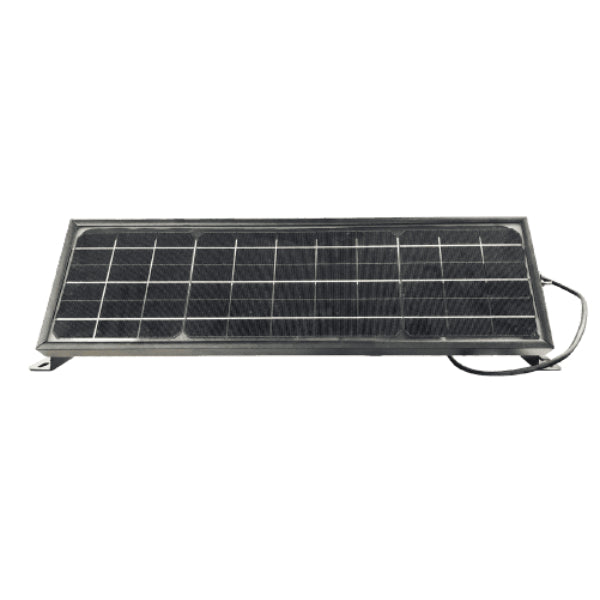

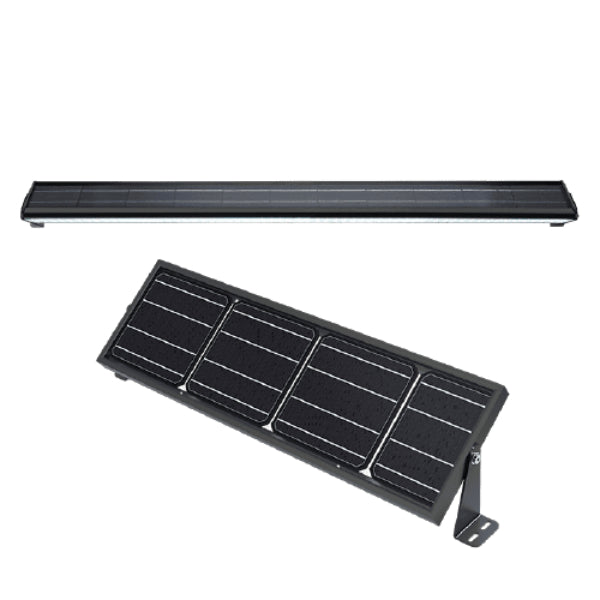

- Extra solar panel help enhance the solar charging performance when the build-in solar panel on the fixture is facing north
Dual-purpose Mounting Design
- Attached brackets design for thick boards installation and extended arms for thin boards mounting
Longer Life
- LED life 50000 hours
- Easy to change modular battery pack for further lifespan extension
- OSRAM LED chips for commercial-grade performance
Integrated Design
- Integrated solar panel and all-in-one design
- Air-craft grade aluminum
- Integrated Smart controller provides a real dusk to dawn illuminating profile all night long with first 4-hours at full brightness + 25% dim till dawn
Specifications
- Efficiency: 100lm/W
- Lumens: 1000lm, 2000lm
- Wattage: 10W, 20W
- Panels: 8Wp, 17Wp
- Extra Panels: 25W
- Battery Location: Integrated into the light
