Specialty Lighting Industries Grazefall 2" Linear Lensed Wall Grazer
Formerly 801 and 805

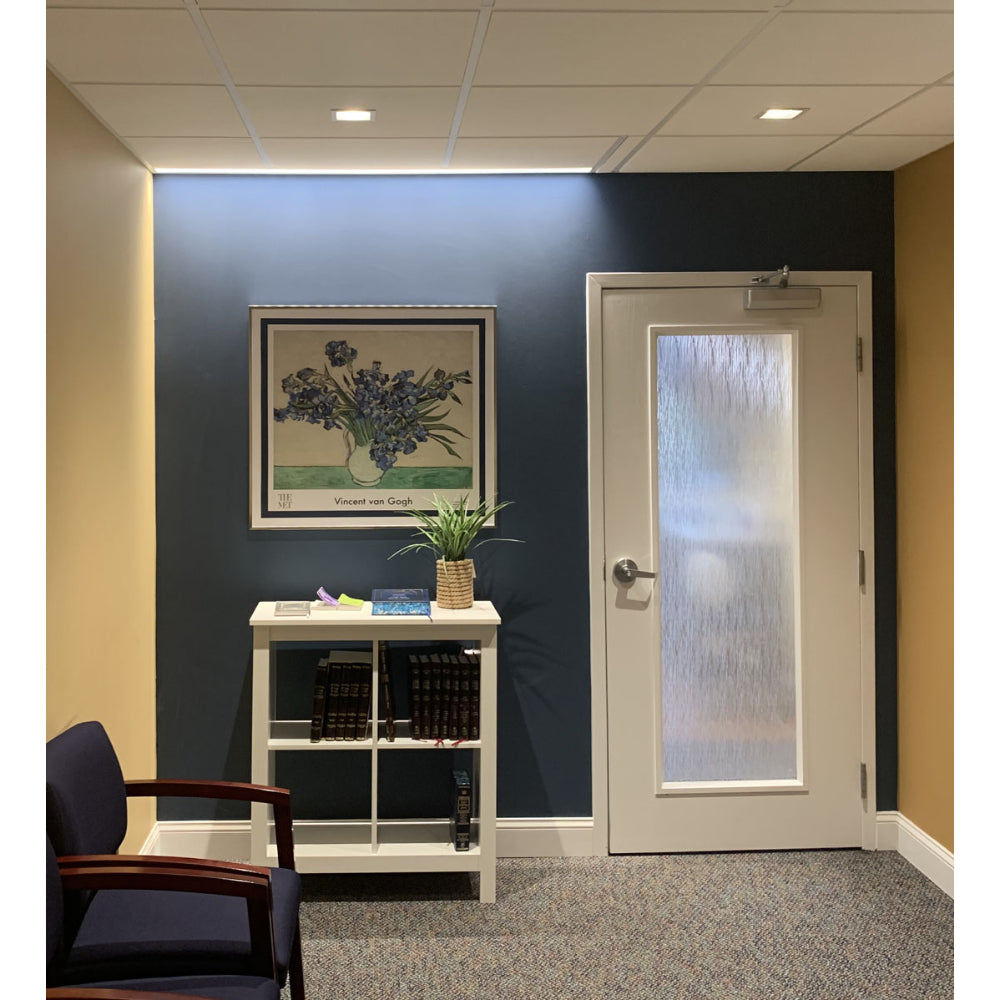

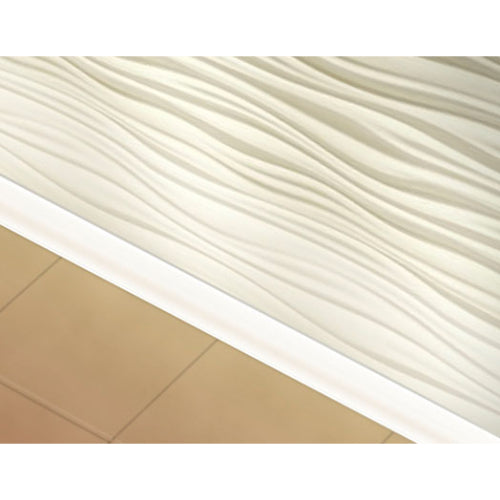

Welcome to GrazeFall, our family of premier linear wall grazers for highlighting beautiful materials and feature walls, revealing textures by contrasting light and shadow. This high performance 2" (55mm) lensed wall grazer is intended for walls up to 15 feet high and can be installed in the ceiling or in the floor as an uplight grazer. The continuous system can be specified to custom lengths at 6" increments with the option of flush or regressed lensed positions and a choices of flanged or flangeless trims in the ceilings. The narrow profile fixture is ideally suited to highlight the texture in surfaces such as stucco or brick, illuminate flat surfaces such as venetian plaster, wood, or specular surfaces such as polished stone or stainless steel. The 2" GrazeFall family has additional product offerings, including baffled fixtures and wall mounted surface fixtures.
Key Points
- Lumens Range: 454-608Lm
- Trim Options: Flanged Trim, Flangeless Trim
- Beam Options: 18x50°, 32°
- Light Options: CRI - 90 R9 - 60
- Source Options: 8W/ft, 11W/ft, 18W/ft , Tunable
- Control Options: 0-10, Digital Ecosystem, DALI-2, DMX
Aperture Options
- Flush Lens (FL)
- Regressed Lens (RL)
- Up-light Lens (IH)
Product Files
Click for Specialty Lighting Industries Grazefall 2" Linear Lensed Wall Grazer Spec Sheet
Click for Specialty Lighting Industries Grazefall 2" Linear Lensed Wall Grazer Installation 1
Click for Specialty Lighting Industries Grazefall 2" Linear Lensed Wall Grazer Installation 2
