Description

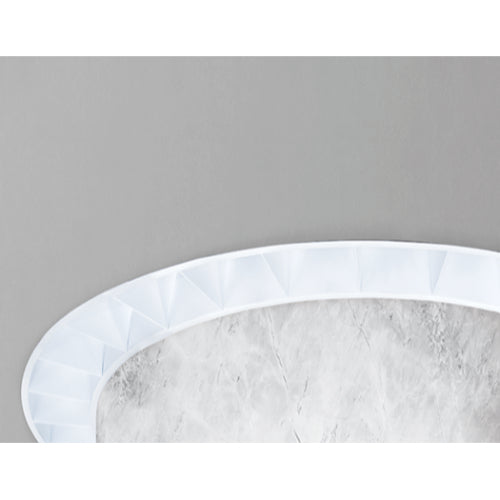

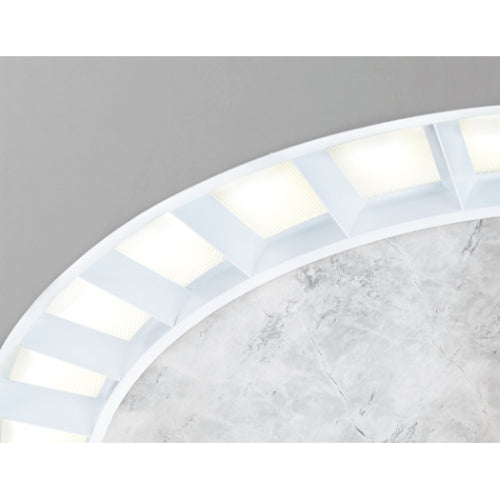

Specialty Lighting Industries Grazefall 4" Curved Baffled Wall Grazer
Welcome to the GrazeFall family of premier linear wall grazers for highlighting feature walls and revealing textures by contrasting light and shadow. We are introducing our curved wall grazer intended to light gently curving walls or tighter radiused columns. This version has the same high performance as our straight run 4" (105mm) wall grazer and is intended for high ceiling applications. With up to 4200 lumens and Center Beam Candle Power (CBCP) over 36000, this continuous system can be specified to custom lengths in nominal 4" increments. The fixture is available in 2 optical configurations: an open baffle system that maximizes throw with a 16° spot optic or a lensed baffle with a 16°x37° spread lens. The GrazeFall 4" slot fixture can be used in 30'+ ceiling heights, pushing light down the entire wall to highlight the texture in surfaces such as stucco or brick, illuminate matte surfaces such as venetian plaster, wood, or specular surfaces such as polished stone or architectural metals.
Key Points
- Lumens Range: 2460-4254Lm
- Beam Options: 16 / 16x37°
- Light Options: CRI - 90, 95 R9 - 60, 90, 68
- Source Options: 18W/ft, 42W/ft, 62W/ft, 17W/ft, 63W/ft, 15W Citizen, Tunable, Ambient Dim™
- Control Options: 0-10, DALI-2, DMX
Aperture Options
- Open Baffle 16° (OB)
- Lensed Baffle (LB)
Product Files
Click for Specialty Lighting Industries Grazefall 4" Curved Baffled Wall Grazer Spec Sheet
Click for Specialty Lighting Industries Grazefall 4" Curved Baffled Wall Grazer Installation 1
Click for Specialty Lighting Industries Grazefall 4" Curved Baffled Wall Grazer Installation 2
