SPJ Lighting SPJ-40L12 40W Transformer (Indoor)

SPJ Lighting

Mfg ID #: SPJ-40L12

  • $142.00
  • Save $149

Quick Ship - Normally ships within 48 hours

SPJ made to order items. No returns or cancellations are accepted.

Expert Support & Project Quotes

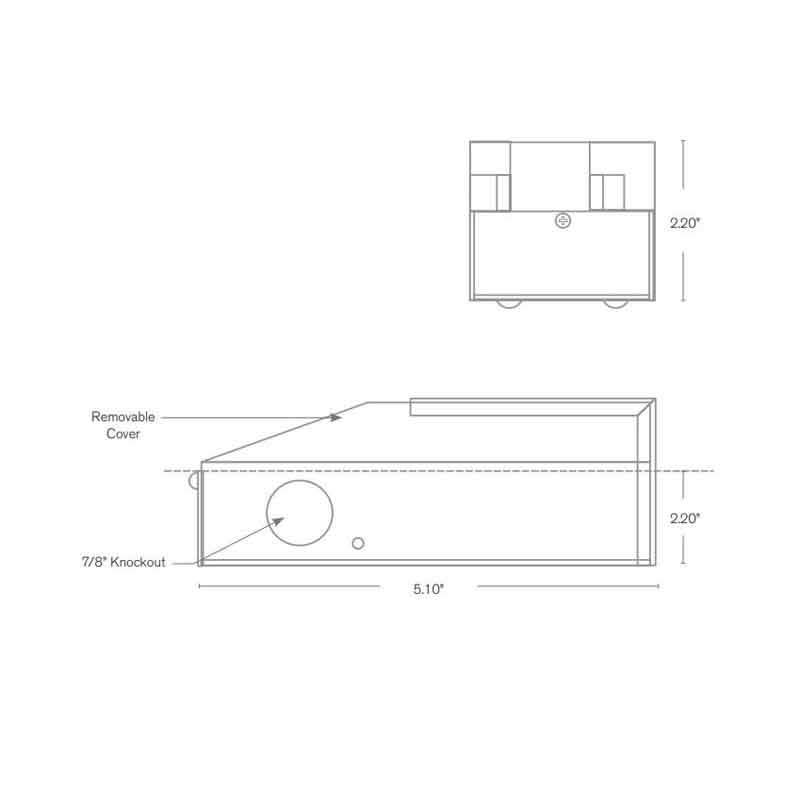

Input leads are 20 AWG. Output leads are 14 AWG. Lead insulation is 105 a°C.The transformer uses a class B 130 a°C insulation system. Enclosure temperature will not exceed 70 a°C @ 40 a°C ambient. Wiring compartment has 2 knockouts sized for 3/4 inch screw cable connectors. The removable cover for the wiring compartment is secured in place by a screw. The enclosure is black powder coated.

Features

  • Manual reset thermal circuit breaker on the secondary side
  • Controlled with a low-voltage dimmer.
  • ETL listed
  • CSA listed
  • UL standard 5085-1
  • NEMA 3R enclosure
  • Shown : Black
  • Maximum Load : 40 W
  • Input Voltage : 120 V 60 Hz
  • Output Voltage Full Load : 11.5 V
  • Input Current Full Load : 540 mA
  • Open Circuit Volts : 12.5 V
  • Output Current Full Load : 4.8 A
  • Efficiency: 89.20%
  • Coil Former : Double Section Bobbin
  • Thermal Class: B 130 a°C
  • Leads Primary: PVC 600 V #20
  • Leads Secondary: PVC 300 V #14
Product Files

Click for Product Spec Sheet

...Read More


Input leads are 20 AWG. Output leads are 14 AWG. Lead insulation is 105 a°C.The transformer uses a class B 130 a°C insulation system. Enclosure temperature will not exceed 70 a°C @ 40 a°C ambient. Wiring compartment has 2 knockouts sized for 3/4 inch screw cable connectors. The removable cover for the wiring compartment is secured in place by a screw. The enclosure is black powder coated.

Features

  • Manual reset thermal circuit breaker on the secondary side
  • Controlled with a low-voltage dimmer.
  • ETL listed
  • CSA listed
  • UL standard 5085-1
  • NEMA 3R enclosure
  • Shown : Black
  • Maximum Load : 40 W
  • Input Voltage : 120 V 60 Hz
  • Output Voltage Full Load : 11.5 V
  • Input Current Full Load : 540 mA
  • Open Circuit Volts : 12.5 V
  • Output Current Full Load : 4.8 A
  • Efficiency: 89.20%
  • Coil Former : Double Section Bobbin
  • Thermal Class: B 130 a°C
  • Leads Primary: PVC 600 V #20
  • Leads Secondary: PVC 300 V #14

SPJ Lighting Warranty:

  1. Lifetime warranty on all brass and copper fixtures.
  2. Selected Forever Bright LED products are warrantied for an unprecedented (10) ten years.
  3. guarantee on residential and (10) ten year guarantee on commercial use. The warranty takes effect from original date of purchase by the Original Purchaser.

  1. How does the SPJ raw copper look and will it patina over time?
    Answer: It starts like a brand new penny then it will Patina.

  2. Will the SPJ aged brass patina?
    Answer: Yes, all of our chemical finishes patina.
