Sternberg Lighting A850SRLED Old Town Intellistreets

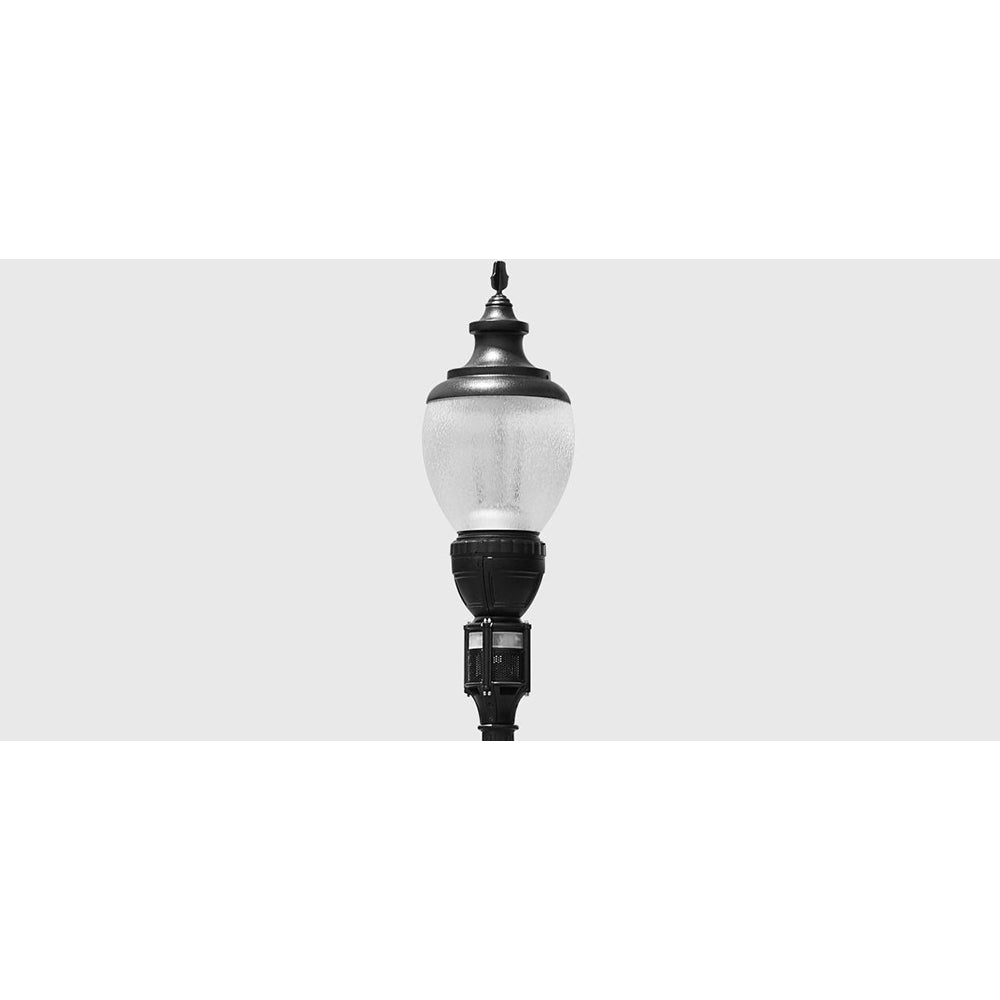

Traditional aesthetic acorn with a spun aluminium shade and finial
The A850SRLED Old Town Intellistreets luminaire blends form and function into a classic shape. It is supplied with a cast aluminium finial and a solid, cast aluminium roof which includes optimised heat sinks to provide maximum life and performance for the LED light sources. The acorn is sealed to the cast aluminium roof to provide a moisture free and bug-free optics chamber for the LED light source. As a standard the unit is supplied with RGBA flashers, concealed speaker and ECM.
EPA: 1.6 (ft²)
WEIGHT: 50 LBS
Features & Benefits
Available with Intellistreets® Technology
Intellistreets® is an integrated set of solutions offering the capability to see, hear, and record what’s happening on your streets, through both cameras and audio sensors.
Fitter
The fitter shall be heavy wall cast aluminium, 360 die cast alloy for high tensile strength. The fitter will have a hinged, tool-less entry door that provides open access to all of the components.
Electronic Control Module
The ECM is installed in the fitter and acts as the brain for the system. It includes (3) communication radios and inputs for all the smart city components.
Speaker
A 90 Db concealed speaker is installed in the fitter. The speaker is facing downward and protected behind perforated panels. Patented technology syncs the audio across multiple devices.
RGBA Flashers
The fitter includes 360 degree RGBA LED notification lights. These can be used for distress beacons, sequential strobing for routes and holiday accent lighting.
Light Sensor
An ambient light sensor is included to allow automatic scheduling over ride durring storms.
Serviceability
Tool-less access to the driver compartment.
UL Listing
UL listed per UL1598 for Wet Locations and CSA 22.2 No. 250.0 for the US and Canada.
Electronic Driver
Driver installed integral to Luminaire. Fixture includes a high efficiency driver with a THD less than 20% and a high power factor greater than .9. The driver is dimming capable using a 0-10v signal.
IP Rating
IP65 rated
Finish
6 Stage Polyester Powdercoat paint system
Warranty
7-year limited warranty
Product Files
Click for A850SRLED Intellistreets Spec Sheet
Click for Intellistreets Catalogue
