Streetworks Lighting UFLD-S Small Utility Floodlight LED Flood Lights

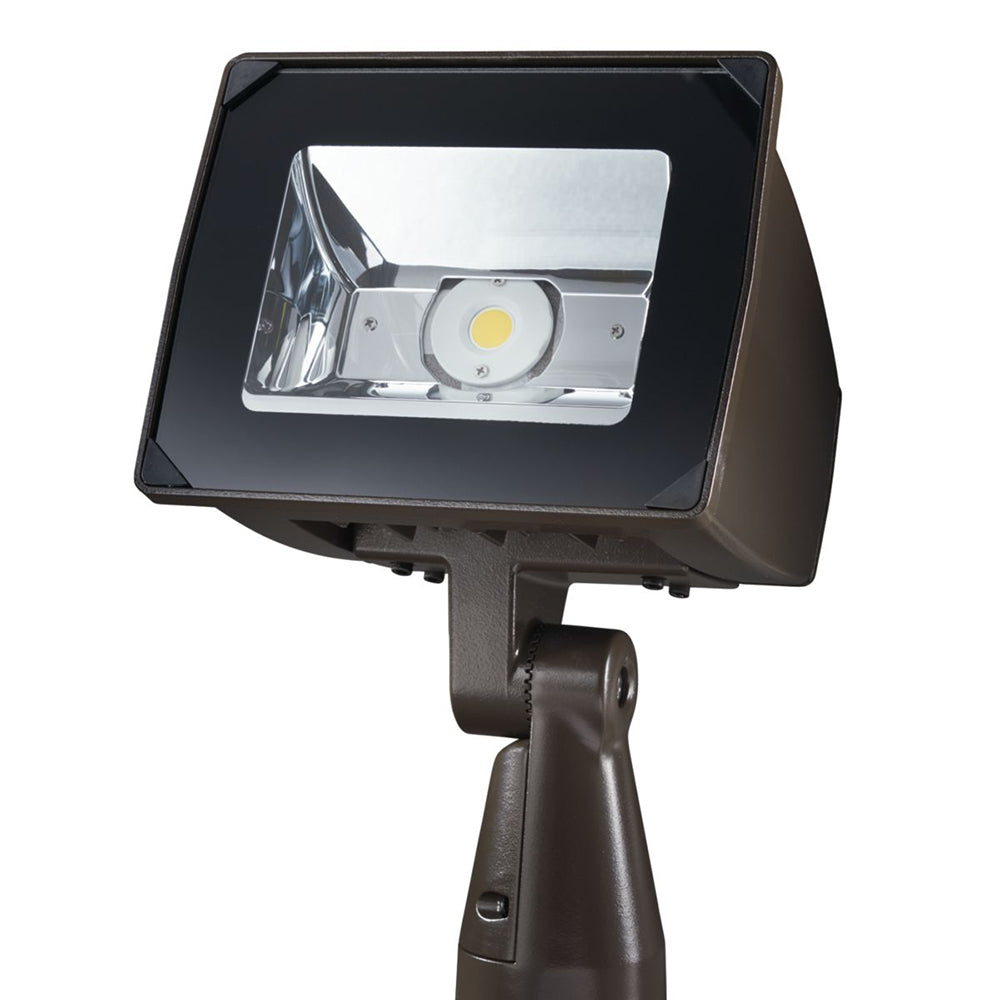

Streetworks Lighting UFLD-S Small Utility Floodlight

Combining value and performance in a compact, robust design, the UFLD-S low wattage LED floodlight luminaire delivers superior uniformity and excellent illumination. The rugged, die-cast housing is IP66 rated for exceptional durability and long term reliability. Available in several mounting configurations and weighing less than 14 pounds, this fixture provides you with design flexibility while simplifying installation. The UFLD-S floodlight can be wall, ground, or pole mounted, making it ideal for all commercial, industrial, and residential low wattage floodlighting applications.

• LED replacement for up to 150W metal halide floodlights
• Die-cast aluminum housing, driver compartment and driver door
• Three lumen packages ranging from 3,000 - 7,000 lumens
• Two optical distributions 3H x 3V (Spot), 6H x 6V (Wide)
• Available in 2200K, 2700K, 3000K, 4000K, or 5000K CCT
• 120-277V 50/60Hz, 347V 60Hz or 480V 60Hz
• Knuckle, trunnion and slipfitter mounting options
• ANSI 7-pin, ANSI 3-pin, and button photocontrols available

Product Files

Click for Streetworks UFLD LED Utility Flood Small

Click for Streetworks UFLD LED Utility Floodlight Brochure

Click for Streetworks Installation Instructions UFLD-S

Click for FADC Field Adjustment Installation Instructions

Click for Streetworks UFLD LED Utility Floodlight Features and Benefits

Click for Infrastructure and Public Works Brochure
