Streetworks Lighting UTLD Traditionaire LED Downlight Post Lighting

Streetworks LightingSKU: UTLD

Model #: UTLD-PA1-60-740-U-SL3-BK-HSS

Variant

Price:

$1,104.00 USD

Quantity:

Share this product

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

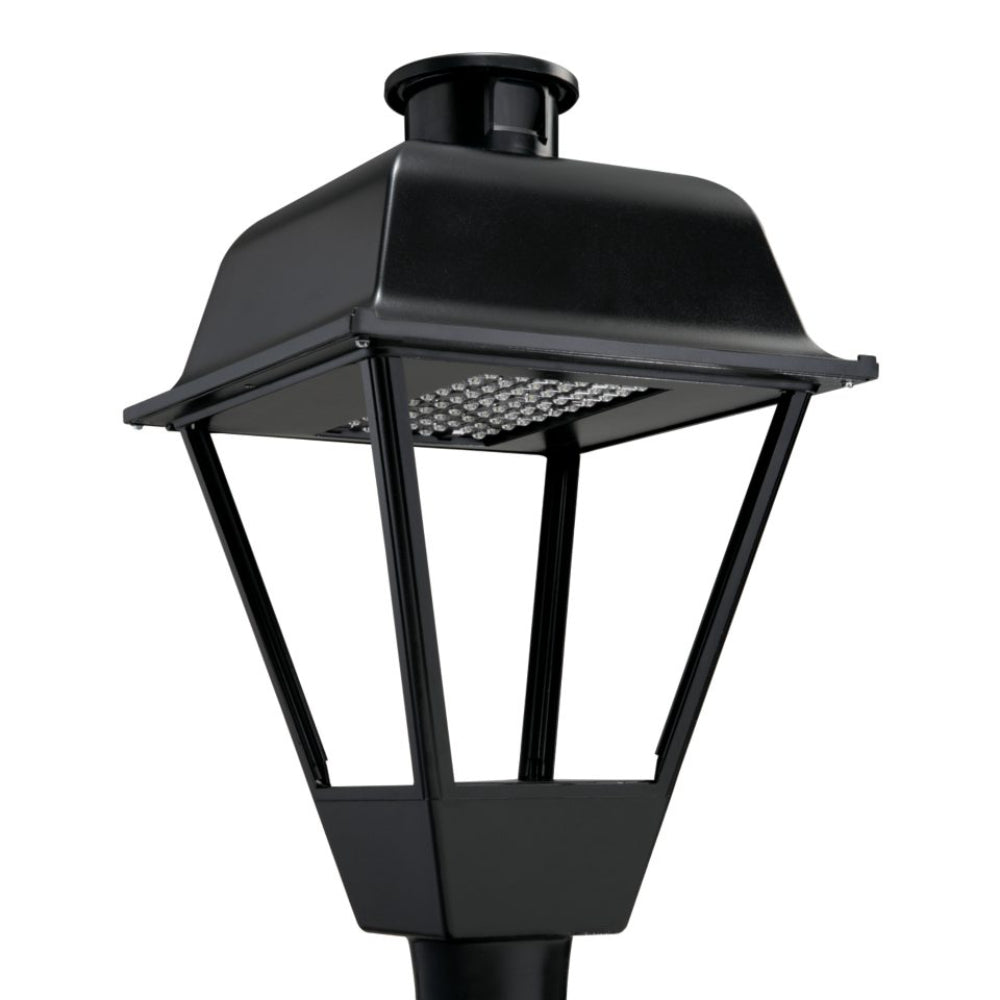

Streetworks Lighting UTLD Traditionaire LED Downlight Post Lighting

Old-fashioned charm. Discrete advanced optic technology.

The Traditionaire LED outdoor luminaire displays the old-fashioned charm of traditional area lighting, enhancing any setting with distinctive styling. The high-lumen downlight configuration uses discreet LEDs with patented AccuLED Optics technology to deliver uniform and efficient illumination to pedestrian and roadway applications.

Ideal for these spaces

Industrial
Municipalities
Residential
Roadway
Utility-DOT

Four lens options

Choose from multiple lens options including Clear, Textured, Frost and Refractive for your desired style preference.

Light ARchitect Augmented Reality App

We've taken the guesswork out of lighting design with Light ARchitect, an augmented reality mobile app, that lets you instantly visualize light fixtures in your space. Browse, configure and customize the fixtures to match your vision. Virtually turn lights on to get the full effect. Take screenshots to share and email to clients or colleagues. Light ARchitect is free and available for iOS, Android, and web browsers.

Features

Die-cast aluminum construction, IP66 rated, 3G vibration rated
Up to 141 lumens per watt
Lumen range: 2,000 - 11,000, 9 lumen packages
120-277V 50/60Hz, 347V 60Hz or 480V 60Hz operation
Greater than 98% lumen maintenance after 60,000 hours at 40°C
Self-aligning pole-top fitter for 3" O.D. pole tops or vertical tenons

Product Files

Click for Streetworks UTLD Traditionaire Spec Sheet

Click for Streetworks UTLD Traditionaire Lumen Tables

Click for Solar-Enabled UTLD Traditionaire specification sheet

Click for Streetworks LED Lighting Solutions Brochure

Click for Streetworks Decorative Brochure

Click for Streetworks Installation Instruction Sheet for UTLD Traditionaire LED Downlight

Click for FADC Field Adjustment Installation Instructions

Click for Streetworks Product Selection Guide Brochure

Click for Streetworks UTLD Traditionaire Design Improvements

Click for UL Certificate of Compliance - e328008-3-14

We deliver worldwide

Your shipping service or ours

Project quotes

Competitive project quotations

Top-notch support

Personal expert service

Secure payments

The latest payment technologies

Description
Product Files
Streetworks Outdoor Finishes
Cooper Lighting Warranty

Description

Streetworks Lighting UTLD Traditionaire LED Downlight Post Lighting

Old-fashioned charm. Discrete advanced optic technology.

The Traditionaire LED outdoor luminaire displays the old-fashioned charm of traditional area lighting, enhancing any setting with distinctive styling. The high-lumen downlight configuration uses discreet LEDs with patented AccuLED Optics technology to deliver uniform and efficient illumination to pedestrian and roadway applications.

Ideal for these spaces

Industrial
Municipalities
Residential
Roadway
Utility-DOT

Four lens options

Choose from multiple lens options including Clear, Textured, Frost and Refractive for your desired style preference.

Light ARchitect Augmented Reality App

We've taken the guesswork out of lighting design with Light ARchitect, an augmented reality mobile app, that lets you instantly visualize light fixtures in your space. Browse, configure and customize the fixtures to match your vision. Virtually turn lights on to get the full effect. Take screenshots to share and email to clients or colleagues. Light ARchitect is free and available for iOS, Android, and web browsers.

Features

Die-cast aluminum construction, IP66 rated, 3G vibration rated
Up to 141 lumens per watt
Lumen range: 2,000 - 11,000, 9 lumen packages
120-277V 50/60Hz, 347V 60Hz or 480V 60Hz operation
Greater than 98% lumen maintenance after 60,000 hours at 40°C
Self-aligning pole-top fitter for 3" O.D. pole tops or vertical tenons

Product Files

Click for Streetworks UTLD Traditionaire Spec Sheet

Click for Streetworks UTLD Traditionaire Lumen Tables

Click for Solar-Enabled UTLD Traditionaire specification sheet

Click for Streetworks LED Lighting Solutions Brochure

Click for Streetworks Decorative Brochure

Click for Streetworks Installation Instruction Sheet for UTLD Traditionaire LED Downlight

Click for FADC Field Adjustment Installation Instructions

Click for Streetworks Product Selection Guide Brochure

Click for Streetworks UTLD Traditionaire Design Improvements

Click for UL Certificate of Compliance - e328008-3-14

Streetworks Outdoor Finishes

Streetworks finishes

Cooper Lighting Warranty

Limited Warranty

(a) Seller warrants to each original Buyer of Products that Products are, at the time of delivery to the Buyer, in good working order and conform to Seller’s official published specifications, provided that no warranty is made with respect to any Products, ballasts, lamps, component parts, or accessories manufactured by others but supplied by Seller.

(b) Seller’s obligation under this warranty for any Product proved not to be as warranted within the applicable warranty period is limited to, at its option, replacing the Product, refunding the purchase price of the Product, or using reasonable efforts to repair the Product during normal business hours at any authorized service facility of Seller. All costs of transportation of any Product claimed not to be as warranted and of any repaired or replacement Product to or from such service facility shall be borne by Buyer.

(c) Seller may require the return of any Product claimed not to be as warranted to one of its facilities as designated by Seller, transportation prepaid by Buyer, to establish a claim under this warranty. The cost of labor for removing a Product and for installing a repaired or replacement Product shall be borne by Buyer. Replacement parts provided under the terms of this warranty are warranted for the remainder of the warranty period of the Products in which they are installed to the same extent as if such parts were original components. Warranty services provided under these terms and conditions do not assure uninterrupted operations of Products; Seller shall not be liable for damages caused by any delays involving warranty service.

(d) The warranty period for Products is twelve (12) months from the date of shipment unless otherwise agreed by Seller in writing.

(e) EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, SELLER PROVIDES PRODUCTS AS-IS AND MAKES NO OTHER REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, REGARDING THE PRODUCTS, THEIR FITNESS FOR ANY PARTICULAR PURPOSE, THEIR MERCHANTIBILITY, THEIR QUALITY, THEIR NONINFRINGEMENT, OR OTHERWISE. IN NO EVENT SHALL SELLER BE LIABLE FOR THE COST OF PROCUREMENT OR INSTALLATION OF SUBSTITUTE GOODS. THIS WARRANTY SPECIFICALLY EXCLUDES POLE FAILURE RESULTING FROM A THIRD-PARTY ACT OR OMISSION, MISUSE, UNANTICIPATED USE, FATIGUE, FAILURE, OR SIMILAR PHENOMENA RESULTING FROM INDUCED VIBRATION, HARMONIC OSCILLATION, OR RESONANCE FROM AIR CURRENT MOVEMENT AROUND THE PRODUCT. THIS WARRANTY SPECIFICALLY EXCLUDES POLES INSTALLED WITHOUT THE LUMINAIRES OR WITH UNAPPROVED DEVICES SUCH AS BANNERS, PENNANTS, CAMERAS, OR SIGNS, FOR WHICH THE POLE WAS NOT DESIGNED. USE OF SUCH ACCESSORIES MAY RESULT IN INJURY, DEATH OR PROPERTY DAMAGE. THIS WARRANTY SPECIFICALLY EXCLUDES POLES USING PRE-EXISTING ANCHORAGES, ANCHOR BOLTS, OR BOLT ADAPTERS NOT SUPPLIED BY COOPER LIGHTING. IT ALSO EXCLUDES ISSUES RELATED TO FOUNDATION OR SOIL CONDITIONS AT THE INSTALLATION SITE.
