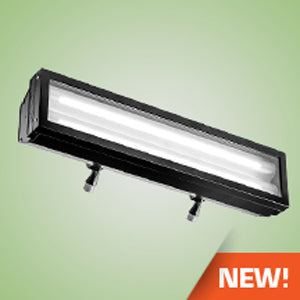

Techlight ASL LED Sign Light
Application
The ASL Series LED Sign Lighter is designed illuminating architectural surfaces and commercial signage. Areas with limited accessibility due to fixture location or where heavy pedestrian or vehicle traffic makes maintenance difficult are ideal applications. The low profile design keeps the fixture placement discrete for both ground and wall mounted applications.
Construction
The heavy duty housing is constructed of extruded aluminum. An extruded hinge runs longitudinally to hold the lens captive. The hinge may be released to remove the lens for routine maintenance or to aid in wiring multiple fixtures within a series. A linear diffuser provides even light coverage.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.
Electrical System
Long life LEDs and high efficiency drivers work together to provide superior performance in an efficient package to deliver optimal performance. LEDs available in 3000K and 4000K with a CRI >82. Electronic drivers are available in 120/277 volt applications. 0-10V dimming as well as 50% step dimming capabilities available upon request. When in the step dimming 50% position the 0-10V leads may still be utilized for further dimming control.
Mounting
The fixture is provided with two 1/2" adjustable knuckles. 38" stand-off brackets are available for wall mounting.
Listings
ETL listed. Classified according to the new 1598C safety standard.
Warranty
The complete luminaire is covered by a 5-year limited warranty.
