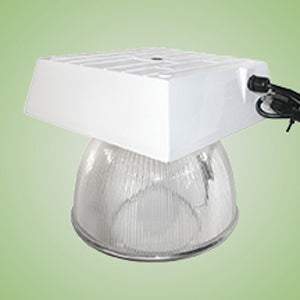

Techlight CLD High Bay Canopy
Application
The CLD Canopy light was designed to provide exceptional light levels for task oriented environments. The prismatic refractor allows for up light to avoid the "cave effect", while punching light down towards the work plane. The totally enclosed optics makes this fixture ideal for dirty and dusty environments.
Construction
The upper housing is made from die cast aluminum with a powder coat paint finish. The prismatic refractor is enclosed with a clear flat lens. ETL listed.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.
Optical System
Multi-patterned prismatic refractor provides 360° illumination.
Electrical System
Available in 50W thru 175W standard metal halide, pulse-start metal halide, and high pressure sodium. Comes standard with a 4KV pulse rated mogul base socket. Each 60HZ CWA multi-tap1 or 480V ballast is pre-wired and installed for convenience.
Mounting
Housing is equipped with two side conduit entries and one top conduit entry. A mounting plate is provided for direct mounting to a standard 4" junction box.
Note: High Pressure Sodium lamps are steadily being discontinued and becoming less common. Please consult the factory for availability of High Pressure Sodium models.
