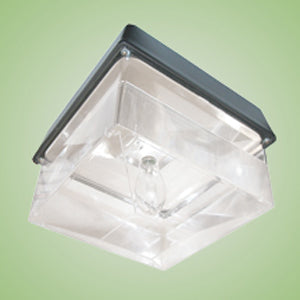

Techlight CLG Garage Canopy
Application
The CLG Canopy light was designed as a high performance canopy light for high traffic areas. The rugged construction and precision optical system makes this fixture ideal for parking garages or other high traffic areas.
Construction
The housing is constructed of die cast aluminum. The vandal resistant patterned clear polycarbonate lens is gasketed to provide for weather tight protection. ETL listed.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.
Optical System
Multi-patterned, clear acrylic lens. Impact resistant and UV stabilized to prevent yellowing. Segmented specular reflector. Internal "light separator" band works with the refractive patterns on the lens to create distinct areas of up light and down light and reduces the amount of light in the direct line of sight for pedestrians and automobiles.
Electrical System
Available in 70W thru 175W standard metal halide, pulse-start metal halide, and high pressure sodium. Comes standard with a 4KV pulse rated mogul base socket. Each 60HZ CWA multi-tap1 or 480V ballast is pre-wired and installed for convenience.
Mounting
Housing is equipped with two side conduit entries and one top conduit entry. A mounting plate is provided for direct mounting to a standard 4" junction box.
Note: High Pressure Sodium lamps are steadily being discontinued and becoming less common. Please consult the factory for availability of High Pressure Sodium models.
