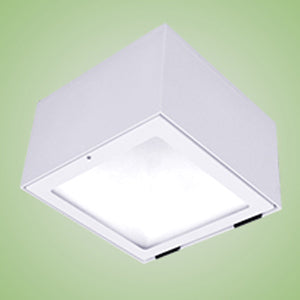

Techlight CVM Extruded Vertical Burn Canopy
Application
The CVM Canopy light was designed for mid-level lighting under storefront awnings, I-Beam mounting, or any surface mount general lighting application. The welded seams provide a smooth constructed look that can be integrated into any design concept. Quick release hinges make access for maintenance easy.
Construction
The fixture is constructed of .12" thick extruded aluminum with a welded seam. The hinged door frame is constructed of extruded aluminum with mitered corners to fit the lens. A Polyethylene Foam gasket is used for a watertight seal.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.
Optical System
High quality faceted aluminum reflector designed around a vertical lamp orientation. Flat prismatic lens standard.
Electrical System
Provided with a 4KV pulse rated socket assembly. Fixtures are available with a 150W-400W Metal Halide lamp and ballast system. Each 60HZ CWA multi-tap, 480V, or Fluorescent ballast is pre-wired and installed for convenience.
Listings
Permanently mounted via four .25" mounting holes and hardware pack provided by Techlight. Two (2) .88" conduit entries are provided.
Note: High Pressure Sodium lamps are steadily being discontinued and becoming less common. Please consult the factory for availability of High Pressure Sodium models.
