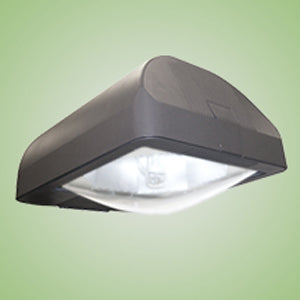

Techlight ENT Enterprise Series Large Designer Shoebox
Application
The ENT Large Designer Shoebox is designed for general-purpose area lighting with an aesthetically pleasing design. It is the perfect choice for lighting large open areas for safety and security. Retail applications, parking areas, or even wall mount applications for security lighting are all suitable applications for this fixture.
Construction
Constructed from architecturally shaped die cast aluminum housing. The door frame features a tool-less latch with stainless steel hardware. A silicone gasket provides a weather tight seal.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.
Optical System
The fixture uses high efficiency faceted reflectors available in a multitude of beam patterns. Vertical lamp positions are available with a tempered sag glass lens. Horizontal lamp positions are available with either a sag or flat lens and are Star Light Friendly when the flat lens is utilized.
Electrical System
A 4KV pulse rated mogul base socket is provided standard. Fixtures are available from 250W-1000W Metal Halide. Each fixture is available with either a multi-tap or 480V CWA magnetic ballast that is pre-wired for convenience.
Mounting
Standard mounting options include 3" and 12" Straight Arms with internal bolt guides for square and round pole mounting.
Click for Photometrics-ENT-20-403-277-402-1 25AFG 0DEG.PDF
Click for Photometrics-ENT-20-900-277-900-1 25AFG 0DEG.PDF
Click for Photometrics-ENT-30-403-277-402-1.PDF
Click for Photometrics-ENT-30-900-277-900-1 30AFG 0DEG.PDF
Click for Photometrics-ENT-31-403-277-402-2.PDF
Click for Photometrics-ENT-31-900-277-900-2 30AFG 0DEG.PDF
Click for Photometrics-ENT-40-403-277-402-1.PDF
Click for Photometrics-ENT-40-900-277-900-1.PDF
Click for Photometrics-ENT-41-403-277-402-1.PDF
Click for Photometrics-ENT-41-900-277-900-1.PDF
Click for Photometrics-ENT-42-403-277-402-1.PDF
Click for Photometrics-ENT-42-900-277-900-1.PDF
Click for Photometrics-ENT-43-403-277-402-1.PDF
Click for Photometrics-ENT-43-900-277-900-1.PDF
Click for Photometrics-ENT-44-403-277-402-2.PDF
Click for Photometrics-ENT-44-900-277-900-2.PDF
Click for Photometrics-ENT-50-403-277-402-1.PDF
Click for Photometrics-ENT-50-900-277-900-1.PDF
