Description

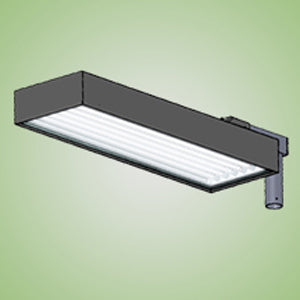

Techlight GLXS Galaxy Fluorescent Area Light
Application
This fixture is designed as an energy saving alternative to HID area lighting systems. It is suitable for parking lots, roadways, secuirty or general illumination.
Features
Energy efficient. Optimized for T5 lamp performance. Miro 4 reflector standard to achieve maximum light output. Instant on/off allows for use of sensors and other controls. Superior color rendering enhances visual perception. Long lamp life reduces maintenance costs. Exceeds Dark Sky full cutoff requirements.
Construction
Housing is constructed of aircraft grade extruded aluminum. Extruded and hinged door frame holds protective lens using a one piece continuous gasket for a water tight seal. The fixture features captive screws to hold the lens and door frame. Socket bar and reflector assembly is independently hinged for hands free access to the ballast cavity.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. 3000 hr minimum salt spray. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.
Electrical System
Available in 2, 3, 4, 6 or 8 light electronic T5 configurations. ETL listed. Suitable for wet locations. Ballasts are solid-state electronic T5 programmed start. 6 and 8 lamp versions can be set up on two circuits for 2-4 lamp on/off switching. Controls compatible with 0-10V dimming systems or optional photocontrols and motion sensors. System is compatible with in-line fusing mounted within a pole (provided by others).
Mounting
Standard mounting option is a heavy duty pole top fitter designed to mount on a 2-3/8" OD tenon. Additional mounting options may be available for custom applications.
