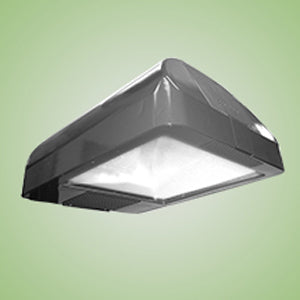

Techlight HDE High Definition Designer Automotive Shoebox
Application
The HDE High Definition Designer Automotive Shoebox is designed to produce a brilliant and consistent light pattern. Using the highest quality optical materials, this fixture produces unmatched color rendition and light output to meet the exacting standards of the auto retail industry.
Construction
Constructed from architecturally shaped die cast aluminum housing. The door frame features a tool-less latch with stainless steel hardware. A silicone gasket provides a weather tight seal.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.
Optical System
The fixture uses high efficiency faceted reflectors and premium optical components. It is available in a multitude of beam patterns. The horizontal lamp position offers exceptional optical control. The fixture was designed specifically for automotive retail applications.
Electrical System
A 4KV pulse rated mogul base socket is provided standard. Fixtures are available from 750W-1000W Metal Halide and Pulse-Start Metal Halide. Each fixture is available with either a multi-tap or 480V CWA magnetic ballast that is pre-wired for convenience.
Mounting
Standard mounting options include 12" straight arms for square or round poles. Additional mounting options are available in the accessories section.
