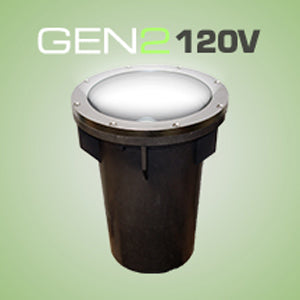

Techlight TDB3W-GEN2-120 Genesis Gen2 120V Medium LED Burial Light

TECHLIGHTSKU: TDB3WSP17WW120CRFL

Catalog #: TDB3WSP17WW120CRFL
Price:
Sale price$1,131.90 USD

Description

Techlight TDB3W-GEN2-120 Genesis Gen2 120V Medium LED Burial Light

Application

The Genesis Gen2 line of LED Lanscape Burial Lights are the most versatile LED fixtures on the market today. Various beam spreads and wattages allow for a customized finish to any property. The high end residential grade system was designed for 120V operation residential applcations.

Construction

The housing is made of compression molded fiber reinforced polyester composite. The color impregnated SR2 composite will not flake or peal. The LED light source is housed within a aluminum LED body with heat dissipating fins. An anti-siphon chamber is molded into the housing to keep internal electrical components from coming into contact with ground water. Multiple ring/guard assemblies are available for a customized finish.

Optical System

Techlights proprietary OpticapSystem™ utilizes interchangeable optical lenses & reflectors to increase fixture lumen output efficiency. The system is provided with a high performance convex lenticular prismatic flood or a plano-convex spot optical lens. The flood & spot optical lenses are molded from low iron tempered glass. A 96% reflective UV stabilized injection molded reflector is included with each system. A variety of glass color filters are available to meet the designers specific color control needs. The composite guard rotates 360° for glare control.

Electrical System

NOTE: A Techlight Surge Protector must be incorporated into the LED system at the beginning of each circuit as a minimum. Failure to do so will void the system warranty. Fixture operates at 120V input voltage. Nominal open circuit current .15 amps. A 17 watt LED source provides approximately 1086 (CW) Lumens of light. System is compatible with the use of a rotary TRIAC Dimmer.

Mounting

Fixtures are designed to be in-ground burial lights and should be installed according to the installation instructions made available by Techlight. Proper drainage and substrate must be provided for water to flow freely through the well sleeve. A 3/4" conduit entry is supplied into the anti-siphon chamber of the housing. Concrete pour kits available (see Accessories).

Listings

ETL listed for wet locations (IP67). Meets US and Canadian safety standards. -40°C to 40°C ambient operation.

TECHLIGHT USA RETURNED GOOD POLICY

There is a restocking charge on any item returned for credit or exchange. A restocking charge will be made on returned merchandise which does not have a confirmed RGA authorization number. All approved returns will be subject to a handling charge, freight, and cost of reconditioning and repacking if it is deemed necessary to restore the goods to realable form. Techlight reserves the right to adjust the restocking charge or refuse return authorization on the following exclusions. (1) If the product requires repackaging. (2) If the product is damaged. (3) Unsalable without excessive repair. (4) If the product is a custom color. (5) If the product is a custom order. (6) Damage to poles: all poles are shipped in a standard non-soluble, water resistant packing material, or may be completely packaged in cardboard and marked with warning notice for removal. Failure to remove the packaging upon arrival may result in damage to the pole finish, thus disallowing returns and voiding the warranty. It is the responsibility of the customer to inspect poles for freight damage upon deliver. Any claim for damages in transit must be made by the purchaser to the delivering carrier. Techlight will accept no responsibility for the failure to do so.
